Woodworking Machinery

1300mm Wood Brush Sander /Brush Sanding Machine/ Cabinet Sander

QINGDAO SOSN MACHINERY CO., LTD.
  • Type:Brush Sanding
  • Automatic Grade:Semiautomatic
  • Variable Speed:Variable Speed
  • Certification:CE, ISO
  • Customized:Customized
  • Condition:New

Base Info

  • Model NO.:SK1300-P6
  • Color:Iron Grey
  • Feeding Speed:5-20m,Min
  • Machine Name:Cabinet Brush Sanding Machine
  • Working Width:1300mm
  • Rollers:6 Roller Type
  • Transport Package:Strong Stretch Film
  • Specification:3650x1750x21000mm
  • Trademark:SOSN
  • Origin:China
  • Production Capacity:300sets,Month

Description

Basic Info.

Model NO. SK1300-P6 Color Iron Grey Feeding Speed 5-20m/Min Machine Name Cabinet Brush Sanding Machine Working Width 1300mm Rollers 6 Roller Type Transport Package Strong Stretch Film Specification 3650x1750x21000mm Trademark SOSN Origin China Production Capacity 300sets/Month

Product Description

Woodworking Brush Sanding Machine for curved surface sander

---Ideal for white wood, sealer, primer, MDF, and composite sanding applications for both flat and irregular surfaces.


 1.Function and Characteristics:

-- The machine suits  for sanding of kitchen Cabinet, Window, Door, Furniture…. etc.

-- The modular structure can be combined optionall to satify clients' demands.

-- Frequency conversion speed control is used in each group

-- Each group can adjust the height of the light, and the height of the worktable can be adjusted.

-- Each unit can be drawn out for sand sand shelf, or replace emery cloth sanding can parts more portable, easy operation and maintenance.

2.Technical Parameter:

Working width

1000mm/1300mm

Min.working length

500mm

working thickness

2-160mm

polishing roller speed

frequency control

feeding speed

5-20m/min

total motor power

13.67kw

Disc motor power

1.5KW

Horizontal polishing power

1.5KW *2

Vertical polishing power

2.2KW *2

Lifting motor power

0.37KW*4

Feeding motor power

0.55KW

Swing motor power

0.25KW *2

overall dimensions

3650x1750x21000mm

net weight

3200kg

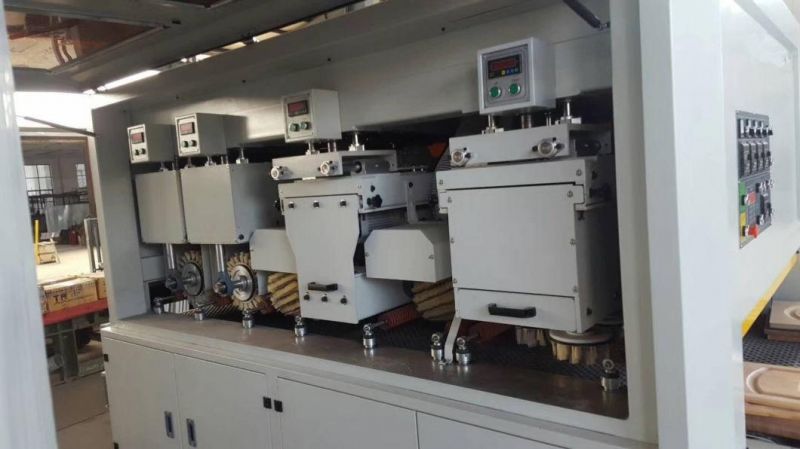

 3. Details show:1300mm Wood Brush Sander /Brush Sanding Machine/ Cabinet Sander

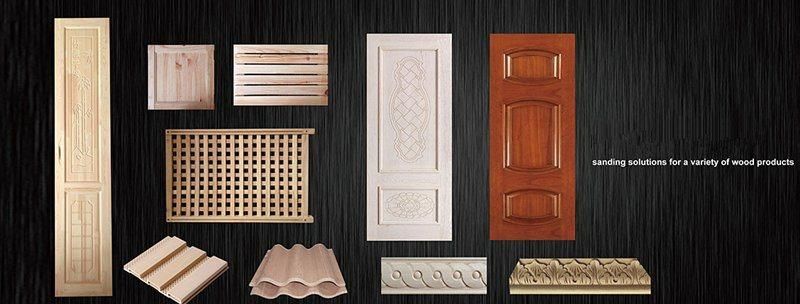

4. Samples:1300mm Wood Brush Sander /Brush Sanding Machine/ Cabinet Sander

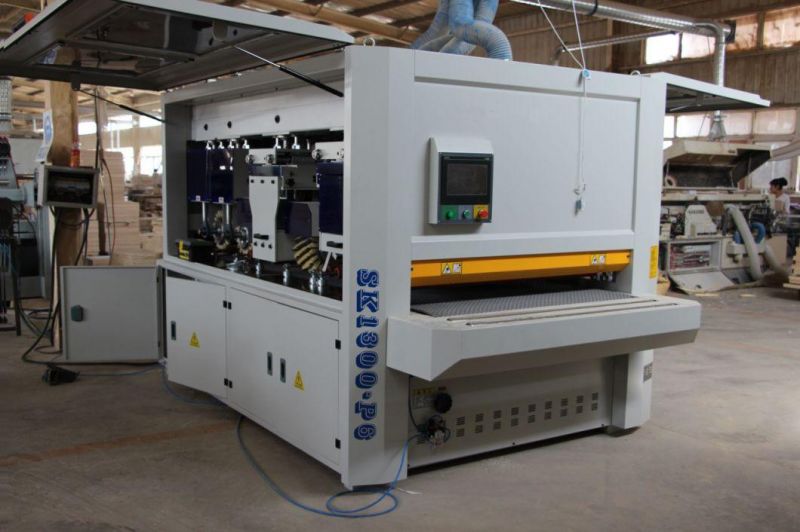

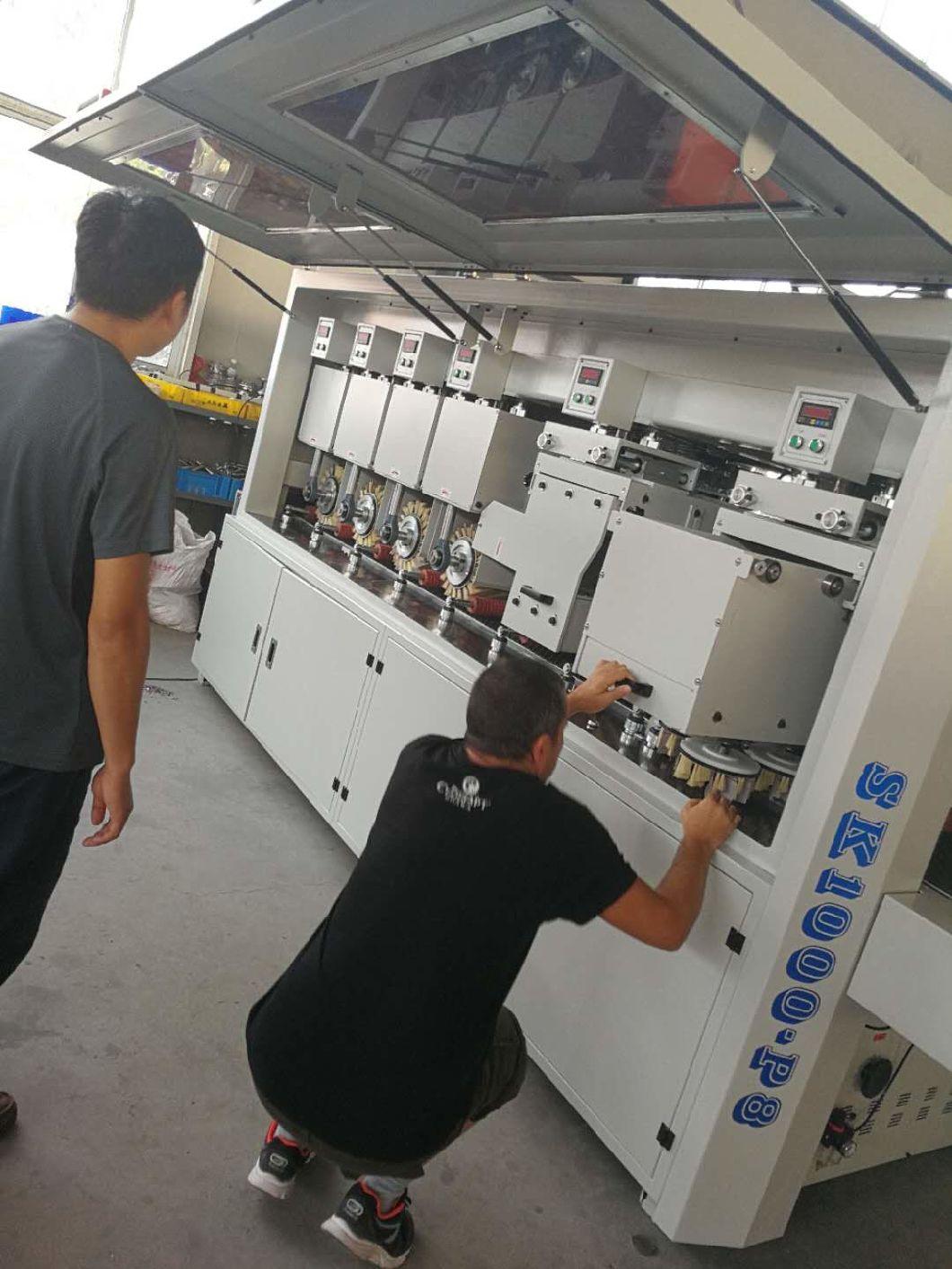

5.Machine in factory and exhibition:1300mm Wood Brush Sander /Brush Sanding Machine/ Cabinet Sander
1300mm Wood Brush Sander /Brush Sanding Machine/ Cabinet Sander

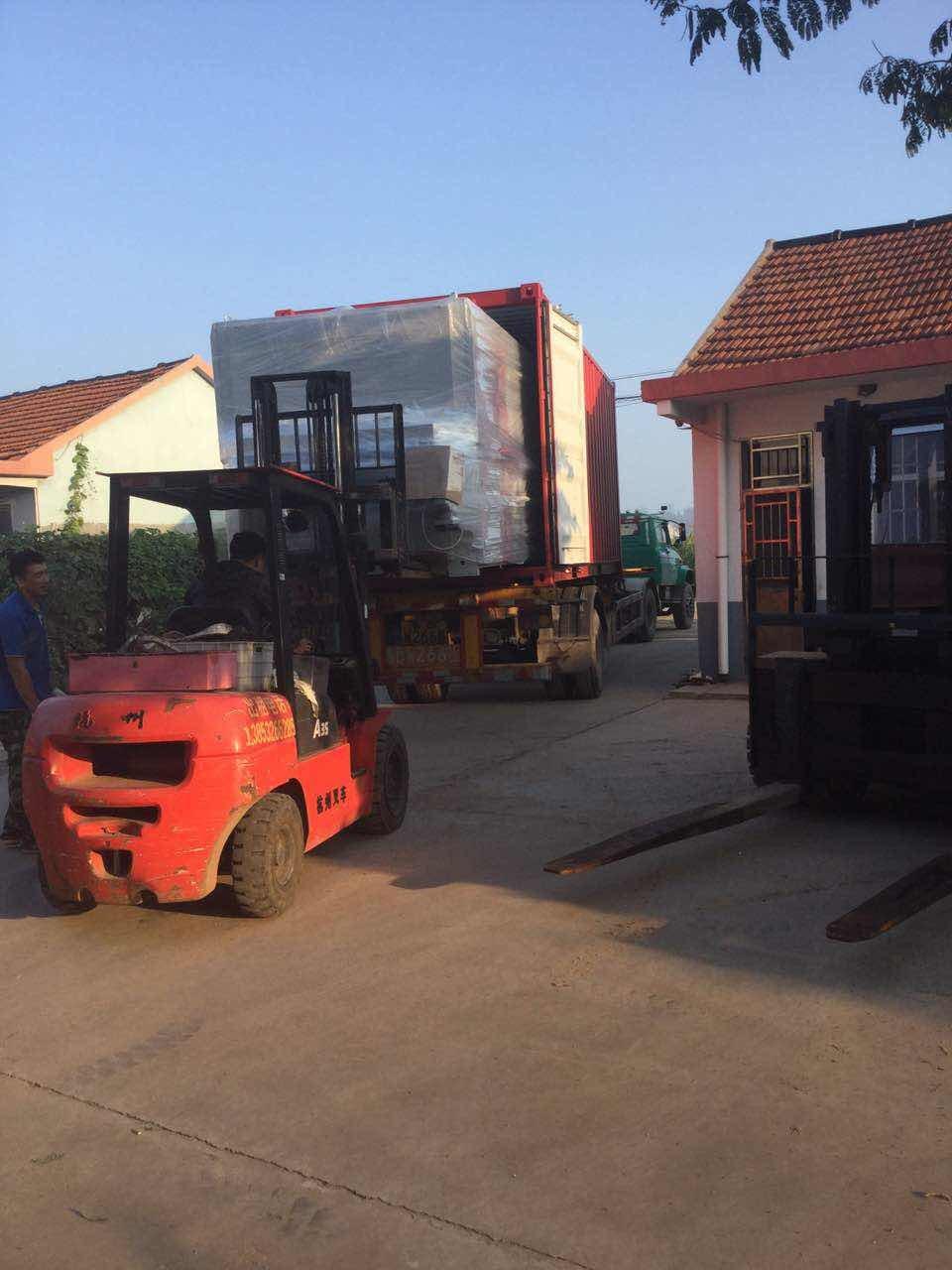

6. Delivery and loading:1300mm Wood Brush Sander /Brush Sanding Machine/ Cabinet Sander

7. SOSN Factory and Team:
1300mm Wood Brush Sander /Brush Sanding Machine/ Cabinet Sander

With rich professional exprience for woodworking machine, we sincerely welcome your visiting to our factory.

No worry for any installation or operation of this sanding machine, we are here to help you.

Heavy duty frame, Unique internal structure, top-brand spare parts, professional installation workers, in time after sale service, this machine surely can highly improve your working efficiency!

We can have video show for you since maybe now can not come to visit factory.

Please contact me now to start your working upgrading!
Livia ;)
