• Model NO.：XS200
• Working Voltage：AC380,3pH,50Hz
• Configuration：9kw Spindle with Linear Atc
• Transport Package：Wrapped in Layers of Wrapping Film and Ponchos
• Specification：1300*2500*300 mm
• Trademark：Mars
• Origin：China
• HS Code：84659900
• Production Capacity：300 Sets,Month

Basic Info.

Model NO. XS200 Working Voltage AC380/3pH/50Hz Configuration 9kw Spindle with Linear Atc Transport Package Wrapped in Layers of Wrapping Film and Ponchos Specification 1300*2500*300 mm Trademark Mars Origin China HS Code 84659900 Production Capacity 300 Sets/Month

Product Description

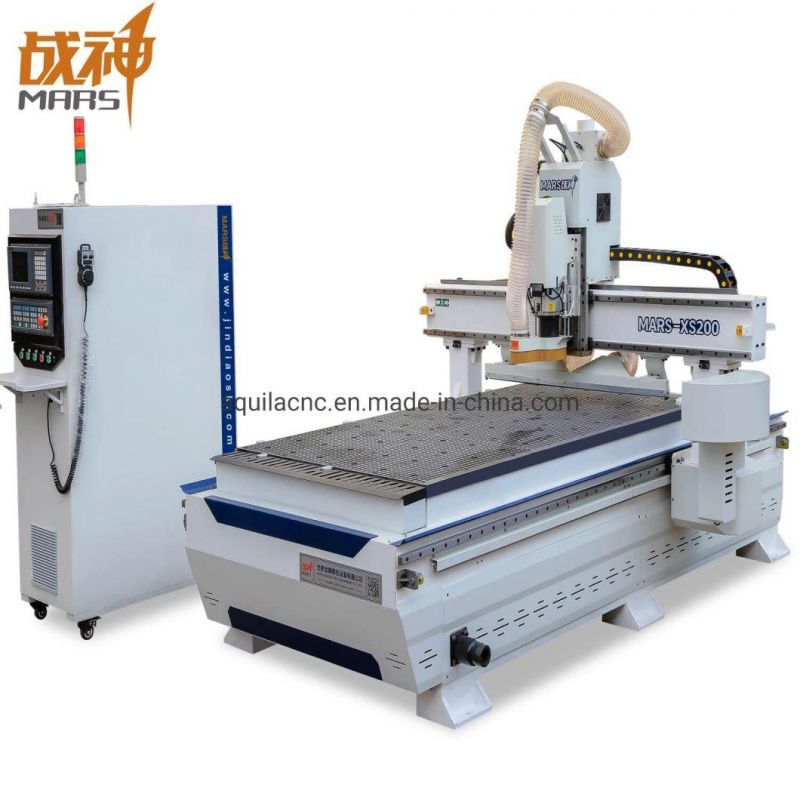

Hot ATC CNC Router Machine for Wooden Doors/CNC Woodworking Machine for Cabinet/CNC Cutting Machining Center/CNC Engraving Machine 1325 1825 2025 2030
Keywords:15 years experience of production
                     ISO9001:2008, CE, SGS, AAA Level Enterprise which Honors Contract
                     Three Brand: Mars, Golden Eagle,Borio



Description:
Hot ATC CNC Router Machine for Wooden Doors/CNC Woodworking Machine for Cabinet/CNC Cutting Machining Center/CNC Engraving Machine 1325 1825 2025 2030 is MARS featured machine for processing molded doors, wooden windows, wooden cabinet, wood panels. MARS design it for many years, now popular in the market, it's economic machining center of woodworking cutting machine.

Functions:
The functions of this machine include cutting,milling,drilling and slotting.



Applicable Materials:
MDF, block board, solid wood board, particleboard, polymer door plates, plywood etc.



Application Scope:
Cabinet doors, wooden doors, solid wood, panels, doors, windows, tables, chairs, folding screens, waved plate, large wall hangings, advertising boards, sign makings.

Wood processing: processing of various furniture such as door, window, cabinet, craft wood door screen and so on.

Advertisement: engraving and cutting various labels and number plate.

Art craft: engraving characters of any languages and graphics on souvenirs.

Applicable materials: Wood, aluminium board, plastic, density board, wave board, PVC, acrylic,crystal, light marble and other nonmetal materials  ect...

Prccessing effect: It can manufacture the following effects: relief, shadow, enchasement and so on

 Parameters:

Model	XS200 Disc Type ATC CNC Machining Center
X/Y/Z axis working stroke	1300*2500*300mm
Table surface	vacuum Table
Frame machine	Thick steel tube welded structure, w/ aging treatment
Spindle power	9KW Italy HSD ATC air cooling spindle
Spindle speed	0-24000 rpm
Automaitc tool change	Carousel, 8pcs
Control system	Taiwan Syntec 4 axis control System
Drive sytem	Japan Yaskawa servo motor & driver
Transmission	X/Y axis helical rack & pinion, Z axis ball screw
Gue rail	Taiwan Hiwin rectangular linear rail
Vacuum pump	5.5kw vacuum pump
Inverter	Fuling or Zoncn
Oil lubrication	Automatic
Positioning Accuracy	± 0.05mm

Accessories:

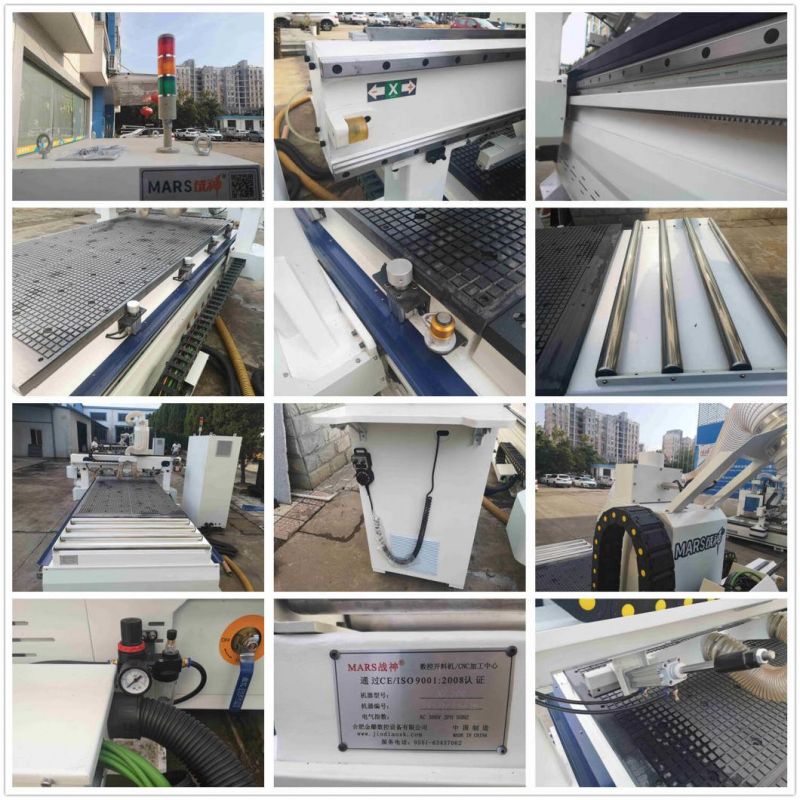

Performance Features:1. Equipped with all the leading international brand components, Taiwan Syntec control system, Japan Yaskawa servo motor and driver.
2. Carousel type tool magazines support automatic tool changer, improve processing efficiency.
3. Italy 9KW high-power air-cooling spindle can withstand high-speed, heavy loading, low noise characteristics.
4. Machine body structure is made of welded thick-walled square steel tube, with five-sided tempering, to ensure the body never deformation.
5. Vacuum table, high adsorption capacity, able to adsorb materials of different sizes.
6. Taiwan-made guide rail and ball screw, high precision, long service life, good stability.
7. Taiwan Syntec control system, easy to operation,fully support automatic production.
8. Taiwan planetary reducer, with small volume, large torque, high transmission efficiency, wide range of deceleration.
9. Intelligent protection work table can prevent table damages caused by misuse or software errors. Intelligent processing cross-border protection can prevent mechanical collisions while design layout exceeds processing area.  Samples:
