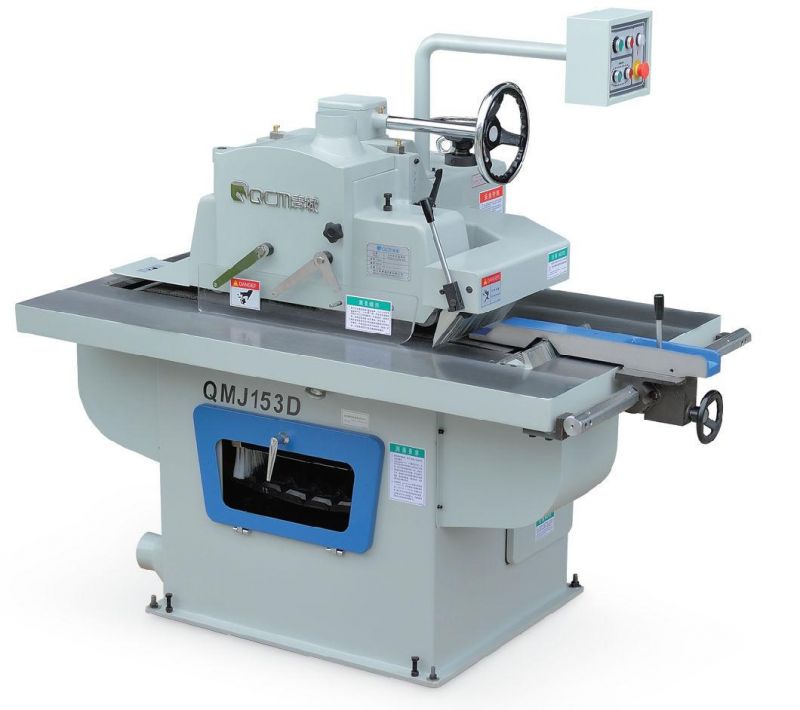

QMJ153F/F-T Woodworking machinery wood saw automatic single-chip rip saw
Hangzhou Smart Panther Tech Ltd- Warranty：3 years
- Type：Rip Saw
- Power Type：Electric
- Layout：Horizontal
- Controlling Mode：CNC
- Automatic Grade：Automatic
Base Info
- Model NO.：QMJ153F
- Precision：Precision
- Certification：CE, ISO
- Customized：Customized
- Condition：New
- Color：Iron Grey
- After-sales Service：3 years
- Weight：950kg
- Transport Package：Plywood Carton or Bulk Packing
- Specification：1700*1100*1580 (MM)
- Trademark：Qingcheng
- Origin：China
- HS Code：8465910000
- Production Capacity：20000,Sets
Description
Basic Info.
Model NO. QMJ153F Precision Precision Certification CE, ISO Customized Customized Condition New Color Iron Grey After-sales Service 3 years Weight 950kg Transport Package Plywood Carton or Bulk Packing Specification 1700*1100*1580 (MM) Trademark Qingcheng Origin China HS Code 8465910000 Production Capacity 20000/SetsProduct Description
QMJ153F/F-T Woodworking machinery wood saw automatic single-chip rip saw1. Technical parameters : QMJ153F Multi-blades Rip Saw
| Max.sawing thickness | 85 | mm |
| Max.sawing length | 330 | mm |
| Deep throat | 460 | mm |
| Saw shaft Dia. | Φ25.4 | mm |
| Saw shaft speed | 4000 | r/min |
| Saw blade dia. | Φ205-Φ305 | mm |
| Feeding speed | 8-24 | mmin |
| Total motor power | 8.2511 | kWHP |
| Main motor | 7.510 | kWHP |
| Feeding motor | 0.751 | kWHP |
| Lifting motor | 0.370.5 (optional) | kWHP |
| Suction hood dia. | 2*Φ100 | mm |
| Overall dimension | 1700*1100*1580 | mm |
| Weight | 950 | KG |
2. About Qingcheng Woodworking Machinery:
Qingcheng Woodwokring Machinery Co., Ltd is a professional manufacturer of woodworking machinery since 1970. With more than 40 years experience, we have developed to the top and most powerful manufacturer of woodworking machinery in China.
We mainly engaged in six series of woodworking machinery:
Four Side Moulder, Double Side Planer, Automatic Muti-blade Rip Saw, Automatic Single-side Rip Saw and Double-end Tenoner , and Sanding Machine
To make machinery with high precision and stability, we have introduced the world's advanced modern processing and testing equipment, including OKUMA five-surface gantry machining-center, FMS flexible machining production line, MAKINO horizontal machining center, MORI SEIKI(nine-axis linkage) lathe-mill cutting center, LGMazak vertical machining center, Mitsubishi laser cutting machine, OKK large machining center, Okamoto CNC grinding center, and Mitutoyo three coordinate measuring machine.
3. Our Products:

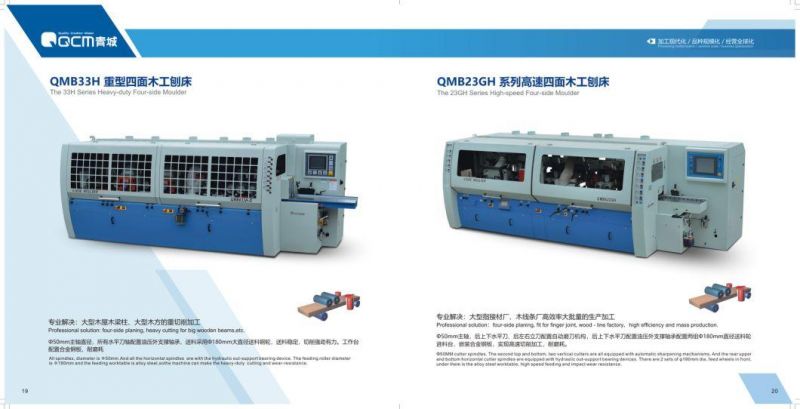

A: Four Side Moulder

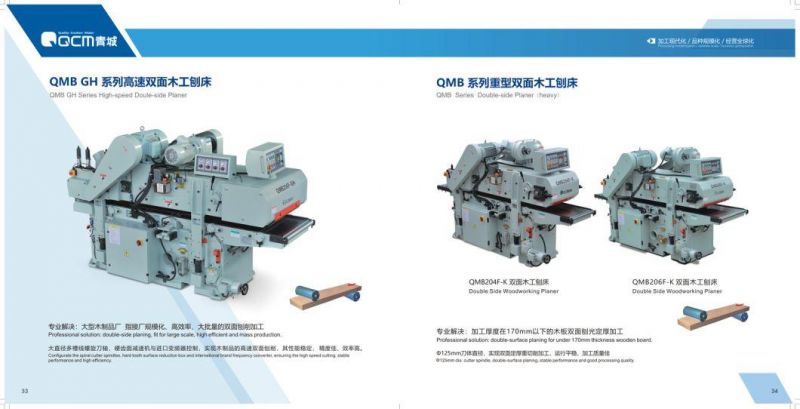

B: Double Side Planer

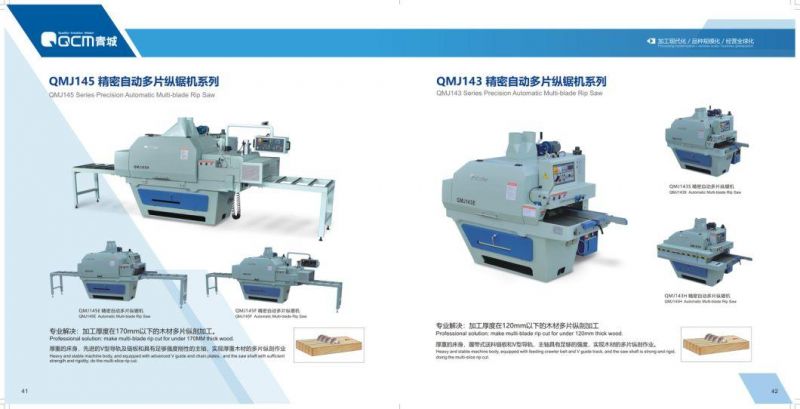

C: Rip Saw

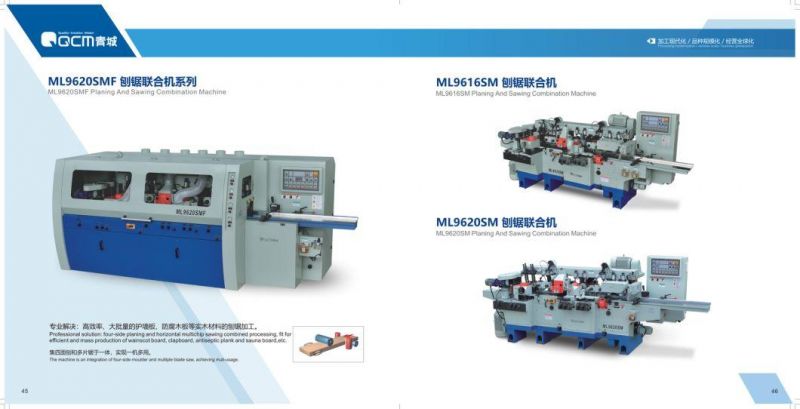

D: Planing and Sawing Combination Machine

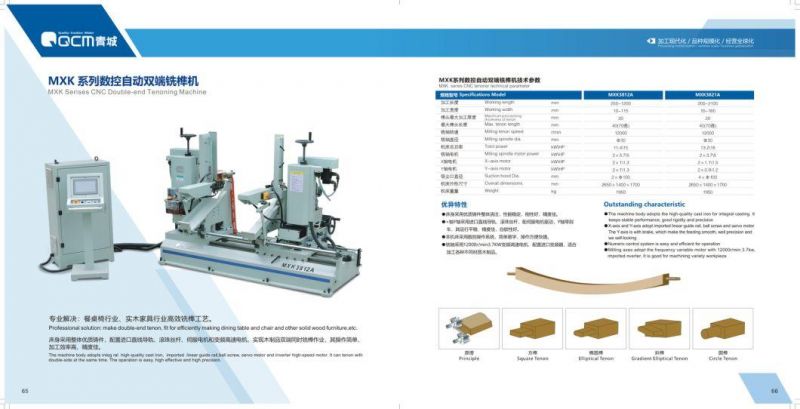

E:Double-end Tenoining Machine

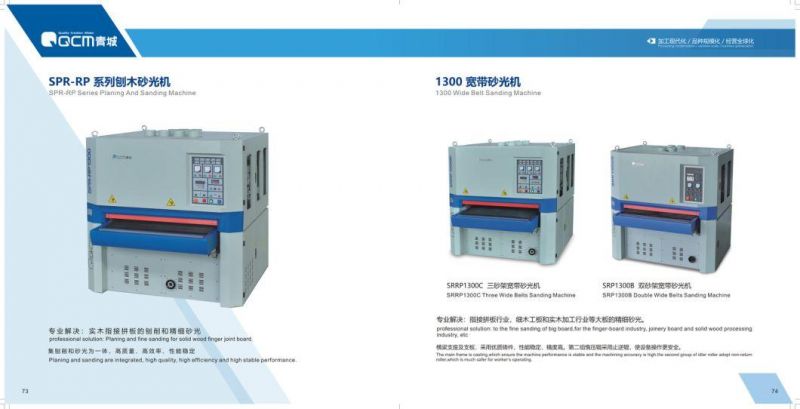

F: Sanding Machine
