• Model NO.：QMJ153D
• Precision：Precision
• Certification：CE, ISO
• Customized：Customized
• Condition：New
• Color：Iron Grey
• After-sales Service：3 years
• Weight：950kg
• Transport Package：Plywood Carton or Bulk Packing
• Specification：1700*1100*1580 (MM)
• Trademark：Qingcheng
• Origin：China
• HS Code：8465910000
• Production Capacity：20000,Sets

Basic Info.

Model NO. QMJ153D Precision Precision Certification CE, ISO Customized Customized Condition New Color Iron Grey After-sales Service 3 years Weight 950kg Transport Package Plywood Carton or Bulk Packing Specification 1700*1100*1580 (MM) Trademark Qingcheng Origin China HS Code 8465910000 Production Capacity 20000/Sets

Product Description

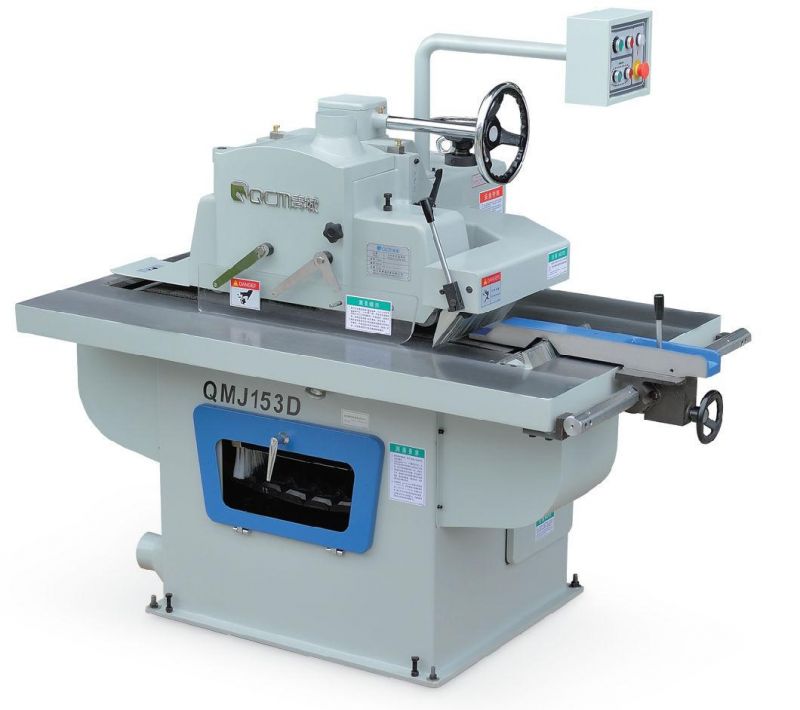

QMJ153D/D-T Woodworking machinery wood saw automatic single-chip rip saw:

Professional solution the single piece of longitudinal cutting trimming operations processing, which is less than 120mm thick.

Excellent features:
1: The body adopts high quality steel plate with special welding technology, special treatment, precision processing, stable performance, good precision.

2: The spindle is made of special materials, precision processing, dynamic balance treatment and precision assembly, stable operation and good precision.

3: Specially designed bilateral yardstick, which is convenient for users to exchange and use, and prevent the chain rail from being used unilaterally for a long time to influence the machining accuracy.

4: Equipped with up and down anti-bounce safety mechanism and the outer side of the baffle, to prevent the wood flying out of the rebound and injury workers, insure safer operation.

5. Configuration microcomputer automatic oil pump, the guide rail for regular, fixed-point, quantitative lubrication, to ensure normal use and life of the machine.

6: QMJ164A optional table with built-in rollers, convenient processing and back to the material.

7: QMJ153/154D series is belt speed variation, F series is frequency conversion speed control, suitable for different users selection and various types of wood processing.

8:-T type is optional, the pressure roller box is controlled by electric lift, easy to operate.



1. Technical parameters : QMJ153D/D-T Multi-blades Rip Saw










Max.sawing thickness	85	mm
Max.sawing length	330	mm
Deep throat	460	mm
Saw shaft Dia.	Φ25.4	mm
Saw shaft speed	4000	r/min
Saw blade dia.	Φ205-Φ305	mm
Feeding speed	12.51619.524	mmin
Total motor power	8.2511	kWHP
Main motor	7.510	kWHP
Feeding motor	0.751	kWHP
Lifting motor	0.370.5	kWHP
Suction hood dia.	2*Φ100	mm
Overall dimension	170*1100*1580	mm
Weight	950	KG

2. About Qingcheng Woodworking Machinery:

Qingcheng Woodwokring Machinery Co., Ltd is a professional manufacturer of woodworking machinery since 1970. With more than 40 years experience, we have developed to the top and most powerful manufacturer of woodworking machinery in China.

We mainly engaged in six series of woodworking machinery:
Four Side Moulder, Double Side Planer, Automatic Muti-blade Rip Saw, Automatic Single-side Rip Saw and Double-end Tenoner , and Sanding Machine

To make machinery with high precision and stability, we have introduced the world's advanced modern processing and testing equipment, including OKUMA five-surface gantry machining-center, FMS flexible machining production line, MAKINO horizontal machining center, MORI SEIKI(nine-axis linkage) lathe-mill cutting center, LGMazak vertical machining center, Mitsubishi laser cutting machine, OKK large machining center, Okamoto CNC grinding center, and Mitutoyo three coordinate measuring machine.








3. Our Products:

A: Four Side Moulder



B: Double Side Planer



C: Rip Saw



D: Planing and Sawing Combination Machine




E:Double-end Tenoining Machine




F: Sanding Machine
