• Model NO.：ZS1325
• Warranty：2 Years
• After Sale Service：Engineers Available to Service Machinery Overseas
• Detailed Info：Depend on Type, Please Contact Our Sales
• Transport Package：Wrapped in Layers of Wrapping Film and Ponchos
• Specification：3000KG
• Trademark：Mars
• Origin：China
• HS Code：8465990000
• Production Capacity：300 Sets,Month

Basic Info.

Model NO. ZS1325 Warranty 2 Years After Sale Service Engineers Available to Service Machinery Overseas Detailed Info Depend on Type, Please Contact Our Sales Transport Package Wrapped in Layers of Wrapping Film and Ponchos Specification 3000KG Trademark Mars Origin China HS Code 8465990000 Production Capacity 300 Sets/Month

Product Description

High Efficiency Zs1325 Wood Engraving Machine
Keywords:15 years experience of production
                   ISO9001:2008, CE, SGS, AAA Level Enterprise which Honors Contract
                   Three Brand: Mars, Golden Eagle,Borio



Description:
High Efficiency Zs1325 Wood Engraving Machine is MARS featured machine for processing classical mahogany furniture, white wood European furniture, carved antique furniture, wall hollow, solid wood doors, craft doors, Paint-free doors, cabinet doors, craft windows, variety of tables, sofas, panel furniture, advertising signs, sign making, acrylic cutting, blister light boxes, curtain walls, aluminum, copper, composite board and other non-ferrous metals.Now popular in the market.

Functions:
The functions of this machine include cutting,milling,drilling and slotting.

Applicable Materials:
MDF, block board, solid wood board, particleboard, polymer door plates, plywood etc.


Application Scope:
Classical mahogany furniture, white wood European furniture, carved antique furniture, wall hollow, solid wood doors, craft doors, Paint-free doors, cabinet doors, craft windows, variety of tables, sofas, panel furniture, advertising signs, sign making, acrylic cutting, blister light boxes, curtain walls, aluminum, copper, composite board and other non-ferrous metals.


Parameters:

Model	ZS1325(Can be customized as your needs)
Working Stoke	1300*2500*160mm
Feeding Height	160mm-250mm
Table Structure	T-slot aluminum
Body Structure	Thick steel tube welded, with tempering
Max Motion Speed	20m/min
Max Processing Speed	10m/min
Spindle Power	2.2KW ~ 9KW frequency water-cooling spindle (Air-cooling motor, or Italy imported HSD motor is optional)
Spindle Speed	0 ~ 24000 rpm/min
Control System	NC Studio/ DSP
Drive System	Stepper motor for all 3 axis
Lubrication System	Manual/ Automatic
Transmission	XY axis rack and pinion, Z axis ball screw
Guide Rail	Taiwan Hiwin rectangular linear rail
Max Travelling Speed	20m/min
Max Working Speed	10m/min
Engraving Tool	¢3.175/ 4/ 6/ 12.7mm
Dictate Format	G code/ HPGL
Working Accuracy	±0.02mm
Re-positioning Accuracy	±0.05mm
Working Voltage	AC380/ 3PH/ 50HZ
Net Weight	1200KG
Machine Size	2100*3200*1500mm

Accessories:

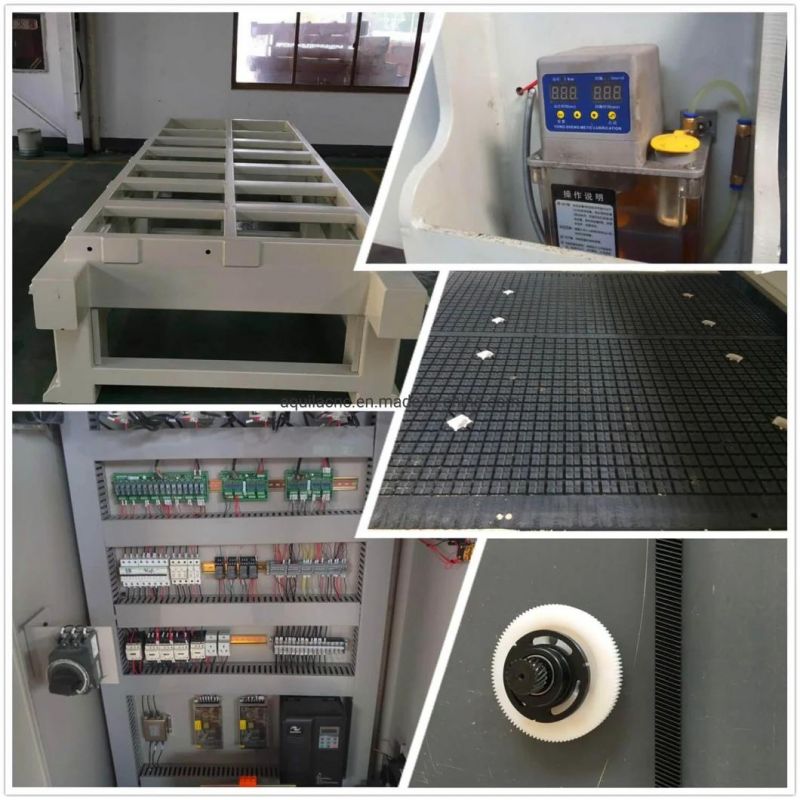

Performance Features:
1. Standard imported linear guide rail, strong loading capacity, smooth operation, high accuracy.
2. Z-axis ball screw drive, high-precision, high wear resistance.
3. Equipped with automatic lubrication system, centralized lubrication. Reduce customer maintenance workload, greatly extend the rail life.
4. Adopt famous brand frequency water-cooling spindle, great performance, big torque, high efficiency.
5. Adopt brand stepper motor and driver, Y-axis double-motor drive, with faster speed and better stability.
6. Compatible with any advanced CAD/CAM software, including Type3/ ArtCAM/ CAXA/ UG / pro-e/ Mastercam/ JDPaint/ Wentai, etc..

Samples:
