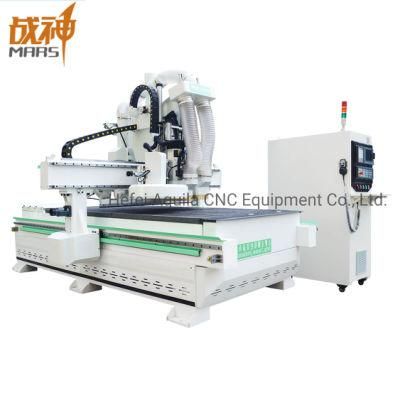

• Model NO.：xs200
• Control Method：Closed-Loop Control
• Numerical Control：CNC,Mnc
• Processing Precision：0.01~0.02(mm)
• Performance Classification：MID-Range CNC Machine Tools
• Application：Wood, Bamboo, Marble, Organic Board, Color Plates
• Configuration：9kw Air Cooling Spindle + Circular Tool Change
• Transport Package：Plywood Case Package
• Specification：Working Area: 1300*2500*200mm
• Trademark：Mars
• Origin：China
• HS Code：8465990000
• Production Capacity：3000 Sets,Year

Applicable Scope ProcessingBe suitable for processing complicated products, with wide rage of functions, including drilling, side milling, etc. MaterialAcrylic, PVC, MDF(density board), artificial stone, organic glass, and other soft-metal sheets made of aluminum or copper ApplicationBe widely used for panel processing, panel furniture, computer desk, office furniture, wooden speaker, wooden kitchen ware, customized wardrobe, modern cabinets, and so on
StrengthEasy operation, competitive price and functional processing for furniture production  The machine control interface is designed to be user-friendly, fool-like operation, and the operator can be employed through simple training without the need for skilled workers

Parameters:

Technical Parameter BasicX/Y/Z Axis Working Area2100*3000*300mm  Machine Size3000*4500*2600mm  Working TableWhole line frame structure, firm and not deformation, vacuum adsorption table plus automatic positioning  Table StructureDouble vacuum chamber absorption table  Body StructureHeavy-duty thicken steel structure w/ tempering MainControl SystemTaiwan Syntec 6MB control system  Drive SystemJapan Yaskawa servo motor  Spindle Motor PowerHSD 9KW ATC air cooling spindle; 0 ~ 24000 rpm/min OthersTool MagazineCarrousel, 8pcs  Lubrication SystemAutomatic  TransmissionXY axis rack and pinion PMI, Z axis ball screw TBI  Guide RailTaiwan PMI/Hiwin 25mm rectangular linear rail  InverterZoncn/Delta 11KW  Tool holderISO30  Positioning cylinder5pcs  Tool sensorMARS  Limit switchJapan Omron  Vacuum Pump1*7.5KW water vacuum pump  CableMARS cable, anti-static, anti-interference, bending resistance  BeamReinforced steel beam  Pressor deviceMARS modify  Max Travelling Speed50m/min  Max Processing Speed30m/min  Working Accuracy±0.02mm  Re-positioning Accuracy±0.05mm  Dictate FormatG-Code / HPGL  Working VoltageAC380V/ 3PH/ 50HZ  Support SoftwareProfessional cutting optimization software(JiFusen/Yunxi/Tomder/Haisense)  Net Weight1800KG

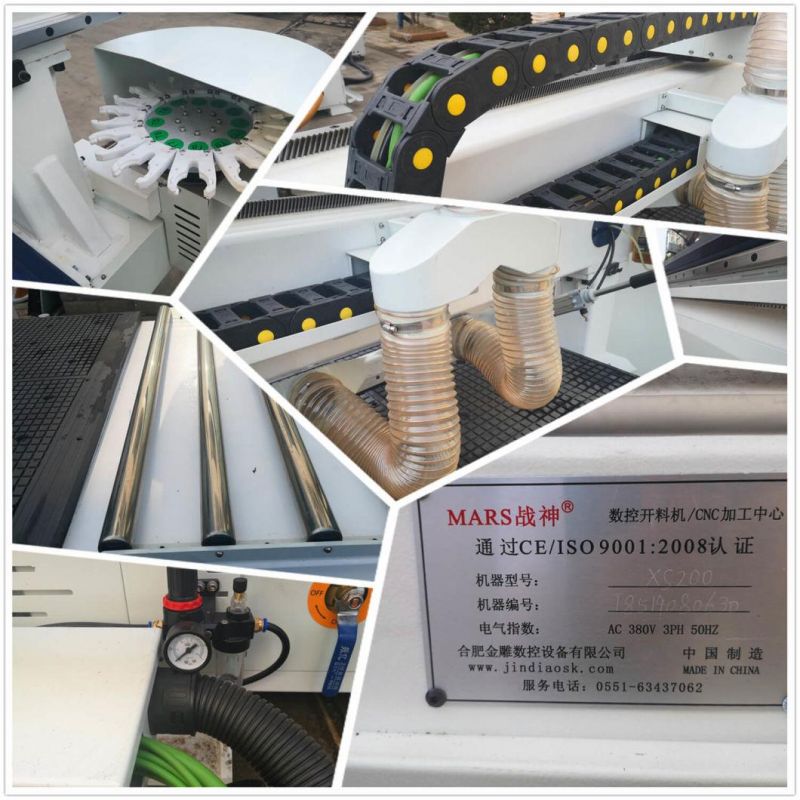

Accessories:


Performance Features:Performance Feature 1Equipped with all the leading international brand components, Taiwan Syntec control system, Japan Yaskawa servo motor and driver 2Carousel type tool magazines support automatic tool changer, improve processing efficiency 3HSD 9KW high-power air-cooling spindle can withstand high-speed, heavy loading, low noise characteristics 4Machine body structure is made of welded thick-walled square steel tube, with five-sided tempering, to ensure the body never deformation 5Vacuum table, high adsorption capacity, able to adsorb materials of different sizes 6Taiwan-made guide rail and ball screw, high precision, long service life, good stability 7Taiwan Syntec control system, easy to operation,fully support automatic production 8Taiwan planetary reducer, with small volume, large torque, high transmission efficiency, wide range of deceleration 9Intelligent protection work table can prevent table damages caused by misuse or software errors. Intelligent processing cross-border protection can prevent mechanical collisions while design layout exceeds processing area

Samples:
