Ce/ISO Certificated Wood Chips Hammer Crusher Wood Grinding Equipment
Jiangsu Liangyou Zhengda Co., Ltd.- Type:Wood Hammer Mill
- Voltage:380V
- Automatic Grade:Automatic
- Controlling Mode:CNC
- Energy Saving:Energy Saving
- Certification:CE, ISO
Base Info
- Model NO.:MFSP66*80
- Warranty:1 Year
- Customized:Customized
- Condition:New
- Color:Blue
- Output (T/H):5-6
- Power (Kw):90
- Rotor Diameter(mm):660
- Grinding Chamber Width(mm):800
- Rotating Speed(M/Rpm):2970
- Transport Package:Pallet
- Specification:CE, ISO, SGS
- Trademark:Liangyou
- Origin:Jiangsu China
- HS Code:8436800000
- Production Capacity:5 Sets,Month
Description
Basic Info.
Model NO. MFSP66*80 Warranty 1 Year Customized Customized Condition New Color Blue Output (T/H) 5-6 Power (Kw) 90 Rotor Diameter(mm) 660 Grinding Chamber Width(mm) 800 Rotating Speed(M/Rpm) 2970 Transport Package Pallet Specification CE, ISO, SGS Trademark Liangyou Origin Jiangsu China HS Code 8436800000 Production Capacity 5 Sets/MonthProduct Description

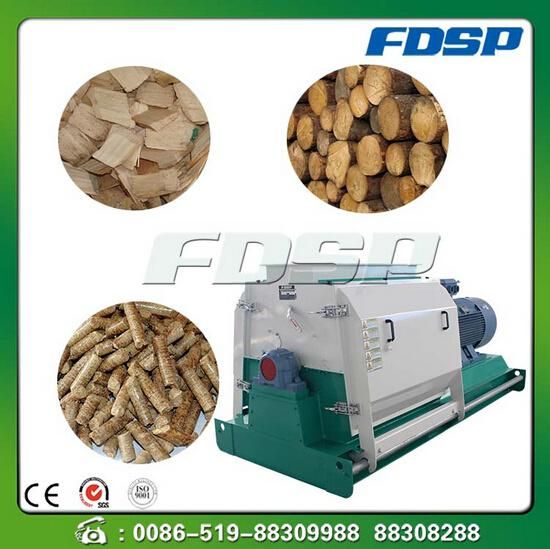

CE/ISO Certificated Wood Chips Hammer Crusher Wood Grinding EquipmentFeatures:
1. It is used for grinding of small wood block, chip before pelleting;
2. Multi grinding chamber to increase efficiency by 15%;
3. Multi grinding chamber to prolong service life of screen and beater;
4. Modified rotor to increase stability and minimize over heating of bearing;
5. Modified screen locking device to make assembling &disassembling easily;
6. Unique structure design of door to absorb shake and reduce noise;
7. Modified design for grinding chamber to reduce airflow resistance and increase efficiency;
8. Depress barycenter of rotor to make more balance and coarse and fine grinding can be executed easily.
Main Technical Parameter
Model | MPSF56*40 | MFSP60*45 | MFSP60*60 | MFSP66*60 | MFSP66*80 | MFSP66*100 |
Power(kw) | 37 | 45 | 55 | 75 | 90 | 110 |
Capacity(t/h) | 0.8-1 | 1.8-2 | 2-2.5 | 3.5-4 | 5-6 | 6-7 |
Rotor diameter(mm) | 560 | 600 | 600 | 660 | 660 | 660 |
Grinding chamber width(mm) | 400 | 450 | 600 | 600 | 800 | 1000 |
Rotating speed(m/rpm) | 2970 | 2970 | 2970 | 2970 | 2970 | 2980 |
Dimension(L*W*H)(mm) | 1.8*0.8*1.1 | 1.8*0.8*1.1 | 1.92*1.1*1.1 | 2.1*1.3*1.4 | 2.6*1.3*1.4 | 3*1.3*1.4 |
Related main machinery during biomass burning pellets production process:
wood chipper-wood hammer mill(pulverizer grinder)-pre-screener-dryer-pellet mill-cooler-vibrating screener-packing machine
Please note the wood pulverizer grinder is used for cutting the wood chips which approximate size 5cm length into sawdust .
About Us
Jiangsu Liangyou Zhengda Co., Ltd which has about 20 years of experience in the comprehensive development and utilization in agriculture field. It covers an area of 15000 square meters, locating in the zhongguancun science &technology industrial park in Liyang City, JiangSu Province, PRC.
FDSP has sold Feed machinery and fertilizer machinery throughout China and exported to Korea, South Africa, Russia, Thailand, Taiwan, Philippines, Malaysia, Australia, Egypt, Syria, Nigeria, Ethiopia, India, Bangladesh, Pakistan, Iran etc.
Customers From All Over The World
We insist on "Faith & Federation , Develop & Creativity, Service & sincerity , Pluck & Prestige " ,also we own outstanding R&D team with the sense of innovation and cooperation.
Our Service:
Warranty:1 year
Our professional service includes: Free training, Guidance Installation and Debugging.
If you have any question, please contact us freely. Our after-sales service team on-line will do the best to accomplish your sincere requirement on time.
Certifications:
FDSP has obtained ISO9001:2008 international quality system certification, CE certification for feed machinery, fertilizer machinery, biomass equipment and complete sets of production line, SGS certification.
