• Model NO.：ZSF-70DL
• Panel Thinkness：10-60mm
• Min.length panel：160mm
• Min.width panel：60mm
• Customized：Customized
• Working Pressure：0.6-0.8 MPa
• Feed Speed：17-25m,Min
• Electrical Lift：Yes
• Motor Power：15.8kw
• Transport Package：Plywood Case Package
• Specification：3000KG
• Trademark：Mars
• Origin：China
• HS Code：8458110090
• Production Capacity：300sets,Month

Basic Info.

Model NO. ZSF-70DL Panel Thinkness 10-60mm Min.length panel 160mm Min.width panel 60mm Customized Customized Working Pressure 0.6-0.8 MPa Feed Speed 17-25m/Min Electrical Lift Yes Motor Power 15.8kw Transport Package Plywood Case Package Specification 3000KG Trademark Mars Origin China HS Code 8458110090 Production Capacity 300sets/Month

Product Description

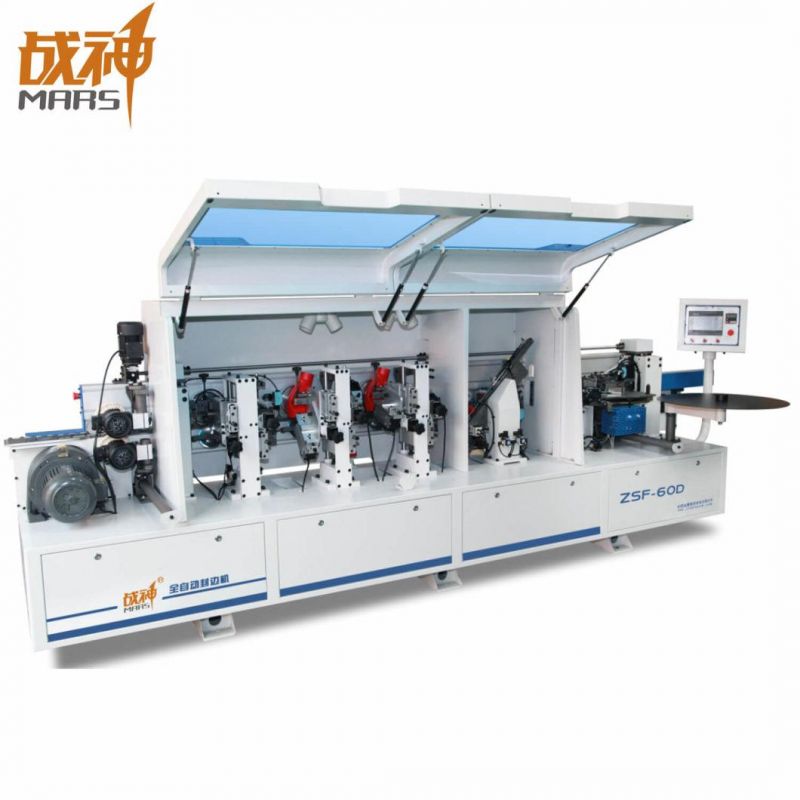

Hot -Sale Automatic Edge BankerKeywords:15 years experience of production
                   ISO9001:2008, CE, SGS, AAA Level Enterprise which Honors Contract
                   Three Brand: Mars, Golden Eagle, Boiro
                   Technicist who go abroad to offer after-sale service

Teachnical Parameters:

Model	ZSF70DL
Edge thickness	0.4-3mm
Panel thickness	10-60mm
Panel length	>=150mm
Panel width	>=60mm
Working Pressure	0.6-0.8 Mpa
Feed Speed	17-25m/min
Electrical Lift	yes
Motor Power	15.8kw
Overall dimensions	6460X910X1540mm
Total weight	2450KG
Function:	Pre-Milling,Gluing, Edge Cutting,Rough Trimming, Fine Trimming,Corner Trim,, Scraping, Buffing,
Type:	Linear Edge Banding Machine

★ Applicable Scope:

   The machine is suitable for such plates: MDF, block board, solid wood board, particleboard, polymer door plates, plywood etc, straight line edging and trimming. Function: pre-milling,gluing,edge cutting,end trimming, rough trimming, fine rimming, corner trimming, scraping, buffing, slotting and so on. Edging smoothly and edging line is straight. The machine is stable, reliable and durable, with favorable price. It is especially suitable for large and medium-sized furniture manufacturers.

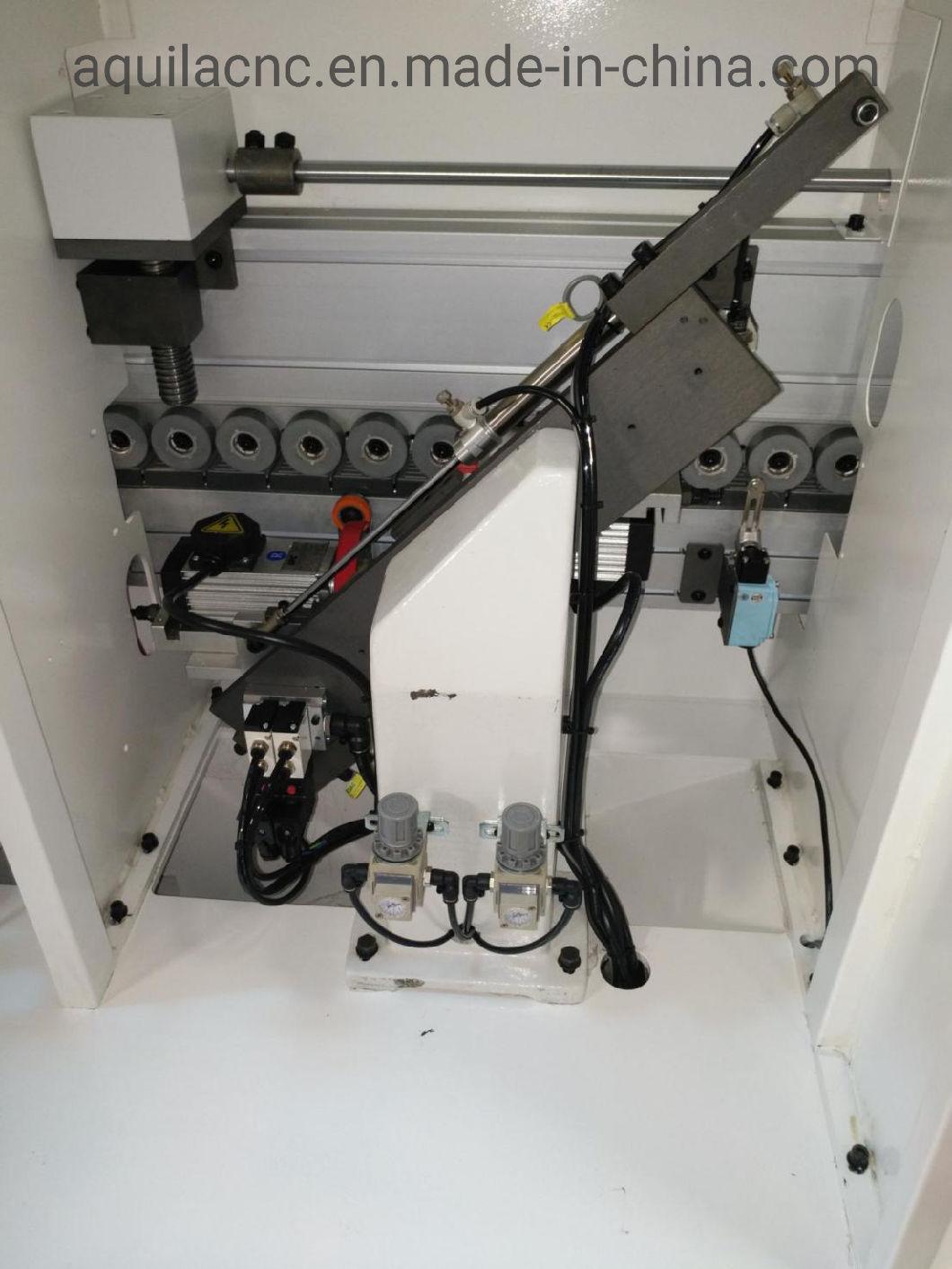

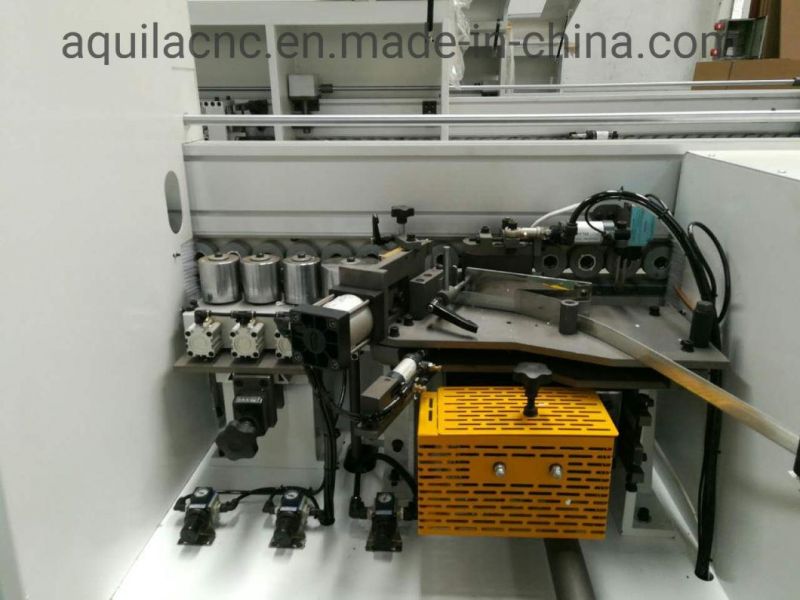

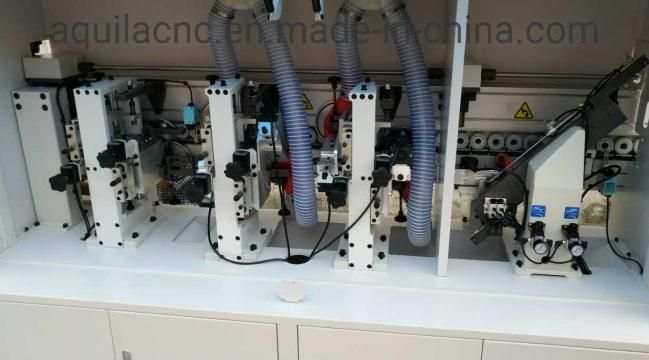

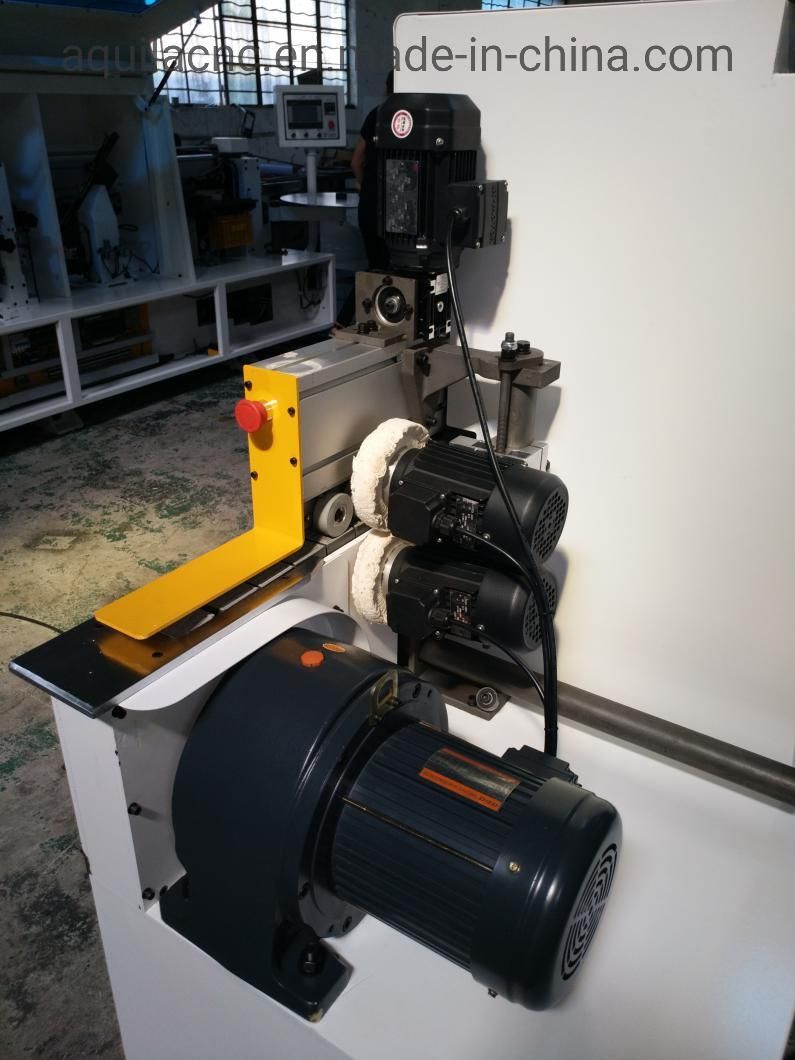

★Main Spare Parts:


★  Advantage:
1.Adopt domestic famous motor and high quality electrical components.
2.The fuselage is firm and steady,thus increasing the stability of the whole machine.
3.Aluminum alloy beam is a relatively advanced method, its precision and straightness are far superior to cast iron.
4.Auto cleaning, high precision, high efficiency.
5.The machine can be customized.
6.Automatic and precise gluing procedure as well integrated double finishing side within one workflow .The end cutting can be done at the rear side of the machine.
7.Multiple Air cylinder will assembled on the machine, mainly used for positioned location assured the panel materials processing accuracy in a very high level.
8.Secondary Dust Exhaust System, mainly used for sawdust collection during processing period, to keep the material smooth and clean.
9.The machine adopts the devices of sound insulation, controlling of dust, platform frame Micro adjustment by manual operation.
