• Model NO.：BSG630R-R
• Color：Iron Grey
• Working Width：600mm
• Thickness of Sanded Panel：0.3-80mm
• The First Group Belt Speed：20m,S
• The Second Group Belt Speed：20m,S
• The First Group Motor Power：7.5kw
• The Second Group Motor Power：5.5kw
• Conveyor Motor：0.37kw
• Dimensions：1800*1560*2100mm
• Transport Package：Pallet
• Specification：ISO9001
• Trademark：HZH
• Origin：Qingdao
• HS Code：8465930000
• Production Capacity：5 Sets,Month

Basic Info.

Model NO. BSG630R-R Color Iron Grey Working Width 600mm Thickness of Sanded Panel 0.3-80mm The First Group Belt Speed 20m/S The Second Group Belt Speed 20m/S The First Group Motor Power 7.5kw The Second Group Motor Power 5.5kw Conveyor Motor 0.37kw Dimensions 1800*1560*2100mm Transport Package Pallet Specification ISO9001 Trademark HZH Origin Qingdao HS Code 8465930000 Production Capacity 5 Sets/Month

Product Description

We supply Primer Wide Belt Sanding Machine

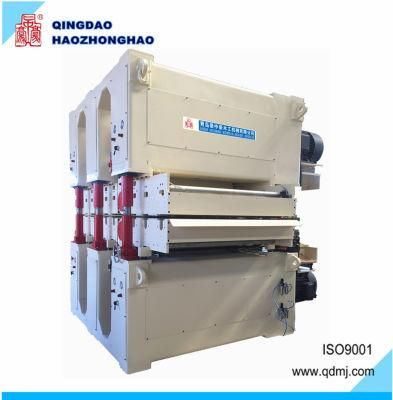

1.Prodcut show


2. Product Description

Model	BSG600R-R
Max Working width	600mm
Thickness of processing  materials	0.3-80mm
The length of processing materials	≥200mm
Speed of abrasive belt	20m/s
Polish wheel speed	20m/s
Feed speed	3-30m/min
Size of abrasive belt	1650*630mm
Power of 1st sanding unit	7.5Kw
Power of 2nd sanding unit	5.5Kw
Lift motor power	0.37Kw
Adsorption of motor power	1.5Kw
Working pressure	>0.55Mpa
Speed required for cleaning equipment	≥25m/s
Compressed air volume	≥5000M3/h
NW	1900Kg
Dimension	1800*1560*2100mm

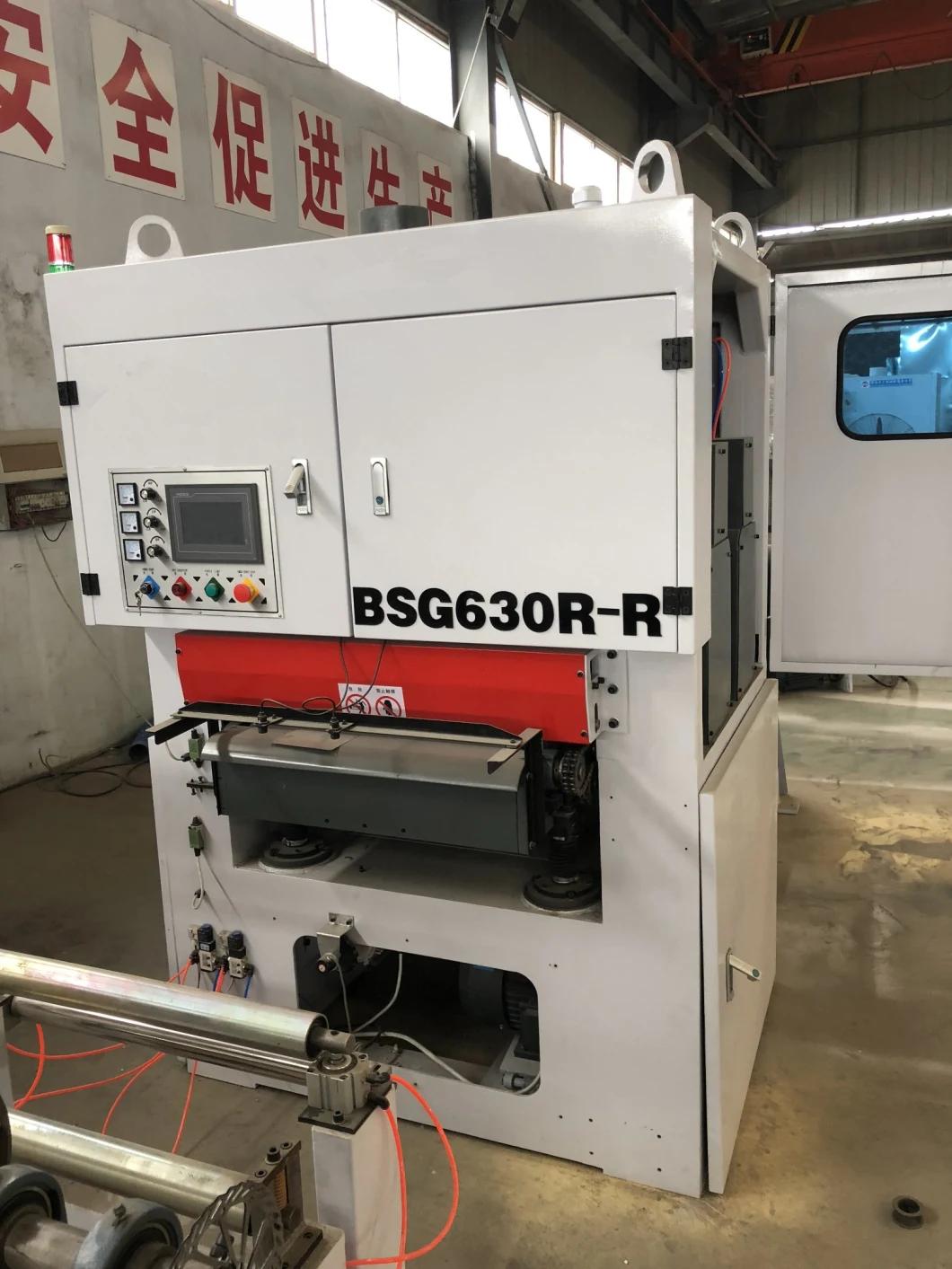

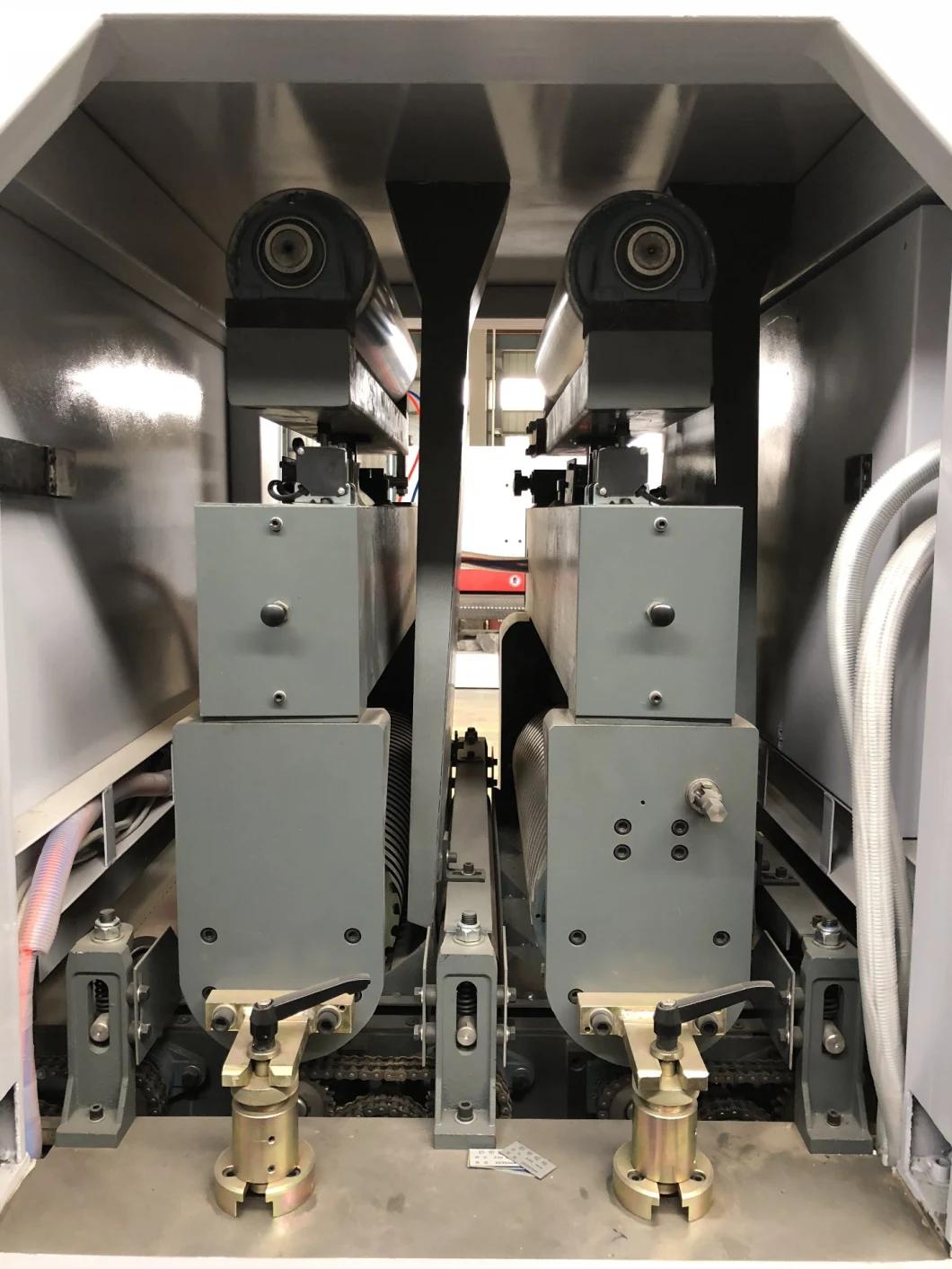

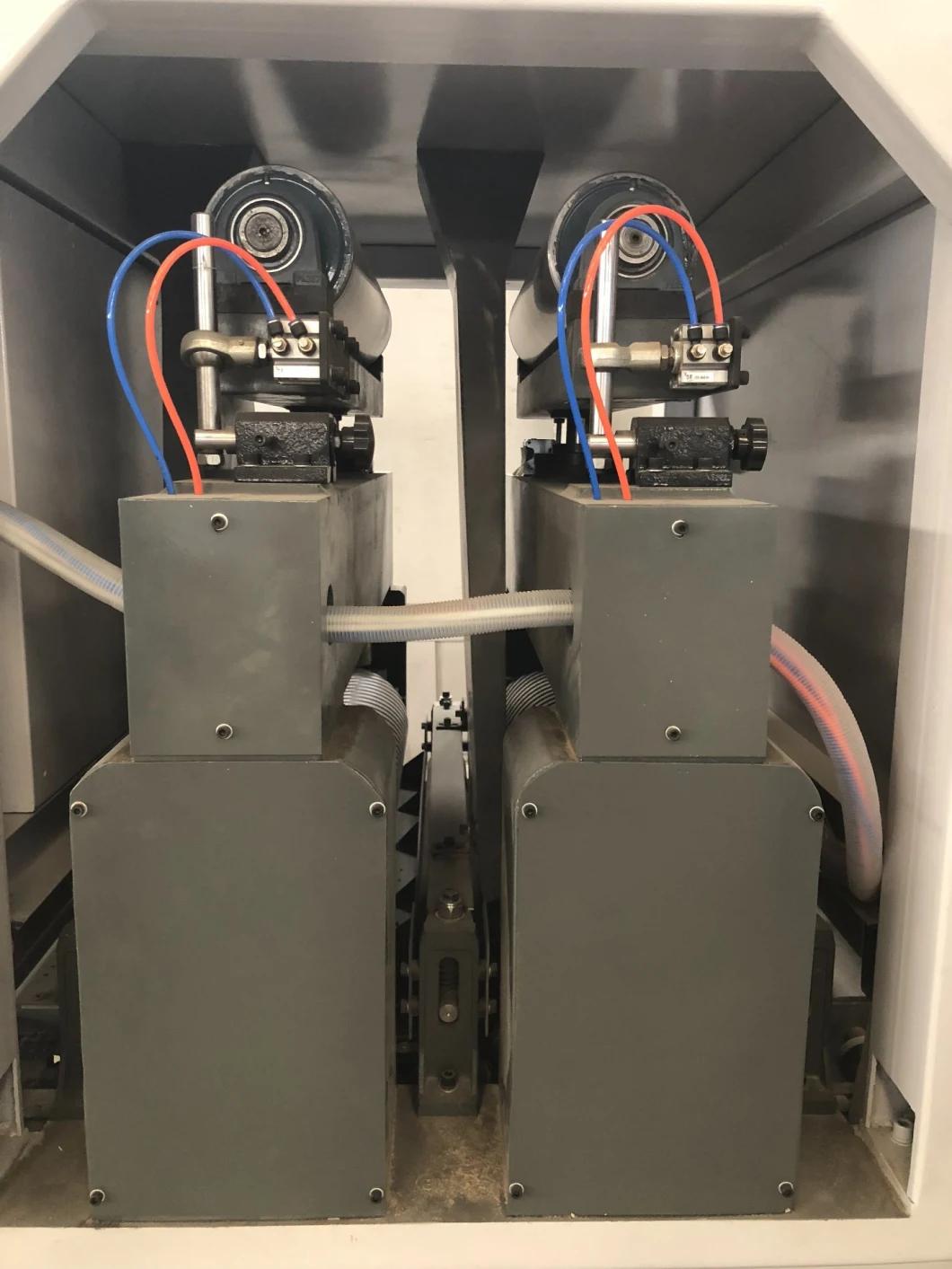

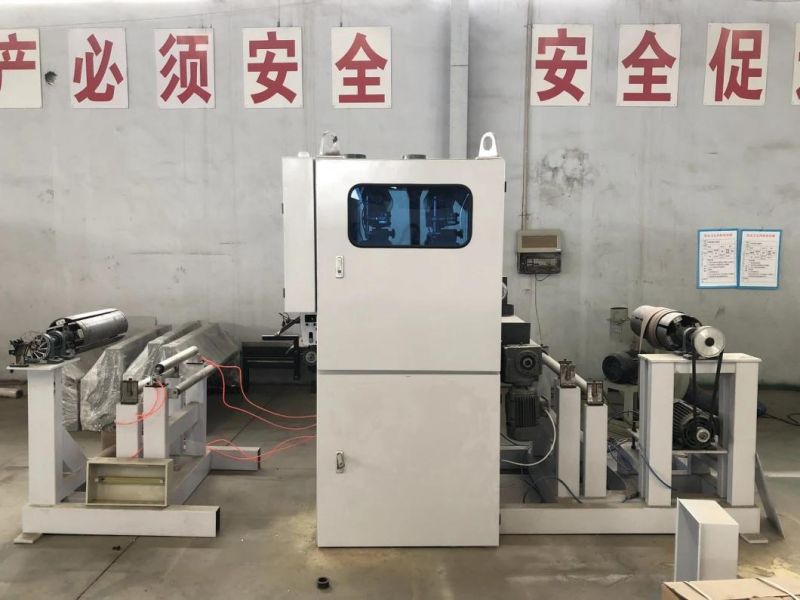

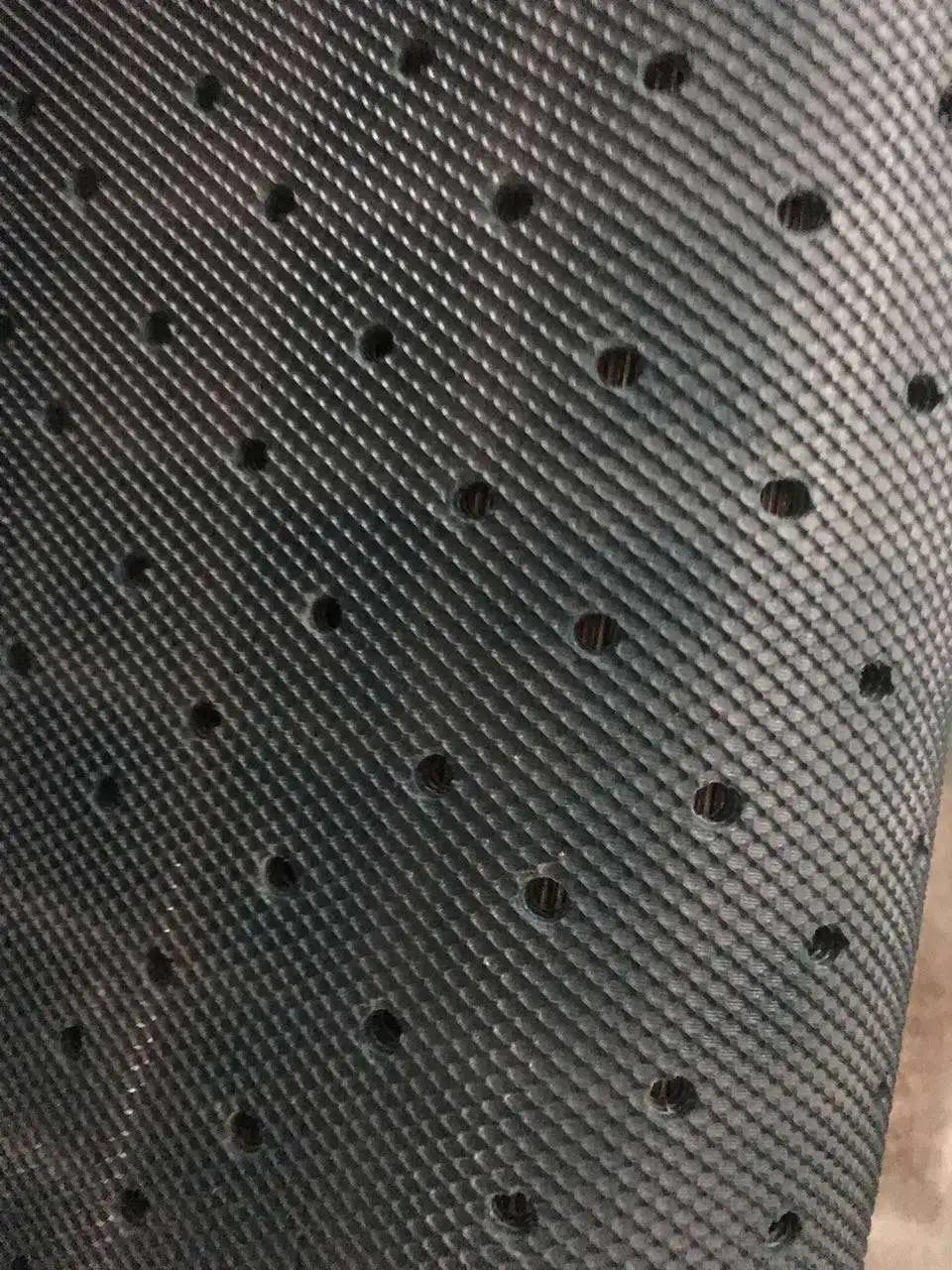

3.Products details

4.Company Information

Qingdao Haozhonghao Woodworking Machinery Co., Ltd. previously was Qingdao Woodworking Machinery Manufacturing Company, and was established in 1958.

With more than 50 year experience in making woodworking machines, our main products are Sanding Machine, Panel Saw, Guillotine, Veneer Slicer and Grinder. We firstly put BB1342 vertical slicer into the market in China. We developed BB1135B Horizontal Veneer slicer by integrating the internal and international technologies, the max slicing width reaches 1300mm. We are the first company which was certified by ISO9001 in the industry, and also a hi-tech enterprise in Qingdao.

We have more than ten years experiences in exporting high quality woodworking machinery, especially Sanding Machine, Veneer Slicer and Grinder.

Our website is sandingmachine.en.made-in-china.com; you could get more information about our company and our products.



5.Packaging & Shipping
