• Model NO.：1325
• Certification：CE
• Customized：Customized
• Condition：New
• Color：Customized
• Table Size：1300*2500
• Movement：Gantry
• Screw：PMI or Hiwin
• Control System：Nc Studio (Genuine)
• Running Mode：Stepper
• Drive：Stepper, Servo Is Optional
• Transport Package：Plywood Case
• Specification：CE
• Trademark：DONGTONG
• Origin：Shandong China
• HS Code：84609090
• Production Capacity：50 Sets Per Month

Basic Info.

Model NO. 1325 Certification CE Customized Customized Condition New Color Customized Table Size 1300*2500 Movement Gantry Screw PMI or Hiwin Control System Nc Studio (Genuine) Running Mode Stepper Drive Stepper, Servo Is Optional Transport Package Plywood Case Specification CE Trademark DONGTONG Origin Shandong China HS Code 84609090 Production Capacity 50 Sets Per Month

Product Description

Factory price, 1325, Rotary Axis, Woodworking Cnc router from Professional cnc router machine manufacturer for 9 years!

Feature:1.1325 R machine is specially designed for 2D and 3D carving
2. High power servo motors and drivers
3. 4 axis NC STUDIO control system, runs steadily
4. Functions of power-off recovery, continuation on break point, time anticipation.
5. Imported HIWIN guild rail and TBI ball screws
6. Welding full steel structure and 10mm gantry
7. Low noise spindle, long lifetime.

Application:1.Materials: wood, acrylic, MDF, soft metal, PVC,stone.....
2.Industry: woodworking, advertisement, artwork, exhibition, decoration industry.

 Technical Parameter:

NO	Performance	Performance	Parameter
1	Working area	X axis	1300mm
		Y axis	2500mm
		Z axis	200mm
2	Rotary diameter		250mm
3	Accuracy	Working accuracy	0.05mm
		Repositioning accuracy	0.05mm
4	Drive mode	X axis	Helical rack and pinion
		Y axis	Helical rack and pinion
		Z axis	Ball screws
5	Speed	Max travel speed	35000mm/min
		Max working speed	20000mm/min
6	Spindle(water-cooling)	Spindle power	3KW (as your request )
		Spindle speed	0_24000r/min
7	Running mode		Servo
8	Working voltage		AC220V/50HZ
9	Operating system		Nc studio

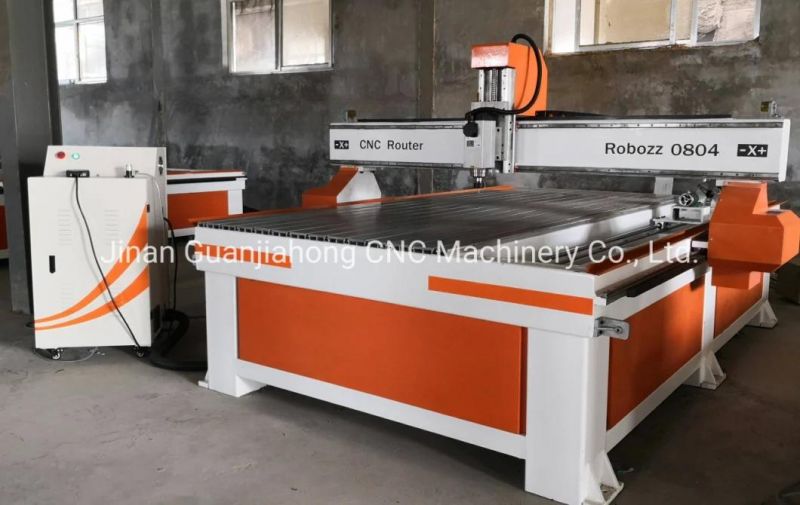

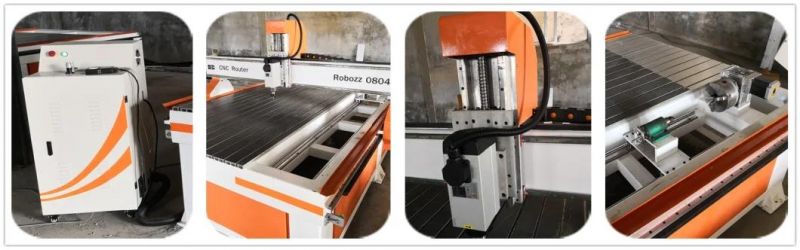

Real photo of machine and details

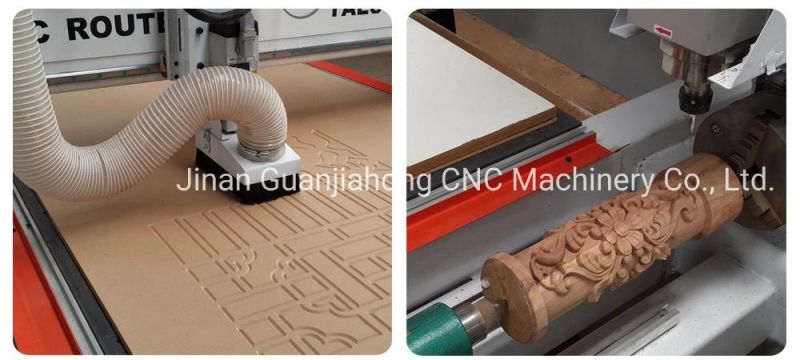

Machine processing , flat carving and round carving
















Technical support:
1. Technical support by phone, email or MSN/ Skype around the clock
2. Friendly English version manual.
3. Engineer available to service machinery overseas. but the buyer should pay the fee.

After-sale & guarantee service:
1. Under normal usage, 1 year for the whole machine and 6 months for spindle
2. Normal machine is properly adjusted before dispatch.
3. You will be able to get free training advice towards our machine in our factory.
4. You will also get free suggestion and consulting, technical support and service by email/fax/ tel and lifetime technical support

If you have specific requirement for 2d &3d CNC Router, customization is available.
