• Model NO.：1325
• Customized：Customized
• Condition：New
• Color：Customized
• Rail：Hiwin Square Guide Rail
• Motor：Stepper Motor
• Driver：Stepper Driver
• Bed Structure：Welded Steel Bed Structure
• Spindle：Air Cooling Spindle
• Table：Aluminum with PVC
• Inverter：Sunfar Inverter
• Lubricating：Handle Press Oiling System
• Transmission：Helical Rack
• Control System：DSP Control System
• Transport Package：Exporting Plywood Package
• Specification：1325
• Trademark：ZK
• Origin：Shandong China
• HS Code：84659900
• Production Capacity：100set ,Month

Basic Info.

Model NO. 1325 Customized Customized Condition New Color Customized Rail Hiwin Square Guide Rail Motor Stepper Motor Driver Stepper Driver Bed Structure Welded Steel Bed Structure Spindle Air Cooling Spindle Table Aluminum with PVC Inverter Sunfar Inverter Lubricating Handle Press Oiling System Transmission Helical Rack Control System DSP Control System Transport Package Exporting Plywood Package Specification 1325 Trademark ZK Origin Shandong China HS Code 84659900 Production Capacity 100set /Month

Product Description

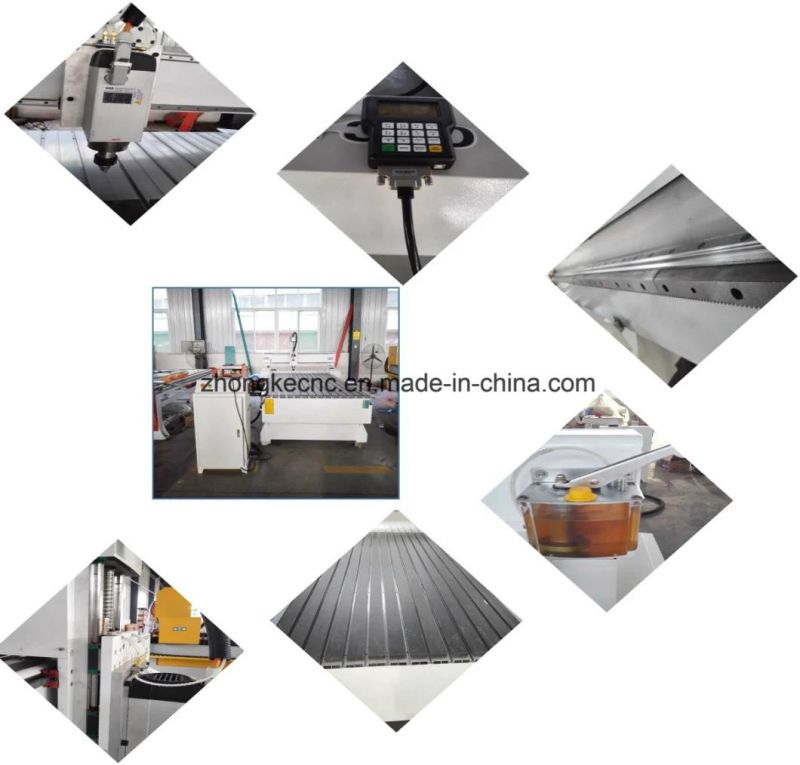

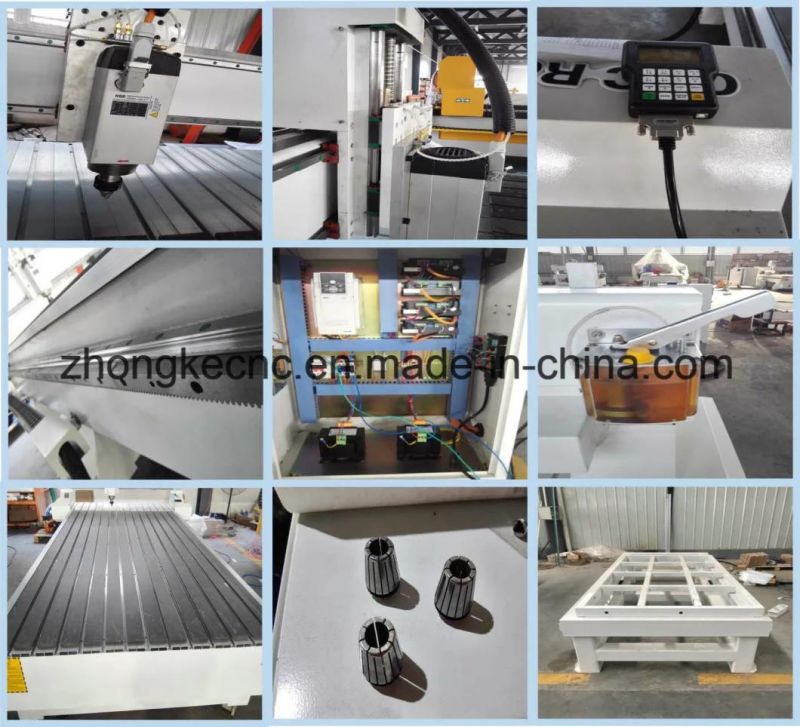

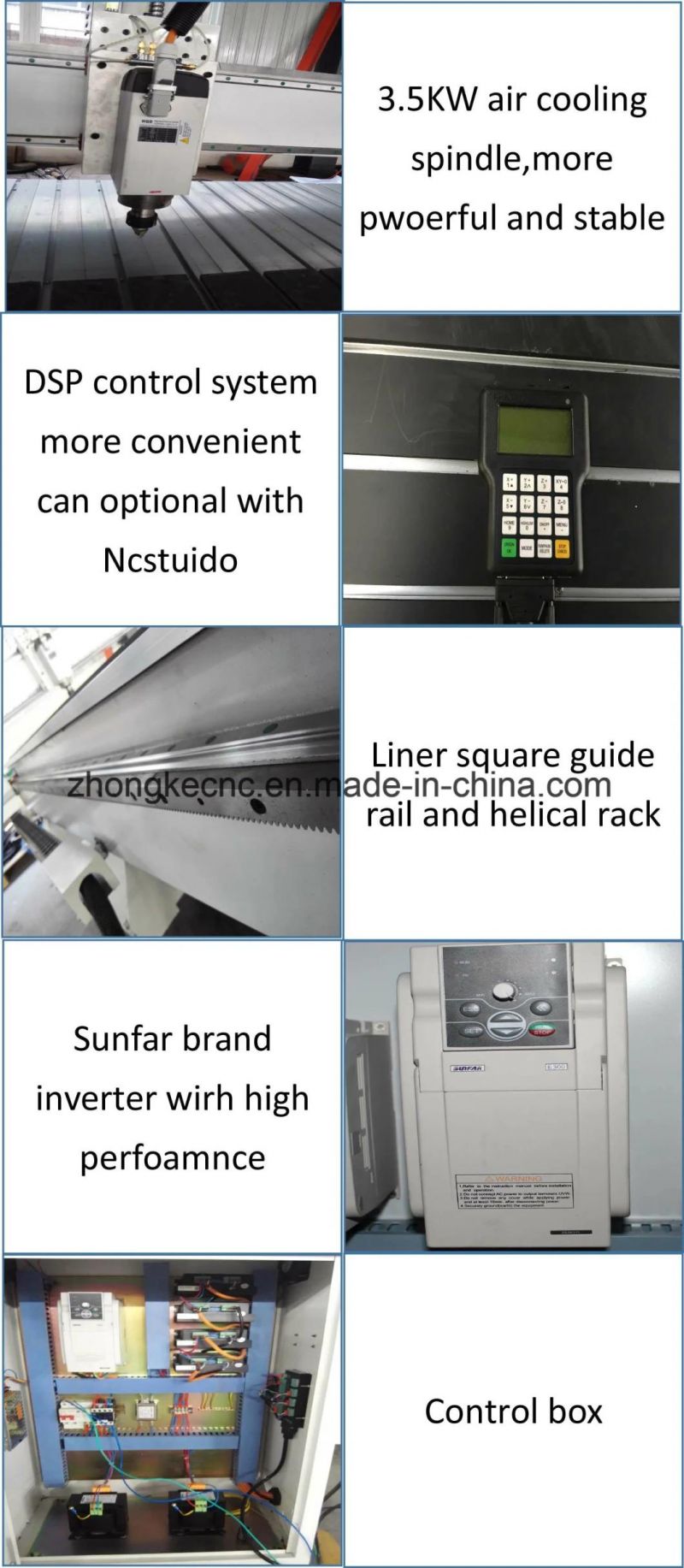

Features:

1.Welded steel bed structure , when working its more stable.

2.Alumiun T-slot table, fixing the materiales by clamps

3.Air cooling spindel , can opstional with water cooling spindle

4.TaiWan high precision HIWIN square liner guide rail, improving working accuracy.

5.X Y transmissiom by helical rack

6.Servo motor/driver and DSP control system is optional

7.Can change the parts according to your requirment.






Technical parameters
Model                                                                  Jinan Zhongke 3d wood cnc router machine
X,Y,Z Working Area                                           1300*2500*200mm
X,Y,Z Traveling Positioning Accuracy               ±0.03/300mm
X,Y,Z repositioning Positioning Accuracy         ±0.02mm
Lathe Structure                                                   T-slot seamless welded steel bed structure
X Structure                                                         Taiwan HIWIN square guide rails
Y Structure                                                         Taiwan HIWIN square guide rails
Z Structure                                                         Taiwan TBI ball screw
Max.Speed                                                         0-30000mm/min
Max.Working Speed                                          0-25000mm/min
Spindle                                                              Air cooling spindle
Spindle Speed                                                   6000-18000RPM
Working Mode                                                  Stepper motor
Working Voltage                                               220V380V/3ph  50HZ/60Hz for standard machine
Command Code                                                G code(*uoo,*nc,*mmg, *plt)
Operating System                                             Ncstudio control system
Interface                                                           USB
X,Y Working Delicacy                                    <0.01mm
Software                                                          Type3 software or Wentai software
Running circumstance                                    Temperature: 0°C~45°C
                                                                        Relative humidity:30%~75%
Waranty                                                          One year
Delivery time                                                  2 weeks

Applied area:

1.Furniture decoration industry: large area plate plane carving, wood carving and board type furniture carving. Solid wood art mural, solid wood door, cabinet door sculpture.

2.Wood products processing: sewing machine desktop, electrical counter desktop, sports supplies equipment.

3.Instrument industry: 3d curved surface, shape cutting.




Technical support:

• Warranty is 1 year
• 24 hour technical support by email or calling
• User-friendly english manual for machine using and maintaining
• We will send you manual and guide video in English,if you still don't know how to operate it, we can help you by phone or Whatsapp,Skype.

Payment terms:

• You can do 30% prepayment at first, then we will start to make machine. when the machine is ready , we will take pictures to you, after we got you payment.We will send the machine to you.

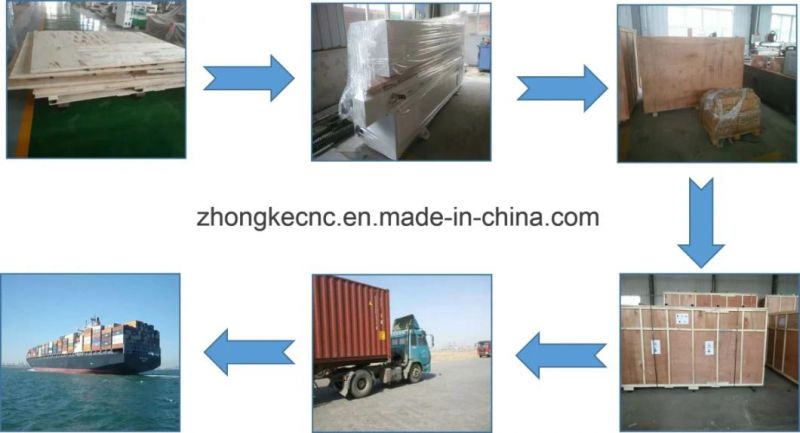

Packing and shipping:



FAQ:
Q1:  How can I get suitable machine?
    A:First: Please tell us what's your max working area.
    Second: Please tell us what material will be engraved or cutted?
    Third: Please tell us what kind of product do you want to get.
    Those three answers will help us choice suitable CNC Router for you.
Q2: What is your delivery time?
    A:It depends on what kind CNC Router you order? But for common CNC Router, our production time is 15 working days.
Q3: Do you have operation manual for machine?
    A:Surely we have, there have how to intall and operation machine, how to maintain machine and what place need to be notice during using our machine. We will sent CNC Router manual to you with our CNC Router machine.
Q4: This is the first time I use this kind of machine, is it easy to operate?
   A:Yes, We will send you manual and guide video in English, it can teach you how to operate the machine. If you stilldon't know how to operate it, we can help you by phone or WhatsApp,Skype.
Q5:How should I pay for my order ? what is the procession of this purchase?
   A:We accept TT by bank. you can do 30% prepayment at first, then we will start to make machine. when the machine is ready , we will take pictures to you, after we got you payment.We will send the machine to you.
