• Model NO.：ELE 1325
• Customized：Customized
• Condition：New
• Color：Customized
• Voltage：220V, 3phase, 60Hz
• Dimension(L*W*H)：3200*2140*1850mm
• Working Area：1300*2500*200 mm
• Control Box：Inner Box
• Control System：DSP A123 Control System
• Spindle：2 Sets Italy Hsd Air Cooling Spindle
• Spindle Power：4.5kw for Each Spindle
• Spindle Speed：0-18000rpm
• Inverter：5.5kw Delta Inverter
• Motor：FL118 Stepper Motor
• Transport Package：Standard Export Wooden Case
• Specification：CE, ISO, SGS
• Trademark：BLUE ELEPHANT
• Origin：Shandong, China
• Production Capacity：200 Sets Per Month

Basic Info.

Model NO. ELE 1325 Customized Customized Condition New Color Customized Voltage 220V, 3phase, 60Hz Dimension(L*W*H) 3200*2140*1850mm Working Area 1300*2500*200 mm Control Box Inner Box Control System DSP A123 Control System Spindle 2 Sets Italy Hsd Air Cooling Spindle Spindle Power 4.5kw for Each Spindle Spindle Speed 0-18000rpm Inverter 5.5kw Delta Inverter Motor FL118 Stepper Motor Transport Package Standard Export Wooden Case Specification CE, ISO, SGS Trademark BLUE ELEPHANT Origin Shandong, China Production Capacity 200 Sets Per Month

Product Description

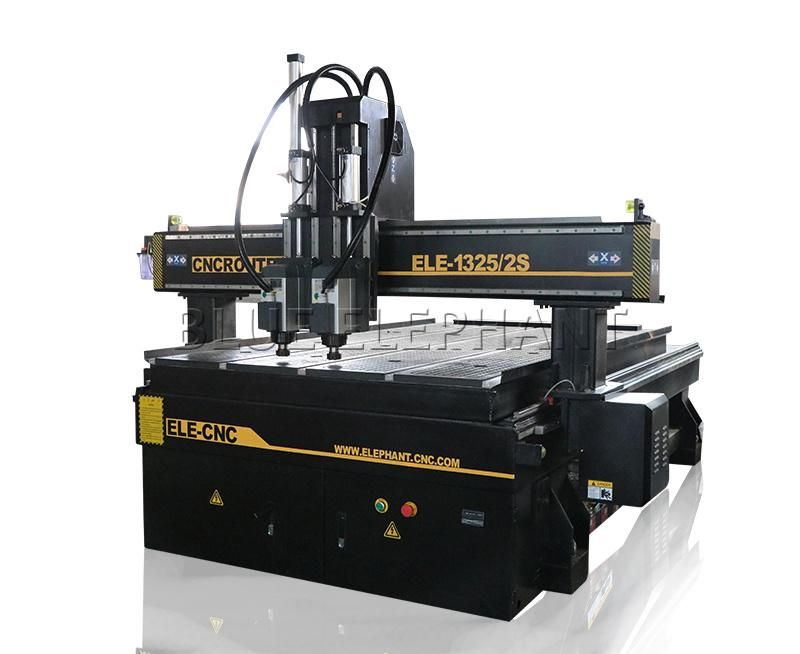

Pneumatic sysem multi spindle cnc wood carving machine , router machine wood , two heads cnc router with rotary

Advantages

• heavy duty frame and gantry , very durable
• original Italy HSD spindle 4.5KW, 2pcs, top brand in the world, best quality .
• The machine has two spindles, they do different works, the two spindles work one by one, it is a simple automatic tool changer machine.

Parameters

Descriptions	Parameters
Modle	ELE1325-2S
Working area	1300*2500*200mm
Control system	Richauto DSP A123 control system
Working Voltage	220V, 3Ph, 60Hz (380V for optional)
Spindle	2 sets 4.5kw Italy HSD air cooling spindle
Spindle speed	0-18000rpm
Inverter	5.5kw Delta inverter
Motor and Driver	FL118 stepper motor and Yako 2811 big driver
Table surface	T-slot and vacuum working table
Structure	New type thicker and bigger heavy duty welded frame and gantry
Lubrication system	Automatic lubrication system
Transmission	X,Y axis: rack and pinion drive Z axis: Taiwan TBI ball screw X,Y,Z axis: Taiwan HIWIN linear square rail #20
Vacuum pump	7.5kw air type vacuum pump,  220V, 3Ph, 60Hz
Control box	Inner box
Rotary device	Diameters: 160mm,  length: 2000mm
Software	Artcam
Others	Omron limit switch

PS:All the working area and specifications can be customized according to your requests.

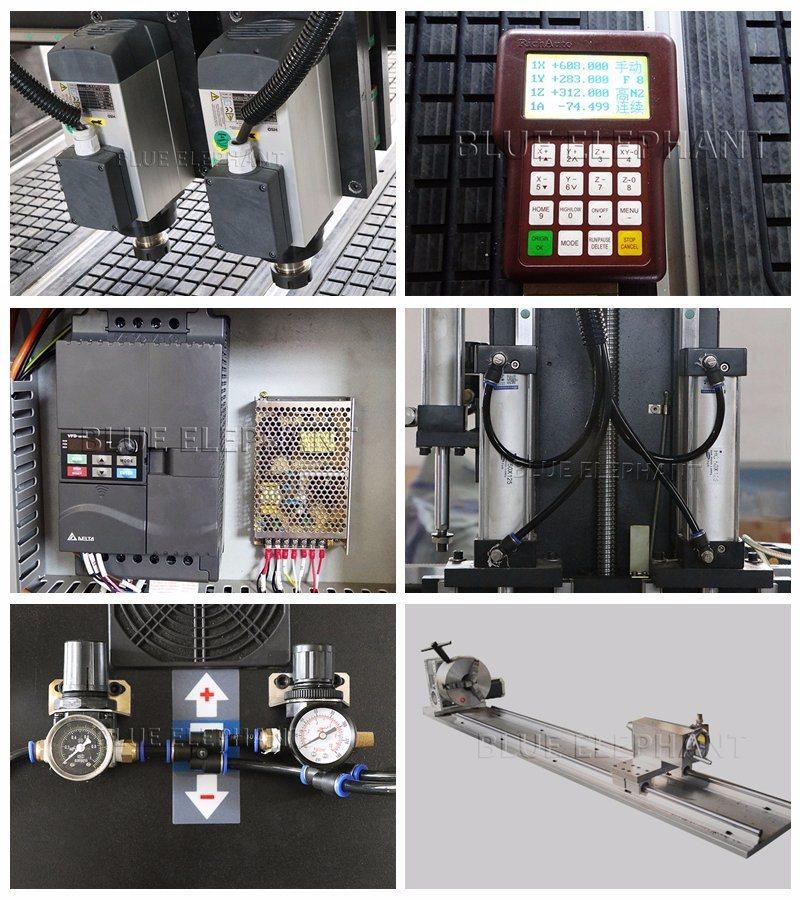

Product details

Applications:

1. Wood furniture industry

Doors; Cabinets; Tables; Chairs.

Wave plate, fine pattern, antique furniture, wooden door, screen, craft sash, composite gates, cupboard doors, interior doors, sofa legs, headboards and so on.

2. Advertising industry

Signage; Logo; Badges; Display board; Meeting sign board; Billboard

Advertising filed, sign making, acrylic engraving and cutting, crystal word making, blaster molding, and other advertising materials derivatives making.

3. Die industry

A sculpture of copper, aluminum, iron and other metal molds, as well as artificial marble, sand , plastic sheeting, PVC pipe, and other non-metallic mold.

4. Artwork and Decoration

wood crafts; gift box; jewelry box

5. Others

Relief sculpture and 3D engraving and Cylindrical object.

Packaging & Delivery:

Packaging Details:  1.Outside package:Standard marine export plywood case.

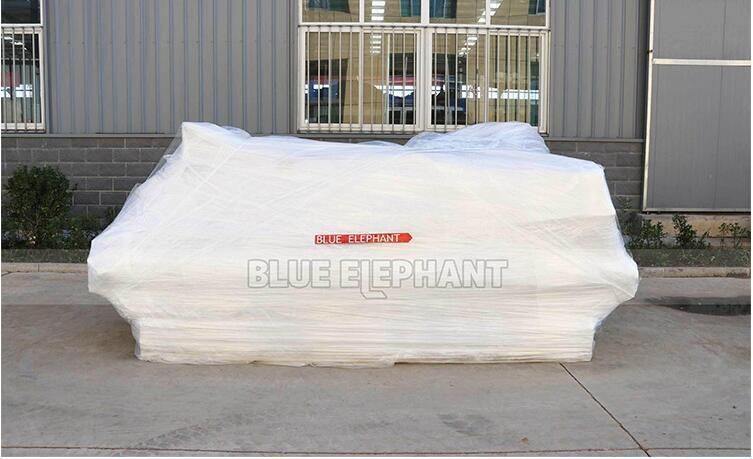

                                  2.inner package:Stretch film and plastic film for humidity.

                                  We can package according to your requests.

Delivery Detail:  Shipped in 15 working days after payment.



Our Service:

1, Within 7 days since your local customs clearance: if the cnc router's any parts has any problems, we will change it free.

2, Exceed 7 days since your local customs clearance but within warranty period: if the cnc router parts have any problems, we can change the old machine parts to new ones free, but you should pay all the shipping cost.

3, Exceed warranty period: if the cnc router parts have any problems, we can offer new machine parts with cost price and you also should pay all the shipping cost.

4, We offer 24 hours technical support by call, and email.

5, Our technician can give you remote guide online(Skype or WhatsApp) if you have any question.

6, We can record videos of operating the laser machine.

7, Free training course in our factory.

8.Machine will be adjusted before it is delivered, operation disk/CD was included.

Guarantee and After-sale service:
1. 12 months warranty for the whole machine.

2. Technical support by phone, email or WhatsApp/Skype around the clock.

3. Friendly English version manual and operation video CD disk.

4. Engineer available to service machinery overseas.

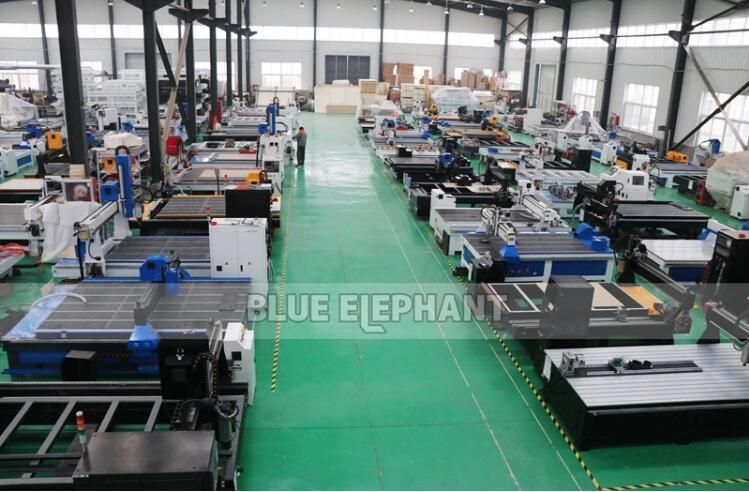

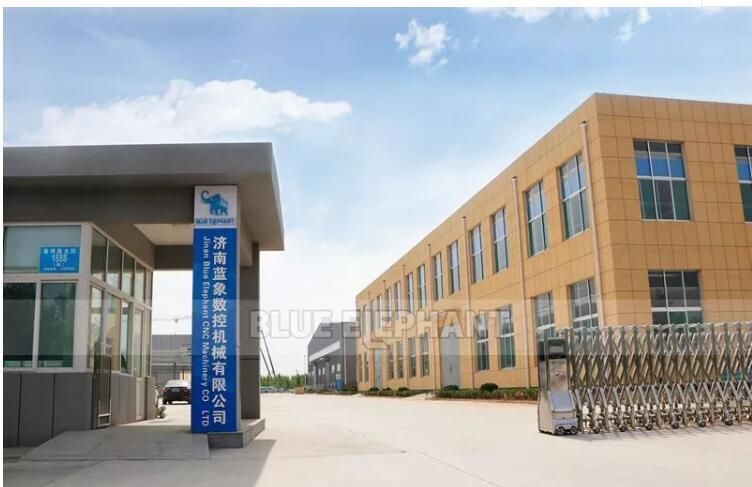

our factory


Jinan Blue Elephant CNC Machinery, the professional cnc router and laser cutting machine manufacturer in China, include ATC CNC router, Wood CNC Router, Stone CNC Router, Metal CNC Router, EPS CNC Router, 4 Axis CNC Router, 5 Axis CNC Router, Plasma Cutting Machine, Laser Cutting and Engraving Machine and so on, which have passed the CE, SGS, ISO9001 etc. Our cnc routers are widely used for advertising, woodworking, mould, stone, metal industry.

Customer visiting
