• Model NO.：ELECNC-1325
• Customized：Customized
• Condition：New
• Color：Customized
• Voltage：380V, 3 Phase, 50,60Hz(220V for Optional)
• Dimension(L*W*H)：3700*2140*1950mm
• Spindle：4.5kw Italy Hsd Air Cooling Spindle
• Control System：DSP A18
• Drive Motor：Stepper
• Inverter：5.5kw Taiwan Delta Inverter
• Frame：Welded Structure
• Transmission：Taiwan Tbi Ball Screw, #20 Hinwin Linear Guide
• Working Table：T-Slot & Vacuum Working Table
• Transport Package：Standard Export Wooden Case
• Specification：CE, ISO, SGS
• Trademark：BLUE ELEPHANT
• Origin：Shandong, China
• Production Capacity：200 Sets Per Month

Description

Parameter

X,Y,Z Working Area

1300x2500x200mm

Table Surface

Vacuum and T-slot working table,4 zones

Frame

New style heavy duty Welded Structure

X, Y Structure

Rack and Pinion Drive, #20 Hiwin Rail Linear Bearings

Z Structure

Hiwin Rail Linear Bearings and Ball Screw

Spindle Power

4.5kw Italy HSD air cooling spindle

Spindle Speed

0-18000RPM

Inverter

5.5kw Delta inverter

Drive Motors

Stepper

Working Voltage

380v, 3 phase, 50/60HZ(Option: AC220V/50/60Hz,3PH)

Command Language

G Code

Operating System

DSP A18

Computer Interface

USB

Rotary device

200mm diameter*2200mm length

Collet

ER32

X,Y Resolution

<0.01mm

Software Compatibility

Type3/UcancameV9 Software, (Option: Artcam Software)

Running Environment  Temperature

0 - 45 Centigrade

Relative Humidity

30% - 75%

PS:All the working area and specifications can be customized according to your requests.

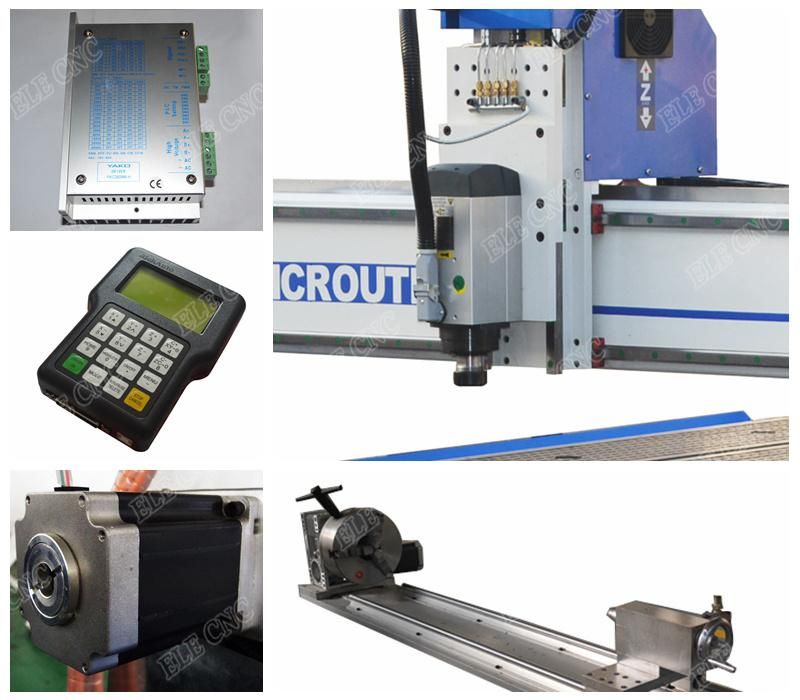

Main parts



Applicantions

1. Wood furniture industry

Doors; Cabinets; Tables; Chairs.

Wave plate, fine pattern, antique furniture, wooden door, screen, craft sash, composite gates, cupboard doors, interior doors, sofa legs, headboards and so on.

2. Advertising industry

Signage; Logo; Badges; Display board; Meeting sign board; Billboard

Advertising filed, sign making, acrylic engraving and cutting, crystal word making, blaster molding, and other advertising materials derivatives making.

3. Die industry

A sculpture of copper, aluminum, iron and other metal molds, as well as artificial marble, sand , plastic sheeting, PVC pipe, and other non-metallic mold.

4. Artwork and Decoration

wood crafts; gift box; jewelry box

5. Others

Relief sculpture and 3D engraving and Cylindrical object.

Packaging & Delivery:

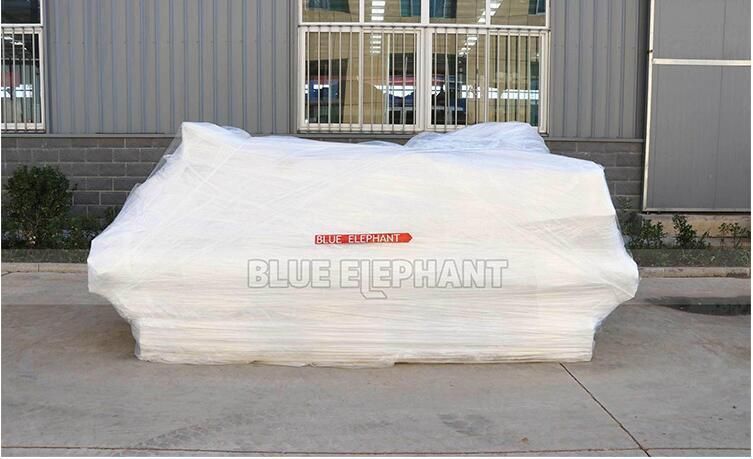

Packaging Details:
Three layers---
-The innermost layer is EPE pearl cotton film package;
-The middle layer is wrapping up with environmental protection material ;
-And the outermost layer is winding up with PE stretch film.
They're very environmentally friendly.
If you need a wooden box, we will make a wooden box outside the machine.

Delivery Detail: Shipped in 15 working days after payment.



Our Service:

1, Within 7days since your local customs clearance: if the cnc router's any parts has any problems, we will change it free.
2, Exceed 7days since your local customs clearance but within warranty period: if the cnc router parts have any problems, we can change the old machine parts to new ones free, but you should pay all the shipping cost.
3, Exceed warranty period: if the cnc router parts have any problems, we can offer new machine parts with cost price and you also should pay all the shipping cost.
4, We offer 24 hours technical support by call, and email.
5, Our technician can give you remote guide online(Skype or MSN) if you have any question.
6, We can record videos of operating the laser machine.
7, Free training course in our factory.
8.Machine will be adjusted before it is delivered, operation disk/CD was included.

Our Service:

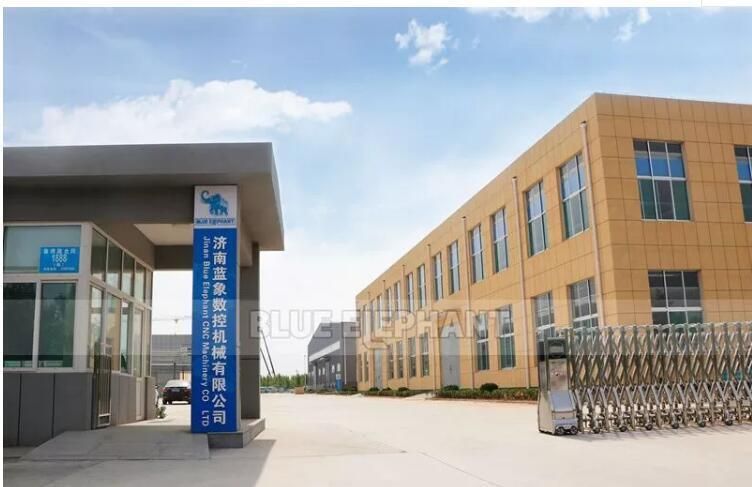

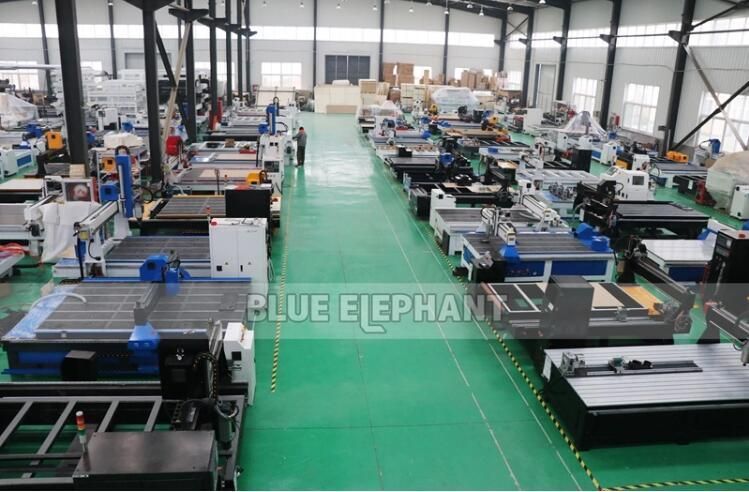

Our Factory
