• Model NO.：ELECNC-1325
• Customized：Customized
• Condition：New
• Color：Customized
• Voltage：380V, 3phase, 50Hz
• Dimension(L*W*H)：3200*2140*1350mm
• Control System：DSP A18 Control System for 4 Axis CNC Router
• Spindle：3kw Changsheng Water Cooling Spindles
• Inverter：3.7kw Fuling Inverter
• Motor：FL118 Stepper Motors
• Driver：Yako2608 Drivers
• Rotary Device：Length: 2500mm
• Screw：Taiwan Tbi Ball Screw
• Guide：Sweden Abba Square Linear Guide
• Transport Package：Standard Export Wooden Case
• Specification：CE, ISO, SGS
• Trademark：BLUE ELEPHANT
• Origin：Shandong, China
• Production Capacity：200 Sets Per Month

Basic Info.

Model NO. ELECNC-1325 Customized Customized Condition New Color Customized Voltage 380V, 3phase, 50Hz Dimension(L*W*H) 3200*2140*1350mm Control System DSP A18 Control System for 4 Axis CNC Router Spindle 3kw Changsheng Water Cooling Spindles Inverter 3.7kw Fuling Inverter Motor FL118 Stepper Motors Driver Yako2608 Drivers Rotary Device Length: 2500mm Screw Taiwan Tbi Ball Screw Guide Sweden Abba Square Linear Guide Transport Package Standard Export Wooden Case Specification CE, ISO, SGS Trademark BLUE ELEPHANT Origin Shandong, China Production Capacity 200 Sets Per Month

Product Description

1325 Multi Spindles Multifunction Automtaic 3D Wood Design Carving Machine Cnc Router 5D with 4 Rotary Device

Automatic 3d wood carving cnc router 1325 advantage

1. The T-slot working table can be disassembled.
2. The length of the four rotary devices are 2500mm.
3. Total with four water cooling spindles, can be working in the same time.
4. DSP A18 handle controller, doesn't need to connect to the computer.

Automatic 3d wood carving cnc router parameter

Descriptions	Parameters
Model	ELECNC1325-4R
Working Area	1300*2500*300mm
Working Voltage	380V, 3phase, 50Hz (220V for optional)
Structure	Desktop new type thicker and bigger heavy duty welded frame and gantry
Table surface	The T-slot working table can be disassembled.
Control System	DSP A18 control system for 4 axis cnc router
Control box	Single-sided separate control box
Spindle	3kw Changsheng water cooling spindle (top brand in China)
Spindle speed	0-24000RPM
Inverter	3.7kw Fuling Inverter
Guide	Sweden ABBA square linear guide #20 for X,Y,Z axis
Transmission	X,Y axis helical rack and pinion drive Z axis Taiwan TBI ball screw
Rotary Device	length: 2500mm 4 sets rotary devices with 2 sets of motors and drives
Motor	FL118 stepper motors
Driver	YAKO2608 stepper drivers
Dust Collector	2.2kw single bag dust collector,220v,1ph,60hz
Lubrication system	Manual lubrication system

 PS:All the working area and specifications can be customized according to your requests.

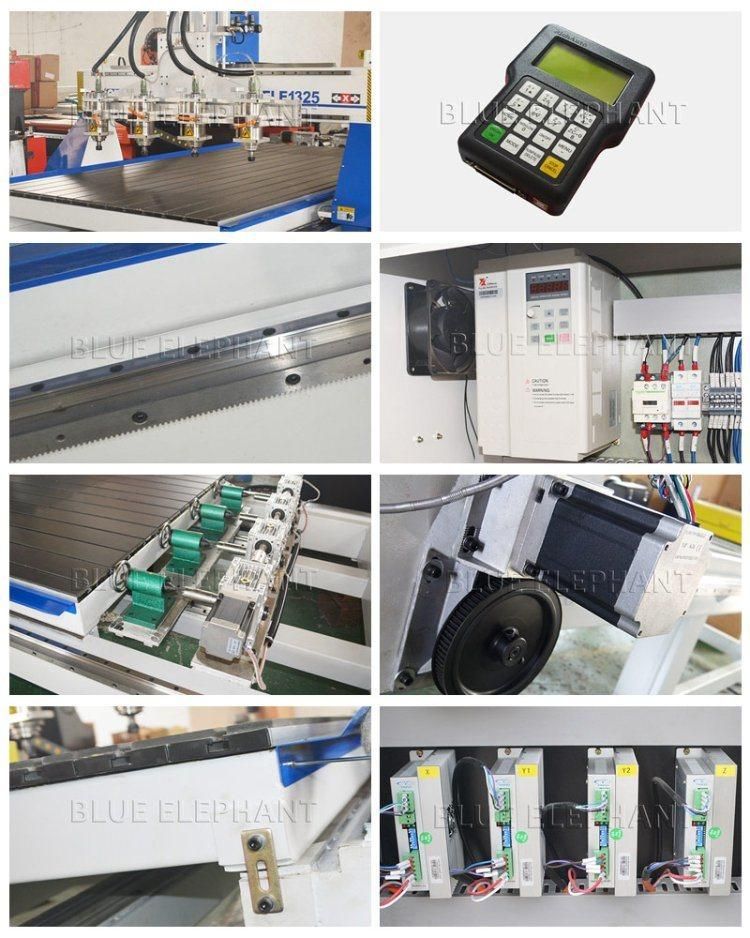

Wood design machine router 1325 product details


Machine cnc router 5d feature

1. Effective working area: 1300*2500*300
2. 3KW water cooling spindle*4
3. DSP A18 control system
4. Stepper motor FL118 and YAKO 2608 driver
5. 3KW Fuling inverter
6. Helical rack
7. Rotary device:Length in 2500mm,can be moved back and forth
8. Taiwan TBI ball screw
9. Taiwan ABBA square linear guide way for 20#
10. Artcam,Type3 software(one of them)
11. T-slot working table
12. Japan Omron limit switch
13. Working voltage:380v 3phase 50HZ

1325 cnc router with rotary application

1. The T-slot working table can be disassembled.
2. When the table is not disassembled, you can do any 3 axis woodworking work.
3. When the working table is removed: Mainly applicable to the customers who processing cylinder products, whether it is regular, irregular cylinder, square or circular cylinder.

Packaging & Delivery
Packaging Details: 1.Outside package:Standard marine export plywood case.
                                 2.inner package:Stretch film and plastic film for humidity.
                                 We can package according to your requests.
Delivery Detail: Shipped in 15 working days after payment.



Our service
1.Teach you professional cnc router machine technology.
2.Provide you lifelong cnc router technology support service.
3.One year for the whole machine, lifelong maintenance.
4.Within 24 hours to solve the problem you're facing, high efficiency, high quality.
5.Network video communication and online telephone service in our work day.
6.Engineers always stand by at any time for going abroad for after sales service face to face if you need.
7.Completely service system on pre-sales, in sales, after sales, protecting customer's constantly working, equipped with easy learned installation guide, maintenance guide, instructions for use, etc.
Factory
1.Team with more than 140 people;
2.Over 30 people providing services after-sales ;
3.Being chosen by more than 5300 customers;
4.Being exported to more than 80 countries in Europe and America.


Looking forward for the agents from all over the world! Welcome to contact us!
