• Model NO.：ELECNC-1530
• Customized：Customized
• Condition：New
• Color：Customized
• Voltage：415V, 3phase, 50Hz (220V 380V for Optional)
• Dimension(L*W*H)：3800*2300*1900mm
• Control System：DSP A123 Control System
• Spindle：2 Sets 3.5kw Hqd Air Cooling Spindles
• Rotary Device：400mm Diameter for Y Axis Direction
• Spindle Speed：0-18000rpm
• Motor：FL118 Stepper Motors
• Driver：Yako 2811 Big Drivers
• Inverter：5.5kw Fuling Inverter
• Table Surface：T-Slot and Vacuum Working Table
• Transport Package：Standard Export Wooden Case
• Specification：CE, ISO, SGS
• Trademark：BLUE ELEPHANT
• Origin：Shandong, China
• Production Capacity：200 Sets Per Month

Basic Info.

Model NO. ELECNC-1530 Customized Customized Condition New Color Customized Voltage 415V, 3phase, 50Hz (220V 380V for Optional) Dimension(L*W*H) 3800*2300*1900mm Control System DSP A123 Control System Spindle 2 Sets 3.5kw Hqd Air Cooling Spindles Rotary Device 400mm Diameter for Y Axis Direction Spindle Speed 0-18000rpm Motor FL118 Stepper Motors Driver Yako 2811 Big Drivers Inverter 5.5kw Fuling Inverter Table Surface T-Slot and Vacuum Working Table Transport Package Standard Export Wooden Case Specification CE, ISO, SGS Trademark BLUE ELEPHANT Origin Shandong, China Production Capacity 200 Sets Per Month

Product Description

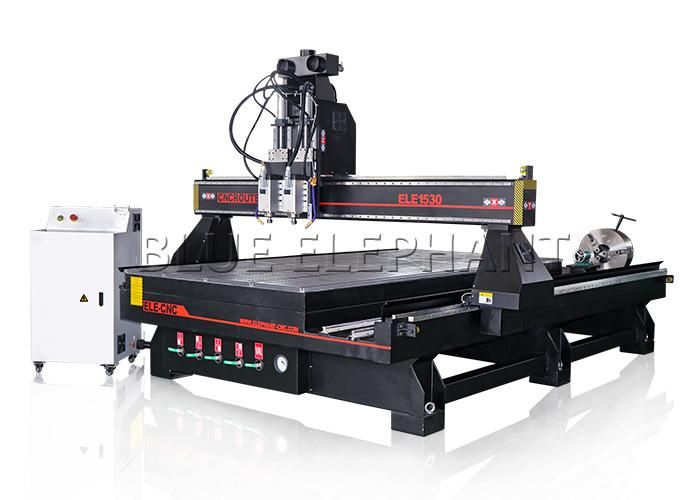

1530 multi spindle cnc router main door wood carving design 4 axis pneumatic system machine

Advantages

1. heavy duty frame and gantry , very durable
2. The machine has two spindles, they do different works, the two spindles work one by one, it is a simple automatic tool changer machine.
3. Equipped with a 400 mm diameter rotating device in the Y axis direction, can be used to process the cylinder.

Parameters

Descriptions	Parameters
Modle	ELECNC1530-2S-4
Working area	1500*3000*300mm
Control system	Richauto DSP A123 control system
Working Voltage	415V, 3Ph, 50Hz (220V 380V for optional)
Spindle	2 sets 3.5kw HQD air cooling spindle
Spindle speed	0-18000rpm
Inverter	5.5kw Fuling inverter
Motor and Driver	FL118 stepper motor and Yako 2811 big driver
Table surface	T-slot and vacuum working table
Structure	New type thicker and bigger heavy duty welded frame and gantry
Lubrication system	Manual lubrication system
Transmission	X,Y axis: rack and pinion drive Z axis: Taiwan TBI ball screw X,Y,Z axis: ABBA linear square rail #20
Vacuum pump	7.5kw air type vacuum pump, 220V, 3Ph, 60Hz
Control box	Separate double-sided control box
Rotary device	Diameters: 400mm, length: 2000mm
Software	Artcam
Vacuum Pump	5.5kw Water cycle vacuum pump (415V, 3PH, 50HZ)
Dust collector	1.5kw new type double bag vacuum cleaner (415V, 3PH, 50HZ)
Others	Omron limit switch Cardiff wire

PS:All the working area and specifications can be customized according to your requests.

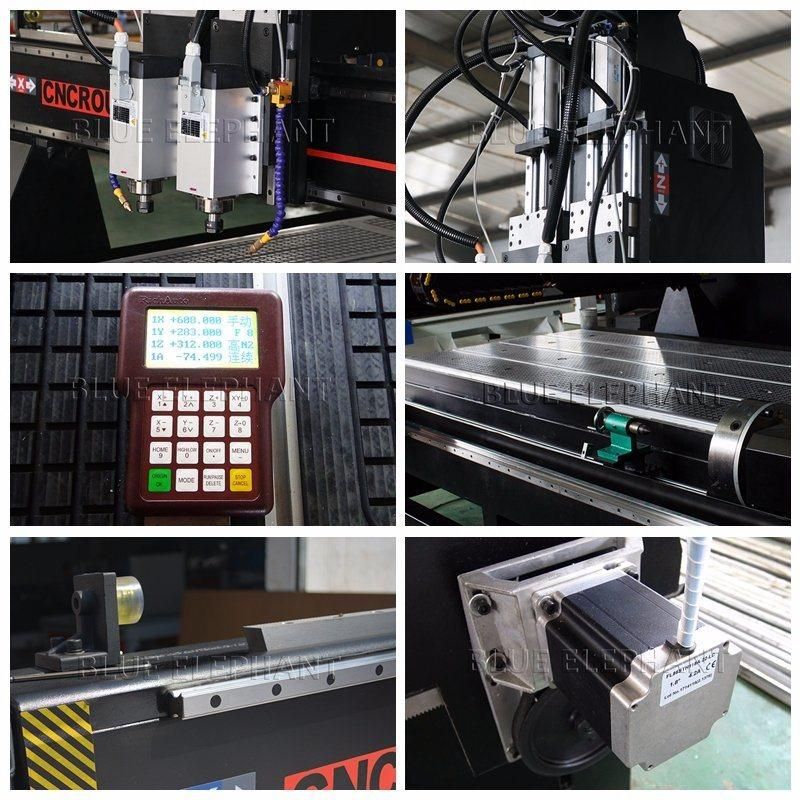

Product details



Applications
Apply for the wood , MDF acrylic etc cutting and engraving.
The rotating device can process the cylinder.

Packaging & Delivery
Packaging Details:  1.Outside package:Standard marine export plywood case.
                                  2.inner package:Stretch film and plastic film for humidity.
                                  We can package according to your requests.
Delivery Detail:  Shipped in 15 working days after payment.


Our Service
1.Teach you professional cnc router machine technology.
2.Provide you lifelong cnc router technology support service.
3.One year for the whole machine, lifelong maintenance.
4.Within 24 hours to solve the problem you're facing, high efficiency, high quality.
5.Network video communication and online telephone service in our work day.
6.Engineers always stand by at any time for going abroad for after sales service face to face if you need.
7.Completely service system on pre-sales, in sales, after sales, protecting customer's constantly working, equipped with easy learned installation guide, maintenance guide, instructions for use, etc.
