• Model NO.：ELECNC-1325
• Customized：Customized
• Condition：New
• Color：Customized
• Voltage：380V, 3pH, 50Hz (220V for Optional)
• Control System：DSP A18 Control System for 4 Axis
• Spindle：3kw Changsheng Water Cooling Spindle
• Motor：FL118 Stepper Motor
• Driver：Leadshine 860h Big Driver
• Inverter：3.7kw Fuling Inverter
• Table Surface：T-Slot and Vacuum Working Table
• Rotary Device：Diameter: 200mm; Length: 1800mm
• Structure：New Type Thicker and Bigger Heavy Duty Welded Fram
• Transport Package：Standard Export Wooden Case
• Specification：CE, ISO, SGS
• Trademark：BLUE ELEPHANT
• Origin：Shandong, China
• Production Capacity：200 Sets Per Month

Basic Info.

Model NO. ELECNC-1325 Customized Customized Condition New Color Customized Voltage 380V, 3pH, 50Hz (220V for Optional) Control System DSP A18 Control System for 4 Axis Spindle 3kw Changsheng Water Cooling Spindle Motor FL118 Stepper Motor Driver Leadshine 860h Big Driver Inverter 3.7kw Fuling Inverter Table Surface T-Slot and Vacuum Working Table Rotary Device Diameter: 200mm; Length: 1800mm Structure New Type Thicker and Bigger Heavy Duty Welded Fram Transport Package Standard Export Wooden Case Specification CE, ISO, SGS Trademark BLUE ELEPHANT Origin Shandong, China Production Capacity 200 Sets Per Month

Product Description

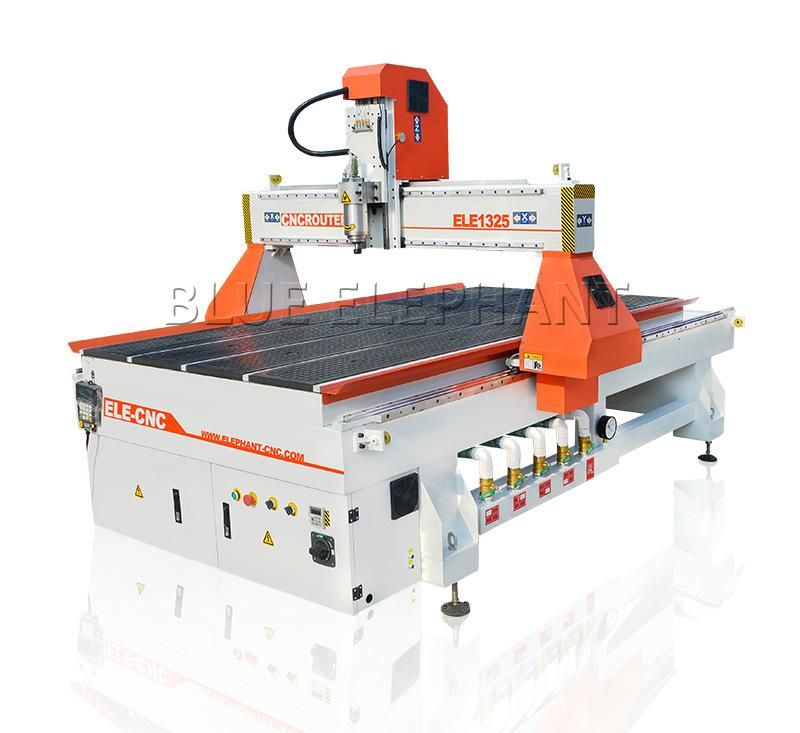

 4 Axis CNC Router with Rotary for 3D Wood Sculpture Engraving

Advantages

• 10~12mm thinkness heavy duty frame. Promise the machine working stable and durable. Have a longer work life.
• Rotary device for optional, can do cylindrical carving woodworking.
• High soft shielded copper wires to protect against the static electricity. More safe and have a longer work life.
• All the manuals of the machine are in English.

Parameters

Descriptions	Parameters
Modle	ELE1325-4
Working area	1300*2500*300mm
Control system	DSP A18 control system for 4 axis
Control box	Inner box with French Schneider rotary handle
Spindle	3kw Changsheng water cooling spindle with CW-3000 industrial chiller
Spindle speed	0-24000RPM
Motor	FL118 stepper motor
Driver	Yako2608 driver
Inverter	3.7kw Fuling Inverter
Table surface	T-slot and vacuum working table with 4 zones
Structure	New type thicker and bigger heavy duty welded frame and gantry
Rotary device	200mm diameter and 1800mm length for rotary device
Voltage	380V, 3Ph, 50Hz (220V for optional)
Lubrication system	Manual lubrication system (automatic for optional)
Transmission	X,Y rack and pinion drive; Z Taiwan TBI ball screw Taiwan HIWIN/PMI linear square rail 20# for X,Y,Z axis
Traveling speed	32m/min
Working speed	20m/min
Vacuum pump	7.5kw Tongyou Pump (380V, 3Ph, 50Hz)
Dust collector	3kw old type double bag vacuum cleaner (380V, 3Ph, 50Hz)

PS:All the working area and specifications can be customized according to your requests.

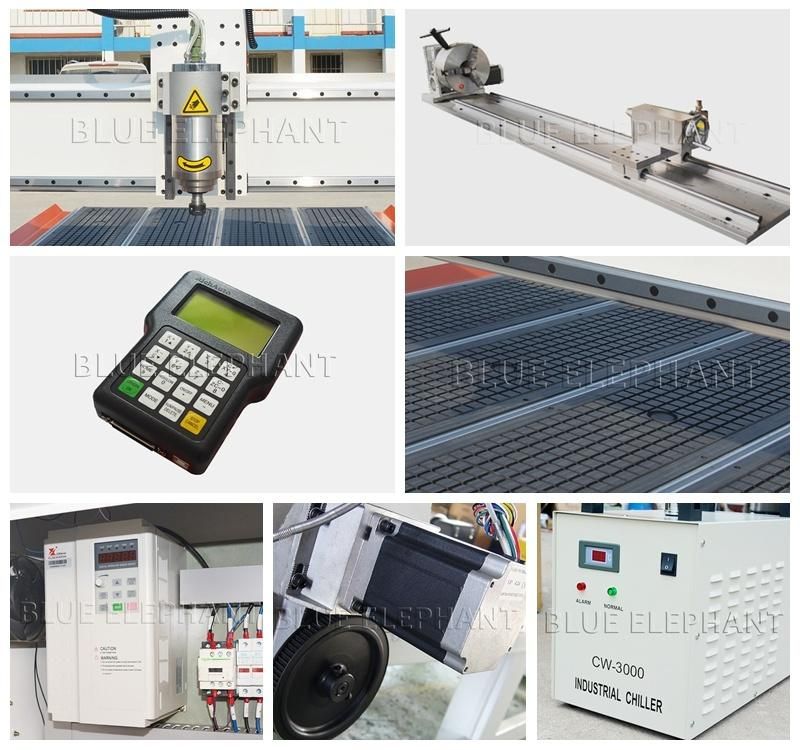

Product Details



Applications:

1. Wood furniture industry

Doors; Cabinets; Tables; Chairs.

Wave plate, fine pattern, antique furniture, wooden door, screen, craft sash, composite gates, cupboard doors, interior doors, sofa legs, headboards and so on.

2. Advertising industry

Signage; Logo; Badges; Display board; Meeting sign board; Billboard

Advertising filed, sign making, acrylic engraving and cutting, crystal word making, blaster molding, and other advertising materials derivatives making.

3. Die industry

A sculpture of copper, aluminum, iron and other metal molds, as well as artificial marble, sand , plastic sheeting, PVC pipe, and other non-metallic mold.

4. Artwork and Decoration

wood crafts; gift box; jewelry box

5. Others

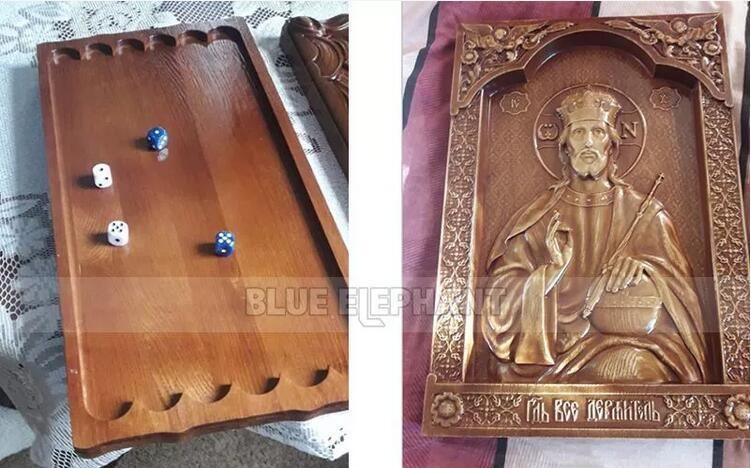

Relief sculpture and 3D engraving and Cylindrical object.

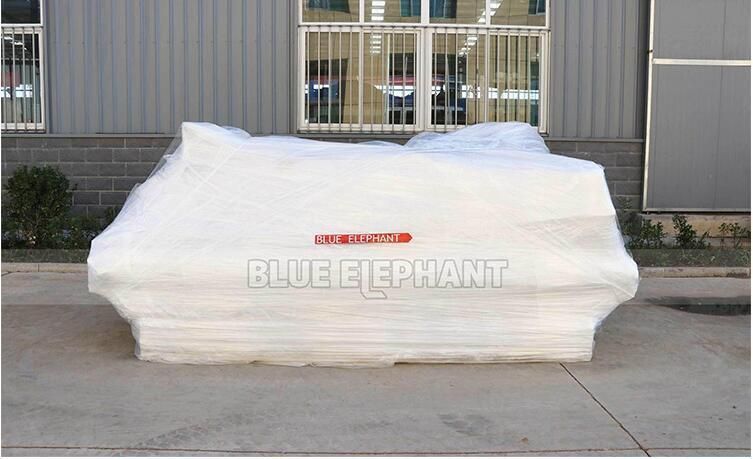

Packaging & Delivery:

Packaging Details:
Three layers---
-The innermost layer is EPE pearl cotton film package;
-The middle layer is wrapping up with environmental protection material ;
-And the outermost layer is winding up with PE stretch film.
They're very environmentally friendly.
If you need a wooden box, we will make a wooden box outside the machine.

Delivery Detail: Shipped in 15 working days after payment.

Our Service:

1, Within 7days since your local customs clearance: if the cnc router's any parts has any problems, we will change it free.
2, Exceed 7days since your local customs clearance but within warranty period: if the cnc router parts have any problems, we can change the old machine parts to new ones free, but you should pay all the shipping cost.
3, Exceed warranty period: if the cnc router parts have any problems, we can offer new machine parts with cost price and you also should pay all the shipping cost.
4, We offer 24 hours technical support by call, and email.
5, Our technician can give you remote guide online(Skype or MSN) if you have any question.
6, We can record videos of operating the laser machine.
7, Free training course in our factory.
8.Machine will be adjusted before it is delivered, operation disk/CD was included.

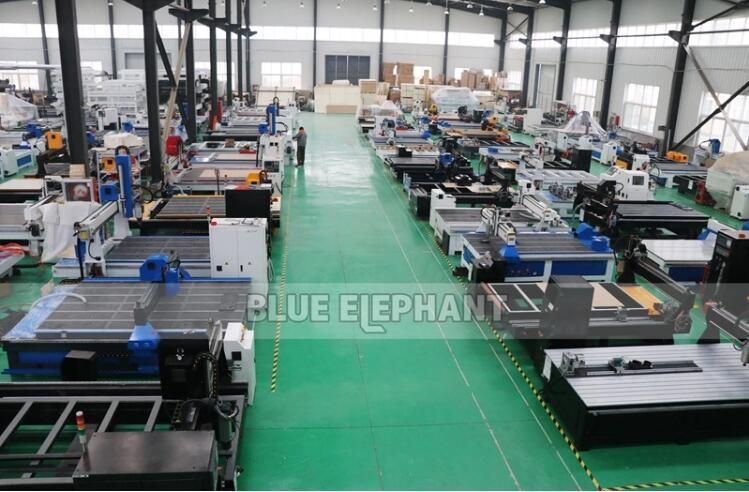

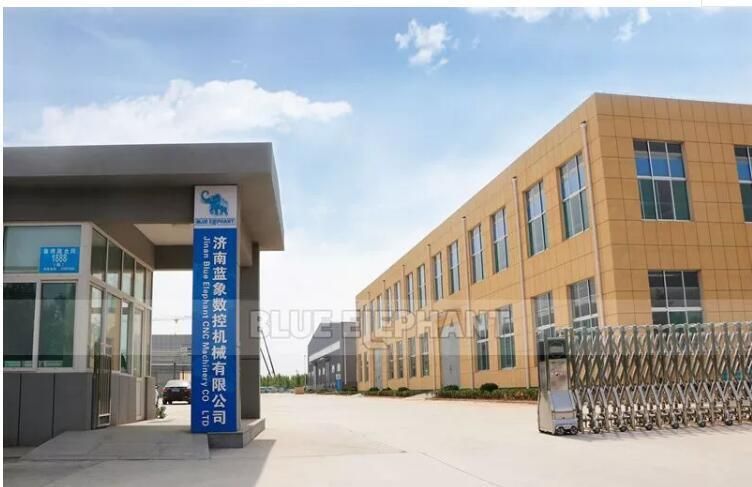

Welcome to our factory:


Jinan Blue Elephant CNC Machinery, the professional cnc router and laser cutting machine manufacturer in China, include ATC CNC router, Wood CNC Router, Stone CNC Router, Metal CNC Router, EPS CNC Router, 4 Axis CNC Router, 5 Axis CNC Router, Plasma Cutting Machine, Laser Cutting and Engraving Machine and so on, which have passed the CE, SGS, ISO9001 etc. Our cnc routers are widely used for advertising, woodworking, mould, stone, metal industry.
