High Z Travel Combination Woodworking Machine, CNC Knife Cutting Machine with CNC DSP Controller

Jinan Blue Elephant CNC Machinery Co., Ltd.
  • Type：Engraving Router
  • Spindle Layout：Spindle Over
  • Spindle Number：Single-Spindle
  • Feed Mode：Mechanical
  • Controlling Mode：CNC
  • Certification：CE, ISO, SGS BV TUV

Base Info

  • Model NO.：ELE 1530
  • Customized：Customized
  • Condition：New
  • Color：Customized
  • Voltage：AC220V, 1pH, 60Hz (Option: 380V)
  • Dimension(L*W*H)：3600*2300*1650mm
  • Control System：DSP A11 Control System
  • Spindle：Italy Hsd Air Cooling Spindle
  • Spindle Speed：0-18000rpm
  • Motor：FL118 Stepper Motor
  • Driver：Yako 2811 Big Driver
  • Inverter：3.7kw Fuling Inverter
  • Table Surface：T-Slot Working Table with PVC Protection
  • Frame：New Type Thicker and Bigger Heavy Duty Welded Fram
  • Transport Package：Standard Export Wooden Case
  • Specification：CE, ISO, SGS
  • Trademark：BLUE ELEPHANT
  • Origin：Shandong, China
  • Production Capacity：200 Sets Per Month

Description

ModelELECNC-1530Working area1500*3000*200mmSpindle3kw water cooling spindleSpindle speed24000rpmInverter3.7Kw fuling inverterControl systemDSPA11 handle use controllerMotor and driverStepper motor 450B with Leadshine 860H driversCableShanghai cardiff cable linelimit switchJapan OMRON limit switchLubrication systemManual oil lubricationVoltage380v, 3ph, 50hzX,Y,Z TransmissionHelical rack gear transmissionX,Y,Z RailTaiwan PMI linear guide

PS:All the working area and specifications can be customized according to your requests.

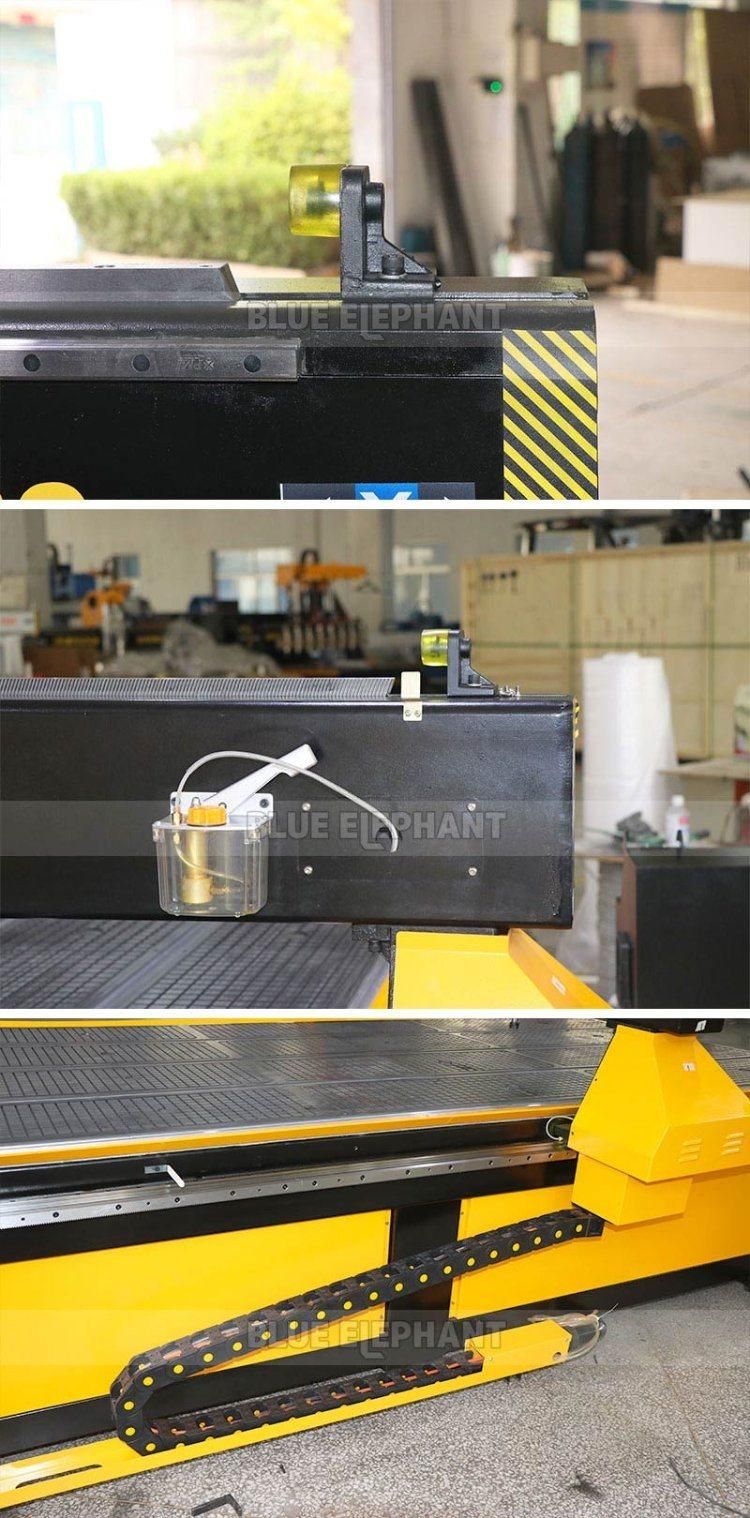

Detail Image


High Z Travel Combination Woodworking Machine, CNC Knife Cutting Machine with CNC DSP Controller



Application

1. Wood Furniture Industry: Wave Plate, fine pattern, antique furniture, wooden door, screen, craft sash, composite gates, cupboard doors, interior doors, sofa legs, headboards and so on.

2. Advertising Industry: Advertising identification, sigh making, Acrylic engraving and cutting, crystal word making, blaster molding, and other advertising materials derivatives making.

3. Die Industry: A sculpture of copper, aluminum, iron and other metal molds, as well as artificial marble, sand, plastic sheeting, PVC pipe, wooden planks and other non-metallic mold.

 High Z Travel Combination Woodworking Machine, CNC Knife Cutting Machine with CNC DSP Controller





Packaging Details:

1. Outside package: Standard marine export plywood case.

2. Inner package: Three layers in total; EPE pearl cotton film+PE stretchy film.

Improved package, much more strong and environmental protection.

We can also make package according to your requests.

Delivery Detail: Shipped in 20-30 working days after payment.


High Z Travel Combination Woodworking Machine, CNC Knife Cutting Machine with CNC DSP Controller

After sale service:

1. 12 months warranty for the whole machine.

2. Technical support by phone, email or WhatsApp/Skype around the clock.

3. Friendly English version manual and operation video CD disk.

4. Engineer available to service machinery overseas

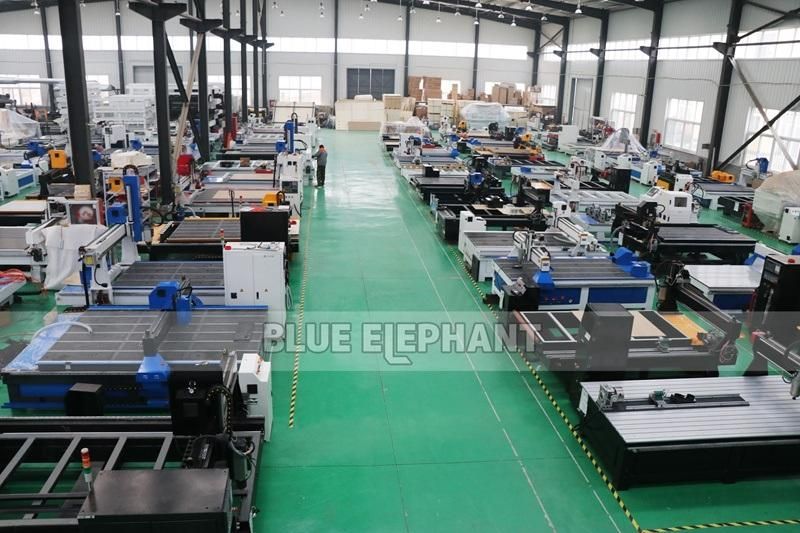

 Our FactoryHigh Z Travel Combination Woodworking Machine, CNC Knife Cutting Machine with CNC DSP Controller

Jinan Blue Elephant CNC Machinery Co., Ltd is located in Jinan City , Shandong Province .

We have always been developing to the research and manufacturer of CNC router machine, plasma cutter, laser cutting engraving machine, which have passed CE, SGS, TUV etc certification.

Welcome to visit us, click https://blueelephant-cnc.en.made-in-china.com to learn more about us.
