• Model NO.：1325
• Customized：Customized
• Condition：New
• Color：Customized
• Bed：Welded Bed Structure
• Inverter：Best Inverter
• Rail：Hiwin Square Guide Rail
• Transmission：Helical Rack
• Spindle：Water Cooling Spindle
• Motor：Stepper Motor
• Lubricating：Handle Press Oiling System
• Control System：Ncstudio Control System
• Table：Aluminum with PVC Table
• Driver：Stepper Driver
• Transport Package：Exporting Plywood Package
• Specification：1325
• Trademark：ZK
• Origin：Shandong China
• HS Code：84659900
• Production Capacity：100set ,Month

Basic Info.

Model NO. 1325 Customized Customized Condition New Color Customized Bed Welded Bed Structure Inverter Best Inverter Rail Hiwin Square Guide Rail Transmission Helical Rack Spindle Water Cooling Spindle Motor Stepper Motor Lubricating Handle Press Oiling System Control System Ncstudio Control System Table Aluminum with PVC Table Driver Stepper Driver Transport Package Exporting Plywood Package Specification 1325 Trademark ZK Origin Shandong China HS Code 84659900 Production Capacity 100set /Month

Product Description

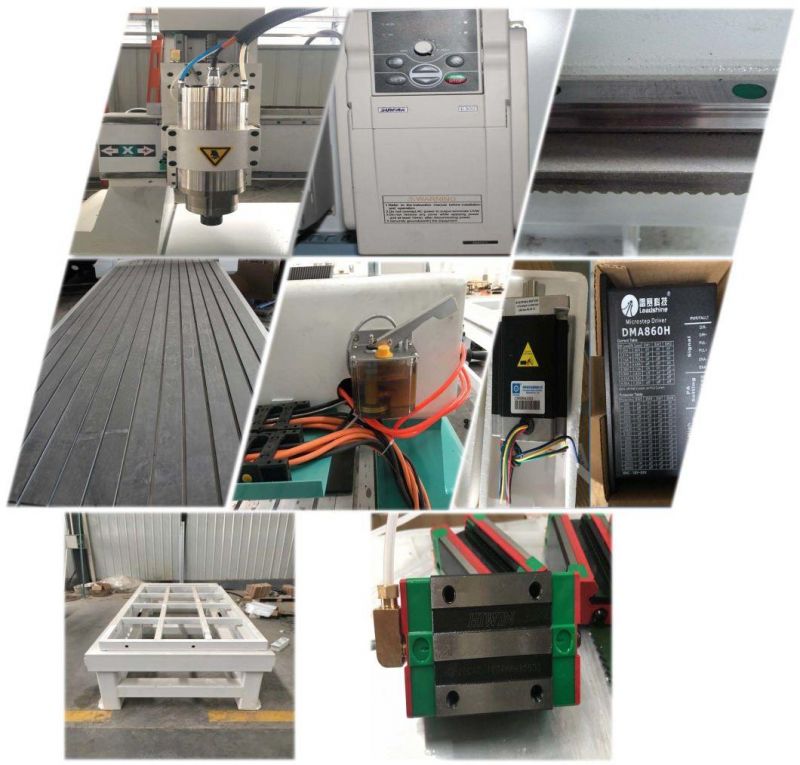

Features:

• Welded steel bed structure , when working its more stable.
•  Alumiun T-slot table, fixing the materiales by clamps
• Air cooling spindel , can opstional with water cooling spindle
• TaiWan high precision HIWIN square liner guide rail, improving working accuracy.
• X Y transmissiom by helical rack
• Servo motor and DSP control system is optional



Technical parameters

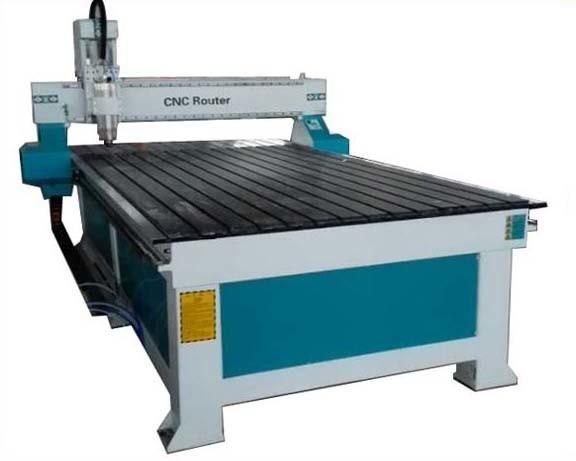

Model                                                                  Jinan Zhongke 3d wood cnc router machine
X,Y,Z Working Area                                           1500*3000*200mm
X,Y,Z Traveling Positioning Accuracy               ±0.03/300mm
X,Y,Z repositioning Positioning Accuracy         ±0.02mm
Lathe Structure                                                   T-slot seamless welded steel bed structure
X Structure                                                         Taiwan HIWIN square guide rails
Y Structure                                                         Taiwan HIWIN square guide rails
Z Structure                                                         Taiwan TBI ball screw
Max.Speed                                                         0-30000mm/min
Max.Working Speed                                          0-25000mm/min
Spindle                                                              Water cooling spindle
Spindle Speed                                                   600-24000RPM
Working Mode                                                  Stepper motor
Working Voltage                                               220V380V/3ph  50HZ/60Hz for standard machine
Command Code                                                G code(*uoo,*nc,*mmg, *plt)
Operating System                                             DSP control system
Interface                                                           USB
X,Y Working Delicacy                                    <0.01mm
Software                                                          Type3 software or Wentai software
Running circumstance                                    Temperature: 0°C~45°C
Relative humidity:                                          30%~75%
Waranty                                                          One year
Delivery time                                                  2 weeks


Applied area:

1.Furniture decoration industry: large area plate plane carving, wood carving and board type furniture carving. Solid wood art mural, solid wood door, cabinet door sculpture.


2.Wood products processing: sewing machine desktop, electrical counter desktop, sports supplies equipment.

 3.Instrument industry: 3d curved surface, shape cutting.

Samples:

Packaging and shipping:





Technical support:

• Warranty is 1 year
• 24 hour technical support by email or calling
• User-friendly english manual for machine using and maintaining

Payment terms:

• You can do 30% prepayment at first, then we will start to make machine. when the machine is ready , we will take pictures to you, after we got you payment.We will send the machine to you.

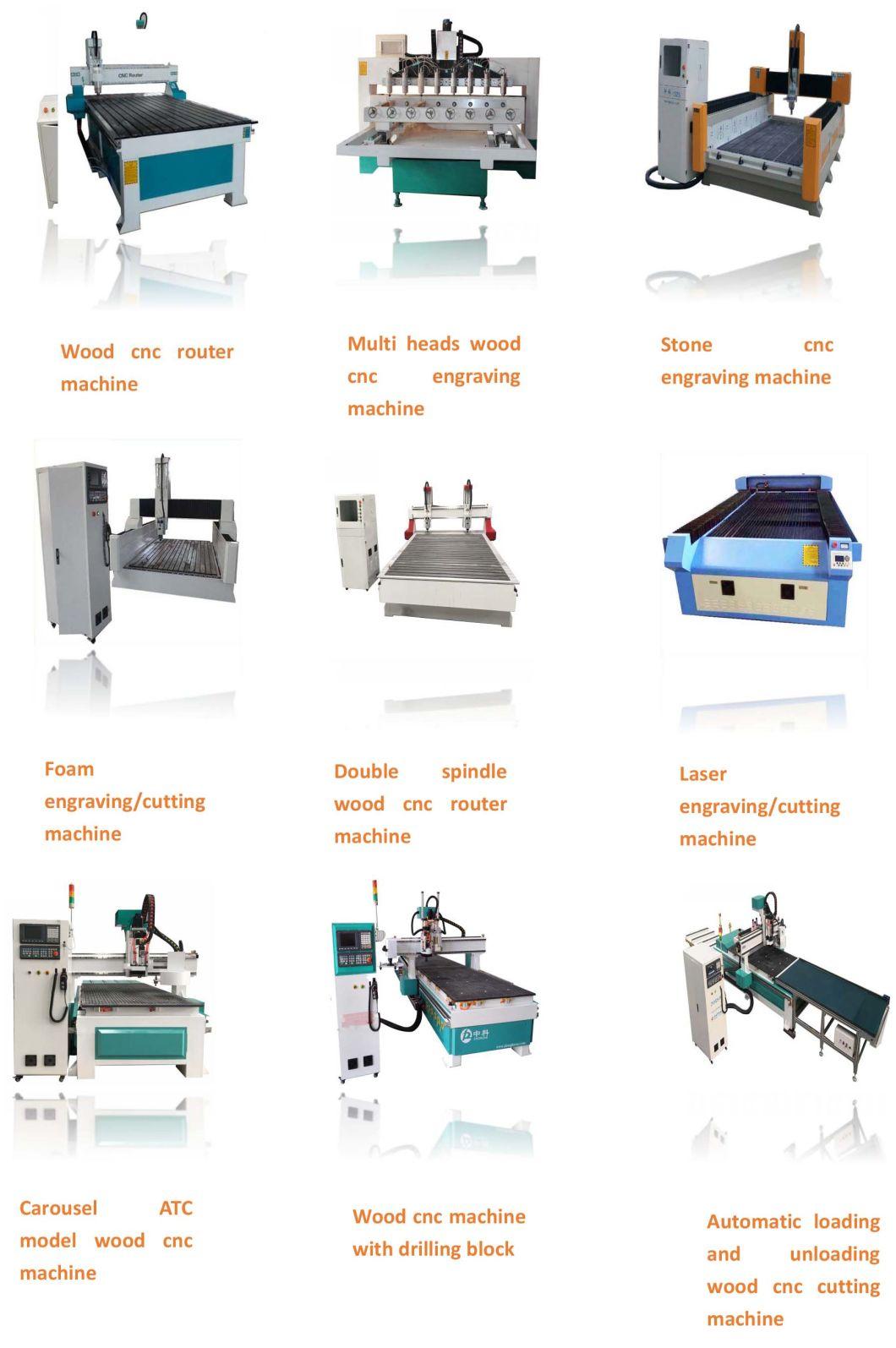

Some other machines in our factory:
