• Model NO.：ELECNC-1325
• Spindle：4.5kw Hsd Air Cooling Spindle
• Spindle Speed：0-24000rpm
• Drive Motor：Stepper Motor 450b Model and Leadshine 860h Driver
• Table Surface：Vacuum and T-Slot Working Table
• X, Y Structure：Helical Rack Gear for X, Y Axis
• Z Structure：Taiwan Tbi Ball Screw for Z Travel;
• Inverter：5.5kw Delta Inverter;

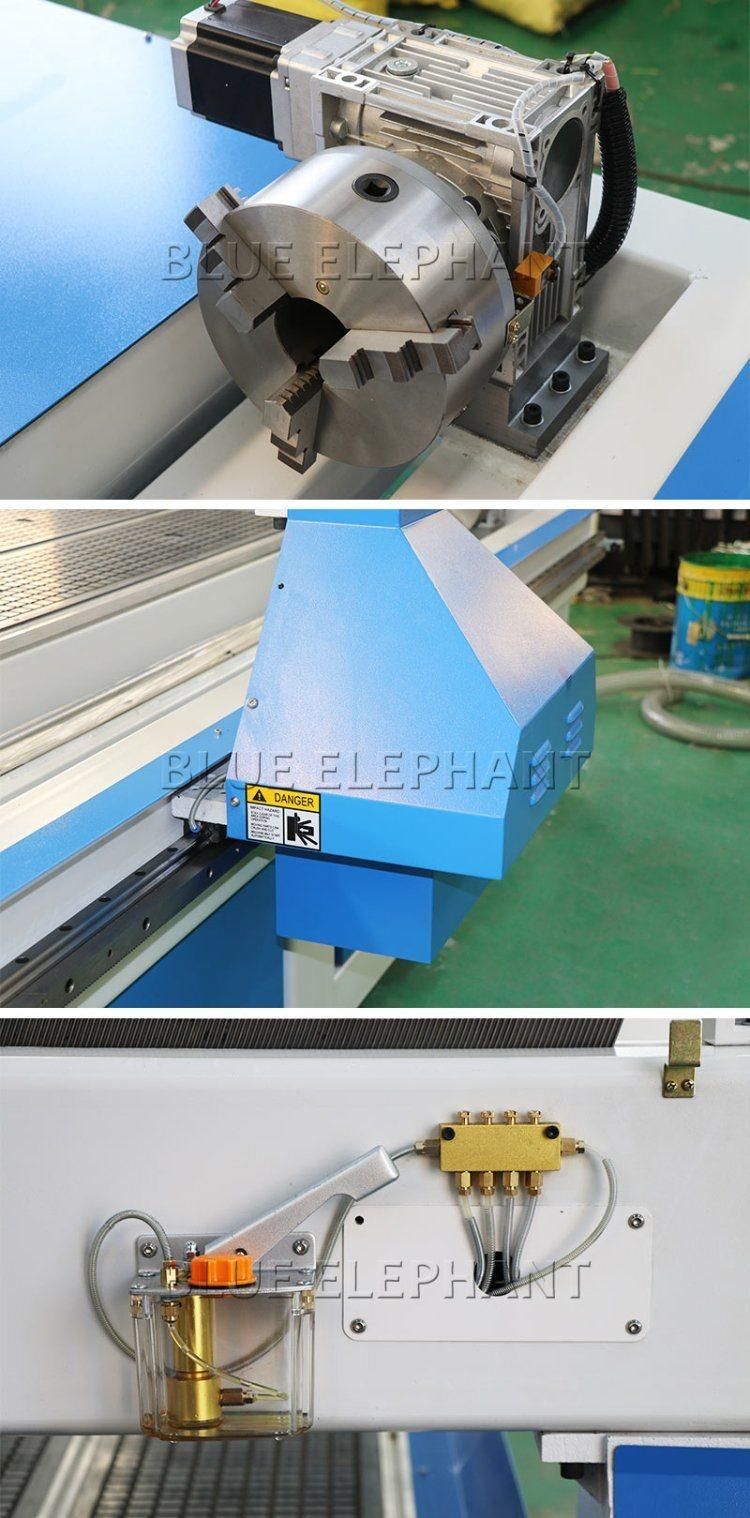

• Rotary Device：200mm Rotary Device, Total 2500mm Length
• Linear Guide：Taiwan Linear Guide and Rails, 20#
• Transport Package：Standard Export Wooden Case
• Specification：CE, ISO, SGS
• Trademark：BLUE ELEPHANT
• Origin：Shandong, China
• Production Capacity：200 Sets Per Month

1) 1300*2500mm working area .

2) With rotary device for cylinder object .

3) Vacuum working table . Mechanical fixing small processing materials .

4) Italy HSD air cooling spindle , It's big strength and higher efficiency ,

Parameters

1300x2500x200mm

4.5KW HSD Air Cooling spindle

Helical rack gear for X, Y axis,

Taiwan TBI ball screw for Z travel;

Stepper motor 450B model and Leadshine 860H driver

200mm rotary device, total 2500mm length

5.5KW DELTA inverter;

Taiwan linear guide and rails, 20#

DSP B18 handle controller with USB port, supporting 4 axis

Japan OMRON limit switch for X, Y, Z axis

Auto Lubrication system

5.5KW Water circulation vacuum pump

PS: All the working area and specifications can be customized according to your requests.

Application

1. Wood Furniture Industry: Wave Plate, fine pattern, antique furniture, wooden door, screen, craft sash, composite gates, cupboard doors, interior doors, sofa legs, headboards and so on.

2. Advertising Industry: Advertising identification, sigh making, Acrylic engraving and cutting, crystal word making, blaster molding, and other advertising materials derivatives making.

3. Die Industry: A sculpture of copper, aluminum, iron and other metal molds, as well as artificial marble, sand, plastic sheeting, PVC pipe, wooden planks and other non-metallic mold.

Packaging Details:

1. Outside package: Standard marine export plywood case.

2. inner package: Stretchy film and plastic film for humidity.

3. We can package according to your requests.

Delivery Detail: Shipped in 25-30 working days after payment.

Our service

1. 12 months warranty for the whole machine.

2. Technical support by phone, email or WhatsApp/Skype around the clock.

3. Friendly English version manual and operation video CD disk.

4. Engineer available to service machinery overseas.

BLUE ELEPHANT

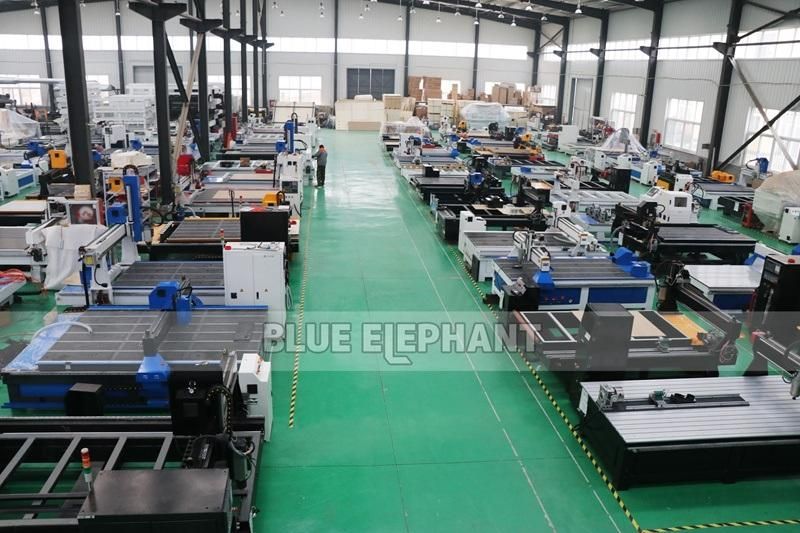

Jinan Blue Elephant CNC Machinery Co., Ltd is located in Jinan City , Shandong Province .
