• Model NO.：ELECNC-1325
• Customized：Customized
• Condition：New
• Color：Customized
• Voltage：AC380V, 3pH, 50Hz (220V for Optional)
• Control System：DSP A18 4 Axis Control System
• Spindle：3kw Changsheng Water Cooling Spindle
• Spindle Speed：0-24000rpm
• Drive Motor：FL118 Stepper Motor and Yako 2811 Driver
• Table Surface：T-Slot and Vacuum Working Table
• X, Y Structure：#20 Taiwan PMI Linear Guide, Helical Rack
• Z Structure：Taiwan Tbi Ball Screw, Taiwan PMI Linear Guide
• Inverter：3.7kw Fuling Inverter
• Transport Package：Standard Export Wooden Case
• Specification：CE, ISO, SGS
• Trademark：BLUE ELEPHANT
• Origin：Shandong, China
• Production Capacity：200 Sets Per Month

Description

Parameter

X,Y,Z Working Area

1300x2500x200mm

X,Y,Z Traveling Positioning Accuracy

±0.03/300mm

X,Y,Z Repositioning Accuracy

±0.03mm

Table Surface

T-slot and vacuum working table

X, Y Structure

#20 Taiwan PMI linear guide, helical rack

Z Structure

Taiwan PMI Rail Linear guide and Ball Screw

Spindle

3kw Changsheng water cooling spindle

Spindle Speed

0-24000RPM

Drive Motors

FL118 stepper motor and Yako 2811 big driver

Working Voltage

AC380V, 50Hz, 3PH (Option: 380V)

Operating System

DSP A18 4 axis control system

Control box

Single-sided independent control box

Inverter

3.7kw Fuling inverter

Lubrication system

Manual lubrication system

Rotary device

Diameters: 300mm ; Length: 2500mm

X,Y Resolution

<0.01mm

Running Environment  Temperature

0 - 45 Centigrade

Relative Humidity

30% - 75%

Pump

5.5kw water circlulation vacuum pump( 380V, 3Ph, 50Hz)

Dust collector

3kw old type double pockets dust collector ( 380V, 3Ph, 50Hz)

Optional

Japan Omron limit switch

PS:All the working area and specifications can be customized according to your requests.

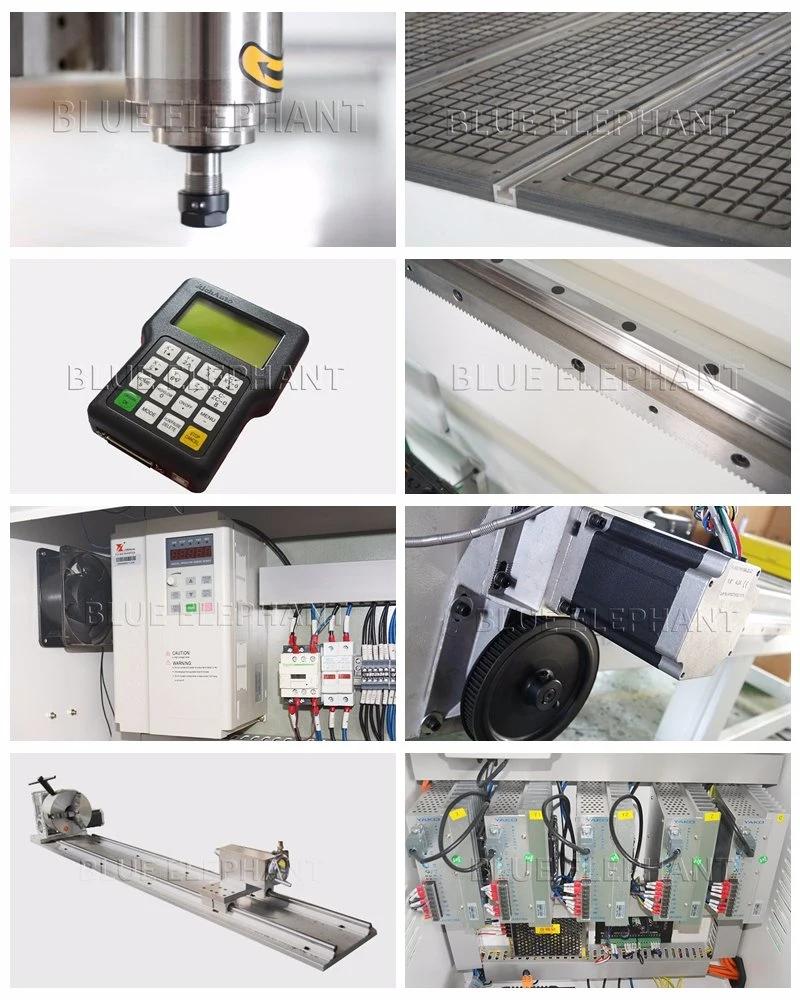

Product Details :

 Application

1. Wood furniture industry

Doors; Cabinets; Tables; Chairs.

Wave plate, fine pattern, antique furniture, wooden door, screen, craft sash, composite gates, cupboard doors, interior doors, sofa legs, headboards and so on.

2. Advertising industry

Signage; Logo; Badges; Display board; Meeting sign board; Billboard

Advertising filed, sign making, acrylic engraving and cutting, crystal word making, blaster molding, and other advertising materials derivatives making.

3. Die industry

A sculpture of copper, aluminum, iron and other metal molds, as well as artificial marble, sand , plastic sheeting, PVC pipe, and other non-metallic mold.

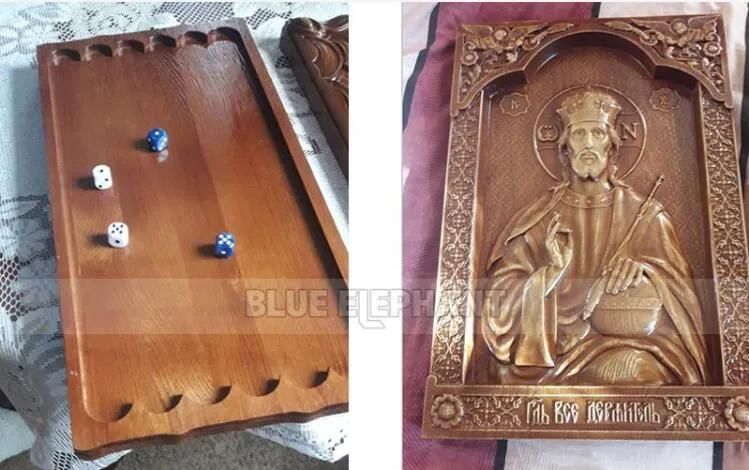

4. Artwork and Decoration

wood crafts; gift box; jewelry box

5. Others

Relief sculpture and 3D engraving and Cylindrical object.

Our Service:

1, Within 7 days since your local customs clearance: if the cnc router's any parts has any problems, we will change it free.
2, Exceed 7 days since your local customs clearance but within warranty period: if the cnc router parts have any problems, we can change the old machine parts to new ones free, but you should pay all the shipping cost.
3, Exceed warranty period: if the cnc router parts have any problems, we can offer new machine parts with cost price and you also should pay all the shipping cost.
4, We offer 24 hours technical support by call, and email.
5, Our technician can give you remote guide online(Skype or MSN) if you have any question.
6, We can record videos of operating the laser machine.
7, Free training course in our factory.
8.Machine will be adjusted before it is delivered, operation disk/CD was included.

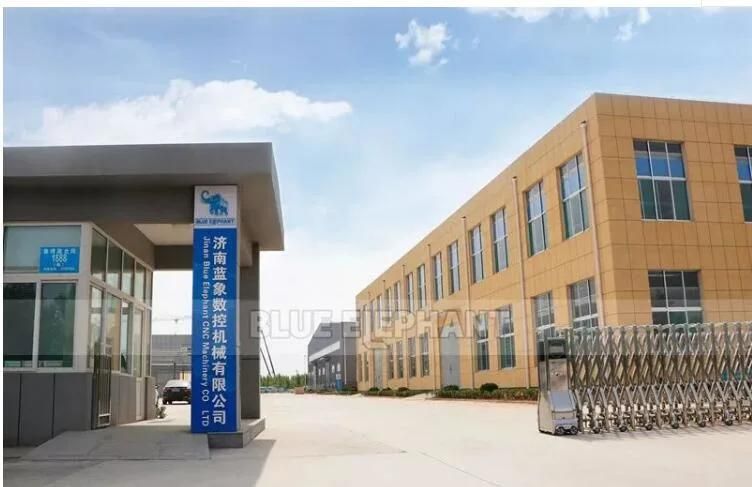

Welcome to our factory:




• Jinan Blue Elephant CNC Machinery Co., Ltd is located in Jinan City, Shandong Province. We have always been developed to the research and manufacturer of CNC router machine and laser cutting engraving machine.
• Our Philosophy: To Be First Brand -- CNC Manufacturer & wholesaler Platform!

• Just looking forward to service every customer, like you.
