• Model NO.：1325
• Customized：Customized
• Condition：New
• Color：Customized
• Bed：New Type Welded Bed Structure
• Inverter：Best Brand Inverter
• Rail：Hiwin Square Guide Rail
• Transmission：Helical Rack
• Spindle：Water Cooling Spindle
• Motor：Stepper Motor
• Lubricating：Handle Price Oiling System
• Control System：Ncstudio Control System
• Table：Vacuum Adsorption Table
• Driver：Hybrid Driver
• Transport Package：Exporting Plywood Package
• Specification：1325
• Trademark：ZK
• Origin：Shandong China
• HS Code：84659900
• Production Capacity：100set ,Month

Basic Info.

Model NO. 1325 Customized Customized Condition New Color Customized Bed New Type Welded Bed Structure Inverter Best Brand Inverter Rail Hiwin Square Guide Rail Transmission Helical Rack Spindle Water Cooling Spindle Motor Stepper Motor Lubricating Handle Price Oiling System Control System Ncstudio Control System Table Vacuum Adsorption Table Driver Hybrid Driver Transport Package Exporting Plywood Package Specification 1325 Trademark ZK Origin Shandong China HS Code 84659900 Production Capacity 100set /Month

Product Description

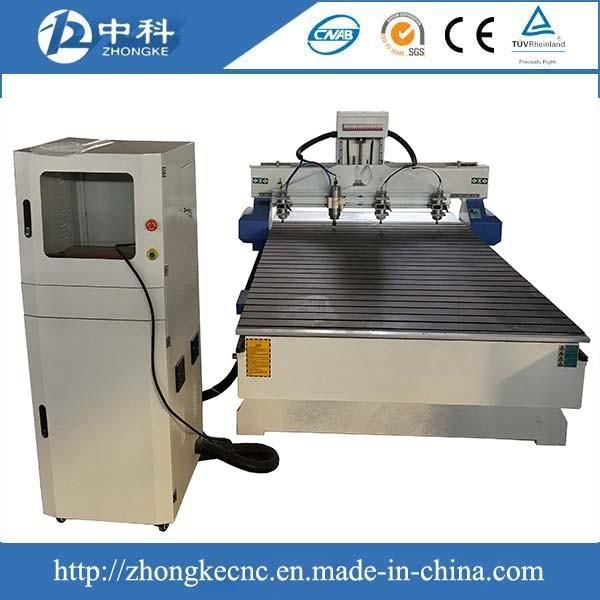

zhongke 1325 3d relief wood cnc router

Features:

1.Four spindles can work together or independent greatly improve working efficiency

2.Water cooling spindle with high power and longlife

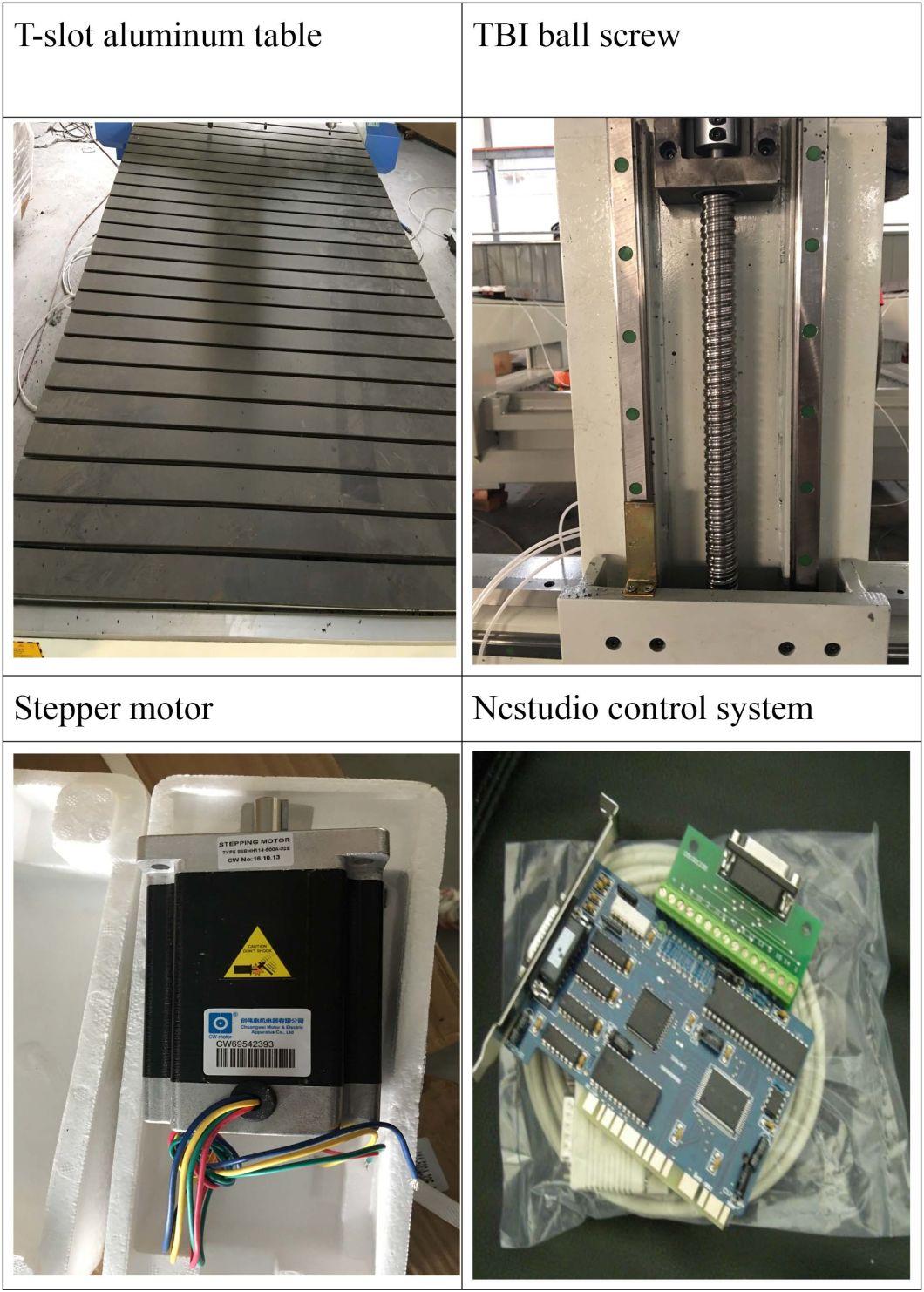

3.Aluminum T-slot surface can fix materails of different sizes effectively

4.Heavy duty seamless welded steel bed structure will never be deformation

5.Taiwan HIWIN square guide rail and Taiwan TBI ball screw with high precision,large load bearing and stable running

6.Ncstudio control system it's easy to operate and humanized.(optional:DSP control system,not need computer can be completely offline operation,provides high independence and great convenience

7.Has the function of re-carving after break point and power failure

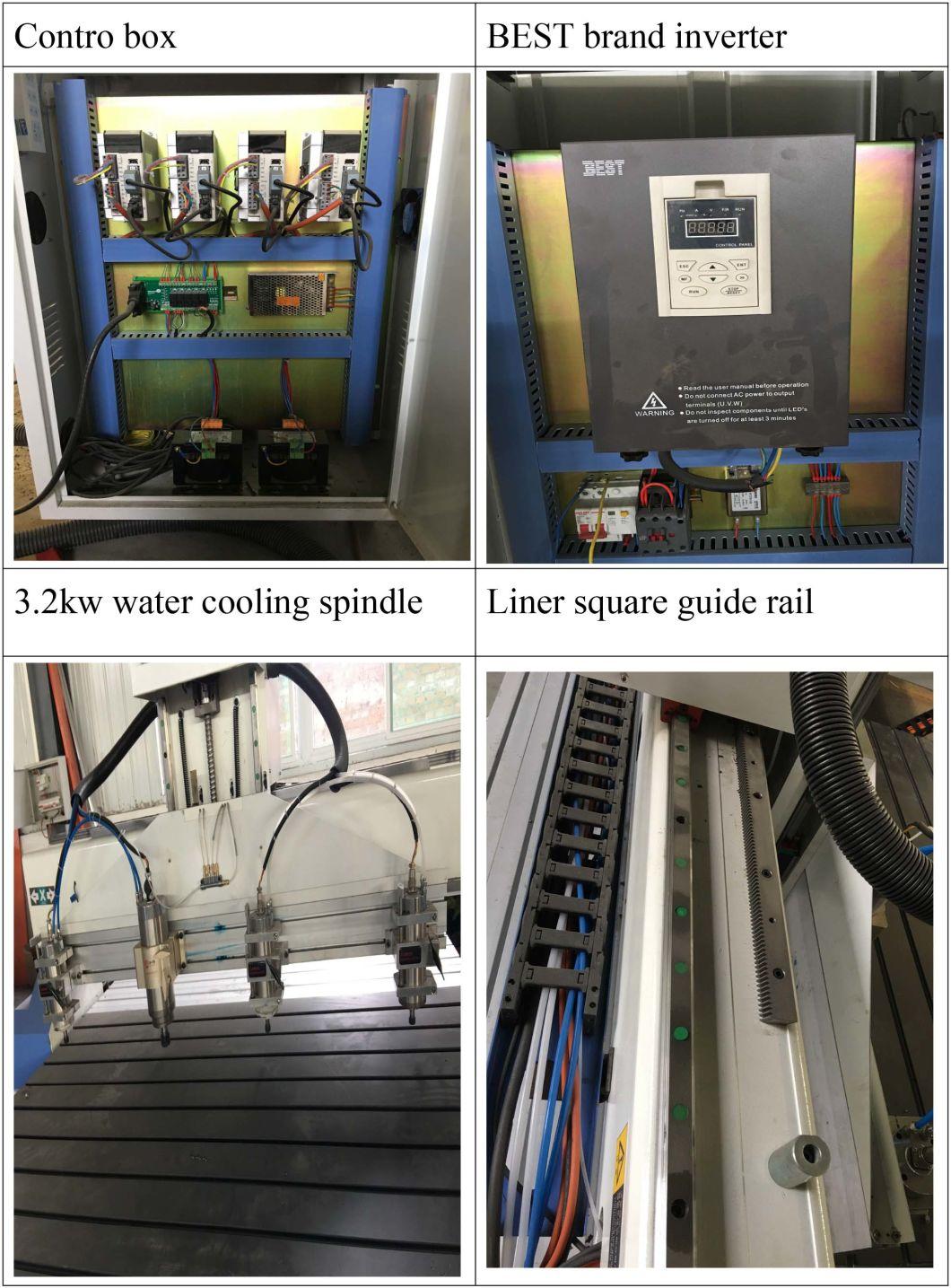

8.BEST brand inverter can control the frequency of spindle accurately

Technical parameters
Model                                                                  Jinan Zhongke 3d wood cnc router machine
X,Y,Z Working Area                                           1300*2500*200mm
X,Y,Z Traveling Positioning Accuracy               ±0.03/300mm
X,Y,Z repositioning Positioning Accuracy         ±0.02mm
Lathe Structure                                                   T-slot seamless welded steel bed structure
X Structure                                                         Taiwan HIWIN square guide rails
Y Structure                                                         Taiwan HIWIN square guide rails
Z Structure                                                         Taiwan TBI ball screw
Max.Speed                                                         0-30000mm/min
Max.Working Speed                                          0-25000mm/min
Spindle                                                              Water cooling spindle
Spindle Speed                                                   6000-24000RPM
Working Mode                                                  Easy servo motor
Working Voltage                                               220V380V/3ph  50HZ/60Hz for standard machine
Command Code                                                G code(*uoo,*nc,*mmg, *plt)
Operating System                                             Ncstudio control system
Interface                                                           USB
X,Y Working Delicacy                                    <0.01mm
Software                                                          Type3 software or Wentai software
Running circumstance                                    Temperature: 0°C~45°CRelative humidity:

                                                                        30%~75%
Waranty                                                          One year
Delivery time                                                  2 weeks

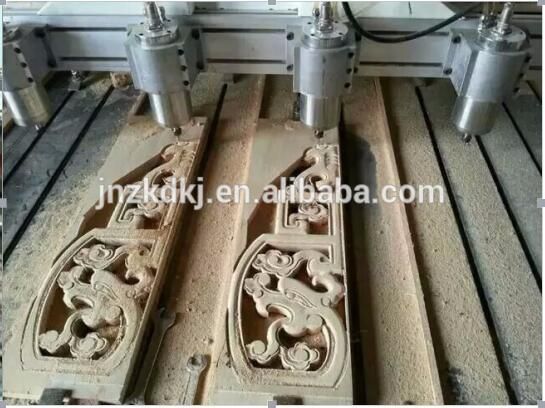

Engraving sample:

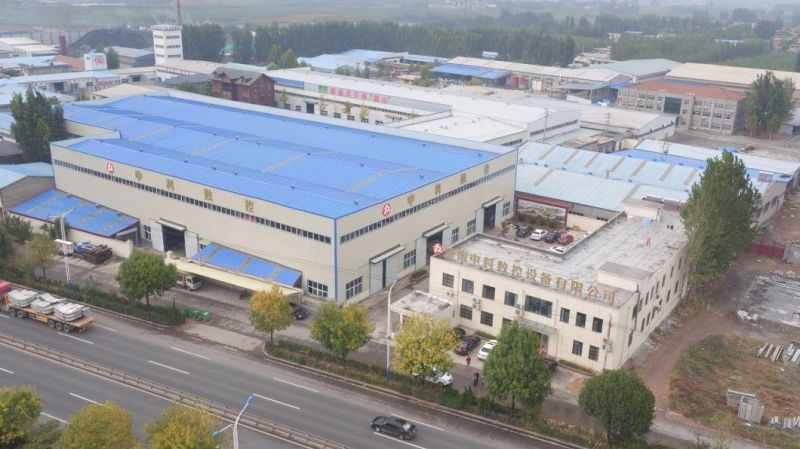

Our company:
