• Model NO.：1530
• Customized：Customized
• Condition：New
• Color：Customized
• Rail：Hiwin Square Guide Rail
• Spindle：3.2kw Water Cooling Spindle
• Working Mode：Stepper Driver and Motor
• Inverter：Sunfar Inverter
• Table：Vacuum Adsorption Table
• Control System：DSP Control System
• Pump：5.5kw Water Cooling Spindle
• Lubricating：Auto Oiling System
• Bed Structure：Welded Steel Bed Structure
• Transmission：Tbi Ball Screw
• Transport Package：Exporting Plywood Package
• Specification：1530
• Trademark：ZK
• Origin：Shandong China
• HS Code：84659900
• Production Capacity：100set ,Month

Basic Info.

Model NO. 1530 Customized Customized Condition New Color Customized Rail Hiwin Square Guide Rail Spindle 3.2kw Water Cooling Spindle Working Mode Stepper Driver and Motor Inverter Sunfar Inverter Table Vacuum Adsorption Table Control System DSP Control System Pump 5.5kw Water Cooling Spindle Lubricating Auto Oiling System Bed Structure Welded Steel Bed Structure Transmission Tbi Ball Screw Transport Package Exporting Plywood Package Specification 1530 Trademark ZK Origin Shandong China HS Code 84659900 Production Capacity 100set /Month

Product Description



Features:

1.Taiwan HIWIN high precison square guide rail, high efficiency and high precision.

2.Taiwan TBI ball screw with high working precision.

3.Water cooling spindle, working with high speed.

4.Whole machine is welded bed structure when working it's more stable.

5.Can change the parts according to your requirment.

Optional parts:



Technical parameters

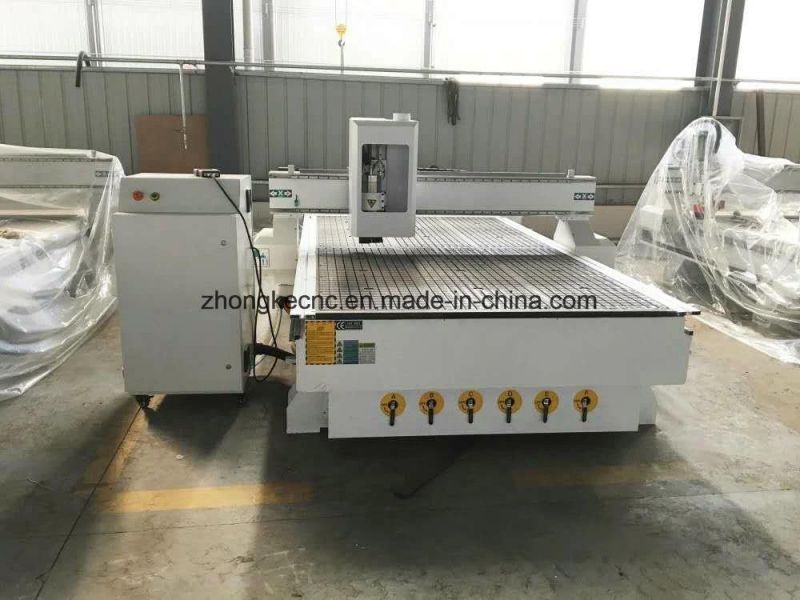

Model                                                                  Jinan Zhongke 3d wood cnc router machine
X,Y,Z Working Area                                           1500*3000*200mm
X,Y,Z Traveling Positioning Accuracy               ±0.03/300mm
X,Y,Z repositioning Positioning Accuracy         ±0.02mm
Lathe Structure                                                   T-slot seamless welded steel bed structure
X Structure                                                         Taiwan HIWIN square guide rails
Y Structure                                                         Taiwan HIWIN square guide rails
Z Structure                                                         Taiwan TBI ball screw
Max.Speed                                                         0-30000mm/min
Max.Working Speed                                          0-25000mm/min
Spindle                                                              Water cooling spindle
Spindle Speed                                                   6000-24000RPM
Working Mode                                                  Stepper motor
Working Voltage                                               220V380V/3ph  50HZ/60Hz for standard machine
Command Code                                                G code(*uoo,*nc,*mmg, *plt)
Operating System                                             DSP control system
Interface                                                           USB
X,Y Working Delicacy                                    <0.01mm
Software                                                          Type3 software or Wentai software
Running circumstance                                    Temperature: 0°C~45°CRelative humidity:

                                                                        30%~75%
Waranty                                                          One year
Delivery time                                                  2 weeks

Samples:

Teachinical support:

• Warranty is 1 year
• 24 hour technical support by email or calling
• User-friendly english manual for machine using and maintaining
• We will send you manual and guide video in English,if you still don't know how to operate it, we can help you by phone or Whatsapp,Skype.

Payment terms:

• You can do 30% prepayment at first, then we will start to make machine. when the machine is ready , we will take pictures to you, after we got you payment.We will send the machine to you.
