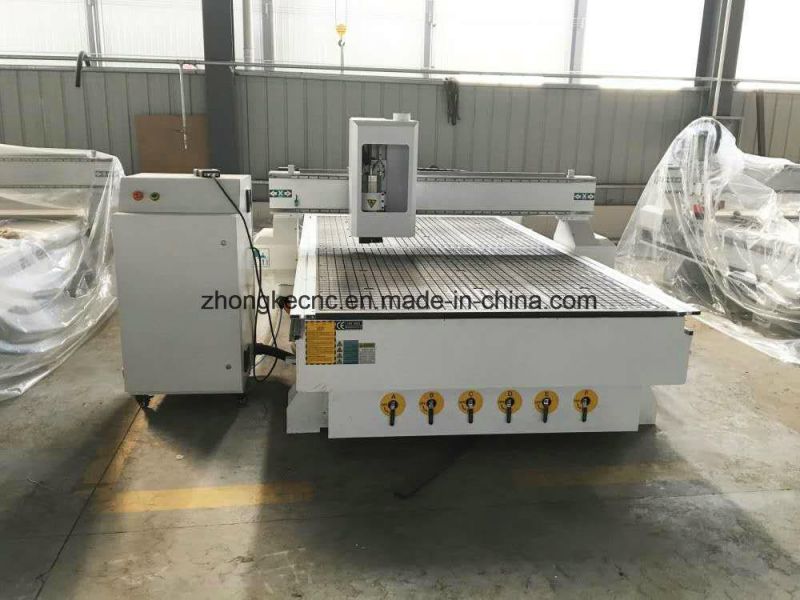

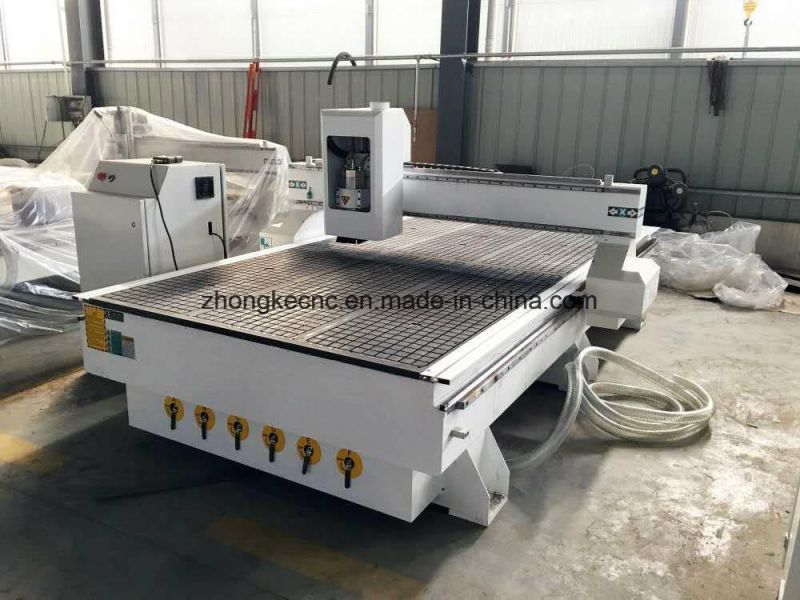

1530 Model Wood CNC Router Machine with Big Discount
Jinan Zhongke CNC Equipment Co., Ltd.- Type:Engraving Router
- Spindle Layout:Vertical
- Spindle Number:Single-Spindle
- Feed Mode:Manual
- Controlling Mode:CNC
- Certification:CE, ISO
Base Info
- Model NO.:1530
- Customized:Customized
- Condition:New
- Color:Customized

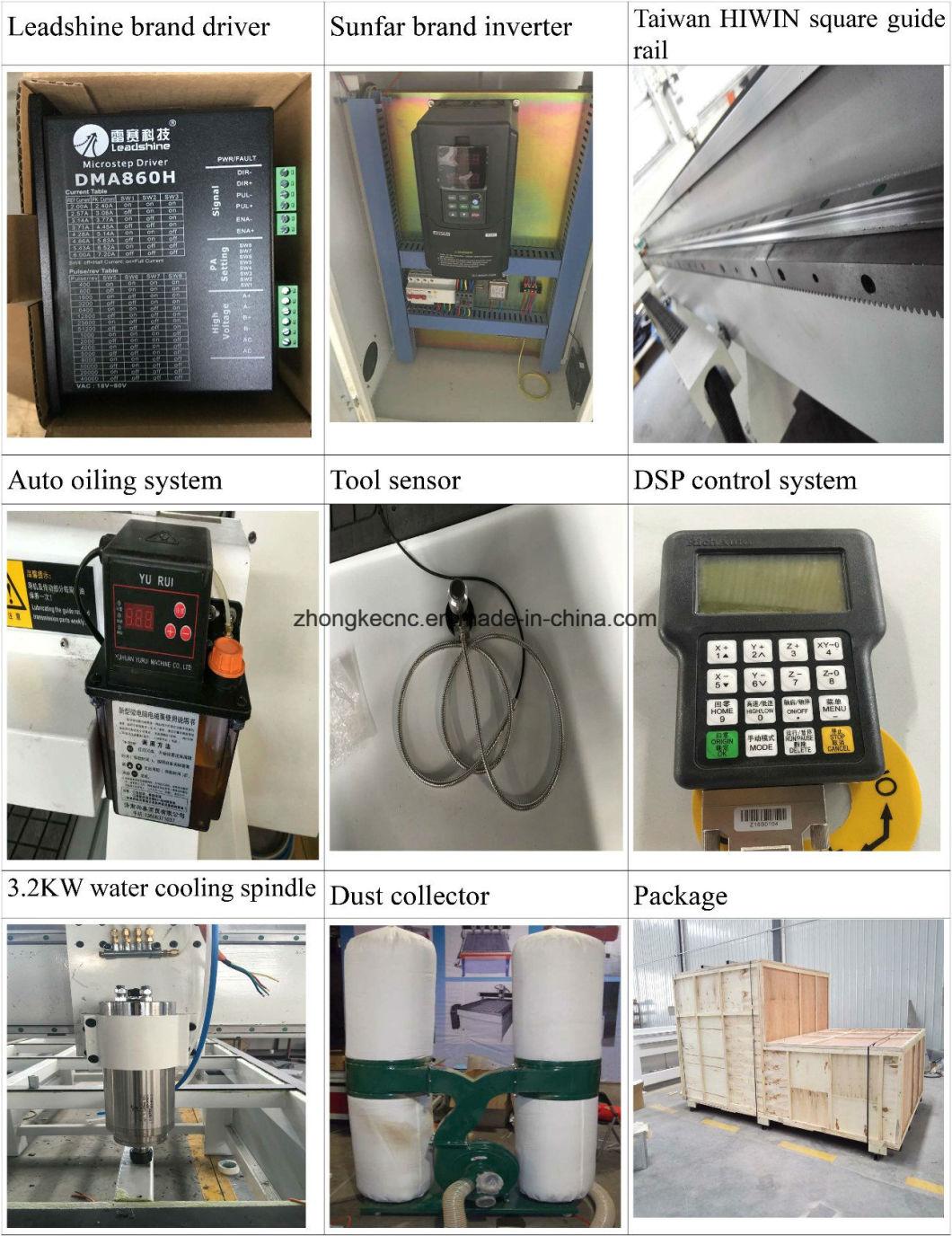

- Rail:Square Guide Rail
- Spindle:3.2kw Water Cooling Spindle
- Working Mode:Leadshine Driver and Motor
- Inverter:Sunfar Inverter
- Table:Vacuum Adsorption Table
- Control System:DSP Control System
- Pump:5.5kw Vacuum Pump
- Lubricating:Auto Oiling System
- Bed Structure:Welded Steel Bed Structure
- Transmission:Tbi Ball Screw
- Transport Package:Exporting Plywood Package
- Specification:1530
- Trademark:ZK
- Origin:Shandong China
- HS Code:84659900
- Production Capacity:100set ,Month
Description
Basic Info.
Model NO. 1530 Customized Customized Condition New Color Customized Rail Square Guide Rail Spindle 3.2kw Water Cooling Spindle Working Mode Leadshine Driver and Motor Inverter Sunfar Inverter Table Vacuum Adsorption Table Control System DSP Control System Pump 5.5kw Vacuum Pump Lubricating Auto Oiling System Bed Structure Welded Steel Bed Structure Transmission Tbi Ball Screw Transport Package Exporting Plywood Package Specification 1530 Trademark ZK Origin Shandong China HS Code 84659900 Production Capacity 100set /MonthProduct Description
1530 model wood cnc router machine with big discountFeatures:
1.Taiwan HIWIN high precison square guide rail, high efficiency and high precision.
2.Taiwan TBI ball screw with high working precision.
3.Water cooling spindle, working with high speed.
4.Whole machine is welded bed structure when working it's more stable.
5.Can change the parts according to your requirment.
Technical parameters
Model Jinan Zhongke 3d wood cnc router machine
X,Y,Z Working Area 1500*3000*200mm
X,Y,Z Traveling Positioning Accuracy ±0.03/300mm
X,Y,Z repositioning Positioning Accuracy ±0.02mm
Lathe Structure T-slot seamless welded steel bed structure
X Structure Taiwan HIWIN square guide rails
Y Structure Taiwan HIWIN square guide rails
Z Structure Taiwan TBI ball screw
Max.Speed 0-30000mm/min
Max.Working Speed 0-25000mm/min
Spindle Water cooling spindle
Spindle Speed 600-24000RPM
Working Mode Stepper motor
Working Voltage 220V380V/3ph 50HZ/60Hz for standard machine
Command Code G code(*uoo,*nc,*mmg, *plt)
Operating System DSP control system
Interface USB
X,Y Working Delicacy <0.01mm
Software Type3 software or Wentai software
Running circumstance Temperature: 0°C~45°
CRelative humidity: 30%~75%
Waranty One year
Delivery time 2 weeks
Engraving samples:
