• Model NO.：ELE 1325
• Customized：Customized
• Condition：New
• Color：Customized
• Voltage：AC380V,50,60Hz, 3pH (Option: 220V)
• Dimension(L*W*H)：1300*2500*400 mm
• Control System：Mach 3 4axis Control System with Wireless Handwhee
• Spindle：6.0kw Water Cooling Spindle
• Spindle Speed：0-18000rpm
• Drive Motor：FL118 Motor and Yako2811 Big Driver
• Inverter：7.5kw Fuling Inverter
• X,Y Axis Transmission：X, Y Axis Rack and Pinion Drive
• Z Axis Transmission：Z Axis Taiwan Tbi Ball Screw
• Working Table：Vacuum&T-Slot Working Table
• Vacuum Pump：2.2kw Double Segment Vortex Vacuum Pump
• Lubrication System：Manual Lubrication System
• Linear Guide：Taiwan Linear Guide #20
• Rotary Device：300mm Diameter Rotary Device with 2500mm Length
• Limit Switch：Japan Omron Limit Switch for X, Y, Z Axis
• Transport Package：Standard Export Wooden Case
• Specification：CE, ISO, SGS
• Trademark：BLUE ELEPHANT
• Origin：Shandong, China
• Production Capacity：200 Sets Per Month

1300*2500*400 mm

6.0kw water cooling spindle

7.5kw Fuling inverter

Mach 3 4axis control system with wireless handwheel

Vacuum&T-slot working table

Vacuum&T-slot working table

2.2kw Double segment Vortex vacuum pump

Helical rack gears for X,Y axis

Taiwan TBI ball screw for Z axis

Manual lubrication System

Taiwan Linear guide #20

300mm diameter rotary device with 2500mm length

Japan OMRON limit switch for X,Y,Z axis

Single side independent box

PS:All the working area and specifications can be customized according to your requests.

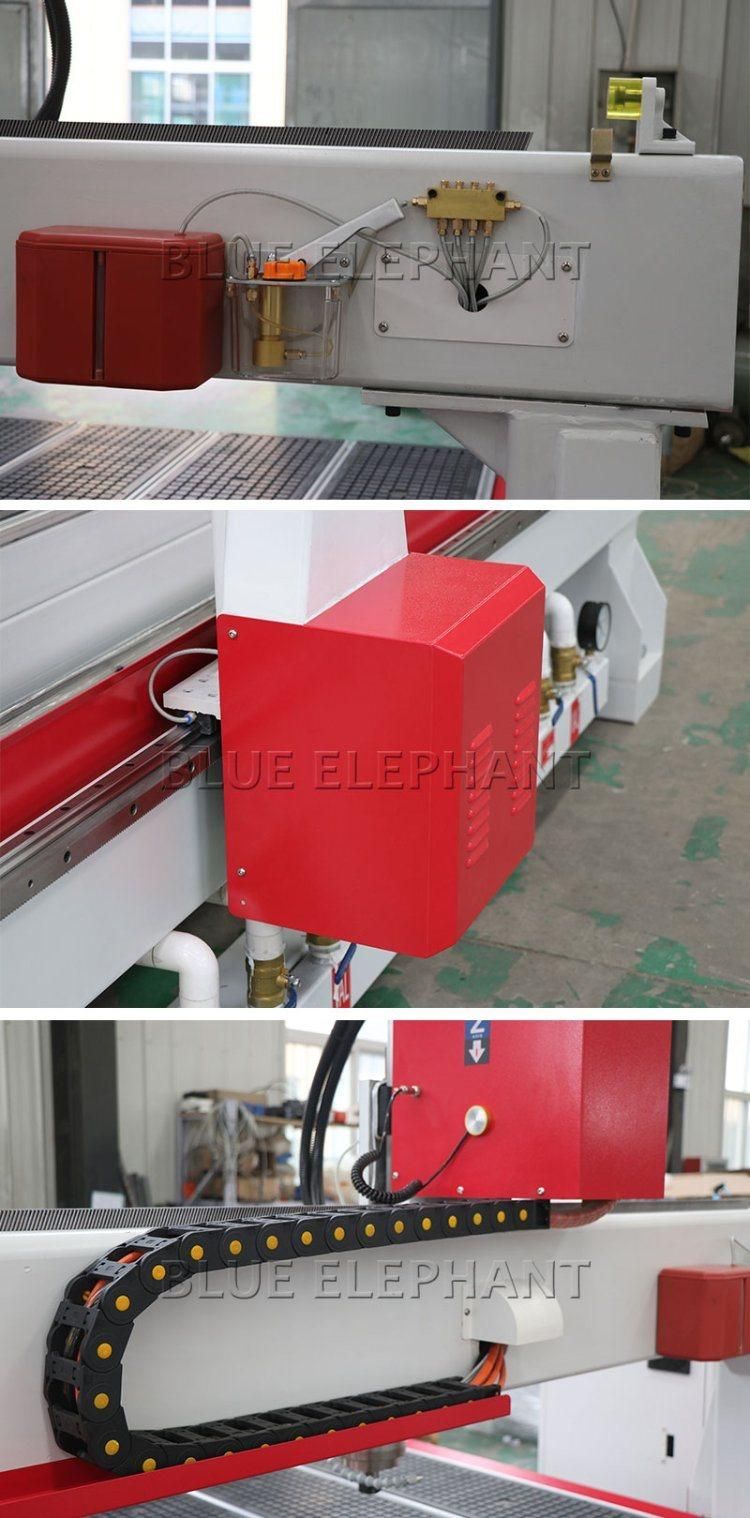

Detail Image

Application

1. Wood Furniture Industry: Wave Plate, fine pattern, antique furniture, wooden door, screen, craft sash, composite gates, cupboard doors, interior doors, sofa legs, headboards and so on.

2. Advertising Industry: Advertising identification, sigh making, Acrylic engraving and cutting, crystal word making, blaster molding, and other advertising materials derivatives making.

3. Die Industry: A sculpture of copper, aluminum, iron and other metal molds, as well as artificial marble, sand, plastic sheeting, PVC pipe, wooden planks and other non-metallic mold.

Packaging Details:

1. Outside package: Standard marine export plywood case.

2. Inner package: Three layers in total; EPE pearl cotton film+PE stretchy film.

Improved package, much more strong and environmental protection.

We can also make package according to your requests.

Delivery Detail: Shipped in 20-30 working days after payment.

Guarantee and After-sale service:

1. 12 months warranty for the whole machine.

2. Technical support by phone, email or WhatsApp/Skype around the clock.

3. Friendly English version manual and operation video CD disk.

4. Engineer available to service machinery overseas.

BLUE ELEPHANT

Jinan Blue Elephant CNC Machinery Co., Ltd is located in Jinan City , Shandong Province .

We have always been developing to the research and manufacturer of CNC router machine, plasma cutter, laser cutting engraving machine, which have passed CE, SGS, TUV etc certification.

Welcome to visit us, click https://blueelephant-cnc.en.made-in-china.com to learn more about us.
