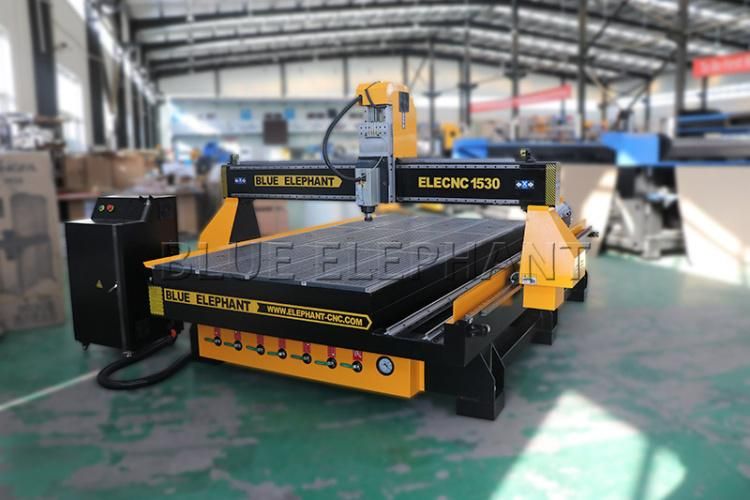

1530 Wood Door Making CNC Router Cutting Machine with Rotary Device
Jinan Blue Elephant CNC Machinery Co., Ltd.- Type:Engraving Router
- Spindle Layout:Spindle Over
- Spindle Number:Three Spindles
- Feed Mode:Mechanical
- Controlling Mode:CNC
- Certification:CE, ISO, SGS BV TUV
Base Info
- Model NO.:ELECNC-1530
- Customized:Customized
- Condition:New
- Color:Customized
- Voltage:AC220V,3pH,50Hz(Option:380V)
- Working Area:1500*3000*300mm
- Spindle Power:6kw Italy Hsd Air Cooling Spindle
- Control System:DSP A15 Control System
- Spindle Speed:0-18000rpm
- Inverter:7.5kw Taiwan Delta Inverter
- Linear Rail:Taiwan Hinwin,PMI 20# Linear Guide
- Table Surface:T-Slot & Vacuum Working Table
- X, Y Structure:Helical Rack Gears Transmission on X, Y Axis
- Z Structure:Taiwan Tbi Ball Screw Transmission on Z Axis
- Motor and Driver:750W Japan Yaskawa Servo Motor and Driver for X, Y
- Transport Package:Standard Export Wooden Case
- Specification:CE, ISO, SGS
- Trademark:BLUE ELEPHANT
- Origin:Shandong, China
- Production Capacity:200 Sets Per Month
Description
Basic Info.
Model NO. ELECNC-1530 Customized Customized Condition New Color Customized Voltage AC220V/3pH/50Hz(Option:380V) Working Area 1500*3000*300mm Spindle Power 6kw Italy Hsd Air Cooling Spindle Control System DSP A15 Control System Spindle Speed 0-18000rpm Inverter 7.5kw Taiwan Delta Inverter Linear Rail Taiwan Hinwin/PMI 20# Linear Guide Table Surface T-Slot & Vacuum Working Table X, Y Structure Helical Rack Gears Transmission on X, Y Axis Z Structure Taiwan Tbi Ball Screw Transmission on Z Axis Motor and Driver 750W Japan Yaskawa Servo Motor and Driver for X, Y Transport Package Standard Export Wooden Case Specification CE, ISO, SGS Trademark BLUE ELEPHANT Origin Shandong, China Production Capacity 200 Sets Per MonthProduct Description
1530 Wood Door Making CNC Router Cutting Machine with Rotary DeviceAdvantages
- Heavy duty thicker and bigger welded steel tube frame.
- With one 300mm rotary device on the machine, it can moving convenient.
- DSP B18 control system can support 4 axis cnc router machine.
Technical parameters
Description | Parameter |
X,Y,Z Working Area | 1500*3000*300mm |
Table Surface | T-slot & vacuum working table |
Spindle | 6kw Italy HSD air cooling spindle |
X, Y Structure | Helical rack gears transmission on X,Y axis |
Z Structure | Taiwan TBI ball screw transmission on Z axis |
Motor and driver | 750w Japan Yaskawa servo motor and driver for X,Y,Z axis; Stepper motor and driver for rotary device |
Spindle Speed | 0-24000RPM |
Inverter | 7.5kw Taiwan Delta inverter |
Command Language | G Code |
Control System | RichAuto DSP B18 control system |
Dust collector | 1.5kw new type double bag dust collector |
Vacuum pump | 7.5kw water circulation vacuum pump |
Working voltage | 380v, 3ph, 50hz |
Rotary devic | 300mm diameter and 3000mm length of rotary device fixed on Y axis |

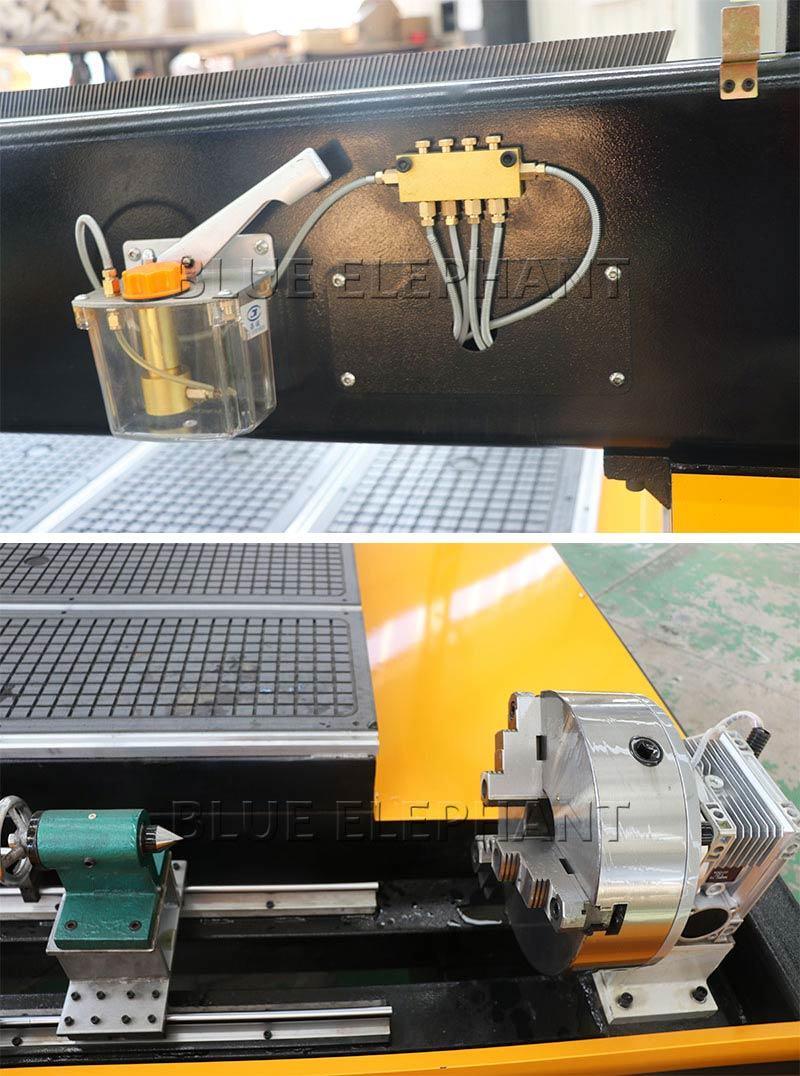

Lubrication system | Manual lubrication system |
PS:All the working area and specifications can be customized according to your requests.
Detail Image
1. Wood Furniture Industry: Wave Plate, fine pattern, antique furniture, wooden door, screen, craft sash, composite gates, cupboard doors, interior doors, sofa legs, headboards and so on.
2. Advertising Industry: Advertising identification, sigh making, Acrylic engraving and cutting, crystal word making, blaster molding, and other advertising materials derivatives making.
3. Die Industry: A sculpture of copper, aluminum, iron and other metal molds, as well as artificial marble, sand, plastic sheeting, PVC pipe, wooden planks and other non-metallic mold.
Packaging Details:
1. Outside package: Standard marine export plywood case.
2. Inner package: Three layers in total; EPE pearl cotton film+PE stretchy film.
Improved package, much more strong and environmental protection.
We can also make package according to your requests.
Delivery Detail: Shipped in 20-30 working days after payment.
Guarantee and After-sale service:
1. 12 months warranty for the whole machine.
2. Technical support by phone, email or WhatsApp/Skype around the clock.
3. Friendly English version manual and operation video CD disk.
4. Engineer available to service machinery overseas.
BLUE ELEPHANT

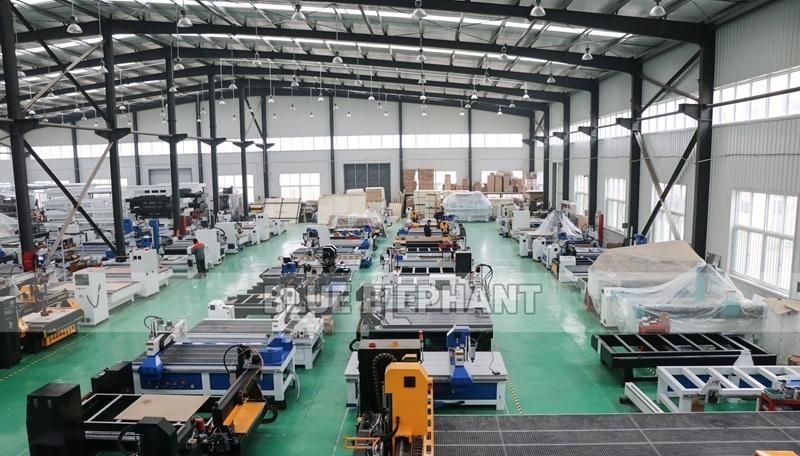

Jinan Blue Elephant CNC Machinery Co., Ltd is located in Jinan City , Shandong Province .
