• Model NO.：ELECNC-1325
• Customized：Customized
• Condition：New
• Color：Customized
• Transport Package：Standard Marine Export Plywood Case
• Specification：1500*3000*200mm
• Trademark：BLUE ELEPHANT
• Origin：Jinan City, Shandong Province, China
• Production Capacity：200set,Sets Per Month

Basic Info.

Model NO. ELECNC-1325 Customized Customized Condition New Color Customized Transport Package Standard Marine Export Plywood Case Specification 1500*3000*200mm Trademark BLUE ELEPHANT Origin Jinan City, Shandong Province, China Production Capacity 200set/Sets Per Month

Product Description

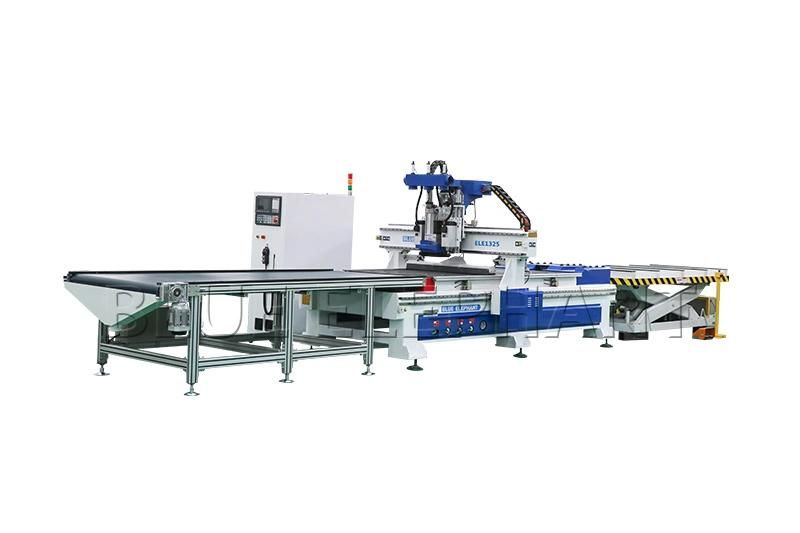

1325 CNC Router Automatic Loading and Unloading System Wood Working Machine
Advantages

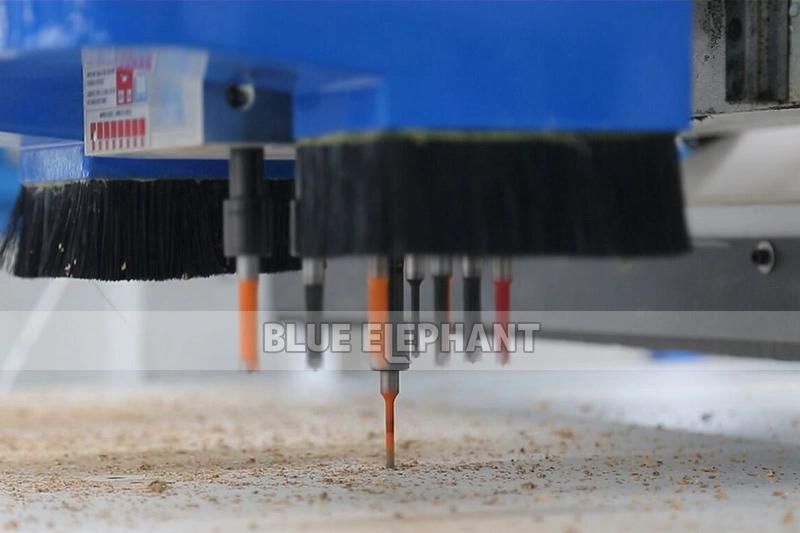

• With double spindle:it can be used for grooving, clamping different cutting tools,opening materials and engraving to reduce the changing time.
• A mature panel furniture production line:the back end with a five-sided drill or infrared laser drilling machine.
• According to yourself demand, automatic feeding platform and large machine head cover are optional.

Parameter

Description	Parameter
X,Y,Z Working Area	1300x2500x200mm
Table Surface	T-slot & vacuum working Table
Frame	Welded Structure
X, Y Structure	Taiwan PMI 25# Linear Guide
Z Structure	Taiwan PMI 25# Linear Guide, Taiwan TBI Ball Screw
Spindle Power	HSD-9 gang drill and2*6kw HSD Spindle
Spindle Speed	0-18000RPM
Drive Motors	850w Japan YASKAWA servo motor and Shimpo driver
Working Voltage	380V 3phase, 50Hz
Command Language	G Code
Operating System	SYNTEC 6MB control system
Running Environment  Temperature	0 - 45 Centigrade

PS:All the working area and specifications can be customized according to your requests.

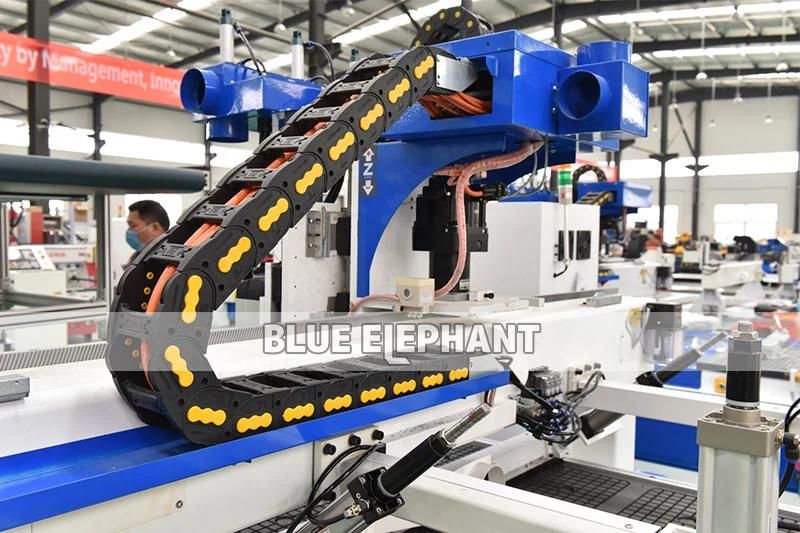

Main parts




Application
 1. Wood furniture industry

Doors; Cabinets; Tables; Chairs.

Wave plate, fine pattern, antique furniture, wooden door, screen, craft sash, composite gates, cupboard doors, interior doors, sofa legs, headboards and so on.

2. Advertising industry

Signage; Logo; Badges; Display board; Meeting sign board; Billboard

Advertising filed, sign making, acrylic engraving and cutting, crystal word making, blaster molding, and other advertising materials derivatives making.

3. Die industry

A sculpture of copper, aluminum, iron and other metal molds, as well as artificial marble, sand , plastic sheeting, PVC pipe, and other non-metallic mold.

4. Artwork and Decoration

wood crafts; gift box; jewelry box

5. Others

Relief sculpture and 3D engraving and Cylindrical object.



Packaging& Delivery

Packaging Details:
Three layers---
-The innermost layer is EPE pearl cotton film package;
-The middle layer is wrapping up with environmental protection material ;
-And the outermost layer is winding up with PE stretch film.
They're very environmentally friendly.
If you need a wooden box, we will make a wooden box outside the machine.

Delivery Detail: Shipped in 15 working days after payment.



Our service

1, Within 7?days since your local customs clearance: if the cnc router's any parts has any problems, we will change it free.

2, Exceed 7?days since your local customs clearance but within warranty period: if the cnc router parts have any problems, we can change the old machine parts to new ones free, but you should pay all the shipping cost.

3, Exceed warranty period: if the cnc router parts have any problems, we can offer new machine parts with cost price and you also should pay all the shipping cost.

4, We offer 24 hours technical support by call, and email.

5, Our technician can give you remote guide online(Skype or MSN) if you have any question.

6, We can record videos of operating the laser machine.

7, Free training course in our factory.

8.Machine will be adjusted before it is delivered, operation disk/CD was included.

Our factory

• Jinan Blue Elephant CNC Machinery Co., Ltd is located in Jinan City, Shandong Province. We have always been developed to the research and manufacturer of CNC router machine and laser cutting engraving machine.
• We have our R & D department, Quality control department, and after sale & service department.
• Our products are widely used in Woodworking, Advertising, Model, Electric, CAD/CAM Industry model, Clothing, Package Printing, Marking, Laser sealing and so on.
• We had got CE and ISO9001 certification always offer best quality machine.
• Our Philosophy: To Be First Brand -- CNC Manufacturer & wholesaler Platform!
• Just looking forward to service every customer, like you.
