ZICAR Industrial Automatic Computer Panel Saw MJ6230B

JAYA INTERNATIONAL CO., LTD.
  • Type:Table Panel Saw
  • Power Type:Electric
  • Layout:Vertical
  • Controlling Mode:CNC
  • Automatic Grade:Automatic
  • Precision:High Precision

Base Info

  • Model NO.:MJ6230B
  • Certification:CE
  • Customized:Customized
  • Condition:New
  • Color:White
  • Length of cut:3000mm
  • Height of cut:100mm
  • Width of saw cut:2850mm
  • Main saw speed:48000r,min
  • Main saw motor power:11kw
  • Air pressure:0.6-0.7MPa
  • Weight:About 3800kg
  • Machine size (L × W × H):5900*3500*1800mm
  • Transport Package:Plywood Cases
  • Specification:5900*3500*1800mm
  • Trademark:ZICAR
  • Origin:China
  • HS Code:8465910000
  • Production Capacity:50sets,Month

Description

Basic Info.

Model NO. MJ6230B Certification CE Customized Customized Condition New Color White Length of cut 3000mm Height of cut 100mm Width of saw cut 2850mm Main saw speed 48000r/min Main saw motor power 11kw Air pressure 0.6-0.7MPa Weight About 3800kg Machine size (L × W × H) 5900*3500*1800mm Transport Package Plywood Cases Specification 5900*3500*1800mm Trademark ZICAR Origin China HS Code 8465910000 Production Capacity 50sets/Month

Product Description

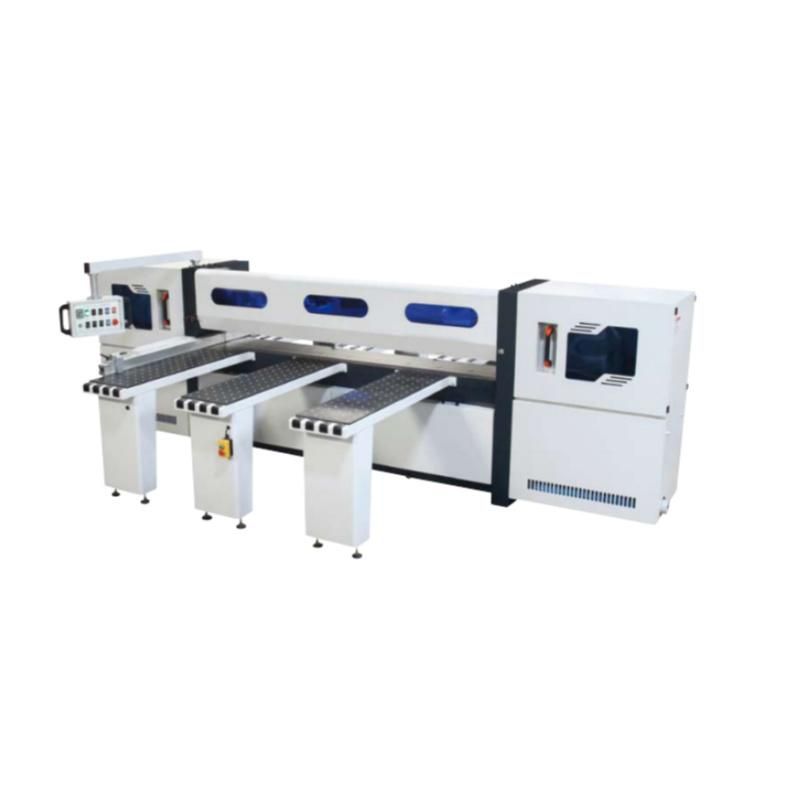

ZICAR Industrial Automatic Computer Panel Saw MJ6230B
ZICAR Industrial Automatic Computer Panel Saw MJ6230B
Features
1.German body technology is used to drive the saw body of the machine body, the perfect combination of reducer control and rack and pinion transmission, the cutting accuracy is within ± 0.15, and the automatic positioning sawing stroke can be realized according to different sawing widths
2.Special design which increasing the cutting speed, reducing the load of the saw blade is more durable and stable.
3.Taiwan Yonghong PLC, Schneider contactors and wiring, high quality, stable and durable.
4.The steel belt square rail is hardened and hard to deform, high efficiency and dustproof, stable operation and higher precision
5.Feeding protection, overtravel protection, emergency stop protection, limit limit, air pressure alarm, safety door guard, fueling system alarm, etc.
Product Parameters

ModelZICAR brand MJ6230B
Max.incising length3000mm
Max.incising thickness48mm
Main blade motor Power5.5Kw
Outer diameter of main bladeΦ300mm
Inner diameter of main bladeΦ30mm
Revolving speed of main blade4700rpm
Outer diameter of secondary bladeΦ120mm
Inner diameter of secondary bladeΦ20mm
Revolving speed of secondary blade6700rpm
Cutting speed15m/min
Returning speed15m/min
Air pressure0.6Mpa
Machine outline size1000x4544x1350mm
Total Power7.5Kw
Net weightabout1700Kg

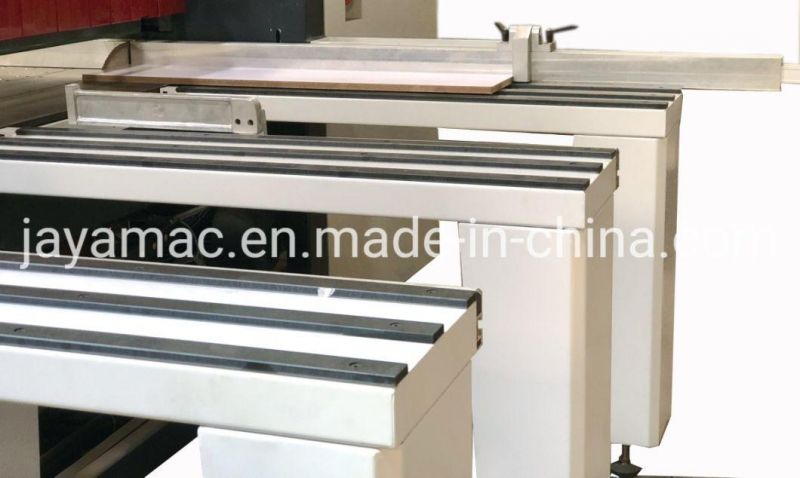

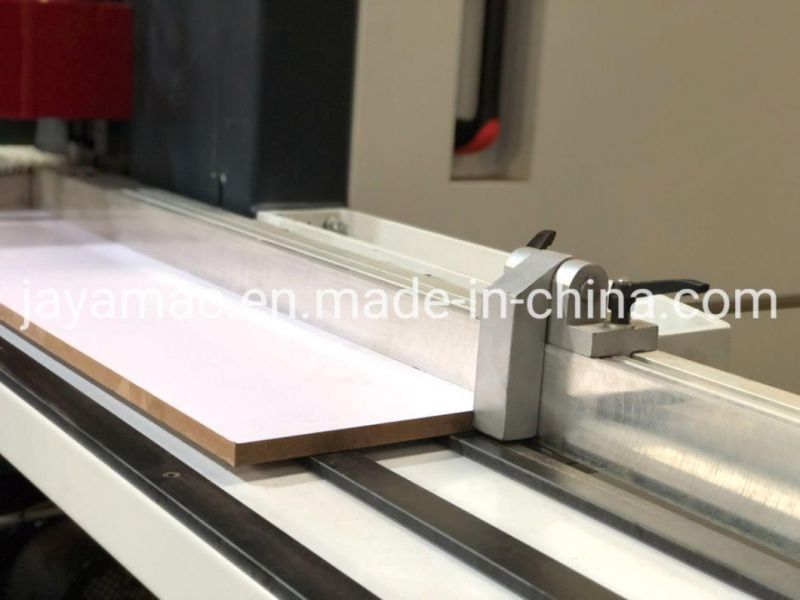

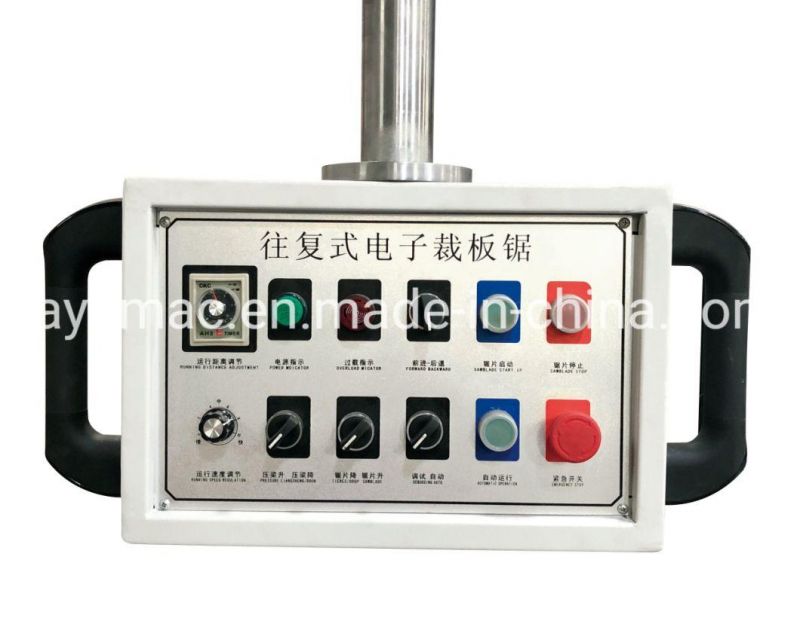

Show Details
ZICAR High efficiency and high speed panel saw sliding table woodworking MJ6230B
ZICAR High efficiency and high speed panel saw sliding table woodworking MJ6230B
ZICAR High efficiency and high speed panel saw sliding table woodworking MJ6230B

Product packaging
ZICAR High efficiency and high speed panel saw sliding table woodworking MJ6230B
