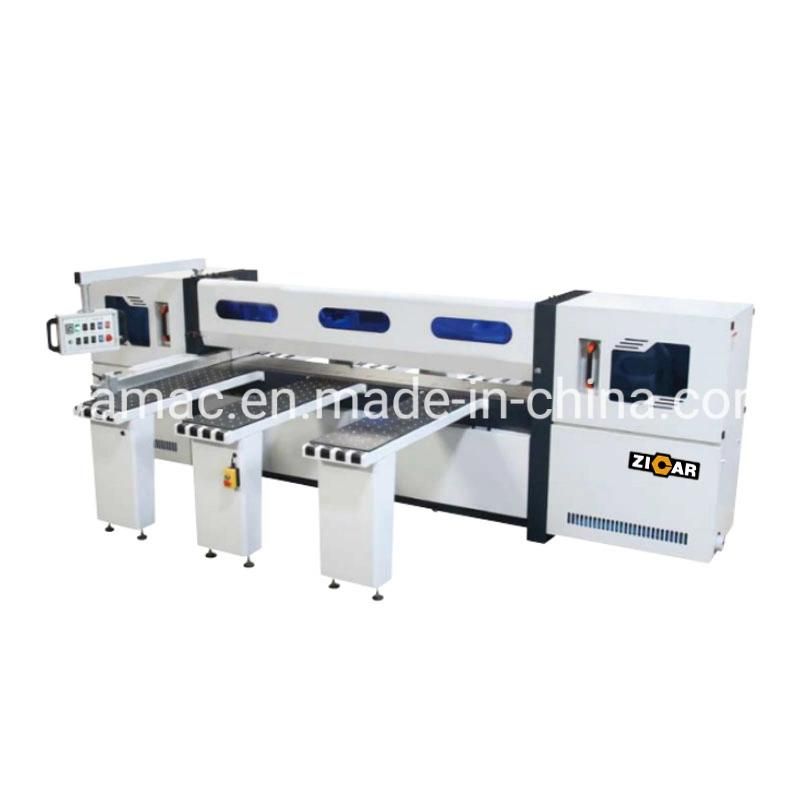

Hot automatic vertical panel saw and table saw panel beam sawMJ6230B
JAYA INTERNATIONAL CO., LTD.- Type:Table Panel Saw
- Power Type:Electric
- Layout:Horizontal
- Controlling Mode:CNC
- Automatic Grade:Automatic
- Precision:High Precision
Base Info
- Model NO.:MJ6230B
- Certification:CE, ISO
- Customized:Customized
- Condition:New
- Color:Customized
- Main blade motor Power:5.5KW
- Net weight:1700KG
- Max.incising length:3000mm
- Total Power:7KW
- Max.incising thickness:48mm
- Transport Package:Film
- Specification:4500X1300X1600
- Trademark:ZICAR
- Origin:China
- HS Code:8465910000
- Production Capacity:300sets,Month
Description
Basic Info.
Model NO. MJ6230B Certification CE, ISO Customized Customized Condition New Color Customized Main blade motor Power 5.5KW Net weight 1700KG Max.incising length 3000mm Total Power 7KW Max.incising thickness 48mm Transport Package Film Specification 4500X1300X1600 Trademark ZICAR Origin China HS Code 8465910000 Production Capacity 300sets/MonthProduct Description
Features
1.German body technology is used to drive the saw body of the machine body, the perfect combination of reducer control and rack and pinion transmission, the cutting accuracy is within ± 0.15, and the automatic positioning sawing stroke can be realized according to different sawing widths
2.Special design which increasing the cutting speed, reducing the load of the saw blade is more durable and stable.
3.Taiwan Yonghong PLC, Schneider contactors and wiring, high quality, stable and durable.
4.The steel belt square rail is hardened and hard to deform, high efficiency and dustproof, stable operation and higher precision
5.Feeding protection, overtravel protection, emergency stop protection, limit limit, air pressure alarm, safety door guard, fueling system alarm, etc.
Product Parameters
Model | ZICAR brand MJ6230B |
Max.incising length | 3000mm |
Max.incising thickness | 48mm |
Main blade motor Power | 5.5Kw |
Outer diameter of main blade | Φ300mm |
Inner diameter of main blade | Φ30mm |
Revolving speed of main blade | 4700rpm |
Outer diameter of secondary blade | Φ120mm |
Inner diameter of secondary blade | Φ20mm |
Revolving speed of secondary blade | 6700rpm |
Cutting speed | 15m/min |
Returning speed | 15m/min |
Air pressure | 0.6Mpa |
Machine outline size | 1000x4544x1350mm |
Total Power | 7.5Kw |
Net weight | about1700Kg |
Show Details
Product packaging
Company Profile
F&Q
1.Our Payment Way?
L/C and T/T or other ways.
2.Delivery Time?
30 days after downpayment.We have our own forwarder and we havelong term cooperation with each other and have closely relationshipwith each other,so there is no problem in shipment.
3.Our Warranty?
(1)One year guarantee from the delivery date of this machine under the normal operation of oneshift per day.
(2)We will be responsible for the maintenance of damaged part which is under normal situationduring warranty period, and all the round-trip courier transportation cost of damaged/repairedreplacement parts in warranty period should be borne by the buyer. Wearing parts are notincluded.
(3)24 hour technical support by email or calling
(4)User-friendly English manual for machine using and maintaining
4.Our srvices?
(1)One-stop service, meet needs of the customers from individuals to international companies.
(2)OEM service accepted.
(3)Separate trading office: Jaya Trading with 30 experienced sales offering full scale service.
(4)After sale Service: experienced and knowledgeable team of technical support , provideengineer oversea service.
