Good Quality Furniture Making Atc 1325 Rotary Taiwan Syntec CNC Wood Router Machine with Ce Certificate
Jinan Blue Elephant CNC Machinery Co., Ltd.- Warranty:12 Months
- Type:Engraving Router
- Spindle Layout:Spindle Over
- Spindle Number:Single-Spindle
- Feed Mode:Mechanical
- Controlling Mode:CNC
Base Info
- Model NO.:1325
- Certification:CE, ISO, SGS BV TUV
- Customized:Customized
- Condition:New
- Color:Customized
- Voltage:380V, 3pH, 50,60Hz
- Dimension(L*W*H):3700*2140*1950mm
- Working Area:1300X2500X200mm
- Control System:Taiwan Syntec Control System
- Spindle:9kw Italy Hsd Atc Air Cooling Spindle
- Spindle Speed:0-18000rpm
- Motor & Driver:850W Japan Yaskawa Servo Motor
- Inverter:11kw Taiwan Delta
- Table Surface:Vacuum & T-Slot Working Table
- Transport Package:Standard Export Wooden Case
- Specification:CE, ISO, SGS, BV, TUV
- Trademark:BLUE ELEPHANT
- Origin:Shandong, China
- Production Capacity:200 Sets Per Month
Description
Description
Parameter
X,Y,Z Working Area
1300x2500x200mm
Table Size
1300×2500mm
X,Y,Z Traveling Positioning Accuracy
±0.03/300mm
X,Y,Z Repositioning Accuracy
±0.03mm
Table Surface
Vacuum and T-slot working table
Frame
Welded Structure
X, Y Structure
Rack and Pinion Drive, Hiwin Rail Linear Bearings
Z Structure
Hiwin Rail Linear Bearings and TBI Ball Screw
Max. Power Consumption
(Without Spindle) 3.2Kw
Max. Rapid Travel Rate
33000mm/min
Max. Working Speed
25000mm/min
Spindle Power
9kw Italy HSD ATC air cooling spindle
Spindle Speed
0-24000RPM
Drive Motors
850W Japan YASKAWA servo motor
Working Voltage
380v, 3 phase, 50/60HZ
(Option: AC220V/50/60Hz,3PH)
Command Language
G Code
Operating System
Taiwan SYNTEC control System
Computer Interface
USB
Rotary device
300mm diameter*2500mm length
Collet
ISO30
X,Y Resolution
<0.01mm
Software Compatibility
Type3/UcancameV9 Software, (Option: Artcam Software)
PS: All the working area and specifications can be customized according to your requests.

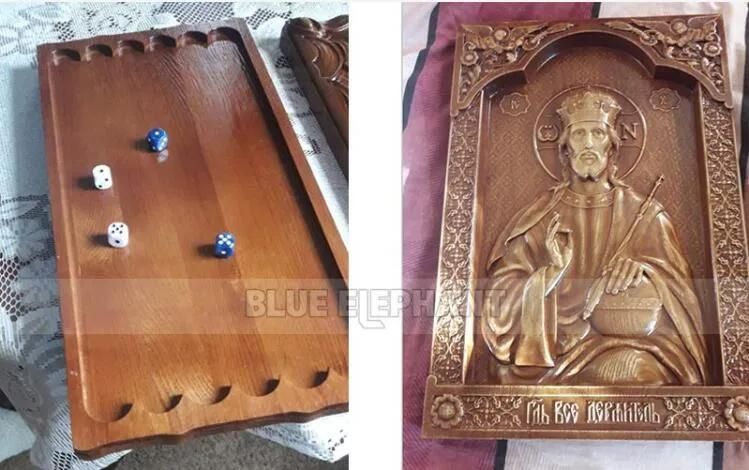

Sample & Application
1. Wood furniture industry
Doors; Cabinets; Tables; Chairs.
Wave plate, fine pattern, antique furniture, wooden door, screen, craft sash, composite gates, cupboard doors, interior doors, sofa legs, headboards and so on.
2. Advertising industry
Signage; Logo; Badges; Display board; Meeting sign board; Billboard
Advertising filed, sign making, acrylic engraving and cutting, crystal word making, blaster molding, and other advertising materials derivatives making.
3. Die industry
A sculpture of copper, aluminum, iron and other metal molds, as well as artificial marble, sand , plastic sheeting, PVC pipe, and other non-metallic mold.
4. Artwork and Decoration
wood crafts; gift box; jewelry box
5. Others
Relief sculpture and 3D engraving and Cylindrical object.
Guarantee and After-sale service:
1. 12 months warranty for the whole machine.
2. Technical support by phone, email or WhatsApp/Skype around the clock.
3. Friendly English version manual and operation video CD disk.
4. Engineer available to service machinery overseas.

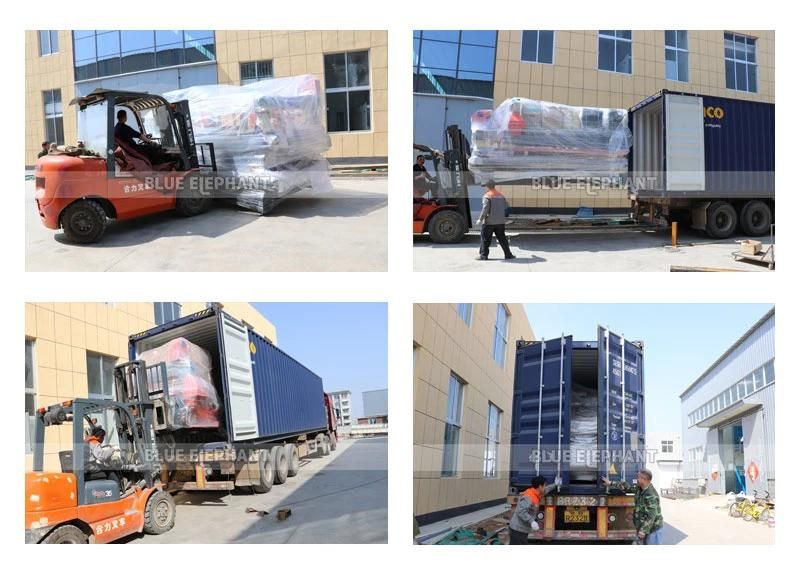

Packaging & Delivery
Packaging Details: 1.Outside package:Standard marine export plywood case.
2.inner package:Stretch film and plastic film for humidity.
We can package according to your requests.
Delivery Detail: Shipped in 7 working days after payment.
FAQ
1.Are you a factory or trading company?
We are the manufacturer and we have 10 years factory experience .As only the machine made by ourself ,quality can be trusted, and most important thing is we can do better service after sales. we know how to fix the problem in each parts easliy. so welcome to visit to our factory
2. How long is the delivery time?
For standard machines, it would be 7-10 days; For non-standard machines and customized machines according to client s specific requirements, it would be 15 to 30 days.
3. How should I pay for my order ? what is the procession of this purchase ?
You can do 30% prepayment at first, then we will start to make production.
when the machine is ready , we will take pictures to you, and then you can do the ballance.
after we got your payment. We will send the machine to you.
4. How about your service after sales ? can your engineer speak fluent english ?
We offer the service from you got the machine, including how to install the machine,
how to use machine. how to let machine work. and so on. usually we will teach you how to do by email or by skype .our engineer has many years of experience for cnc machine service . He can speak very good english , so he can slove the problem in short time.
Our factory
1.10 years factory experience
2.Professional CNC machinery manufacturer
3.very professionally produce 3 axis,4 axis, 5 axis, ATC cnc router,laser cutting machine
4.The price will be 20% off in 2019
Looking forward for the agents from all over the world! Welcome to contact us!
Customer visting
