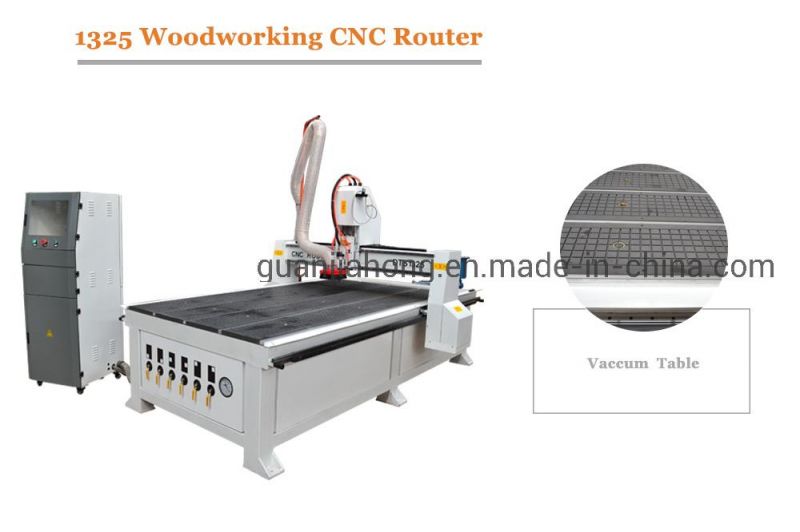

CNC Carving Machine CNC Router Machine for Wood, MDF, Acrylic, Plastic
Jinan Guanjiahong CNC Machinery Co., Ltd.- Condition:New
- Certification:CE, SGS
- CNC or Not:CNC
- Guide Rail:Hiwin 20
- Running Mode:Stepper (Optional Yaskawa Servo)
- Driver:Yako 2811mA (Optional Leadshine 860)
Base Info
- Model NO.:GJH 1325-1
- Motor:Thank 450c (Optional 450b)
- Dust Collector:Yes
- Inverter:Fuling
- Control System:Nc Studio (Genuine)
- Table:Vacuum & T-Slots
- Oil Lubrication System:Yes

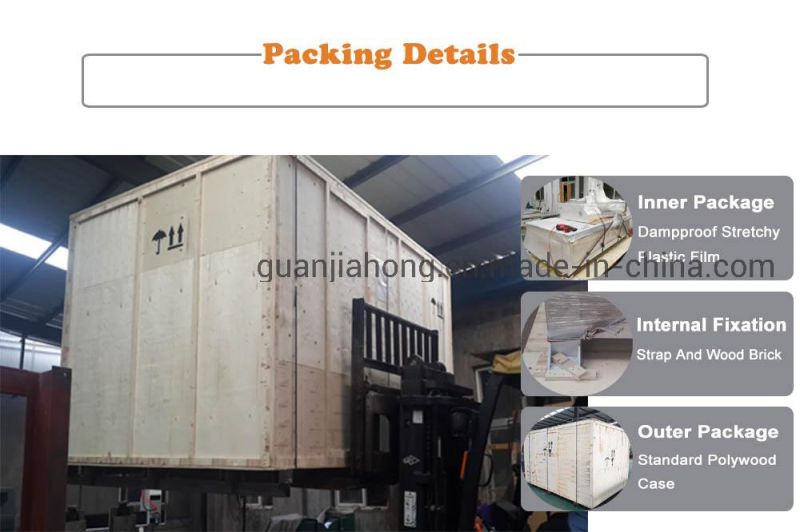

- Transport Package:Plywood Case
- Specification:1325-1
- Trademark:GUANJIAHONG
- Origin:Shandong China
- HS Code:84659900
- Production Capacity:20 Sets Per Month
Description
Basic Info.
Model NO. GJH 1325-1 Motor Thank 450c (Optional 450b) Dust Collector Yes Inverter Fuling Control System Nc Studio (Genuine) Table Vacuum & T-Slots Oil Lubrication System Yes Transport Package Plywood Case Specification 1325-1 Trademark GUANJIAHONG Origin Shandong China HS Code 84659900 Production Capacity 20 Sets Per MonthProduct Description
1. Mode DT1325 machine is specially designed for woodworking, metal and advertisement. It has high precision, fast speed, cost-effective.
2. By the way of seamless welding and vibrating treatment, the lathe bed steel structure is firm, durable, strength steel and non-deformation.
3. Computer cabinets and Weihong control system make the machine have good stability and high reliability.
4. Using automatic lubrication system, it's convenient for maintenance.
5. Owns more functions of power-off restoration, continuation on break point, working time anticipation etc.
6. XYZ axis adopt high-precision linear and square rail from Yintai in Taiwan. High-precision and durable no-learance rolling ball screws for Z axis, it's imported from Yintai brand in Taiwan, rack
Drive for X Y axis, high-precision, faster and better efficiency.

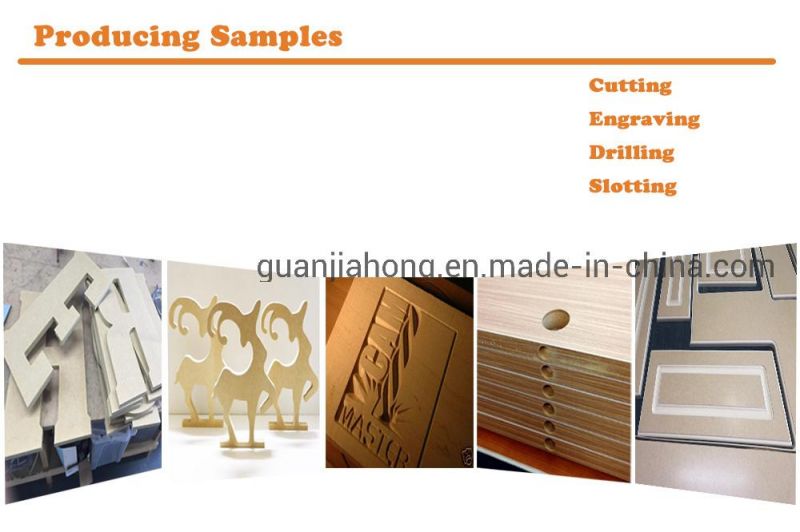

1. Woodworking industry: All kinds of door, windows, cabinet, craft door, paint-free door, screen, wave board processing,
2. Advertisement industry: Suitable for processing all kinds of design of rich and colorful model, Suchas labels. Architectural molds, badge, engraving plate, exhibition boards, doorplate. Direction board, decoration and so on.
3. Handcraft industry: Apply to engraving patterns and characters on all kinds of materials, such as wood, bamboo, marble, organic board, double color board.
4. Other industry: Relief carving, photograph craving, openwork engraving, plane engraving, cutting and milling bottom etc.
NO | Performance index | Performance index | Parameter |
1 | Working area | X axis | 1300mm |
Y axis | 2500mm | ||
Z axis | 180mm | ||
2 | Working area | 1300mm*2500mm | |
3 | Accuracy | Processing precision | 0.02mm |
Reposition precision | 0.02mm | ||
4 | Drove mode | X axis | Rack gear |
Y axis | Rack gear | ||
Z axis | Screw | ||
5 | Speed | Max travel speed | 20000mm/min |
Max engraving speed | 15000mm/min | ||
6 | Spindle(Air-cooling) | Spindle power | 6KW |
Spindle speed | 0-18000r/min | ||
7 | Running mode | Stepper | |
8 | Operating voltage | AC220V/50Hz | |
9 | Command code | G code | |
10 | Operating system | NC studio 53C | |
11 | Collector dust | Yes |
If you have any specific requirements for CNC woodworking engraving machine, customized is available.
