• Model NO.：PTP
• Specification：Working Area: 1300*3700*150mm
• Trademark：Mars
• Origin：China
• HS Code：8465990000
• Production Capacity：3000 Sets,Year

Basic Info.

Model NO. PTP Specification Working Area: 1300*3700*150mm Trademark Mars Origin China HS Code 8465990000 Production Capacity 3000 Sets/Year

Product Description

China Professional PtP Drilling Machine Center CNC Router
 Keywords:15 years experience of production
                  ISO9001:2008, CE, SGS, AAA Level Enterprise which Honors Contract
                  Three Brand: Mars, Golden Eagle,Borio



Description:
China Professional PtP Drilling Machine Center CNC Router is suitable for processing diversified complicated products,with wide rage of functions,including routing,drilling,cutting,side milling,sawing,etc..It breaks the traditional processing mode,really saves time and effort.Make the production get rid of artificial dependence,significantly shorten the production process and processing time.It can be interfaced with panel production line software,is one essential equipment for the customized panel furniture production line.

Functions:
The functions of this machine include routing,drilling,cutting,side milling,sawing,etc..


Applicable Materials:
Acrylic, PVC, MDF(density board), artificial stone, organic glass, and other soft-metal sheets made of aluminum or copper.

Application Scope:
1. Furniture Industry: panel furniture, office furniture, wooden doors, cabinets.
2. Wood Products: stereo box, game cabinets, computer desks, sewing machines, musical instruments.
3. Panel Processing: insulation materials, plastic parts, chemical parts, PCB, inner body of motor car, bowling track, stairs, anti-Bethe plates, epoxy resin, ABS, PP, PE, etc. carbon mixed compound.
4. Decoration Industry: acrylic, PVC, MDF(density board), artificial stone, organic glass, and other soft-metal sheets made of aluminum or copper.


Parameters:

Model	PTP Drilling CNC Machining Center for Panel Furniture
Working Stroke	1300*3700*150mm
Body Structure	Heavy-duty thicken steel structure with tempering
Transmission	XY axis rack and pinion, Z axis ball screw
Table Structure	Moveable gantry + suction cups
Spindle Power	HSD 9.0KW air cooling spindle
Spindle Speed	24000 rpm/min
Max Travelling Speed	80m/min
Max Processing Speed	20m/min
Tool Magazine	Carousel
Tool Slots	8pcs
Vacuum Pump	7.5KW
Reducer	Taiwan planetary reducer
Guide Rail	Taiwan Hiwin linear rail
Drilling Head	9 vertical+6 horizontal+1 sawing unit
Drive System	Yaskawa servo motor
Working Voltage	AC380/ 3PH/ 50HZ
Control System	SYNTEC
Support Software	Professional cutting optimization software (JiFusen/Yunxi/Tomder/Haisense)
Dictate Format	G code/ HPGL
Working Accuracy	±0.02mm
Re-positioning Accuracy	±0.05mm
Net Weight	3000KG
Machine Size	2300*4500*1900mm

Accessories:

Performance Features:
1. Be suitable for processing diversified complicated products, with wide rage of functions, including routing, drilling, cutting, side milling, sawing, etc..
2. Break the traditional processing mode, really save time and effort. Make the production get rid of artificial dependence, significantly shorten the production process and processing time.
3. Can be interfaced with panel production line software, is one essential equipment for the customized panel furniture production line.

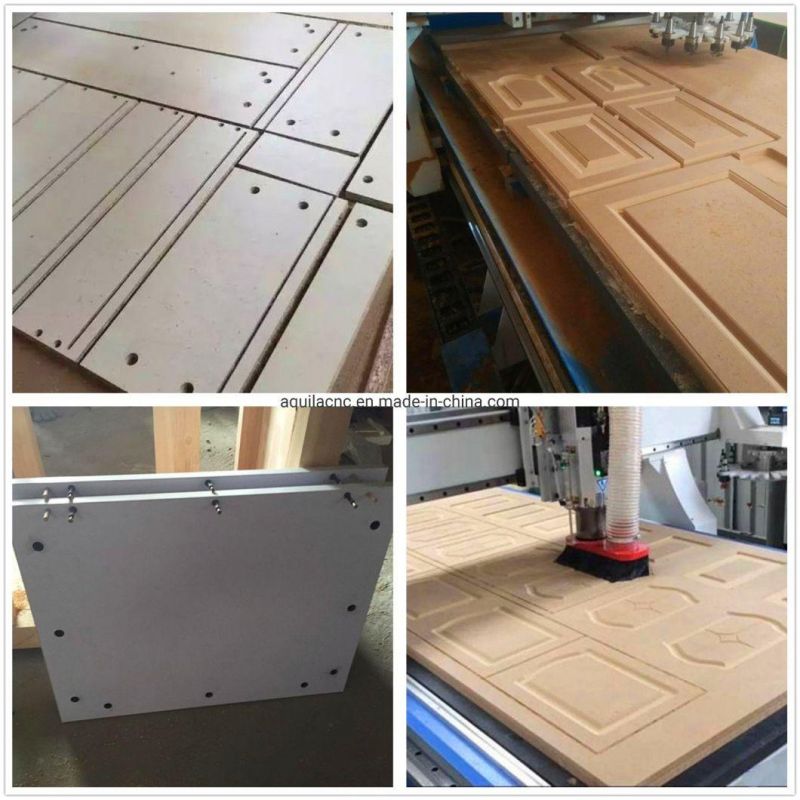

Samples:


Pack and delivery:


Warranty Information:
1.Warranty and Service:
Guarantee:12 months for the whole machine.
Within 12 months under normal use and maintenance, if something is wrong with machine, you will get spare part for free.
Out of 12 months, you will get spare part at cost price.
Technical support: You will also get technical support and service all the lifetime.
(1).Technical support by phone, email or Whatsapp/Skype around the clock.
(2).Friendly manual and operation video online.
(3).Engineer available to service machinery overseas.
2.After sales Services:
(1).Normal machine is properly adjusted before dispatch. You will be able to use the machines immediately.
(2).You will be able to get free training advice towards our machine in our factory.
(3).You will also get free suggestion and consultation, technical support and service by email/fax/tel and lifetime technical support.
3.Quality control:
(1).Skilled and Strict Quality Inspection Team is available during the material purchasing and production procedure according to ISO 9001:2015.
(2).All finished machine we shipped out are 100% strictly tested by our QC department and engineering department.

FAQ Before Ordering:
Q 1. I have no idea which machine can meet my need,what should I do?
A: Please tell the what's material you want to working on ?
     What's the MAX size of these material ?( length ? Width ? Thickness ?)
     Then I will recommend the most suitable machine for you.

Q 2. I do not know how to handling CNC Router,what should I do?
A: We will supply you a training video and English handbook to teach you how to operate.Or we will welcome you to arrive China to field-based learning .

Q 3. If my machine has some problems in the warranty period,what should I do?
A: If the machine part broken within warrantry time,we will send new part to you for free.

Q 4.How about your after-sales service ?
A: Technical support by phone, WhatApp,Skype,e-mail or QQ around the clock. And we can arrange technician go to your company to solve problem if neeeded.

Similar products:


Our company:
Our company is 15 years professional manufacturers of panel furniture production line equipment, CNC cutting machine, five surface drilling, PTP machine, CNC machining center, wood carving machine, stone carving machine, jade carving machine, three-dimensional carving machine, mold machine.


Our certifications:


Why choose Hefei Aquila CNC Equipment Co., Ltd?
1.Our company has 15 years experience of production, and is a set research and development, manufacturing, sales,and has the national certification of  "High-tech enterprises."
2.With over 15 years experience and dozens of national patents, our company has passed the ISO9001:2008 Quality Management System and CE Certificate, and is also entitled as the AAA Level Enterprise which Honors Contract and Keeps Promise.
3.We have the professional R&D team and quality control system, to provide you with the most valuable products and services.
4. Our sales& service network has covered all dometic major cities and overseas markets, such as the USA, European, Southeast Asia, Middle East etc.Let you have the most perfect after-sales service.

Our Services:
1. Convenient: 24th Hours sales/After-sales Service online or on the phone.
2. Quality Assurance: We will discuss with you and supply you the best quality comfortable to your market.
3. Quick delivery: Time is money, we promise we always will deliver the goods quicker than others.
4. According to customers' drawing,customized specifications are welcomed.
5. Low MOQ,small orders can be accepted.

We are searching distributors all over the world. If you have any demands, welcome to contact us and visit our factory.
