Woodworking Machinery

ZICAR MJ164A high efficiency wood cutting straight line rip saw

JAYA INTERNATIONAL CO., LTD.
  • Type:Rip Saw
  • Power Type:Electric
  • Layout:Vertical
  • Controlling Mode:CNC
  • Automatic Grade:Automatic
  • Precision:High Precision

Base Info

  • Model NO.:MJ164A
  • Certification:CE, ISO
  • Customized:Non-Customized
  • Condition:New
  • Color:white
  • Marketing Type:New Product 2020
  • Core Selling Point:Easy to Operate
  • Core Components:Motor
  • Applications:Woodworking
  • Transport Package:Film Package or Plywood Case
  • Specification:2060*1500*1350mm
  • Trademark:ZICAR
  • Origin:China
  • HS Code:8465100000
  • Production Capacity:100pieces,Month

Description

Basic Info.

Model NO. MJ164A Certification CE, ISO Customized Non-Customized Condition New Color white Marketing Type New Product 2020 Core Selling Point Easy to Operate Core Components Motor Applications Woodworking Transport Package Film Package or Plywood Case Specification 2060*1500*1350mm Trademark ZICAR Origin China HS Code 8465100000 Production Capacity 100pieces/Month

Product Description

Products Descriptio
ZICAR MJ164A high efficiency wood cutting straight line rip saw

Features
1. This adopts step-less material feeding, material feeding speed ranges from 5 to 24 m/min.
2. Each main shaft is driven by independent electric motor, cutting fore is poweful;
3. Main shaft is adjusted to focus on the front, operation is convenient;
4. Multi-group drive rollers improve feeding efficiency;
    International brands electrical parts are applied for good stability;
5. Spare parts are thick and solid to maintain high precision, high stability and high reliability;
6. Pneumatic compressed feeding roller is applied, the pressing force can be adjusted by stages;
7. Which is favorable for smooth feeding of timbers with different thickness;
8. Completely sealed safety shield can avoid flying of saw dust and isolate noise efficiently and protect operators.
Product Paramenters
SPECIFICATION AND MODELMJ164A
Saw balde diametermax 455 mm(18")
min 355 mm(14")
Max.working thickness110 mm
Max.cutting width660 mm
Spindle diameter50.8mm
Spindle speed3000r/min
Feeding speed10~30m/min
Main motor power11 kw
Feeding motor power0.75kw
Upper beam lifting motor power0.37 kw
Total power13.87KW
Working table2000×1160mm
Overall dimension2300×1700×1450 mm
Net weight1740kg
Details Images
ZICAR MJ164A high efficiency wood cutting straight line rip saw

Double arms are heavy, and can ensure machine working more stable.ZICAR MJ164A high efficiency wood cutting straight line rip saw

New control panel design is more intuitive and more beautiful.
Frequency conversion feeding makes it much more convenient.
ZICAR MJ164A high efficiency wood cutting straight line rip saw
Electrical up&down of feeding box, which makes the operation much easier.
ZICAR MJ164A high efficiency wood cutting straight line rip saw
Anti-rebound protector ensure safety
ZICAR MJ164A high efficiency wood cutting straight line rip saw
Direct-coupled spindle motor, transmission power is sufficient

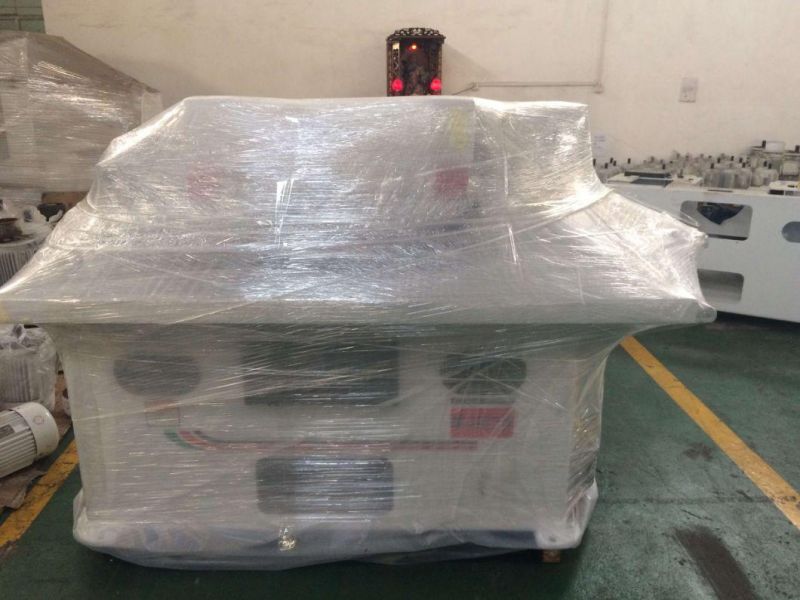

Packing
ZICAR MJ164A high efficiency wood cutting straight line rip saw
Our Company

ZICAR MJ164A high efficiency wood cutting straight line rip saw
