• Model NO.：MJ153A
• Certification：CE, ISO
• Customized：Non-Customized
• Condition：New
• Color：white
• Marketing Type：New Product 2020
• Core Selling Point：Easy to Operate
• Core Components：Motor
• Applications：Woodworking
• Transport Package：Film Package or Plywood Case
• Specification：2060*1500*1350mm
• Trademark：ZICAR
• Origin：China
• HS Code：8465100000
• Production Capacity：100pieces,Month

Basic Info.

Model NO. MJ153A Certification CE, ISO Customized Non-Customized Condition New Color white Marketing Type New Product 2020 Core Selling Point Easy to Operate Core Components Motor Applications Woodworking Transport Package Film Package or Plywood Case Specification 2060*1500*1350mm Trademark ZICAR Origin China HS Code 8465100000 Production Capacity 100pieces/Month

Product Description

Products Descriptio


Features
1. This adopts step-less material feeding, material feeding speed ranges from 5 to 24 m/min.
2. Each main shaft is driven by independent electric motor, cutting fore is poweful;
3. Main shaft is adjusted to focus on the front, operation is convenient;
4. Multi-group drive rollers improve feeding efficiency;
    International brands electrical parts are applied for good stability;
5. Spare parts are thick and solid to maintain high precision, high stability and high reliability;
6. Pneumatic compressed feeding roller is applied, the pressing force can be adjusted by stages;
7. Which is favorable for smooth feeding of timbers with different thickness;
8. Completely sealed safety shield can avoid flying of saw dust and isolate noise efficiently and protect operators.
Product Paramenters

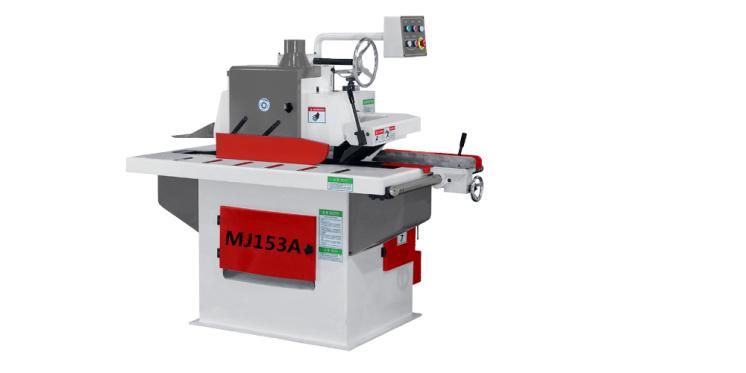

SPECIFICATION AND MODEL	MJ153A
Saw balde diameter	φ305mm
Max.working thickness	85 mm
Max.cutting width	360mm
Spindle diameter	25.4mm
Spindle speed	3000r/min
Feeding speed	10~30m/min
Main motor power	7.5kw
Feeding motor power	0.75kw
Total power	8.25KW
Working table	890×1380mm
Overall dimension	1610×1180×1500 mm
Net weight	1150kg

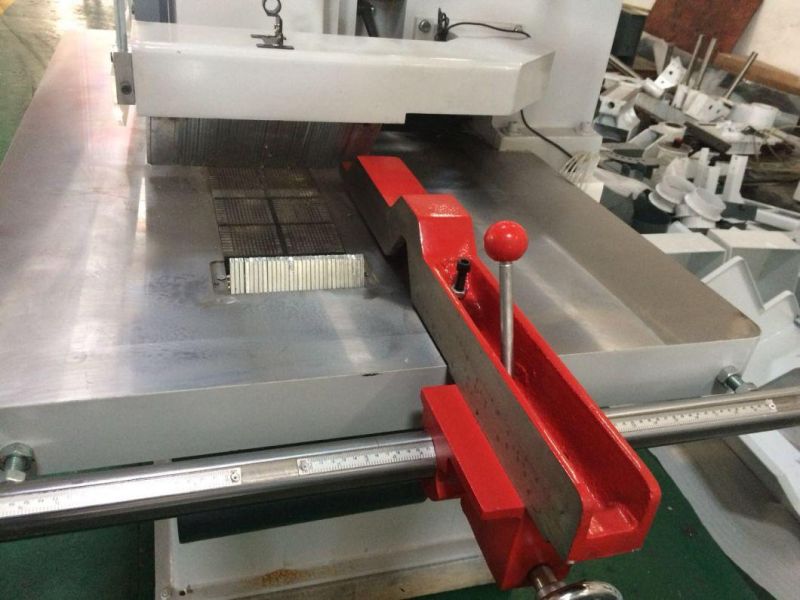

Details Images
