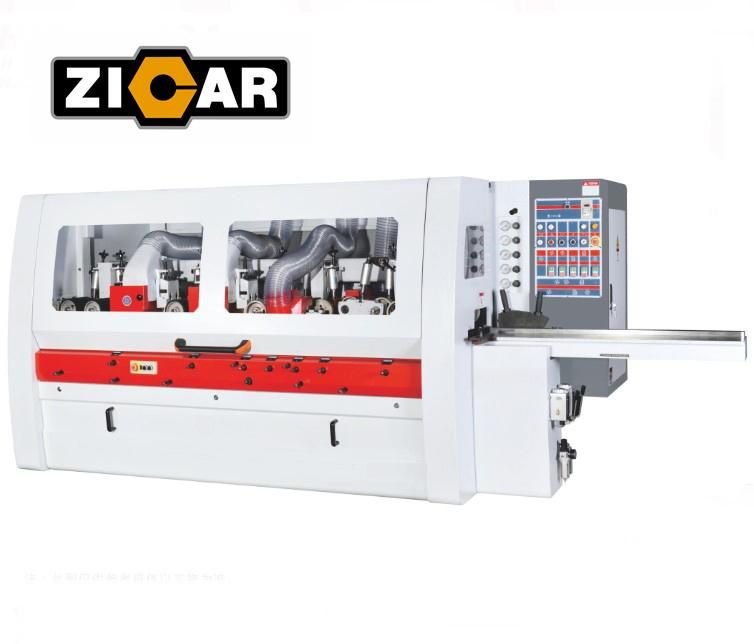

ZICAR M623A good quality four side planer

JAYA INTERNATIONAL CO., LTD.
  • Type:Four-Side Planer
  • Working Depth:25~230mm
  • Working Width:8~150mm
  • Drivetrain:Feed Drivetrain
  • Enter Method:Hydraulic
  • Motor Power:58.6kw

Base Info

  • Model NO.:M623A
  • Cutter Shaft:24
  • Spindle Speed:10~40m,min
  • Process Type:Heavy Processing
  • Certification:CE, ISO
  • Marketing Type:New Product 2020
  • Core Selling Point:Easy to Operate
  • Core Components:Motor
  • Applications:Woodworking
  • Main Shaft Diameter:1800mm
  • Spindie diameter:40mm
  • Transport Package:Film Package or Plywood Case
  • Specification:4100*1700*1760mm
  • Trademark:ZICAR
  • Origin:China
  • HS Code:846592
  • Production Capacity:100pieces,Month

Description

Basic Info.

Model NO. M623A Cutter Shaft 24 Spindle Speed 10~40m/min Process Type Heavy Processing Certification CE, ISO Marketing Type New Product 2020 Core Selling Point Easy to Operate Core Components Motor Applications Woodworking Main Shaft Diameter 1800mm Spindie diameter 40mm Transport Package Film Package or Plywood Case Specification 4100*1700*1760mm Trademark ZICAR Origin China HS Code 846592 Production Capacity 100pieces/Month

Product Description

Products DescriptionZICAR M623A good quality four side planerFeatures
1. The machine bed is cast from high grade cast iron to ensure the stability of the machine;
2. This adopts step-less material feeding, material feeding speed ranges from 5 to 24 m/min;
3. Each main shaft is driven by independent electric motor, cutting force is poweful;
4. Main shaft is adjusted to focus on the front, operation is convenient;
5. Hard chrome plating work table is durable;
6. Equips with auxiliary unit alarming lack of material, it effectively improvises smooth feed-in while lack of      material;
7. Multi-group drive rollers improve feeding efficiency;
    International brands electrical parts are applied for good stability;
8. Spare parts are thick and solid to maintain high precision, high stability and high reliability;
9. Pneumatic compressed feeding roller is applied, the pressing force can be adjusted by stages;
10. Which is favorable for smooth feeding of timbers with different thickness;
11. Completely sealed safety shield can avoid flying of saw dust and isolate noise efficiently and protect operators.

Products DetailsZICAR M623A good quality four side planer

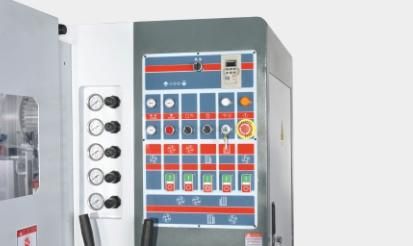

 The new panel design is more intuit-ive and more beautiful, with variable frequency feeding.
Speed adjustment is convenient.
ZICAR M623A good quality four side planer

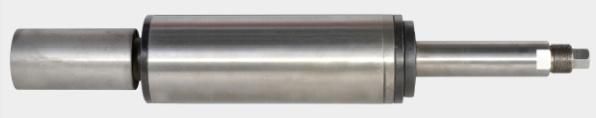

The main shaft is made of high quality steel for heat treatment and dynamic balancing.
Art equipped with SkF brand bearings, the spindle is more stable and durable.
ZICAR M623A good quality four side planer

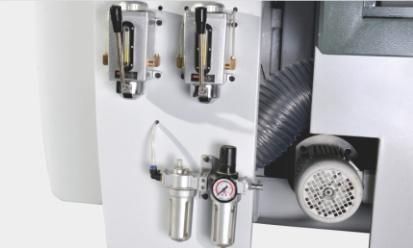

Independent double oil circuit design, rotation and processing work independently, The operation is more flexible.
ZICAR M623A good quality four side planer

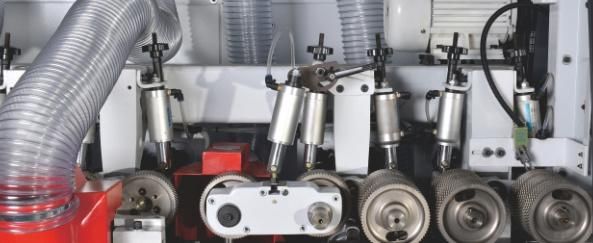

This structure effectively improves the feeding of short materials more smoothly, and the auxiliary feeding wheel has a transmission function and is more efficient.
The feed wheel can be picked up for easy tool change or calibration.Product Paramenters
SPECIFICATION AND MODELM623A
Working Width25~230mm
Working Thickness8~150mm
Feeding Speed10~40m/min
Main Shaft Diameter1800mm
Spindie diameterφ40mm
Axial movement0~20mm
Main Shaft Revoluton6800r/min
Pneumatic Source Pressure0.6Mpa
First Bottom Spindle7.5kw
Right side Spindle7.5kw
Left side Spindle7.5kw
First Top Spindle11kw
Second Top Spindle11kw
Second Bottom spindle7.5kw
Feed5.5kw
Feed Beam beam rise &fall1.1kw
General Power58.6Kw
Trimmingφ145~160mm
First Bottom Spindleφ125~140mm
Right side spindleφ125~180mm
Left side spindleφ125~180mm
First top spindleφ125~180mm
Second top spindleφ125~180mm
Second Bottom spindleφ125~140mm
Dust Outlet Diameterφ140mm
Feeding wheel Diameterφ140mm
(L×W×H)4100×1700×1760mm
Net Weighe4200kg
