Woodworking Machinery

Power Press Hydraulic Press Machinery

Qingdao Zhongding Machinery Co., Ltd.
  • Work Forms:Hydraulic Pressure
  • Processing Technics:Hot Press
  • Structure:Frame Type
  • Pressing Shape:Flat Press
  • Platen Surface Pressure:High Pressure
  • Pressing Layer:Multi Layer

Base Info

  • Work Mode:Continuous
  • Controlling Mode:Artificial
  • Automatic Grade:Automatic
  • Certification:CE, ISO

Description

Basic Info.

Work Mode Continuous Controlling Mode Artificial Automatic Grade Automatic Certification CE, ISO

Product Description

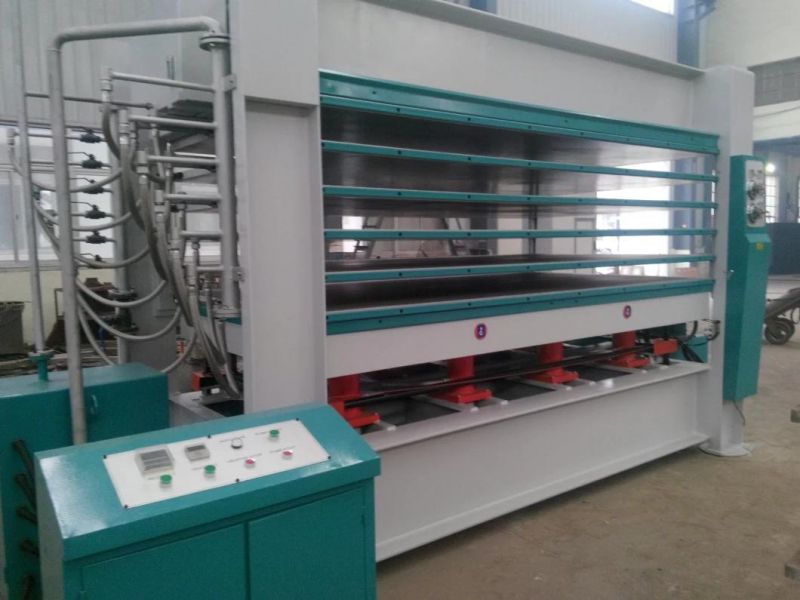

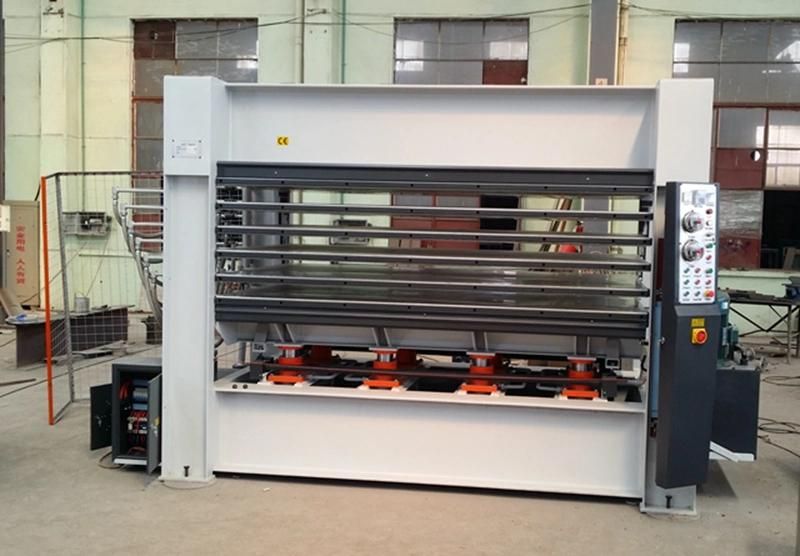

ZD214*8/10(1)H Hot Press


Technical Specification:

Total pressure100/120/160/200ton
Feeding directionTransversal
Dimension of hot platen2500x1300x42mm
Number of layersoptional
Number of platensOptional
Stroke80-120mm

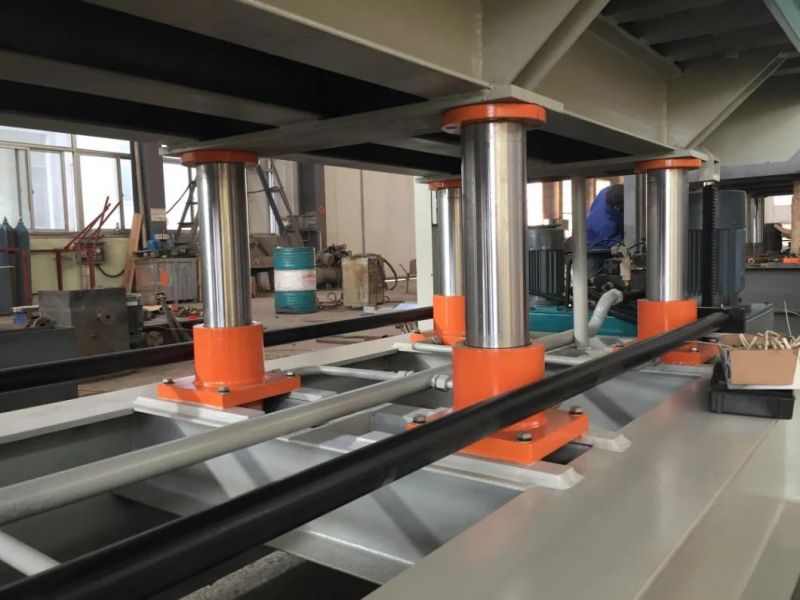

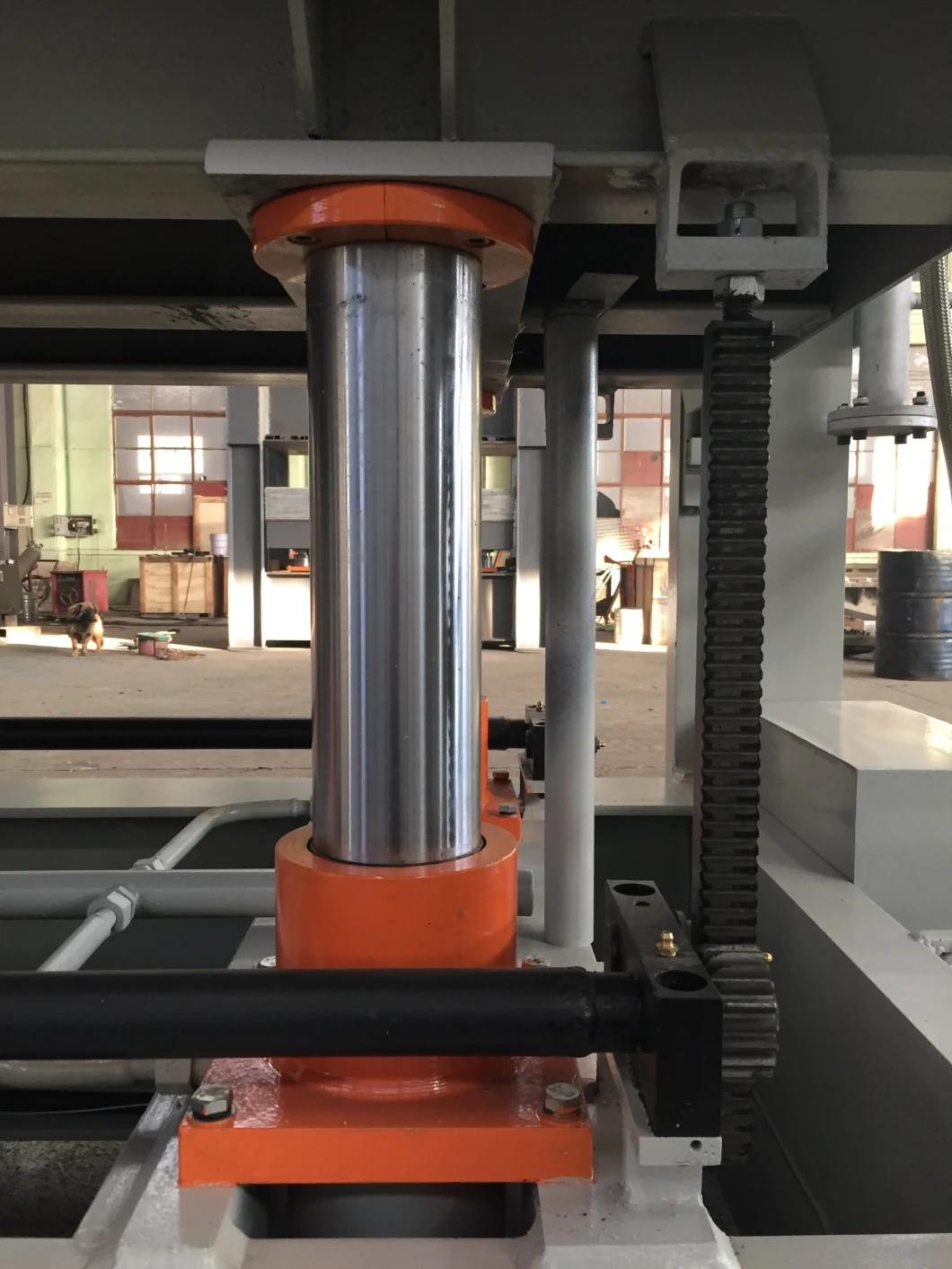

Diameter & stroke of oil cylinder100mm x 200mm
Number of cylindersoptional
Heating mediumthermal oil
Working pressureoptional
Total power9.2Kw
Thermal oil furnace poweroptional


Feature:
  1. All 3 pumps we use Vane Pumps. The others use Gear Pumps. Vane pumps with lower noise than gear pumps. So the working life is longer than gear pumps.
  2. The surface roughness of our platen is 0.8μm. The better among the others is just 1.6μm. This will keep the heating averagely. This is very important.

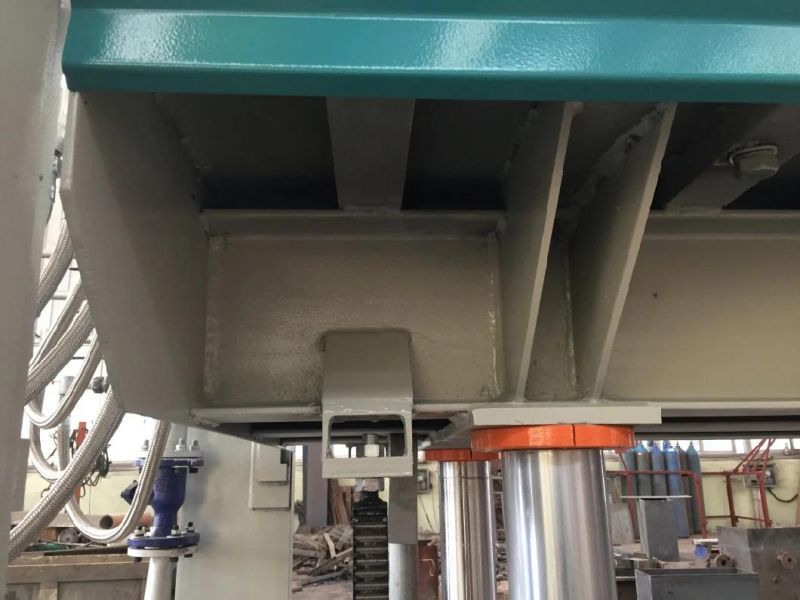

  3. Our machine base is type H steel. The others use welded steel plate. Type H steel is much stronger than the welded steel plate. Welded steel plate will be bent easily.


Product Details:
Power Press Hydraulic Press Machinery
Power Press Hydraulic Press Machinery

    Hydraulic Woodmachine Hot Press for DoorsHydraulic Woodmachine Hot Press for Doors
    Hydraulic Woodmachine Hot Press for DoorsHydraulic Woodmachine Hot Press for Doors



    Certificate:
    Hydraulic Woodmachine Hot Press for Doors




    Our company:

          Qingdao Zhongding Machinery Co., Ltd is professional at manufacturing woodworking machines. Our main products includes: sliding table saw(panel saw), edge banding machine, hydraulic cold press, hot press, carpenter drilling machine ( boring machine), etc. We are factory, we provide the machine with reasonable price and high quality, and welcome to visit our factory and our products.
