Edge Banding Machine for Furniture
Qingdao Zhongding Machinery Co., Ltd.- Function：Pre Milling, Gluing, End Trimming, Rough Trimming, Fine Trimming, Contour Tracking, Scraping, Buffing
- Type：Linear Edge Banding Machine
- Edging thickness：0.4-3mm
- Automatic Grade：Automatic
- Panel Feeding Speed：10-23m,Min
- Certification：CE, ISO
Base Info
- Panel Thinkness：10-60mm
- Min.length panel：100mm
- Min.width panel：50mm
- Customized：Customized
- Transport Package：Wooden Case
- Origin：Qingdao
- HS Code：84659900
Description
Specification Width of board Min. 50mm End trimming motor 0.5kw*2 Length of board Min. 100mm Rough trimming motor 0.75kw*2 Thickness of board 10-60mm Fine trimming motor 0.75kw*2 Width of banding 12-65mm Corner rounding motor 0.5kw*2 Thickness of banding 0.4-3mm Polishing motor 0.37kw*2 Heating power 1.7kw Feeding speed 10-23m/min Feeding motor power 3.7kw Air pressure 0.8Mpa Pre-milling moter 2.2kw*1 Shape of workpiece straight Glue spreading motor 0.75kw N.W. 2800kg Voltage 380v, 3ph, 50hz Size 6700×850×1520mm

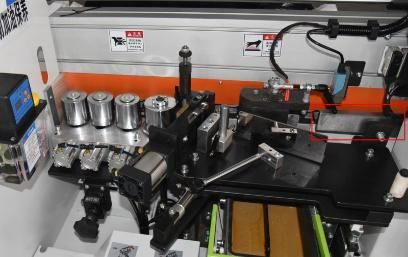

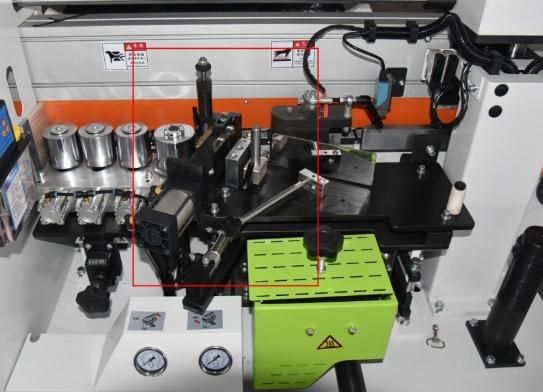

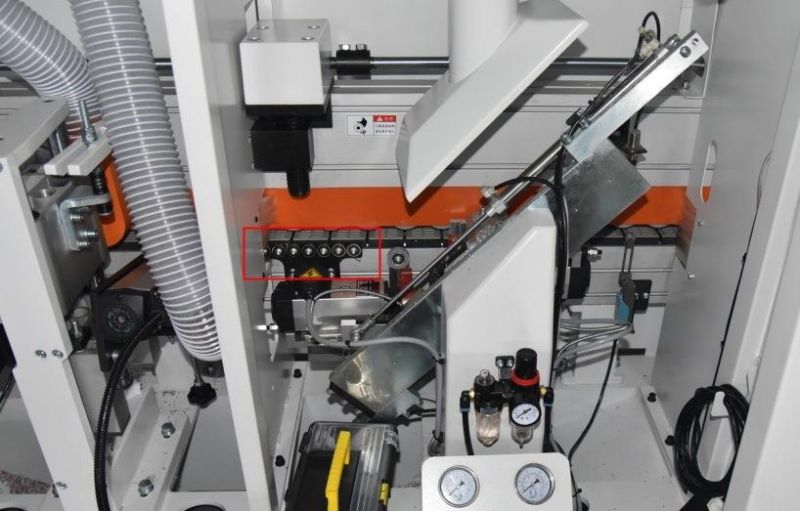

Advantages: Precise band clamping adjustment with pneumatic control, release your hand from manual handle.

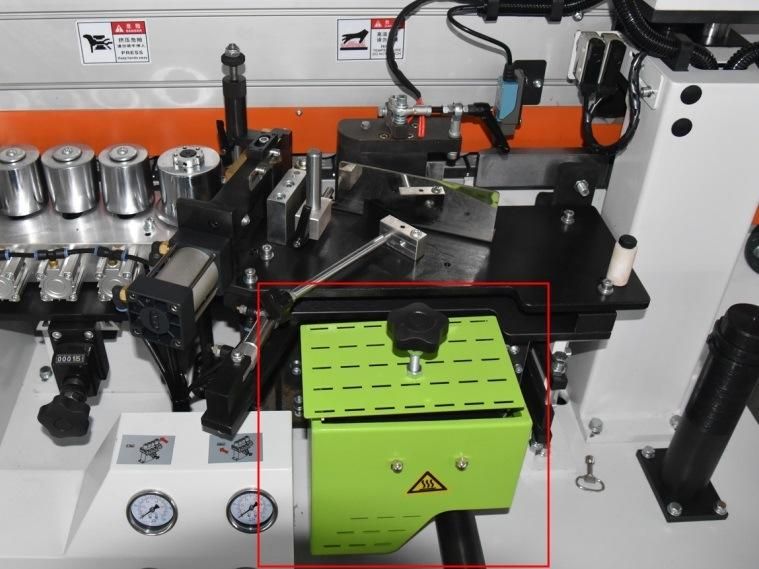

Board preheating to get a better gluing effect.
Nonstick material glue pot, easy to clean without residue.

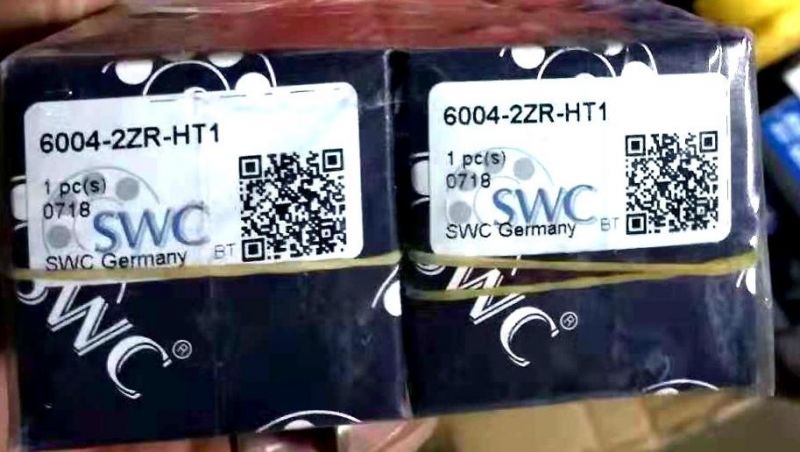

High quality SWC brand bearings imported from Germany

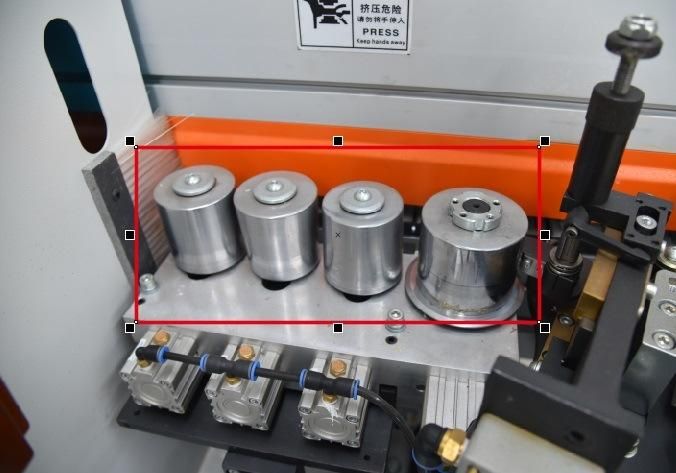

Four Irregular cylindrical pinch rollers can entirely press the band firmly to the plate.

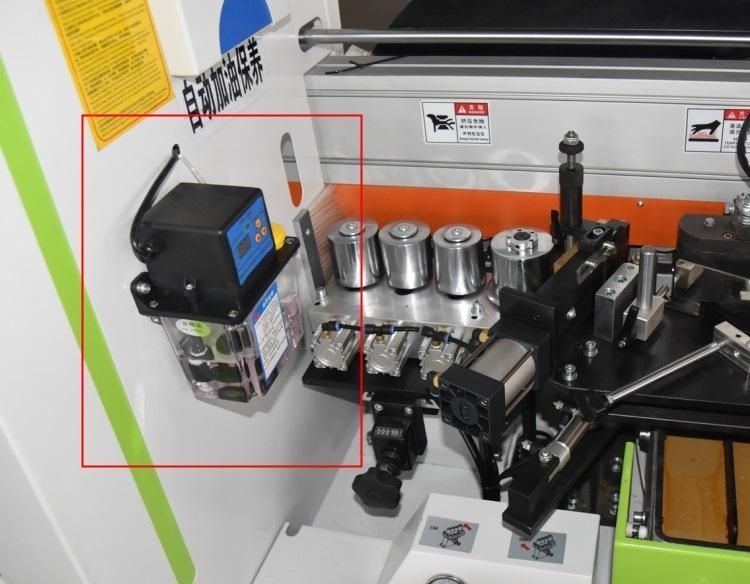

Automatic oiling
With Japanese SMC brand air cylinder and throttle valve, it can work with a stable pressure and a long life span. No noise when working.

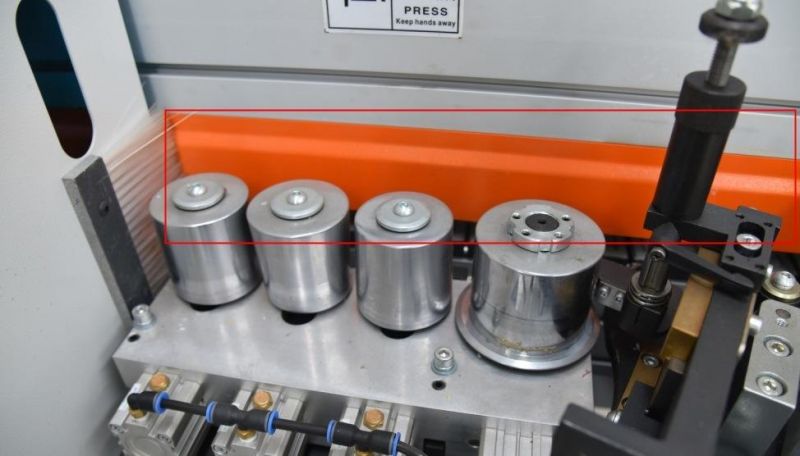

Dust proof plate setting all along the whole edge banding process can prevent the board from dirt.
Auxiliary pinch roller for narrow boards. Stable edge banding even for 4cm width panel.

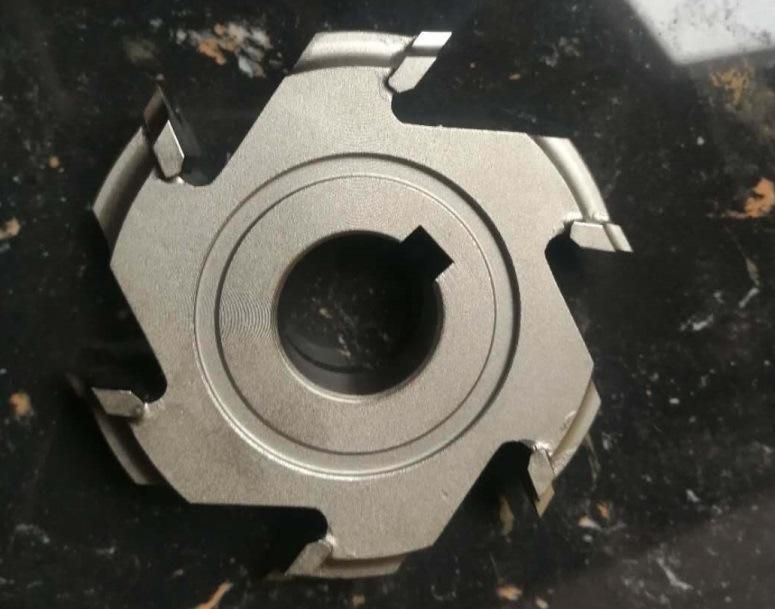

The use of six-edges knife for fine trimming leads to a smoother cutting surface. With the design of linear guide way, it can stably working without abrasion. Also not easy to get stuck.

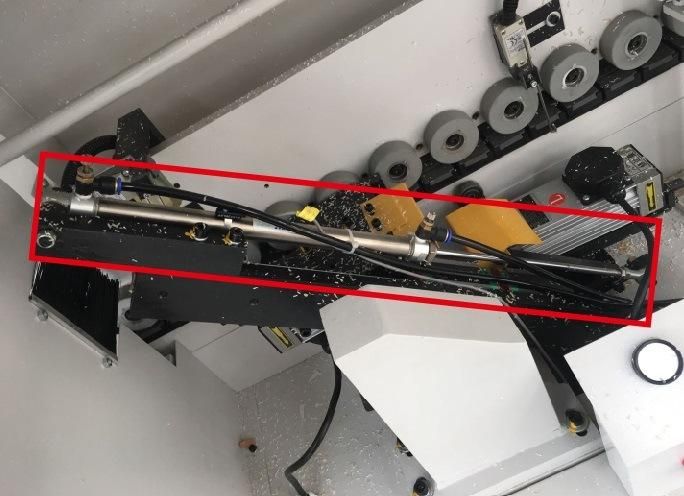

Scrapping process with dust collecting pipe.
Air tank to ensure the working pressure.
Advantages: Precise band clamping adjustment with pneumatic control, release your hand from manual handle.
Board preheating to get a better gluing effect.
Nonstick material glue pot, easy to clean without residue.
High quality SWC brand bearings imported from Germany
Four Irregular cylindrical pinch rollers can entirely press the band firmly to the plate.
Automatic oiling
With Japanese SMC brand air cylinder and throttle valve, it can work with a stable pressure and a long life span. No noise when working. Dust proof plate setting all along the whole edge banding process can prevent the board from dirt.Auxiliary pinch roller for narrow boards. Stable edge banding even for 4cm width panel.
The use of six-edges knife for fine trimming leads to a smoother cutting surface. With the design of linear guide way, it can stably working without abrasion. Also not easy to get stuck.
Scrapping process with dust collecting pipe.
Air tank to ensure the working pressure.
