1325 CNC Router 4 Axis CNC Rotary Engraving Machine Metal Engraving Machine
Jinan Blue Elephant CNC Machinery Co., Ltd.- Type:Vertical Uniaxial Wood Router
- Spindle Layout:Spindle Over
- Spindle Number:Single-Spindle
- Feed Mode:Mechanical
- Controlling Mode:CNC
- Certification:CE, ISO, SGS BV TUV
Base Info
- Model NO.:ELECNC-1325
- Customized:Customized
- Condition:New
- Color:Customized
- Transport Package:Plywood Case Package for 3D Wood Cutting CNC Machi
- Specification:1300x2830x300mm
- Trademark:BLUE ELEPHANT
- Origin:Jinan City, Shandong Province
- Production Capacity:200sets,Months
Description
Description
Parameter
X,Y,Z Working Area
1300x2830x300mm
Table Surface
T-slot working table with pvc protection
Frame
Welded Structure
X, Y Structure
#20 HINWIN/ABBA linear guide, helical rack
Z Structure
Hiwin/ABBA Rail Linear guide and Ball Screw
Spindle
6kw Italy HSD air cooling spindle
Spindle Speed
0-18000RPM
Drive Motors
FL118 stepper motor and Yako 2811 big driver
Working Voltage
AC220V, 60Hz, 1PH (Option: 380V)
Operating System
Mach3 4 axis control system
Control box
Inner box
Inverter
7.5kw Fuling inverter
Lubrication system
Automatic lubrication system
Rotary device
Diameters: 300mm ; Length: 2830mm
X,Y Resolution
<0.01mm
PS: All the working area and specifications can be customized according to your requests.
Optional Parts
1. Oil/Water Mist Cooling Sprayer
It is suitable for cutting or engraving soft-metal (like aluminum and cooper), stone(marble) etc material, has cooling effect.
2. Spindle cover and Dust collector
They are designed for human operation protection and promise clean table surface, save maintenance time for you.
3. Pump
We can provide vacuum pump or water circulation pump for your choice.
4. Rotary Device
It can engrave cylindrical object.
The rotary device's diameter, length and position can be customized according to your requests.
We can also provide other optional parts according to your needs.
Italy HSD Air Cooling Spindle
Top brand of the world. Spindle speed: 0-24000RPM
China Famous Fuling Inverter
Humanized design: Carving machine specialized macro code factory set parameters, easy for debugging.
Stepper Motor FL118 stepper motor, big power.
YAKO 2608 Drive and Leadshine 860H Drive can run with smaller noise, lower heating, smoother movement and have better performances at higher speed
Mach3 Controller
It max support 4 axis. And it is usually used on advertising cnc router.
Taiwan TBI Ball Screw and Gear and Rack, Taiwan HINWIN or ABBA Linear Rail
HG series linear guideway can achieve a long life with high speed, highly accurate and smooth linear motion.
Rigid vacuum table with grids and T-slots maximizes the vacuum hold-down and also enables you to clamp the workpiece in place.
1. Wood furniture industry
Doors; Cabinets; Tables; Chairs.
Wave plate, fine pattern, antique furniture, wooden door, screen, craft sash, composite gates, cupboard doors, interior doors, sofa legs, headboards and so on.
2. Advertising industry
Signage; Logo; Badges; Display board; Meeting sign board; Billboard
Advertising filed, sign making, acrylic engraving and cutting, crystal word making, blaster molding, and other advertising materials derivatives making.
3. Die industry
A sculpture of copper, aluminum, iron and other metal molds, as well as artificial marble, sand , plastic sheeting, PVC pipe, and other non-metallic mold.
4. Artwork and Decoration
wood crafts; gift box; jewelry box
5. Others
Relief sculpture and 3D engraving and Cylindrical object.

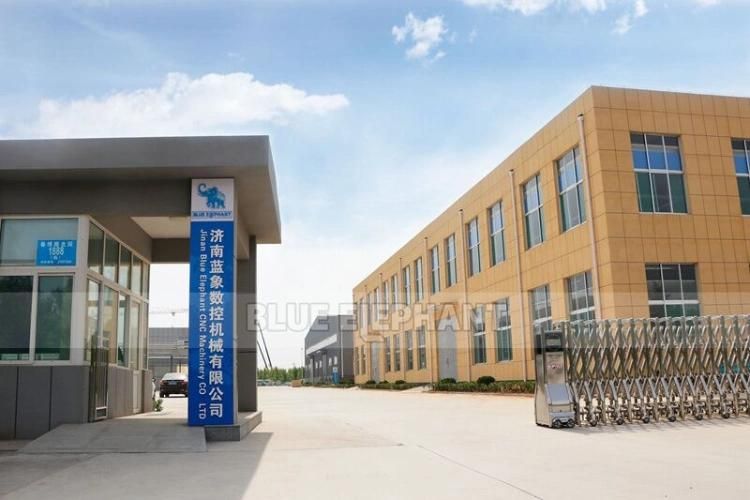

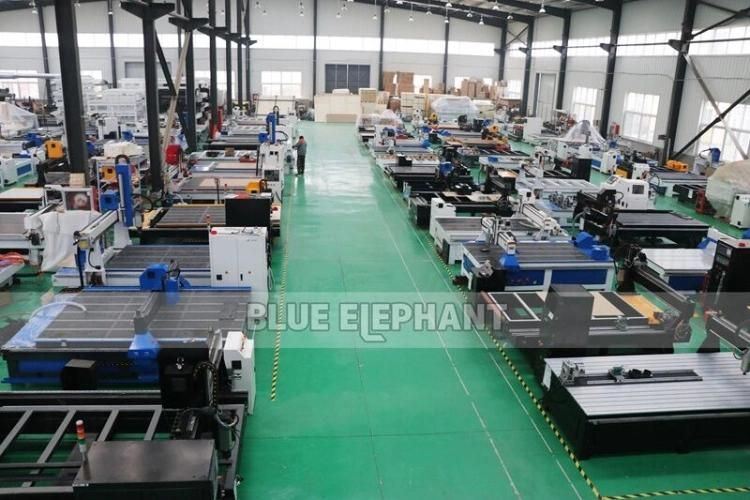

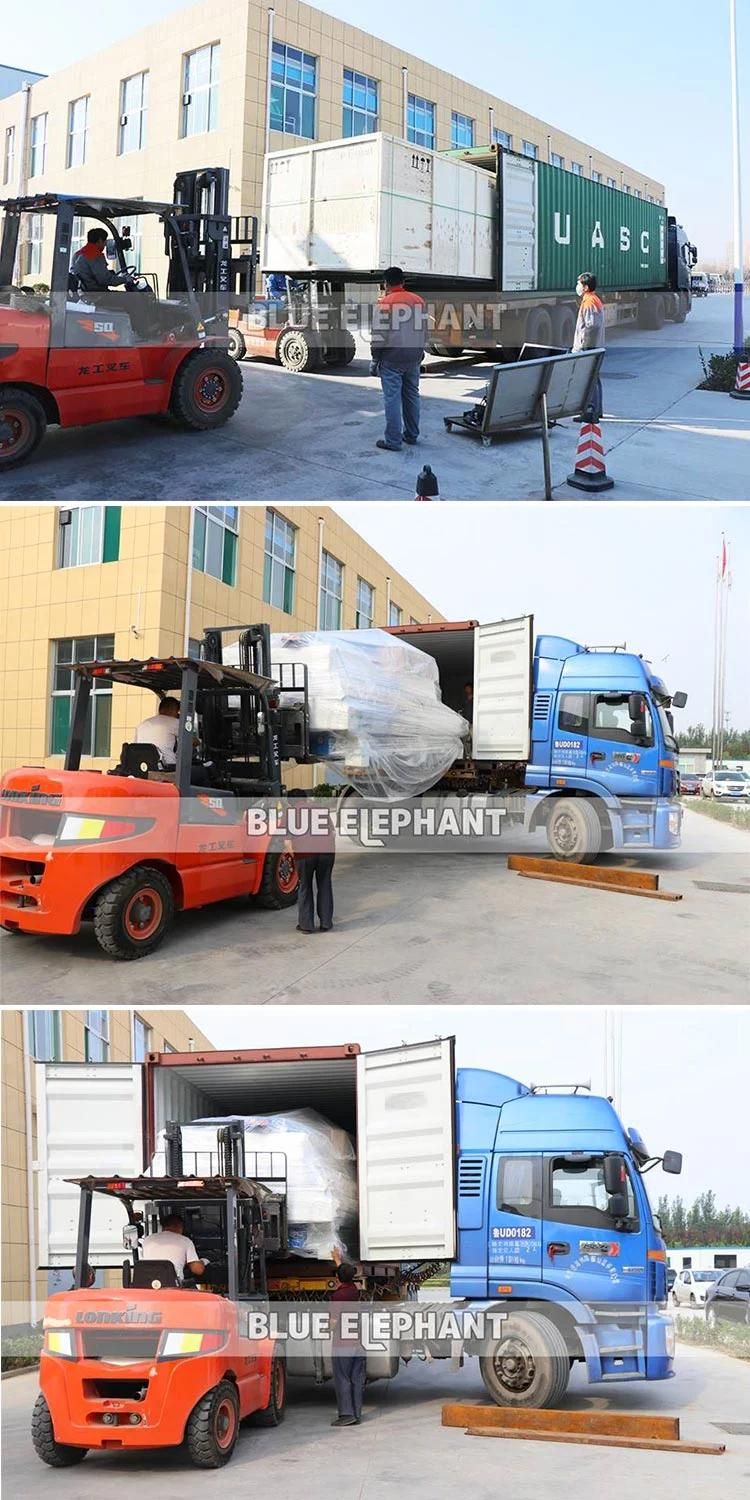

Packaging&DeliveryOur Factory
---10 years factory experience
---Professional CNC machinery manufacturer
---very professionally produce 3 axis,4 axis, 5 axis, ATC cnc router,laser cutting machine
---The price will be 20% off in 2018
Looking forward for the agents from all over the world! Welcome to contact us!
Web: blueelephant-cnc.en.made-in-china.com
We are looking for Good customers like you! and Distributor or Agents Wanted!!!
