• Model NO.：MB104H
• Motor Power：4kw
• Cutter Shaft：Customized
• Spindle Speed：＞5000rpm
• Process Type：Customized
• Certification：CE, ISO
• Gross Weight：480kg
• Voltage：220V 1phase , 380V 3phase (Optional)
• Shipping Port：Qingdao
• HS：8205510000
• Max Planing Width：400mm
• Transport Package：Wooden Box
• Specification：760*830*1240mm
• Trademark：QDZD
• Origin：China
• HS Code：8205510000
• Production Capacity：500sets,Month

Basic Info.

Model NO. MB104H Motor Power 4kw Cutter Shaft Customized Spindle Speed ＞5000rpm Process Type Customized Certification CE, ISO Gross Weight 480kg Voltage 220V 1phase / 380V 3phase (Optional) Shipping Port Qingdao HS 8205510000 Max Planing Width 400mm Transport Package Wooden Box Specification 760*830*1240mm Trademark QDZD Origin China HS Code 8205510000 Production Capacity 500sets/Month

Product Description

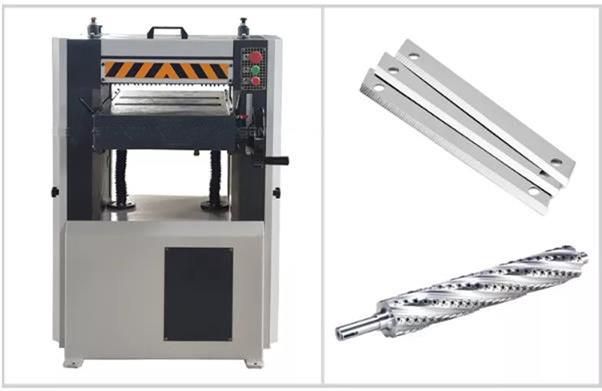

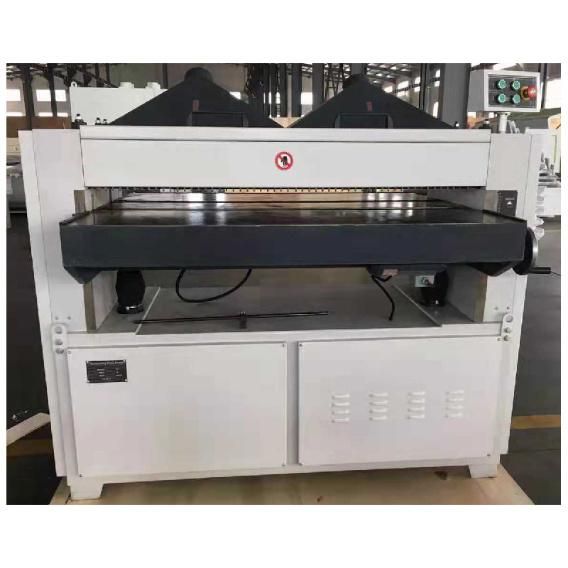

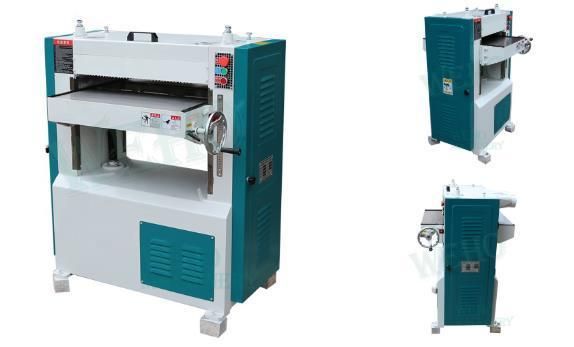

Cheap Wood Thickness Planer Woodworking Machine











Technical Parameters

Model	MB104H	MB105H	MB106H
Voltage/Power	380V/4KW	380V/5.5KW	380V/7.5KW
Max planing width	400mm	500mm	630mm
Planing thickness	8-190mm	8-190mm	8-190mm
Planing length	>250mm	>250mm	>250mm
Max planing depth	6mm	8mm	8mm
Spindle speed	6000rpm	6000rpm	6000rpm
Feed speed	6:8m/min	6:8m/min	6:8m/min
Overall  size	760*830*1240mm	760*930*1270mm	760*1060*1270mm
Weight	480kg	550kg	600kg

Company Introduction

        Qingdao Zhongding Machinery Co., Ltd is a leading company of specializing in manufacturing and exporting woodworking machine for more than 20 years. We perform a variety of services to not only supply our clients with top quality woodworking machinery but also adequate maintenance, spare parts and technical advice.
        Our products mainly include Precise Panel Saw, Edge Banding Machine, Multiple Drilling Machine, Press Machine etc., which have been exported to lots of countries and regions, such as Europe, Russia, Southeast Asia, Middle East, North America, and Australia.
       We have established complete sales system.Our company has got ISO9001 international system certificate and CE security certificate.










The Workshop

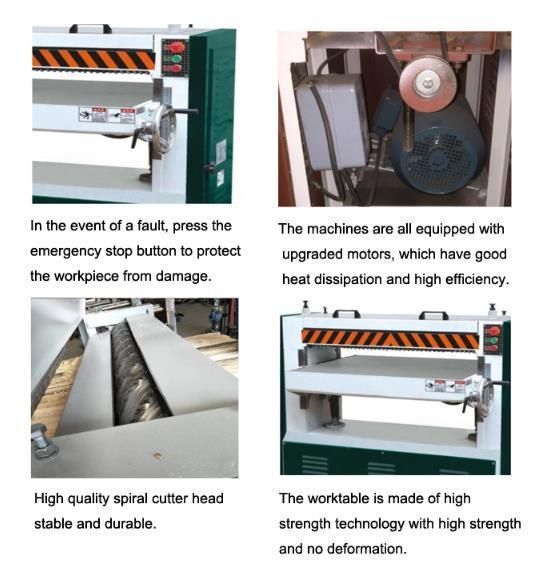

 Feature:

1,Apply to processing all kinds of density boards,shaving boards,artificial boards,ABS board, PVC board, organic glass plates and solid wood and others with wood structure and similar hardness.

2,Moveable table guide track is chromium steel bar structure, exact and durable

3,The sliding table is made of high strength extruded aluminum alloy, and it is high in strength and won't bent

4,With oxidation treatment, the sliding table surface is beautiful and durable

5,The body is welded with heavy-duty steel and with special heat treatment, better stability and lower noise


Customer Visiting:










Our Certificate:


The package:
