• Model NO.：MB505
• Cutter Shaft：Customized
• Spindle Speed：＞5000rpm
• Process Type：Medium-Sized Processing
• Certification：CE, ISO
• Gross Weight：420kg
• Voltage：220V 1phase , 380V 3phase (Optional)
• Shipping Port：Qingdao
• HS：8205510000
• Max Planing Depth：4mm
• Transport Package：Wooden Box
• Specification：1800*850*1000mm
• Trademark：QDZD
• Origin：China
• HS Code：8205510000
• Production Capacity：500sets,Month

Basic Info.

Model NO. MB505 Cutter Shaft Customized Spindle Speed ＞5000rpm Process Type Medium-Sized Processing Certification CE, ISO Gross Weight 420kg Voltage 220V 1phase / 380V 3phase (Optional) Shipping Port Qingdao HS 8205510000 Max Planing Depth 4mm Transport Package Wooden Box Specification 1800*850*1000mm Trademark QDZD Origin China HS Code 8205510000 Production Capacity 500sets/Month

Product Description

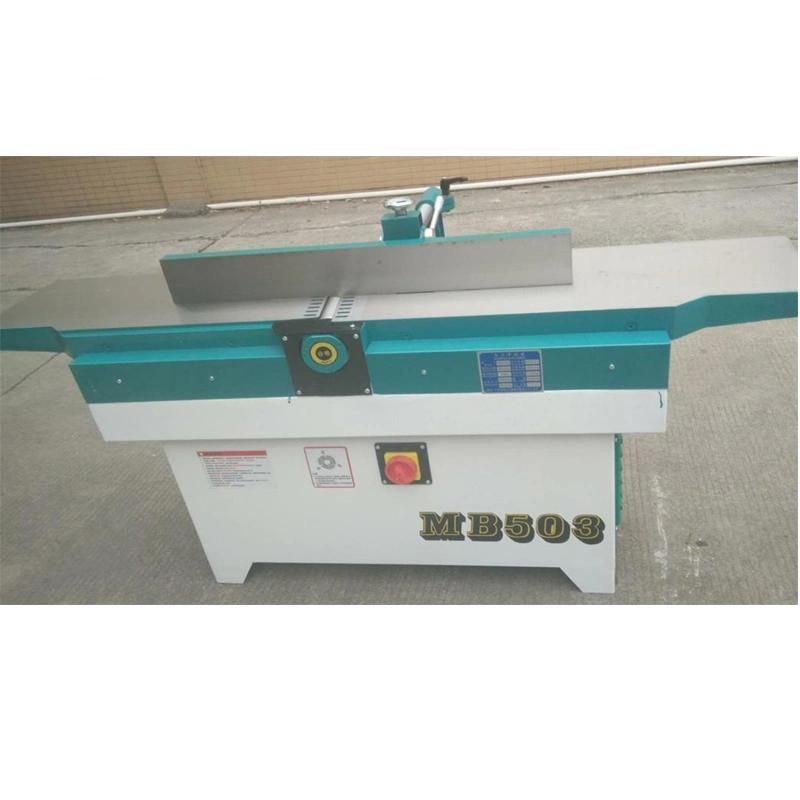

wood planer machine sueface planer for woodworking



Technical Parameters

Model	MB504	MB505
Max processing width	400mm	500mm
Max planing depth	4mm	4mm
Installation power	3kw	4kw
Main spindle speed	5800r/min	6000r/min
Working table dimension	1800*445mm	1800*545mm
Weight	370kg	420kg
Overall size	1800*750*1000mm	1800*850*1000mm

Company Introduction

        Qingdao Zhongding Machinery Co., Ltd is a leading company of specializing in manufacturing and exporting woodworking machine for more than 20 years. We perform a variety of services to not only supply our clients with top quality woodworking machinery but also adequate maintenance, spare parts and technical advice.
        Our products mainly include Precise Panel Saw, Edge Banding Machine, Multiple Drilling Machine, Press Machine etc., which have been exported to lots of countries and regions, such as Europe, Russia, Southeast Asia, Middle East, North America, and Australia.
       We have established complete sales system.Our company has got ISO9001 international system certificate and CE security certificate.









The Workshop


 Feature:

1,Apply to processing all kinds of density boards,shaving boards,artificial boards,ABS board, PVC board, organic glass plates and solid wood and others with wood structure and similar hardness.

2,Moveable table guide track is chromium steel bar structure, exact and durable

3,The sliding table is made of high strength extruded aluminum alloy, and it is high in strength and won't bent

4,With oxidation treatment, the sliding table surface is beautiful and durable

5,The body is welded with heavy-duty steel and with special heat treatment, better stability and lower noise


Customer Visiting:









Our Certificate:


The package:
