Indonesian Balinese Wood Carving Router CNC Machine with Automatic Lubrication System
Jinan Blue Elephant CNC Machinery Co., Ltd.- Warranty:1 Year
- Condition:New
- Certification:ISO, CE, SGS BV TUV
- CNC or Not:CNC
- Voltage:380V
- Transport Package:Standard Export Wooden Case
Base Info
- Specification:3850*2300*1850MM
- Trademark:BLUE ELEPHANT
- Origin:Shandong, China
- Production Capacity:200 Sets Per Month
Description
Working Size
1500x3000*300mm(Can be customized)
Traveling Positioning Accuracy
±0.03/300mm
Repositioning Accuracy
±0.03mm
Table
T-slot & vacuum Table
Frame
Welded Structure
X, Y axis
helical rack, Hiwin 25# Rail Linear Bearing
Z axis
Hiwin Rail 25# Linear Bearing & TBI Ball Screw
Max. Power Consumption
(Without Spindle) 3.2Kw
Max. Rapid Travel Rate
40000mm/min
Max. Working Speed
25000mm/min
Spindle Power

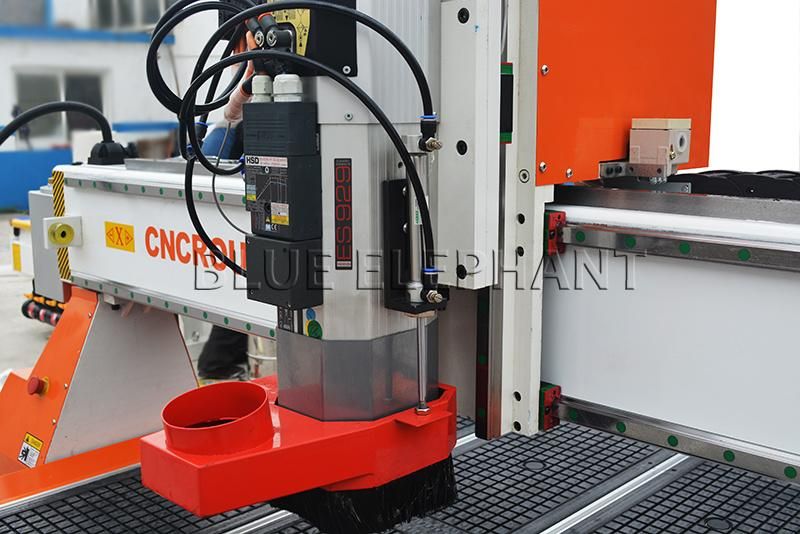

9KW Italy HSD ATC air cooling spindle
Spindle Speed
0-24000RPM
Drive Motors
Working Voltage
AC380V/50/60Hz,3PH (Option: 220V)
Command Language
G Code
Operating System

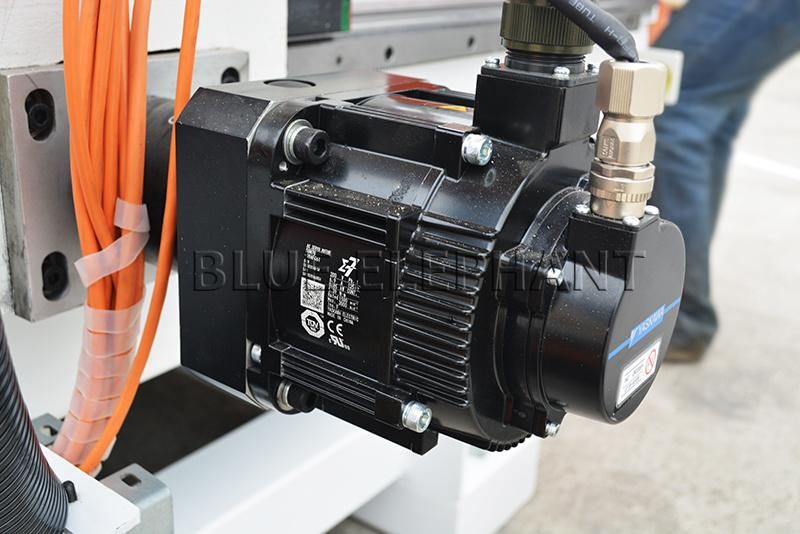

Japan YASKAWA servo motor and servo driver
Collet
ISO30
X,Y Resolution
<0.01mm
Software Compatibility
Type3/UcancameV9/Artcam Software
Running Environment Temperature
0 - 45 Centigrade
Relative Humidity
30% - 75%
PS:All the working area and specifications can be customized according to your requests.
Product Details :
Applications:
Doors; Cabinets; Tables; Chairs.
Wave plate, fine pattern, antique furniture, wooden door, screen, craft sash, composite gates, cupboard doors, interior doors, sofa legs, headboards and so on.
2. Advertising industry
Signage; Logo; Badges; Display board; Meeting sign board; Billboard
Advertising filed, sign making, acrylic engraving and cutting, crystal word making, blaster molding, and other advertising materials derivatives making.
3. Die industry
A sculpture of copper, aluminum, iron and other metal molds, as well as artificial marble, sand , plastic sheeting, PVC pipe, and other non-metallic mold.
4. Artwork and Decoration
wood crafts; gift box; jewelry box
5. Others
Relief sculpture and 3D engraving and Cylindrical object.
Packaging & Delivery:
Packaging Details:
Three layers---
-The innermost layer is EPE pearl cotton film package;
-The middle layer is wrapping up with environmental protection material ;
-And the outermost layer is winding up with PE stretch film.
They're very environmentally friendly.
If you need a wooden box, we will make a wooden box outside the machine.
Delivery Detail: Shipped in 15 working days after payment.
Our Service:
1, Within 7days since your local customs clearance: if the cnc router's any parts has any problems, we will change it free.
2, Exceed 7days since your local customs clearance but within warranty period: if the cnc router parts have any problems, we can change the old machine parts to new ones free, but you should pay all the shipping cost.
3, Exceed warranty period: if the cnc router parts have any problems, we can offer new machine parts with cost price and you also should pay all the shipping cost.
4, We offer 24 hours technical support by call, and email.
5, Our technician can give you remote guide online(Skype or MSN) if you have any question.
6, We can record videos of operating the laser machine.
7, Free training course in our factory.
8.Machine will be adjusted before it is delivered, operation disk/CD was included.
Welcome to our factory
- Jinan Blue Elephant CNC Machinery Co., Ltd is located in Jinan City, Shandong Province. We have always been developed to the research and manufacturer of CNC router machine and laser cutting engraving machine.
- Just looking forward to service every customer, like you.
