New Products 1530 Kenya Wood Router Engraving Machine with Linear Tool Changer
Jinan Blue Elephant CNC Machinery Co., Ltd.- Type：Vertical Uniaxial Wood Router
- Spindle Layout：Spindle Over
- Spindle Number：Single-Spindle
- Feed Mode：Mechanical
- Controlling Mode：CNC
- Certification：CE, ISO, SGS BV TUV
Base Info
- Customized：Customized
- Condition：New
- Color：Customized
- Voltage：220V,380V
- Dimension(L*W*H)：3200*1840*1900mm
- Control System：Taiwan Syntec
- Spindle：Italy Hsd Atc Air Cooling Spindle
- Inverter：11kw Taiwan Delta Inverter
- Motor：850W Japan Yaskawa Servo Motors
- Software：:Artcam
- Working Area：1500X3000X500mm
- Vacuum Pump：4kw German Baker Pump
- Table Surface：T-Slot and Vacuum Working Table
- Transport Package：Standard Export Wooden Case
- Specification：1500*3000*200mm
- Trademark：BLUE ELEPHANT
- Origin：Jinan City, Shandong Province
- Production Capacity：200sets,Months
Description
Description
Parameter
X,Y,Z Working Area
1500x3000x500mm
Table Size
1500×3000mm
Table Surface
Vacuum and T-slot working table
Frame
New Type Thicker and Bigger Heavy Duty Welded Frame and Gantry

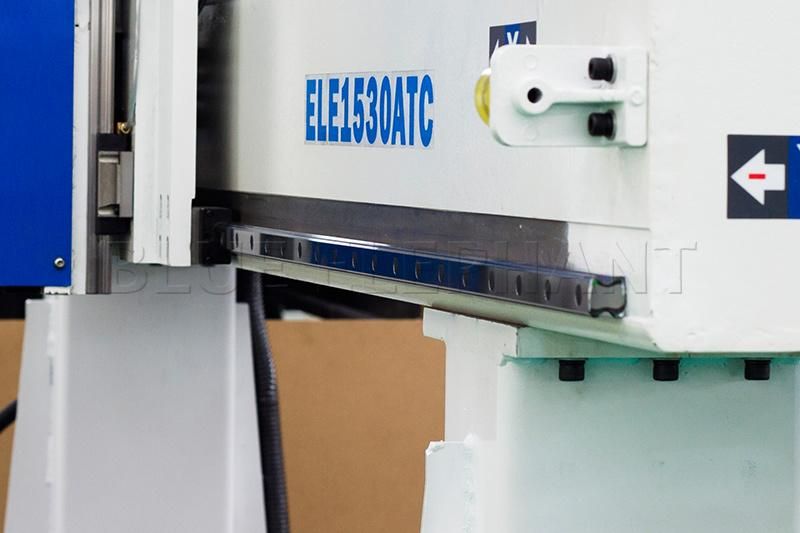

X, Y Structure
Rack and Pinion Drive, Sweden ABBA #25 Linear Square Rail
Z Structure
Sweden ABBA #25 Linear Square Rail and TBI Ball Screw
Spindle Power
9kw Italy HSD ATC air cooling spindle
Spindle Speed
0-24000RPM
Drive Motors
850W Japan YASKAWA servo motors and drivers
Inverter
11kw Taiwan DELTA inverter
Working Voltage
380v, 3phase, 60HZ (Option: AC220V/50/60Hz,3PH)
Command Language
G Code
Operating System
Taiwan SYNTEC 4 axis control System
Computer Interface
USB
Reducer
Japan Shimpo reducer
Vacuum pump
Collet
ISO30
Software
Artcam
Running Environment Temperature
0 - 45 Centigrade
Relative Humidity
30% - 75%
Lubrication system
Automatic lubrication system
Tool sensor
Automatic tool sensor calibration

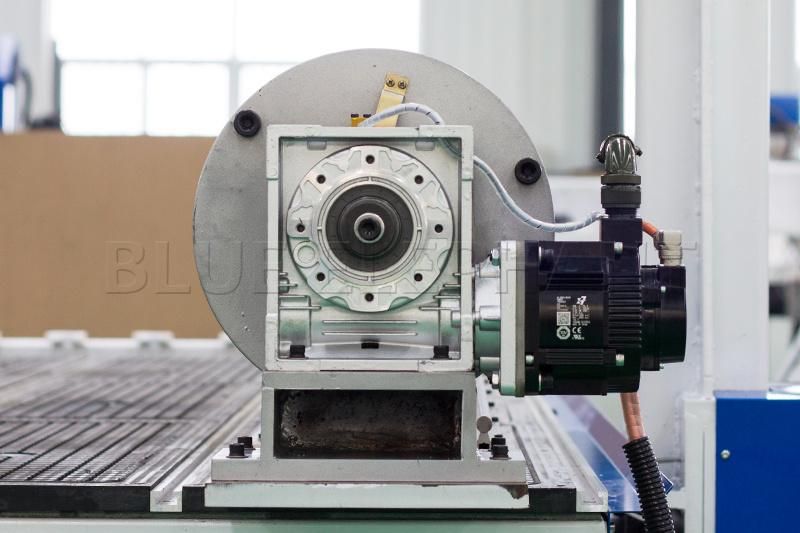

Rotary device
The rotary device can move for optional,
diameter: 200mm, length: 2000mm
PS:All the working area and specifications can be customized according to your requests.

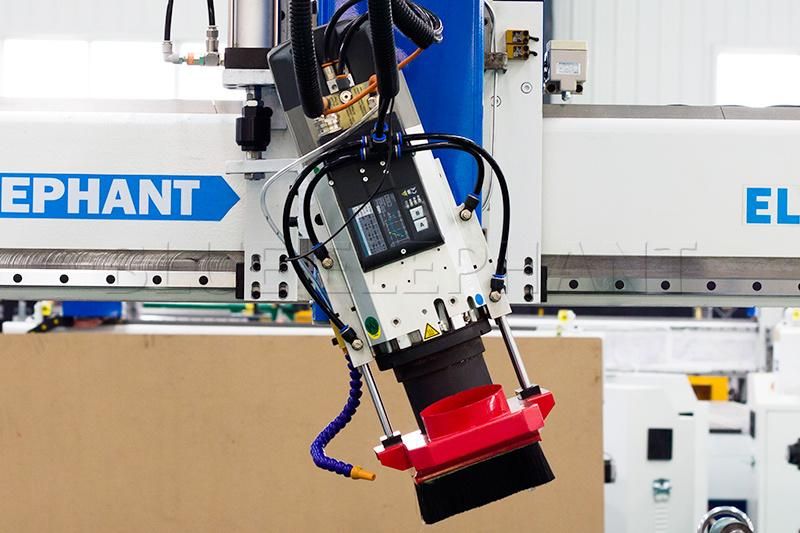

Detail images:

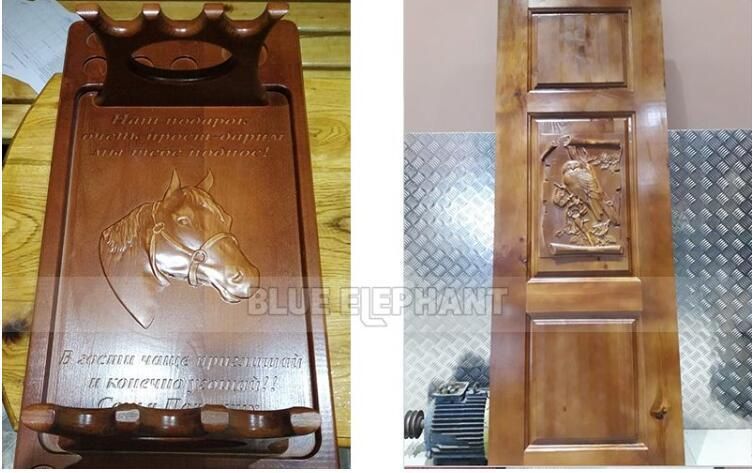

Applications:
1. Wood furniture industryDoors; Cabinets; Tables; Chairs.
Wave plate, fine pattern, antique furniture, wooden door, screen, craft sash, composite gates, cupboard doors, interior doors, sofa legs, headboards and so on.
2. Advertising industry
Signage; Logo; Badges; Display board; Meeting sign board; Billboard
Advertising filed, sign making, acrylic engraving and cutting, crystal word making, blaster molding, and other advertising materials derivatives making.
3. Die industry
A sculpture of copper, aluminum, iron and other metal molds, as well as artificial marble, sand , plastic sheeting, PVC pipe, and other non-metallic mold.
4. Artwork and Decoration
wood crafts; gift box; jewelry box
5. Others
Relief sculpture and 3D engraving and Cylindrical object.
Packaging & Delivery:

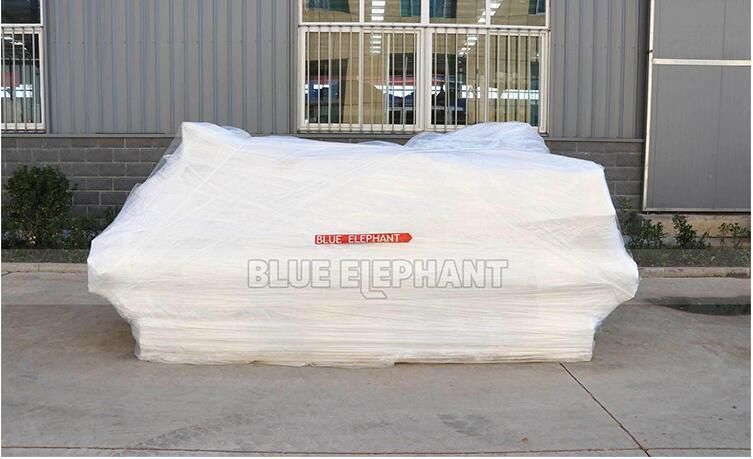

Packaging Details:
Three layers---
-The innermost layer is EPE pearl cotton film package;
-The middle layer is wrapping up with environmental protection material ;
-And the outermost layer is winding up with PE stretch film.
They're very environmentally friendly.
If you need a wooden box, we will make a wooden box outside the machine.
Delivery Detail: Shipped in 15 working days after payment.
Our Service:
1, Within 7days since your local customs clearance: if the cnc router's any parts has any problems, we will change it free.
2, Exceed 7days since your local customs clearance but within warranty period: if the cnc router parts have any problems, we can change the old machine parts to new ones free, but you should pay all the shipping cost.
3, Exceed warranty period: if the cnc router parts have any problems, we can offer new machine parts with cost price and you also should pay all the shipping cost.
4, We offer 24 hours technical support by call, and email.
5, Our technician can give you remote guide online(Skype or MSN) if you have any question.
6, We can record videos of operating the laser machine.
7, Free training course in our factory.
8.Machine will be adjusted before it is delivered, operation disk/CD was included.

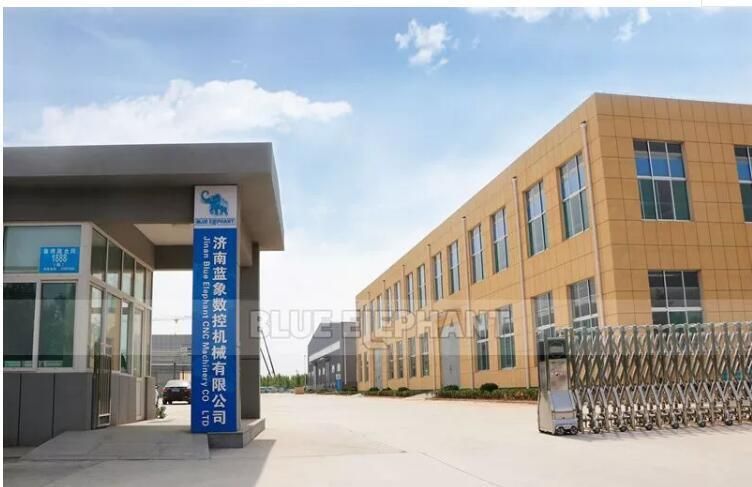

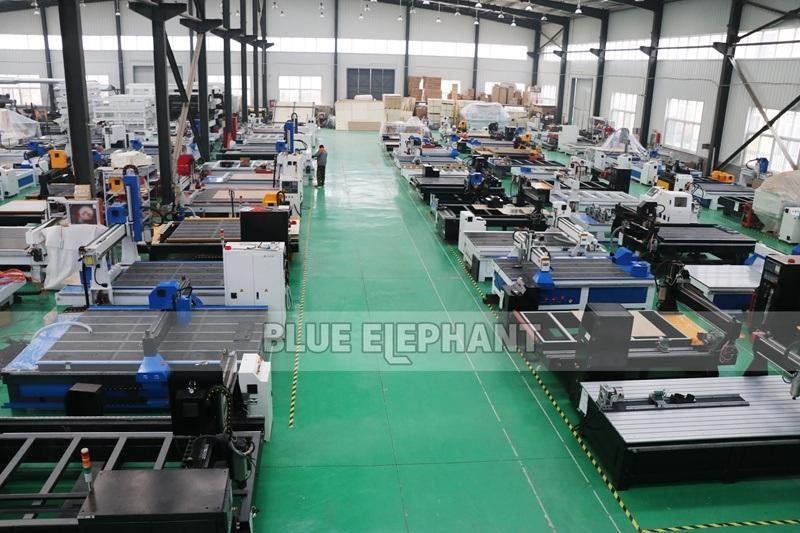

Our factory
- Jinan Blue Elephant CNC Machinery Co., Ltd is located in Jinan City, Shandong Province. We have always been developed to the research and manufacturer of CNC router machine and laser cutting engraving machine.
- Just looking forward to service every customer, like you.
