2036 Multi-Head CNC One Head with Six Spindles

Jinan Blue Elephant CNC Machinery Co., Ltd.
  • Warranty：12 Monthse
  • Type：Engraving Router
  • Spindle Layout：Spindle Over
  • Spindle Number：Single-Spindle
  • Feed Mode：Mechanical
  • Controlling Mode：CNC

Base Info

  • Certification：CE, ISO, SGS BV TUV
  • Customized：Customized
  • Condition：New
  • Color：Customized
  • Voltage：220V,380V
  • Dimension(L*W*H)：According to Your Order
  • X,Y,Z Working Area：2000*3600*200mm
  • Control System：Nc Pm95A Control System with Computer Control
  • Spindle Power：Water Cooling Spindle with 6 Pieces Spindle C
  • Inverter：2.2kw*6 Fuling Inverter
  • Motor and Driver：FL118 Stepper Motor and Yako2811 Bigger and S
  • Weight：2000kg
  • Software：Ucancam , Artcam,Type3
  • Lubrication System：Manual Lubrication System
  • Transport Package：Standard Export Wooden Case
  • Specification：CE, ISO, SGS
  • Trademark：BLUE ELEPHANT
  • Origin：Shandong, China
  • Production Capacity：200 Sets Per Month

Description

DescriptionsParametersProduct name2036 one head with six spindles cnc routerModleELECNC-2036/6SWorking area2000*3600*200mmControl systemNC PM95A control system with computer control boxSpindle6 sets 2.2kw water cooling spindle with 6 pieces spindle clampSpindle speed0-24000RPMInverter 6 sets 2.2kw fuling inverterMotor and driverFL 118 stepper motor and YAKO 2811 bigger and stronger driverVoltage380V, 3ph, 50HzLinear railSweden ABBA #25 linear guide for all axisTable structureNew type thicker and bigger heavy duty welded frame and gantryTable surfaceT-slot work table,1400mm lengthX,Y axis transmissionHelical rack and pinion drive for X,Y axisZ axis transmissionTaiwan TBI 2510 ball screw for z axislubrication systemManual lubrication system

PS: All the working area and specifications can be customized according to your requests.

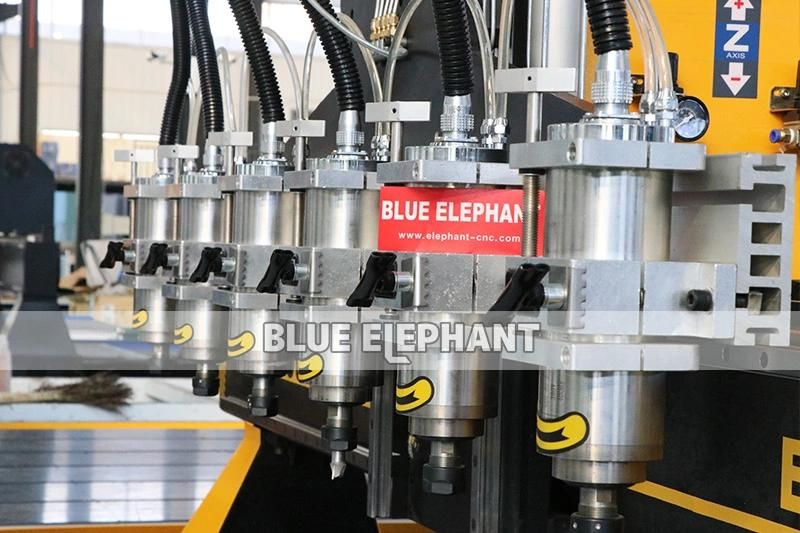

Detail Image
2036 Multi-Head CNC One Head with Six Spindles
2036 Multi-Head CNC One Head with Six Spindles


Applications:

  • Wood furniture industry: Wave plate, fine pattern, antique furniture, wooden door, screen, craft sash, composite gates, cupboard doors, interior doors, sofa legs, headboards and so on.
  • Advertising industry: Advertising identification, sign making, acrylic engraving and cutting, crystal word making, blaster molding, and other advertising materials derivatives making.
  • Die industry: A sculpture of copper, aluminum, iron and other metal molds, as well as artificial marble, sand , plastic sheeting, PVC pipe, wooden planjs and other non-metallic mold.
  • Relief sculpture and 3D engraving.

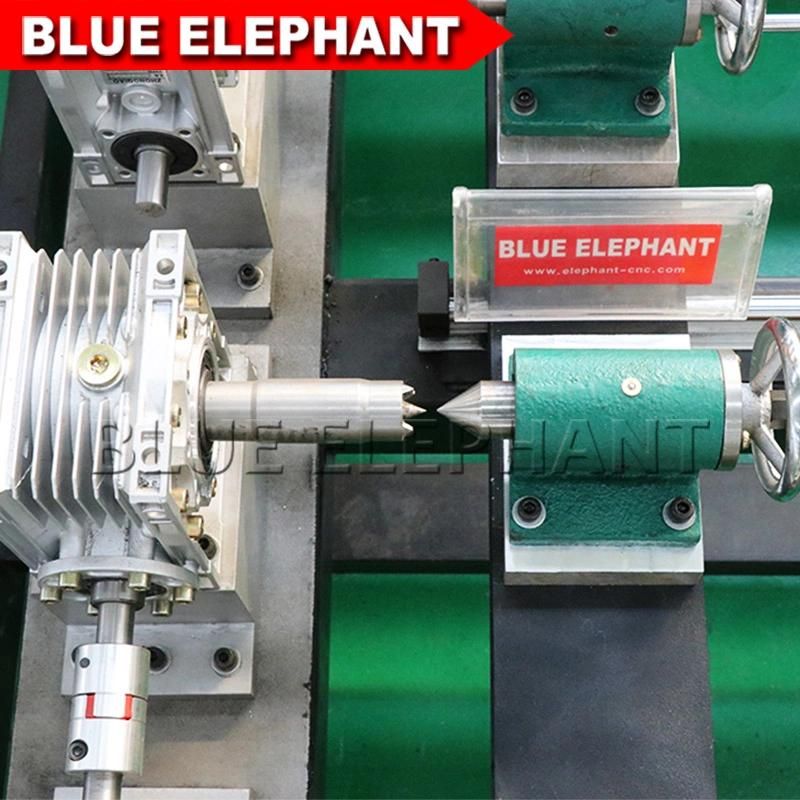

  • Cylindrical object.

Packaging Details:

  1. Outside package:Standard marine export plywood case.
  2. inner package:Stretch film and plastic film for humidity.
  3. We can package according to your requests.

Delivery Detail: Shipped in 15 working days after payment.

2036 Multi-Head CNC One Head with Six Spindles
2036 Multi-Head CNC One Head with Six Spindles



Our Factory
2036 Multi-Head CNC One Head with Six Spindles


2036 Multi-Head CNC One Head with Six Spindles


  • Jinan Blue Elephant CNC Machinery Co., Ltd is located in Jinan City, Shandong Province. We have always been developed to the research and manufacturer of CNC router machine and laser cutting engraving machine.
  • Our Philosophy: To Be First Brand -- CNC Manufacturer & wholesaler Platform!
  • Just looking forward to service every customer, like you.
