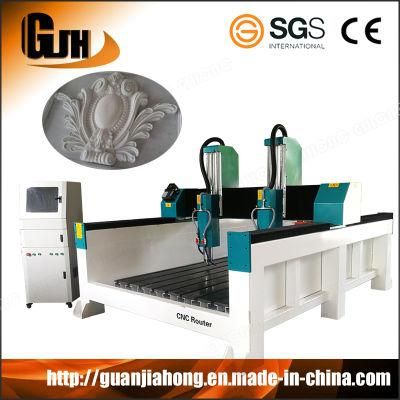

Two Spindles, Heavy Duty Stone, Marble CNC Engraving Machine, CNC Router
Jinan Guanjiahong CNC Machinery Co., Ltd.- Warranty：1 Year
- Type：Engraving Router
- Spindle Layout：Spindle Over
- Spindle Number：as Your Require
- Feed Mode：Mechanical
- Controlling Mode：CNC
Base Info
- Model NO.：1825-2-2
- Certification：CE
- Customized：Customized
- Condition：New
- Color：Customized
- After-sales Service：Lifetime
- Control System：Nc Studio, Shanghai
- Guild Rail：PMI , Hiwin Square Rail
- Ball Screw：PMI, Taiwan
- Derive Motor：Yaskawa Servo
- Working Area：Customized
- Table：T-Slot Table
- Spindle：Water Cooling Spindle
- Transport Package：Plywood Case
- Specification：SGS
- Trademark：DONGTONG
- Origin：Shandong China
- HS Code：84609090
- Production Capacity：50 Sets Per Month
Description
Basic Info.
Model NO. 1825-2-2 Certification CE Customized Customized Condition New Color Customized After-sales Service Lifetime Control System Nc Studio, Shanghai Guild Rail PMI / Hiwin Square Rail Ball Screw PMI, Taiwan Derive Motor Yaskawa Servo Working Area Customized Table T-Slot Table Spindle Water Cooling Spindle Transport Package Plywood Case Specification SGS Trademark DONGTONG Origin Shandong China HS Code 84609090 Production Capacity 50 Sets Per MonthProduct Description

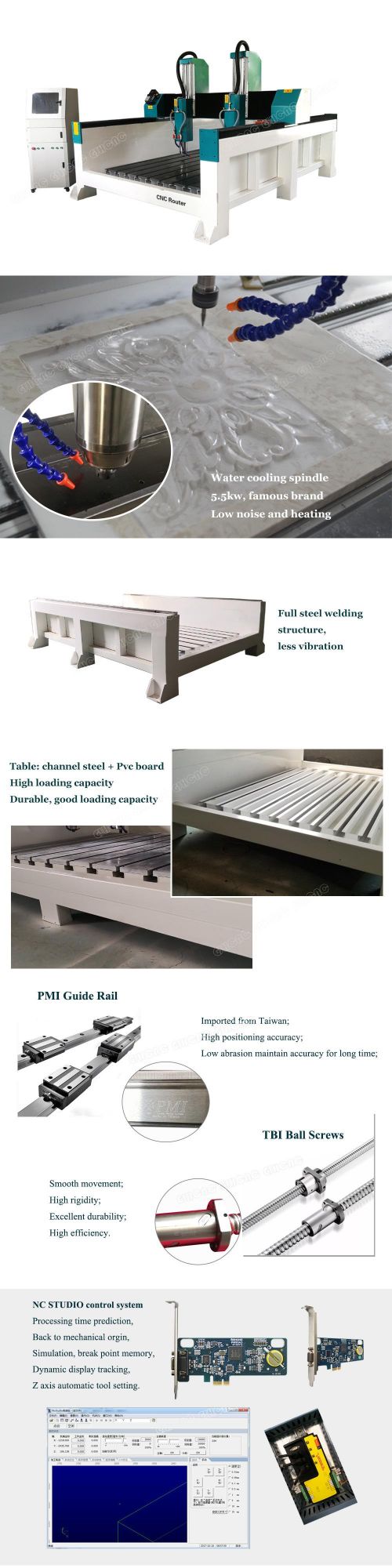

1800*2500 Two spindles, heavy duty wood stone cnc router engraving machine from professional cnc router machine manufacturer.Machine Feature:1. Model 1825-2-22. Advanced control system has memory of break point, functions of power-off recovery, continuation on break point,
time anticipation.3. Servo motor and driver, high power, more stable.
4. Thick-walled steel welded structure, strong load capacity,
5. Heavy weight makes machine runs without jitter
6. Imported ball screws and linear guide rail, high accuracy, move faster..

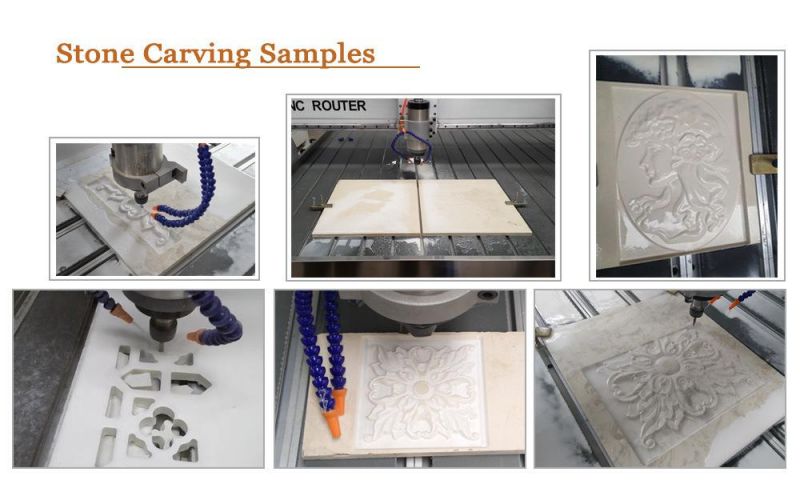

Application:1. Materials: wood, acrylic, MDF, soft metal, PVC,stone.....
2. Industry: woodworking,advertisement, artwork industry, exhibition, decoration .
Technical Parameter:
| NO | Performance index | Performance index | Parameter |
| 1 | Working area | X area | 1800mm |
| Y area | 2500mm | ||
| Z area | 300mm | ||
| 2 | Table size | 1800mm*2500mm | |
| 3 | Accuracy | Working precision | 0.05mm |
| Repositioning precision | 0.05mm | ||
| 4 | Drive mode | X axis | Helical rack and gear |
| Y axis | Helical rack and gear | ||
| Z axis | Ball screws | ||
| 5 | Speed | Max traverse speed | 30000mm/min |
| Max engraving speed | 10000mm/min | ||
| 6 | Spindle (water-cooling) | Spindle power | 5.5KW |
| Spindle speed | 0_24000r/min | ||
| 7 | Motor | Servo | |
| 8 | Operating voltage | AC220V/50HZ | |
| 9 | Command code | G code | |
| 10 | Operating system | NC Studio | |
| 11 | Net weight | 2520KG |

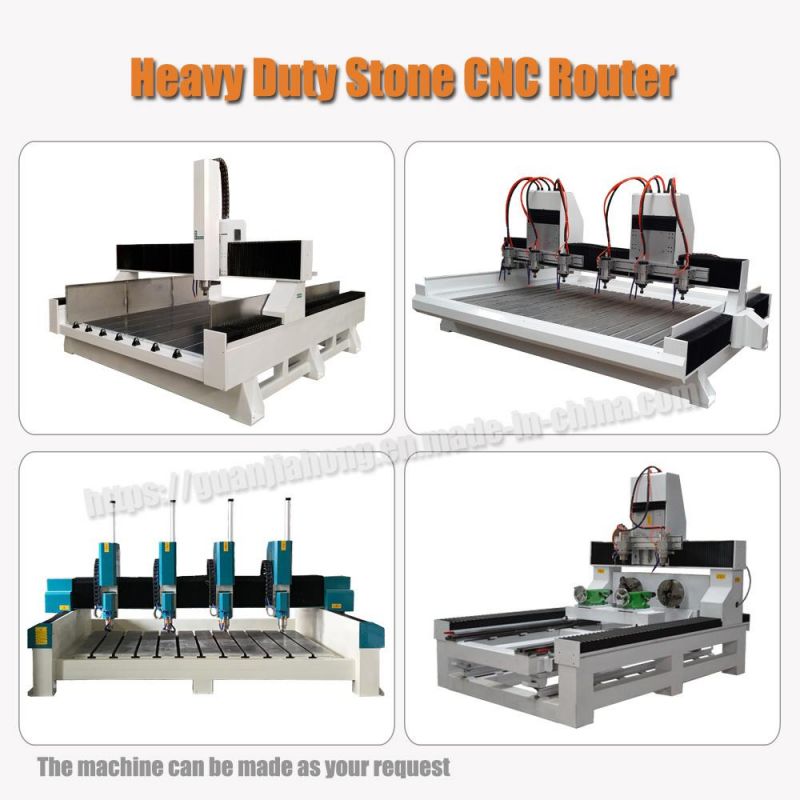

Other types for reference
Technical support:
1. Technical support by phone, email or MSN/ Skype around the clock
2. Friendly English version manual.
3. Engineer available to service machinery overseas. but the buyer should pay the fee.
After-sale & guarantee service:
1. Under normal usage, 1 year for the whole machine and 6 months for spindle
2. Normal machine is properly adjusted before dispatch.
3. Free training advice towards our machine in ourfactory.
4. Free suggestion and consulting, lifetime technical support.
If you have requirement about multi spindles heavy duty stone cnc router, please contact wih us. Customization is available.
