• Model NO.：1325
• Customized：Customized
• Condition：New
• Color：Customized
• Voltage：220V, 1 Phase, 50,60Hz
• Power(W)：3kw
• Dimension(L*W*H)：3700*2140*1850mm
• X,Y,Z Working Area：1300X2500X200mm
• Control System：Mach3 4axis Control System
• Spindle Power：6kw Hsd Spindle
• Inverter：Taiwan Delta 7.5kw Inverter
• Drive Motor：Japan Yakaswa Servo Motors
• Spindle Speed：0-18000rpm
• Frame：Welded Structure
• Transport Package：Standard Export Wooden Case
• Specification：1300X2500X200mm
• Trademark：BLUE ELEPHANT
• Origin：Shandong, China
• Production Capacity：200 Sets Per Month

Description

Parameter

X,Y,Z Working Area

1300x2500x300mm

Table Size

1480×3050mm

X,Y,Z Traveling Positioning Accuracy

±0.03/300mm

X,Y,Z Repositioning Accuracy

±0.03mm

Table Surface

Vacuum and T-slot working table

Frame

Welded Structure

X, Y Structure

Rack and Pinion Drive, Hiwin Rail Linear Bearings

Z Structure

Hiwin Rail Linear Bearings and Ball Screw

Max. Power Consumption

(Without Spindle)  3.2Kw

Max. Rapid Travel Rate

33000mm/min

Max. Working Speed

25000mm/min

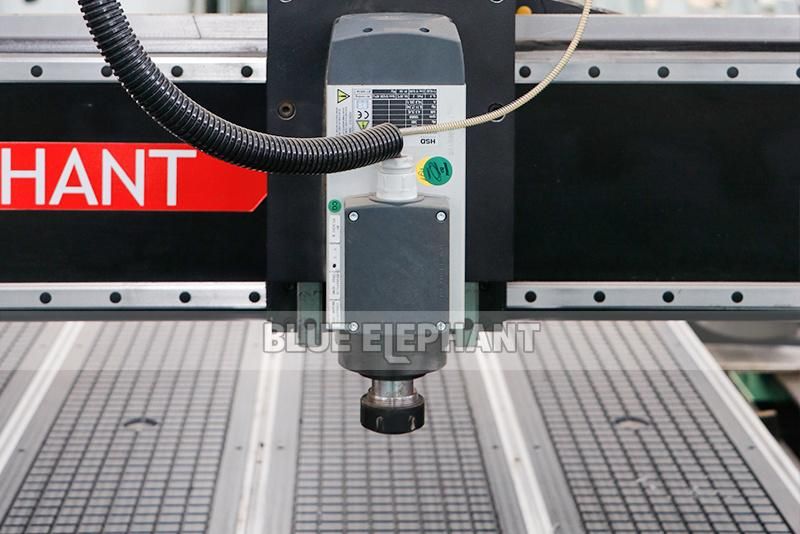

Spindle Power

4.5kw Italy HSD air cooling spindle

Spindle Speed

0-18000RPM

Drive Motors

FL118 stepper motor and YAKO2811 drive

Working Voltage

380v, 3 phase, 50/60HZ

(Option: AC220V/50/60Hz,3PH)

Command Language

G Code

Operating System

Mach3 4axis control System

Computer Interface

USB

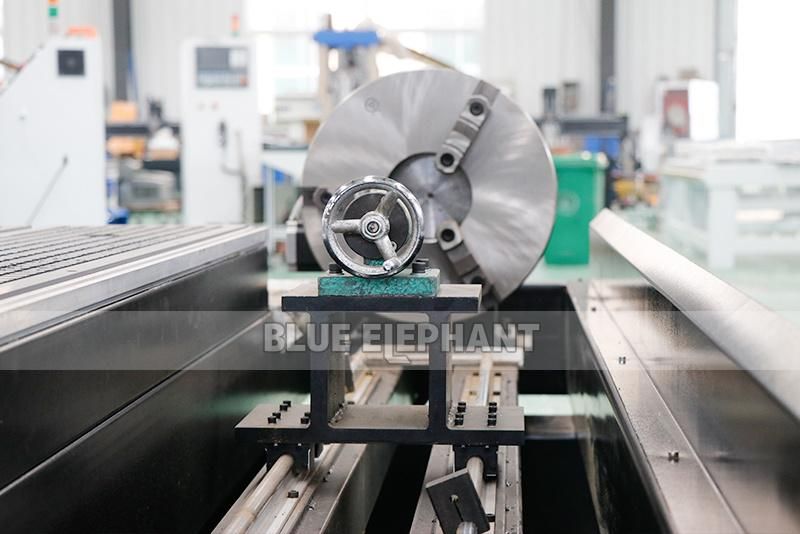

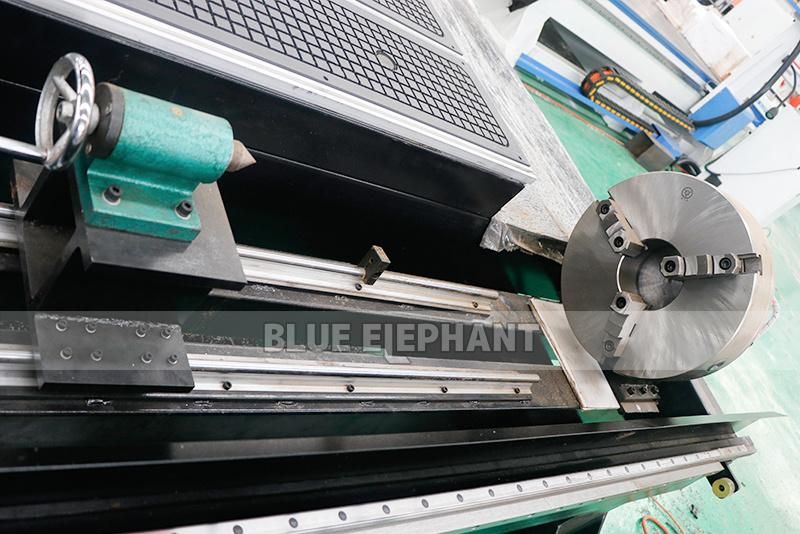

Rotary device

300mm diameter*2200mm length

Collet

ER25

X,Y Resolution

<0.01mm

Software Compatibility

Type3/UcancameV9 Software, (Option: Artcam Software)

Running Environment  Temperature

0 - 45 Centigrade

Relative Humidity

30% - 75%

 PS: All the working area and specifications can be customized according to your requests.


The machinery parts:




Applications
1. Wood furniture industry

Doors; Cabinets; Tables; Chairs.

Wave plate, fine pattern, antique furniture, wooden door, screen, craft sash, composite gates, cupboard doors, interior doors, sofa legs, headboards and so on.

2. Advertising industry

Signage; Logo; Badges; Display board; Meeting sign board; Billboard

Advertising filed, sign making, acrylic engraving and cutting, crystal word making, blaster molding, and other advertising materials derivatives making.

3. Die industry

A sculpture of copper, aluminum, iron and other metal molds, as well as artificial marble, sand , plastic sheeting, PVC pipe, and other non-metallic mold.

4. Artwork and Decoration

wood crafts; gift box; jewelry box

5. Others

Relief sculpture and 3D engraving and Cylindrical object.

Packaging Details:

Packaging Details:
Three layers---
-The innermost layer is EPE pearl cotton film package;
-The middle layer is wrapping up with environmental protection material ;
-And the outermost layer is winding up with PE stretch film.
They're very environmentally friendly.
If you need a wooden box, we will make a wooden box outside the machine.

Delivery Detail: Shipped in 15 working days after payment.




Our services:

1, Within 7 days since your local customs clearance: if the cnc router's any parts has any problems, we will change it free.

2, Exceed 7 days since your local customs clearance but within warranty period: if the cnc router parts have any problems, we can change the old machine parts to new ones free, but you should pay all the shipping cost.

3, Exceed warranty period: if the cnc router parts have any problems, we can offer new machine parts with cost price and you also should pay all the shipping cost.

4, We offer 24 hours technical support by call, and email.

5, Our technician can give you remote guide online(Skype or WhatsApp) if you have any question.

6, We can record videos of operating the laser machine.

7, Free training course in our factory.

8.Machine will be adjusted before it is delivered, operation disk/CD was included.
