• Model NO.：1530
• Customized：Customized
• Condition：New
• Color：Customized
• Working Area：1500*3000*200mm (Can Be Customized)
• Voltage：380V, 3pH, 50Hz (Option)
• Control System：Original Ncstudio (Wei Hong) Pm95A Computer Contro
• Spindle：Italy Hsd 7kw Air Cooling Spindle, 2 Heads, 2400
• Inverter：Chinese Fuling Inverter 7.5kw
• Motor and Driver：850W Yaskawa Servo Motors and Drive
• Table Surface：T-Slot Work Table
• Transport Package：Standard Export Wooden Case
• Specification：CE, ISO, SGS
• Trademark：BLUE ELEPHANT
• Origin：Shandong, China
• Production Capacity：200 Sets Per Month

Basic Info.

Model NO. 1530 Customized Customized Condition New Color Customized Working Area 1500*3000*200mm (Can Be Customized) Voltage 380V, 3pH, 50Hz (Option) Control System Original Ncstudio (Wei Hong) Pm95A Computer Contro Spindle Italy Hsd 7kw Air Cooling Spindle, 2 Heads, 2400 Inverter Chinese Fuling Inverter 7.5kw Motor and Driver 850W Yaskawa Servo Motors and Drive Table Surface T-Slot Work Table Transport Package Standard Export Wooden Case Specification CE, ISO, SGS Trademark BLUE ELEPHANT Origin Shandong, China Production Capacity 200 Sets Per Month

Product Description

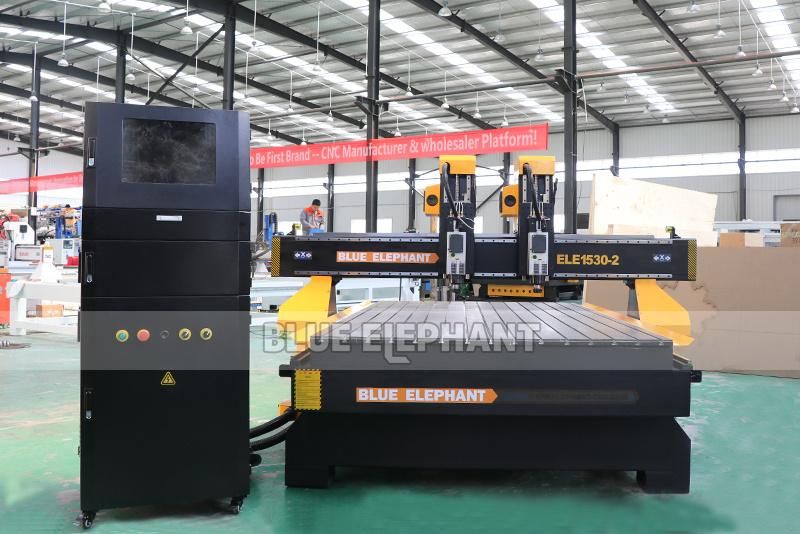

1530 Economical Woodworking CNC Router with Independent Double Head Spindles


Features:

• Nc studio control system is easy to learn and customer feedback is better.
• There is no need to manually change the tool during working, and the two independent spindles work together to achieve high production efficiency and stable performance.
• This latest independent double-head CNC machine ELE1530 is not only affordable but also suitable for ordinary woodworking or metal engraving.
• It is especially suitable for furniture, cabinets, home decoration and other furniture industries that require mass production.

Parameters:

Model	ELECNC-1530DS
Working area	1500*3000*200mm (can be customized)
Voltage	380V, 3ph, 50Hz (option)
Control system	Original Ncstudio (Wei hong) PM95A computer controller

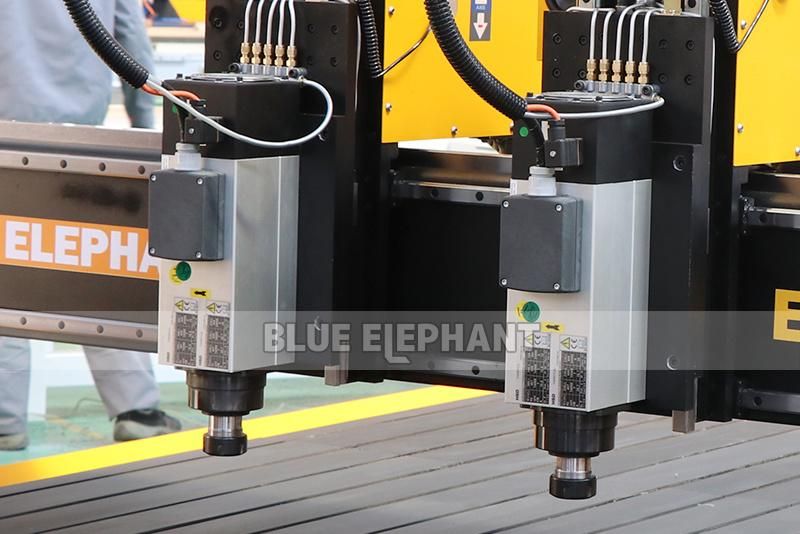

Spindle	Italy HSD 7KW Air cooling spindle, 2 heads, 24000RPM
Inverter	Chinese Fuling inverter 7.5KW
Motor and driver	850w Yaskawa servo motors and drive
Table structure	New type thicker and bigger heavy duty body
Table surface	T-slot work table
X,Y, Z axis transmission	Helical rack on X,Y axis and Taiwan TBI ball screw on Z axis
Linear rail	Taiwan HIWIN Linear square guide #20
Control box	Independent computer control box
Limited switch	Japan Omron limited switch

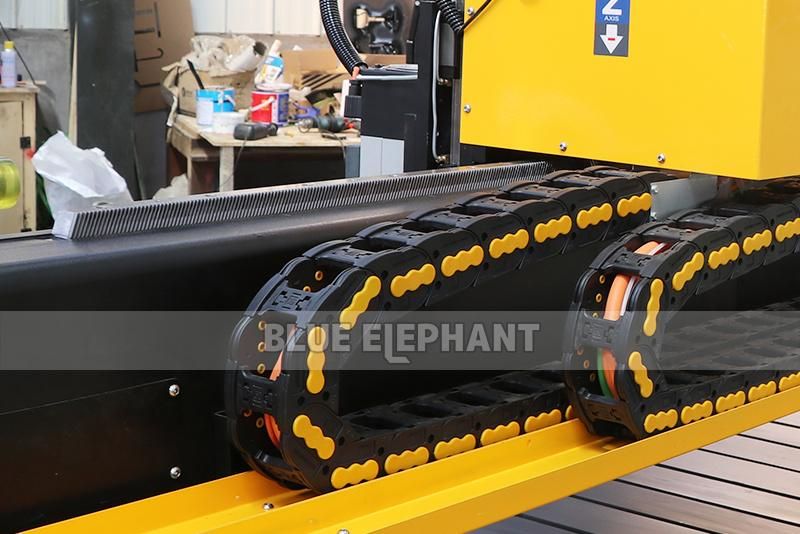

Towline	Highly flexible towline, fire-resistant double-sheathed shanghai Cardiff cable

PS:All the working area and specifications can be customized according to your requests.

Product details





Application

1. Wood furniture industry

Doors; Cabinets; Tables; Chairs.

Wave plate, fine pattern, antique furniture, wooden door, screen, craft sash, composite gates, cupboard doors, interior doors, sofa legs, headboards and so on.

2. Advertising industry

Signage; Logo; Badges; Display board; Meeting sign board; Billboard

Advertising filed, sign making, acrylic engraving and cutting, crystal word making, blaster molding, and other advertising materials derivatives making.

3. Die industry

A sculpture of copper, aluminum, iron and other metal molds, as well as artificial marble, sand , plastic sheeting, PVC pipe, and other non-metallic mold.

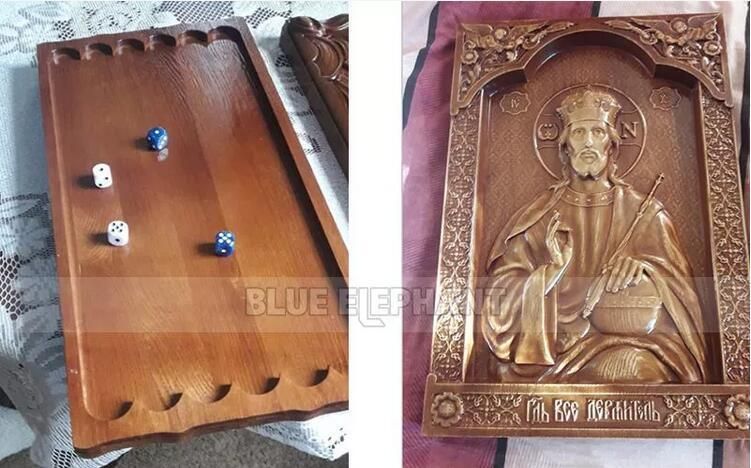

4. Artwork and Decoration

wood crafts; gift box; jewelry box

5. Others

Relief sculpture and 3D engraving and Cylindrical object.


Packaging & Delivery

Packaging Details:
Three layers---
-The innermost layer is EPE pearl cotton film package;
-The middle layer is wrapping up with environmental protection material ;
-And the outermost layer is winding up with PE stretch film.
They're very environmentally friendly.
If you need a wooden box, we will make a wooden box outside the machine.

Delivery Detail: Shipped in 15 working days after payment.

Our Service:

1, Within 7days since your local customs clearance: if the cnc router's any parts has any problems, we will change it free.
2, Exceed 7days since your local customs clearance but within warranty period: if the cnc router parts have any problems, we can change the old machine parts to new ones free, but you should pay all the shipping cost.
3, Exceed warranty period: if the cnc router parts have any problems, we can offer new machine parts with cost price and you also should pay all the shipping cost.
4, We offer 24 hours technical support by call, and email.
5, Our technician can give you remote guide online(Skype or MSN) if you have any question.
6, We can record videos of operating the laser machine.
7, Free training course in our factory.
8.Machine will be adjusted before it is delivered, operation disk/CD was included.

Our Factory

Jinan Blue Elephant CNC Machinery, the professional cnc router and laser cutting machine manufacturer in China, include ATC CNC router, Wood CNC Router, Stone CNC Router, Metal CNC Router, EPS CNC Router, 4 Axis CNC Router, 5 Axis CNC Router, Plasma Cutting Machine, Laser Cutting and Engraving Machine and so on, which have passed the CE, SGS, ISO9001 etc. Our cnc routers are widely used for advertising, woodworking, mould, stone, metal industry.
