1325 One Head with Eight Spindles Computer Controlled 3D Wood Cutting CNC Furniture Design Machine for Mass Production
Jinan Blue Elephant CNC Machinery Co., Ltd.- Type：Engraving Router
- Spindle Layout：Spindle Over
- Spindle Number：8 Spindles
- Feed Mode：Mechanical
- Controlling Mode：CNC
- Certification：CE, ISO, SGS BV TUV
Base Info
- Model NO.：ELECNC-1325
- Customized：Customized
- Condition：New
- Color：Customized
- Voltage：400V, 3phase, 50Hz (220V 380V for Optional)
- Dimension(L*W*H)：3200*2140*1850mm
- Control System：DSP A11 Control System
- Spindle：8 Sets 2.2kw Hqd Water Cooling Spindles
- Industrial Chiller：Cw3000 Industrial Chiller
- Spindle Speed：0-24000rpm
- Motor：FL118 Stepper Motors
- Driver：Yako 2811 Big Drivers
- Inverter：8 Sets 2.2kw Fuling Inverter
- Table Surface：T-Slot and Vacuum Working Table
- Transport Package：Standard Export Wooden Case
- Specification：CE, ISO, SGS
- Trademark：BLUE ELEPHANT
- Origin：Shandong, China
- Production Capacity：200 Sets Per Month
Description
X,Y axis: rack and pinion drive
Z axis: Taiwan TBI ball screw
X,Y,Z axis: Taiwan PMI linear square rail #20
Omron limit switch
Cardiff wire
PS:All the working area and specifications can be customized according to your requests.

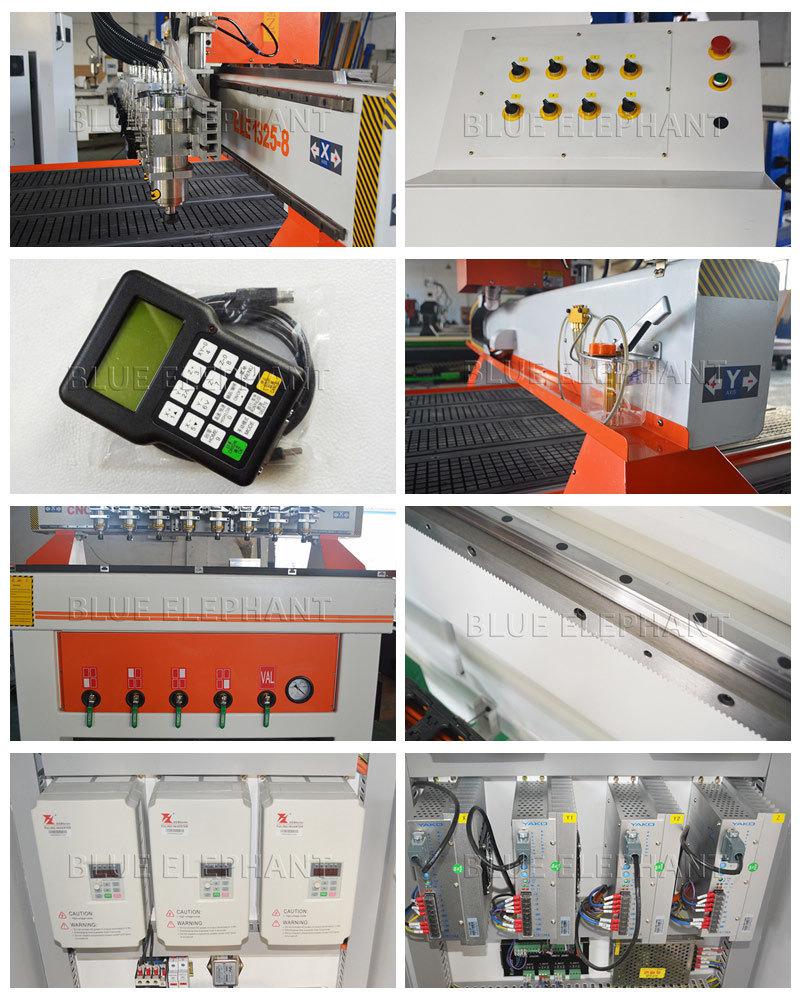

Product details of woodworking cnc machines for sale:
Features of woodworking cnc machines for sale:
- working area: 1300*2500*200 mm
- Classical type frame with 6 legs of 150*150 mm steel tube
- PMI #20 guide rail for X,Y,Z axis
- 8 pcs * 2.2 kw each water cooling spindles, Changsheng brand
- DSP A11 control system
- Stepper motor FL118 and YAKO2811 driver
Applications of woodworking cnc machines for sale:
Applicable industies: Furniture,wood door,cabinet,mdf, Arts & Crafts,wood sculptures,3D relief and so on.
Support mass production,save time and improve production efficiency.
Packaging & Delivery:
Packaging Details: 1.Outside package:Standard marine export plywood case.
2.inner package:Stretch film and plastic film for humidity.
We can package according to your requests.
Delivery Detail: Shipped in 15 working days after payment.
Our Service:
1, Within 7 days since your local customs clearance: if the cnc router's any parts has any problems, we will change it free.
2, Exceed 7 days since your local customs clearance but within warranty period: if the cnc router parts have any problems, we can change the old machine parts to new ones free, but you should pay all the shipping cost.
3, Exceed warranty period: if the cnc router parts have any problems, we can offer new machine parts with cost price and you also should pay all the shipping cost.
4, We offer 24 hours technical support by call, and email.
5, Our technician can give you remote guide online(Skype or WhatsApp) if you have any question.
6, We can record videos of operating the laser machine.
7, Free training course in our factory.
8.Machine will be adjusted before it is delivered, operation disk/CD was included.
