Furniture Processing, Multi Workstage, Three Spindles, Wood CNC Cutting and Engraving Machine
Jinan Guanjiahong CNC Machinery Co., Ltd.- Condition:New
- Certification:ISO
- CNC or Not:CNC
- Voltage:as Your Require
- Table Type:Vacuum Table
- Control System:Nc Studio
Base Info
- Model NO.:1325
- Drive Mode:Servo
- Type:Cutting Router
- Controlling Mode:CNC
- Feed Mode:Mechanical
- Spindle Layout:Spindle Over
- Color:Customized
- Spindle Number:3
- Transport Package:Plywood Case
- Specification:CE
- Trademark:DONGTONG
- Origin:Shandong China
- HS Code:84609090
- Production Capacity:100 PCS,Month
Description
Basic Info.
Model NO. 1325 Drive Mode Servo Type Cutting Router Controlling Mode CNC Feed Mode Mechanical Spindle Layout Spindle Over Color Customized Spindle Number 3 Transport Package Plywood Case Specification CE Trademark DONGTONG Origin Shandong China HS Code 84609090 Production Capacity 100 PCS/MonthProduct Description

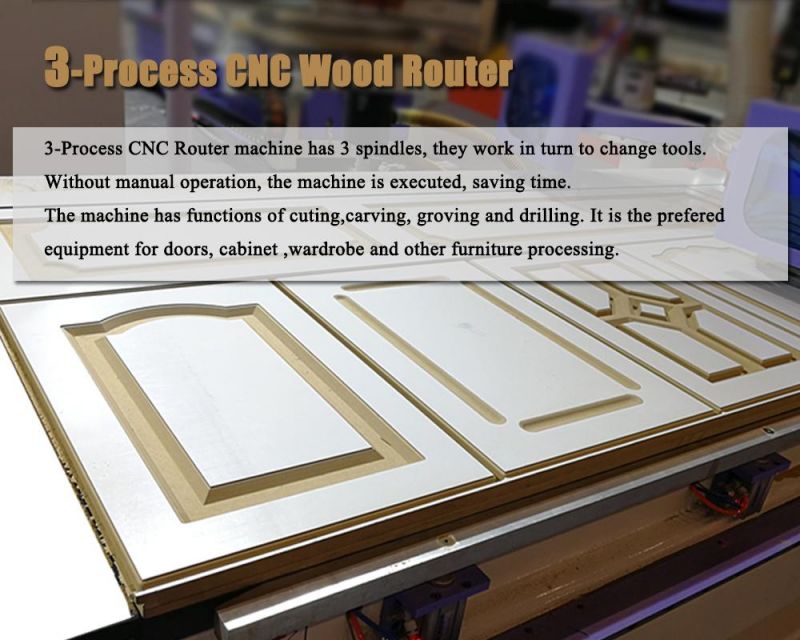

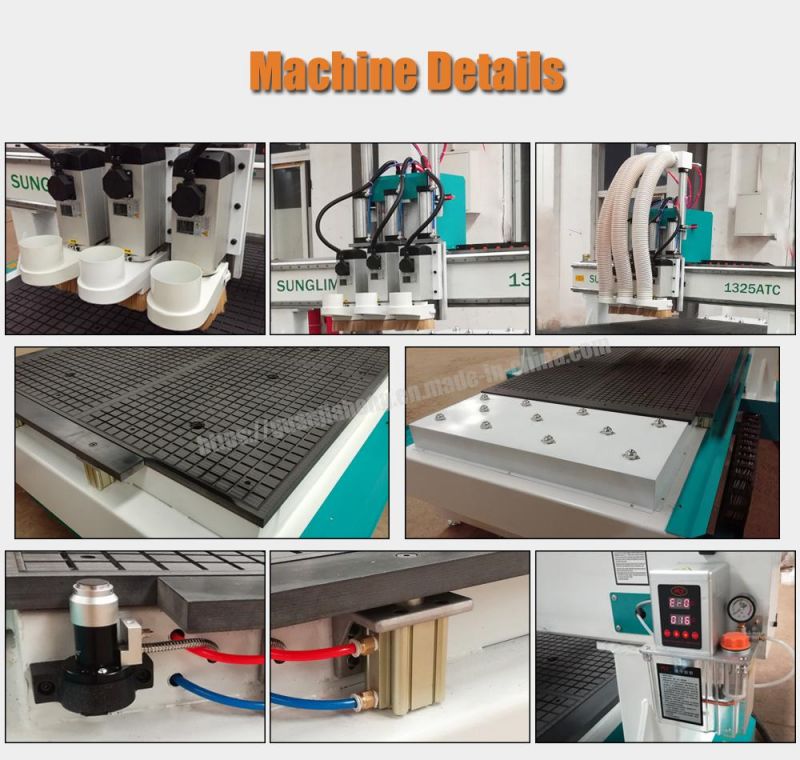

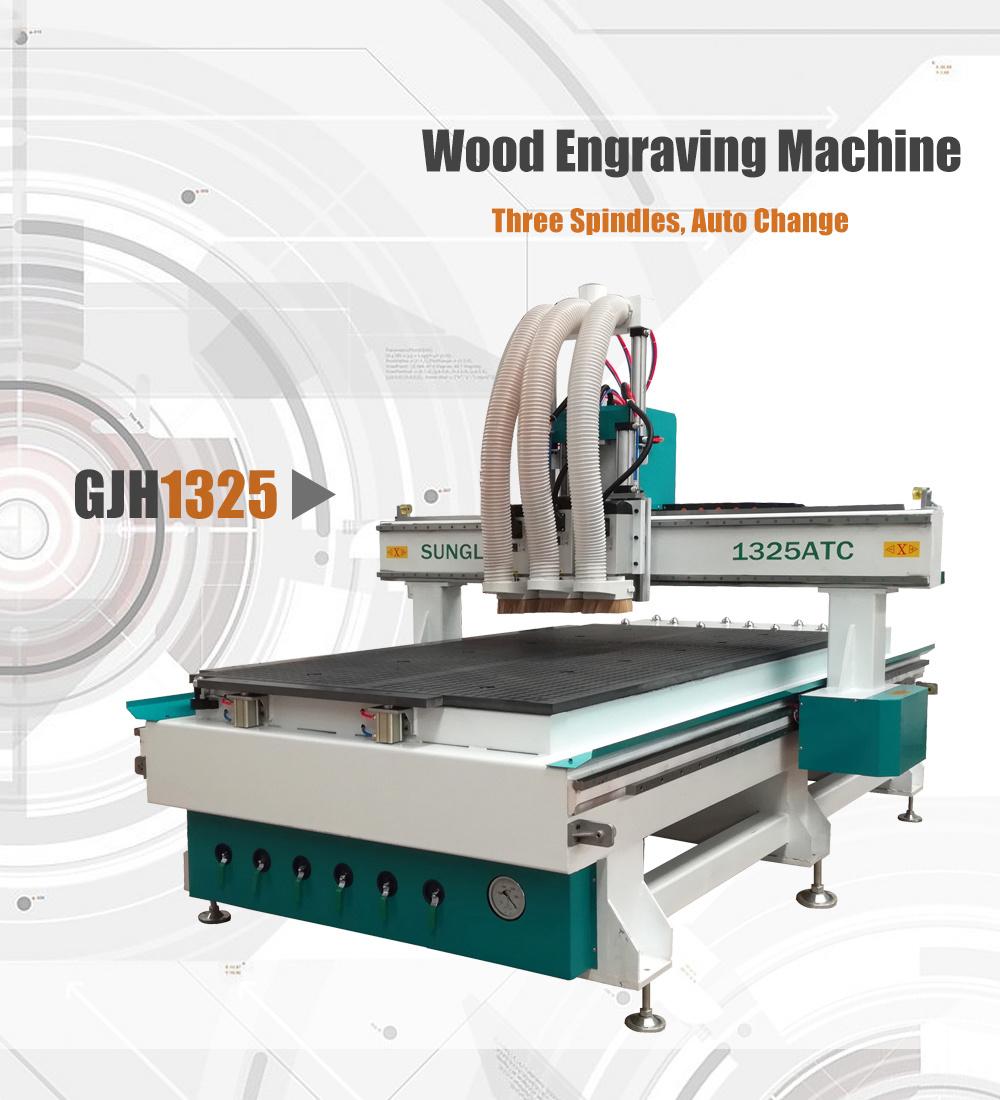

1325 ATC CNC cutting and drilling machine for furniture processing.Automatic cutting, special-shaped cutting, vertical drilling technology
NO | Performance index | Performance index | Parameter |
1 | Working area | X axis | 1300mm |
Y axis | 2500mm | ||
Z axis | 200mm | ||
2 | Table size | 1300mm*2500mm | |
3 | Accuracy | Engraving accuracy | 0.05mm |
Repositioning accuracy | 0.05mm | ||
4 | Drive mode | X axis | Helical rack and pinion |
Y axis | Helical rack and pinion | ||
Z axis | Ball screws | ||
5 | Speed | Max travel speed | 30000mm/min |
Max engraving speed | 15000mm/min | ||
6 | Spindle (air-cooling) | Spindle power | 4.5KW*3 |
Spindle speed | 0_24000r/min | ||
7 | Drive motor | Servo motor | |
8 | Working voltage | As your require | |
9 | Operating system | NC STUDIO | |
10 | Guide rail | PMI/HIWIN | |
11 | Auto lubrication | Auto | |
11 | Table type | Vacuum table |
1. One year warranty under normal use and we supply lifelong maintenance.2. 24 hours technical support by Phone, Email, Skype, Msn, or romote.3. Free training to make sure you master the operation of the cnc router.4. Usually, we will manufacturer the machine as our regular design.5. X Y Z Working Area could be custmer-oriented designing.6. Special configuration could be customer-oriented designing.

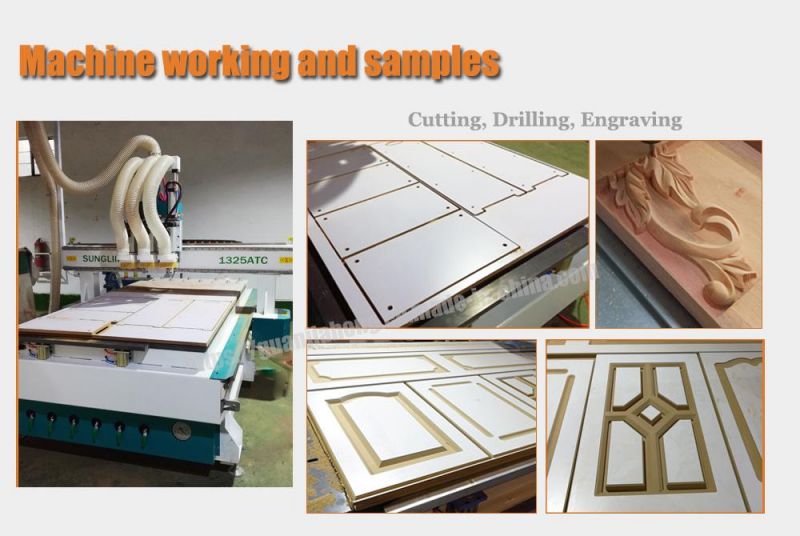

1325 Automatic tool change wood door cnc cutting machine,
Customizaiton is available.
