• Model NO.：RBD,BS1400
• Veneer Thickness：0.6-5mm
• Control：PLC Control
• Customized：Customized
• Knife Size：1500mm
• Color：Cuatomized
• Transport Package：Standard Export Packing
• Specification：4700x1900x1500mm
• Trademark：METRO MACH
• Origin：Linyi City, China
• HS Code：846596000
• Production Capacity：1000 Sets,Year

Basic Info.

Model NO. RBD/BS1400 Veneer Thickness 0.6-5mm Control PLC Control Customized Customized Knife Size 1500mm Color Cuatomized Transport Package Standard Export Packing Specification 4700x1900x1500mm Trademark METRO MACH Origin Linyi City, China HS Code 846596000 Production Capacity 1000 Sets/Year

Product Description

PRODUCT DESCRIPTIONHard Wood 4FT Plywood Veneer Peeling Machine1. Fearures
Spindleless veneer peeling machine is used for make veneer .
And it is suitable for the eucalyptus, pine, cotton wood and another log.
The quality of the veneer determines the quality of the plywood, so controlling the quality of the veneer is the premise and the most important part of producing standard plywood.
veneer peeling machine is a very technical equipment in plywood line equipment.

2. Technical Parameters

Working length	970mm - 1270mm
Working diameter range	80~500mm
Max. working speed	60m/min
Veneer thickness	0.6~5mm
Double rollers motor power	11kw
Single roller motor power	5.5kw x 2sets
Screw Feeding motor power	7.5kw
Rotary clipper motor power	2.2kw
Rubber belt conveyor motor	2.2kw
Machine size	4700x1900x1500mm
Machine weight	5000kgs
Reducer Model	R87 Hard helical
Remark	Including 6 meter veneer conveyor

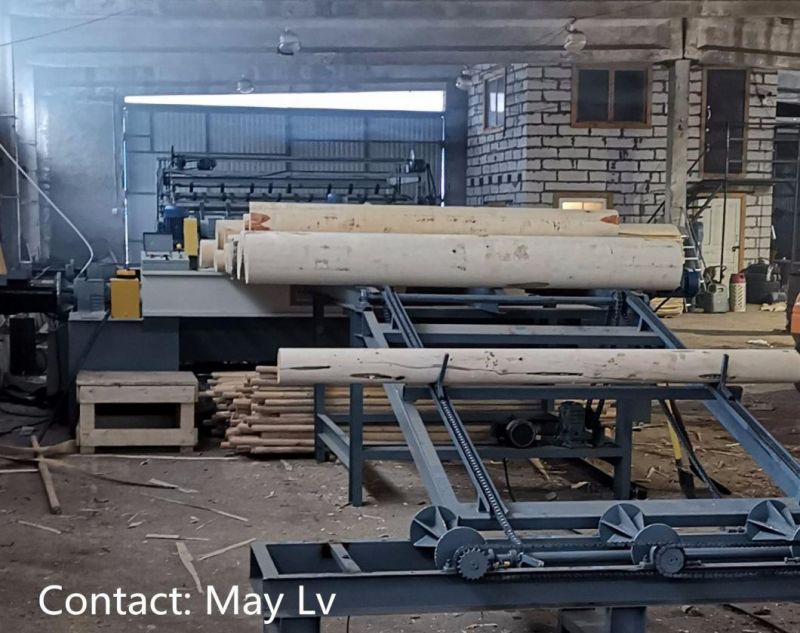

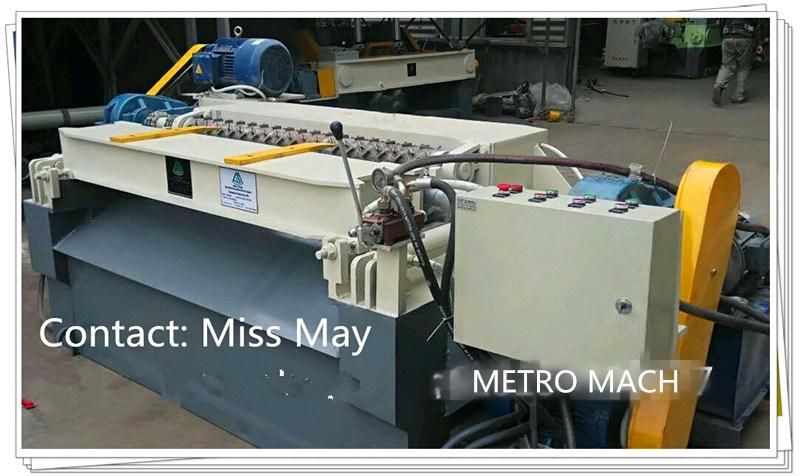

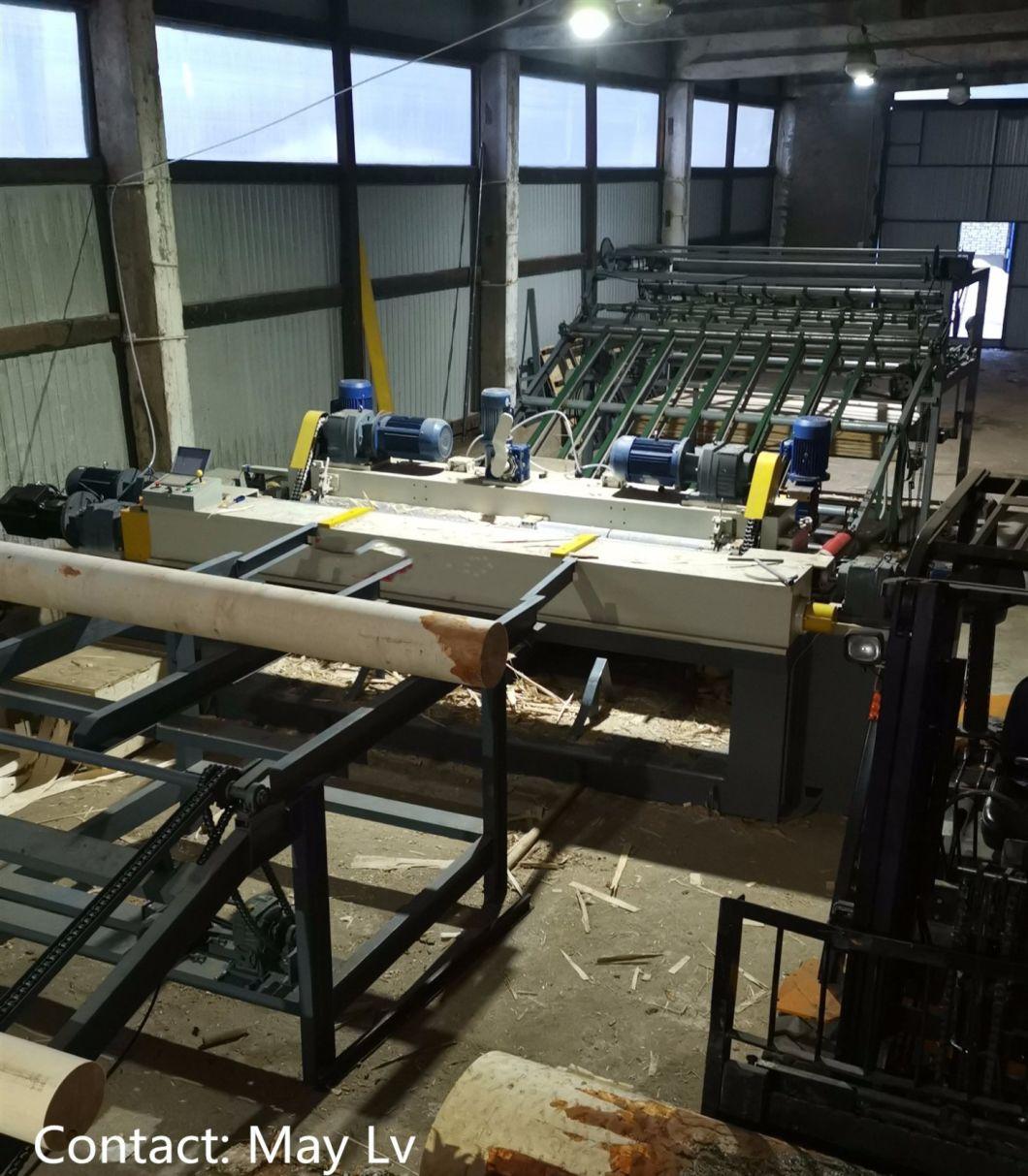

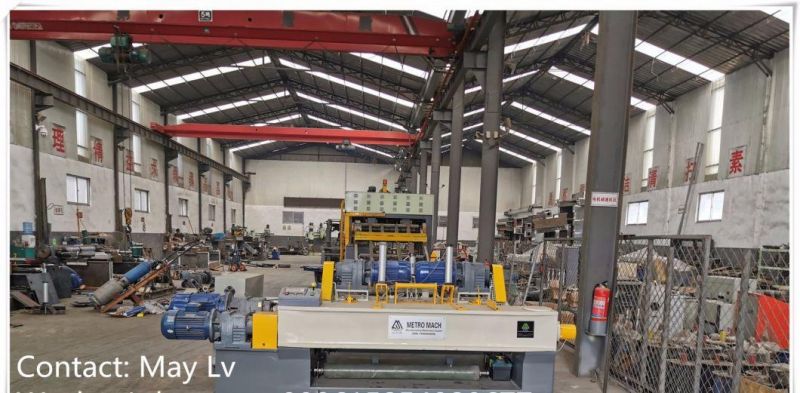

3. Product Show
