• Model NO.：2036
• Customized：Customized
• Condition：New
• Color：Customized
• Working Area：2000*3600*200mm
• Control System：Nc Pm95A Control System with Computer Control Box
• Spindle：6 Sets 2.2kw Water Cooling Spindle with 6 Pieces
• Spindle Speed：0-24000rpm
• Inverter：6 Sets 2.2kw Fuling Inverter
• Motor and Driver：FL 118 Stepper Motor and Yako 2811 Bigger and Stro
• Voltage：380V, 3pH, 50Hz
• Table Surface：T-Slot Work Table, 1400mm Length
• Transport Package：Standard Export Wooden Case
• Specification：3200*2140*1850mm
• Trademark：BLUE ELEPHANT
• Origin：Shandong, China
• Production Capacity：200 Sets Per Month

Basic Info.

Model NO. 2036 Customized Customized Condition New Color Customized Working Area 2000*3600*200mm Control System Nc Pm95A Control System with Computer Control Box Spindle 6 Sets 2.2kw Water Cooling Spindle with 6 Pieces Spindle Speed 0-24000rpm Inverter 6 Sets 2.2kw Fuling Inverter Motor and Driver FL 118 Stepper Motor and Yako 2811 Bigger and Stro Voltage 380V, 3pH, 50Hz Table Surface T-Slot Work Table, 1400mm Length Transport Package Standard Export Wooden Case Specification 3200*2140*1850mm Trademark BLUE ELEPHANT Origin Shandong, China Production Capacity 200 Sets Per Month

Product Description

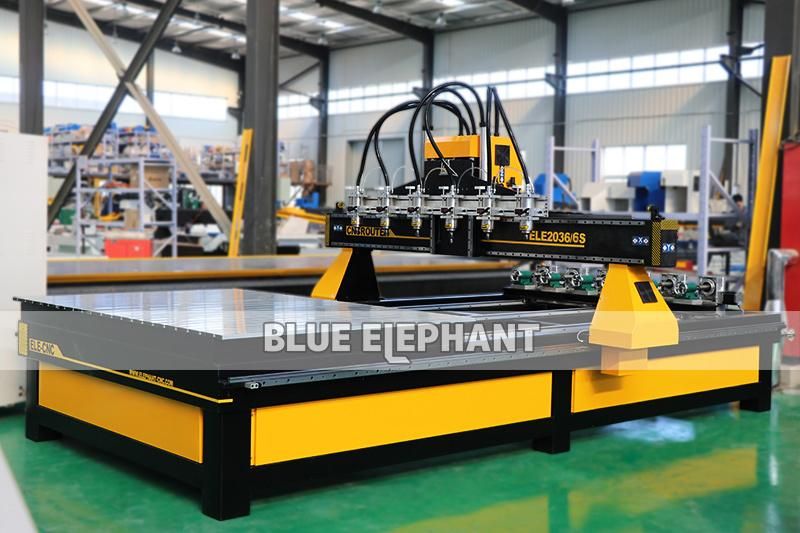

Multi Spindle Cnc One Head With 6 Spindles CNC Woodworking Machine

Features:

• Six sets 2.2kw water cooling spindle with 6 pieces spindle clamp, can work more efficiently at the same time.
• WEIHONG NC PM95A control system with computer control box, support 4 axis working at the same time

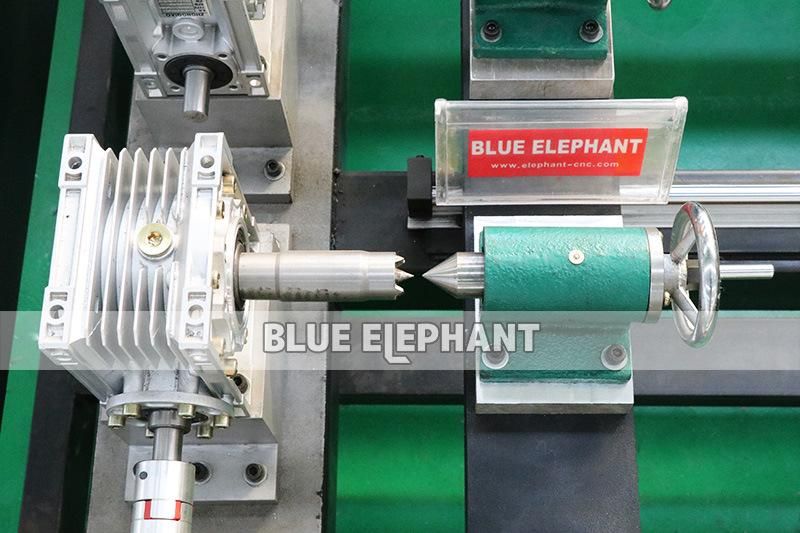

• Multi-function working surface, half of the working table is T-slot table, the other half are 6 set rotary devices which could engrave cylinder workpiece.

Parameters:

Descriptions	Parameters
Product name	2036 one head with six spindles cnc router
Modle	ELE2036/6S
Working area	2000*3600*200mm
Control system	NC PM95A control system with computer control box
Spindle	6 sets 2.2kw water cooling spindle with 6 pieces spindle clamp
Spindle speed	0-24000RPM
Inverter	6 sets 2.2kw fuling inverter
Motor and driver	FL 118 stepper motor and YAKO 2811 bigger and stronger driver
Voltage	380V, 3ph, 50Hz
Linear rail	Sweden ABBA #25 linear guide for all axis
Table structure	New type thicker and bigger heavy duty welded frame and gantry

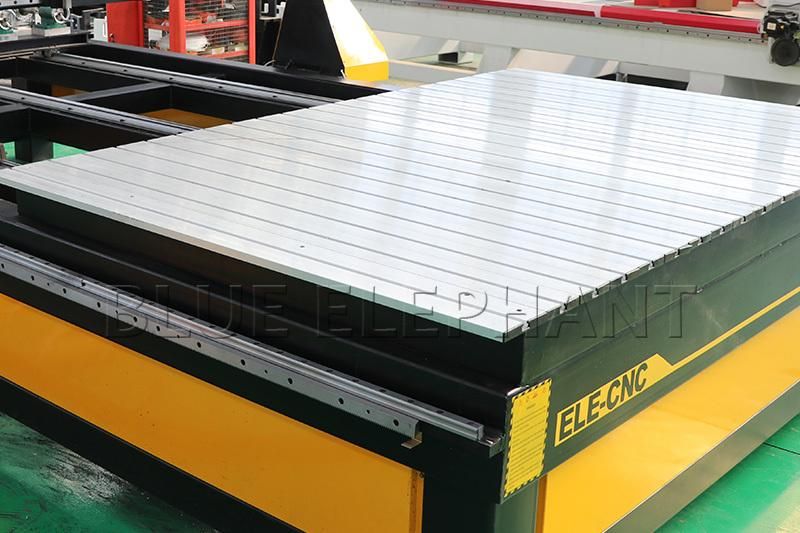

Table surface	T-slot work table,1400mm length
X,Y axis transmission	Helical rack and pinion drive for X,Y axis
Z axis transmission	Taiwan TBI 2510 ball screw for z axis
lubrication system	Manual lubrication system

PS: All the working area and specifications can be customized according to your requests.

Details:



Applications:

1. Wood furniture industry

Doors; Cabinets; Tables; Chairs.

Wave plate, fine pattern, antique furniture, wooden door, screen, craft sash, composite gates, cupboard doors, interior doors, sofa legs, headboards and so on.

2. Advertising industry

Signage; Logo; Badges; Display board; Meeting sign board; Billboard

Advertising filed, sign making, acrylic engraving and cutting, crystal word making, blaster molding, and other advertising materials derivatives making.

3. Die industry

A sculpture of copper, aluminum, iron and other metal molds, as well as artificial marble, sand , plastic sheeting, PVC pipe, and other non-metallic mold.

4. Artwork and Decoration

wood crafts; gift box; jewelry box

5. Others

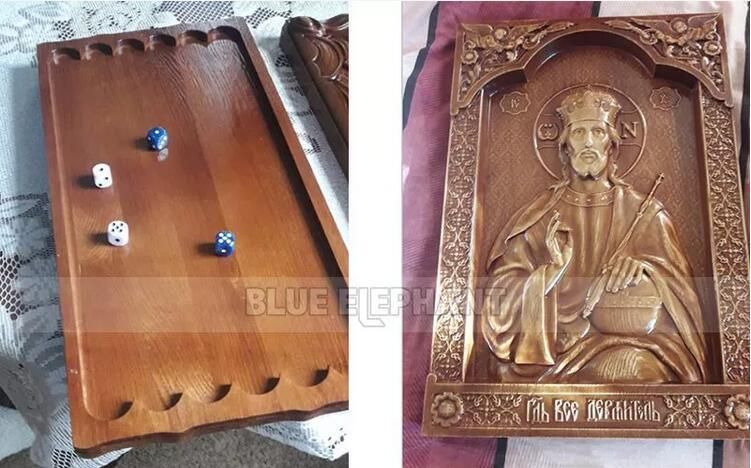

Relief sculpture and 3D engraving and Cylindrical object.



Packaging & Delivery:

Three layers---
-The innermost layer is EPE pearl cotton film package;
-The middle layer is wrapping up with environmental protection material ;
-And the outermost layer is winding up with PE stretch film.
They're very environmentally friendly.
If you need a wooden box, we will make a wooden box outside the machine.

Delivery Detail:  Shipped in 20 working days after payment.

Our Service:

1, Within 7 days since your local customs clearance: if the cnc router's any parts has any problems, we will change it free.

2, Exceed 7 days since your local customs clearance but within warranty period: if the cnc router parts have any problems, we can change the old machine parts to new ones free, but you should pay all the shipping cost.

3, Exceed warranty period: if the cnc router parts have any problems, we can offer new machine parts with cost price and you also should pay all the shipping cost.

4, We offer 24 hours technical support by call, and email.

5, Our technician can give you remote guide online(Skype or MSN) if you have any question.

6, We can record videos of operating the laser machine.

7, Free training course in our factory.

8.Machine will be adjusted before it is delivered, operation disk/CD was included.

Our Factory

• Jinan Blue Elephant CNC Machinery Co., Ltd is located in Jinan City, Shandong Province. We have always been developed to the research and manufacturer of CNC router machine and laser cutting engraving machine.
• We have our R & D department, Quality control department, and after sale & service department.
• Our products are widely used in Woodworking, Advertising, Model, Electric, CAD/CAM Industry model, Clothing, Package Printing, Marking, Laser sealing and so on.
• We had got CE and ISO9001 certification always offer best quality machine.
• Our Philosophy: To Be First Brand -- CNC Manufacturer & wholesaler Platform!
• Just looking forward to service every customer, like you.

Welcome to contact us.
