2030 3 Spindles Router CNC for Door Making with Air Cooling Spindls
Jinan Blue Elephant CNC Machinery Co., Ltd.- Type:Engraving Router
- Spindle Layout:Spindle Over
- Spindle Number:Single-Spindle
- Feed Mode:Mechanical
- Controlling Mode:CNC
- Certification:CE, ISO, SGS BV TUV
Base Info
- Model NO.:2030
- Customized:Customized
- Condition:New
- Color:Customized
- Working Voltage:AC380V, 3phase, 50Hz
- Working Area:2000*3000*300mm
- Control System:Weihong Pm95A-3L Control System with Handle
- Inverter:7.5kw Fuling Inverter
- Drivers and Motors:750W Japan Yaskawa Servo Motors and Drivers
- Table Surface:T-Slot and Vacuum Working Table with 6 Zones Sepa
- Vacuum Pump:7.5kw Air Type Vacuum Pump (380V, 3pH, 50Hz)
- Transport Package:Standard Export Wooden Case
- Specification:CE, FDA, ISO, SGS
- Trademark:BLUE ELEPHANT
- Origin:Shandong, China
- Production Capacity:200 Sets Per Month
Description
Basic Info.
Model NO. 2030 Customized Customized Condition New Color Customized Working Voltage AC380V, 3phase, 50Hz Working Area 2000*3000*300mm Control System Weihong Pm95A-3L Control System with Handle Inverter 7.5kw Fuling Inverter Drivers and Motors 750W Japan Yaskawa Servo Motors and Drivers Table Surface T-Slot and Vacuum Working Table with 6 Zones Sepa Vacuum Pump 7.5kw Air Type Vacuum Pump (380V, 3pH, 50Hz) Transport Package Standard Export Wooden Case Specification CE, FDA, ISO, SGS Trademark BLUE ELEPHANT Origin Shandong, China Production Capacity 200 Sets Per MonthProduct Description
2030 3 Spindles Router CNC for Door Making with Air Cooling Spindls
Features:
- It combines the functions of four axes and automatic tool change.
- A simple tool change operation can be performed, and engraving can also be done rotated to 90°.
- Very economical and practical, especially suitable for making doors.
Parameters:
Description | Parameter |

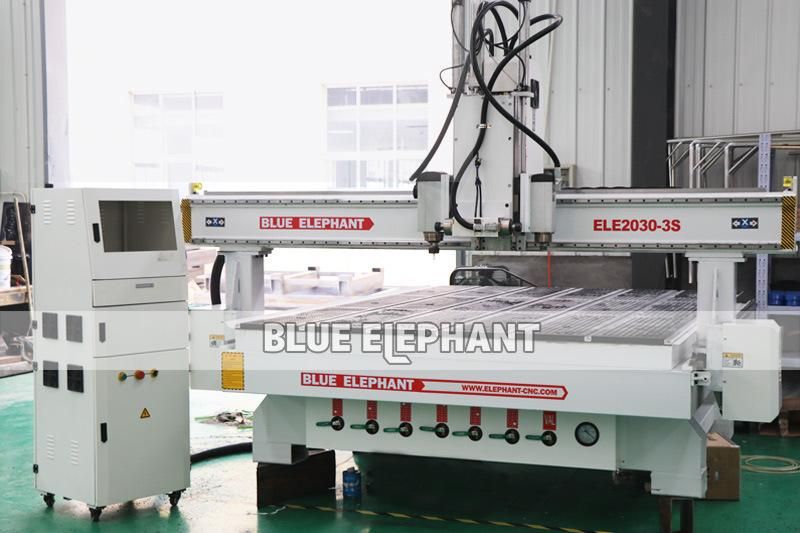

Model | ELE2030-3S |
Product Name | Pneumatic System 3 Spindles CNC Router |
Color | The whole machine is white with red logo (Color can be customized) |
Working Voltage | AC380V, 3Phase, 50Hz (Voltage can be customized according to local conditions) |
Working Area | 2000*3000*300mm |

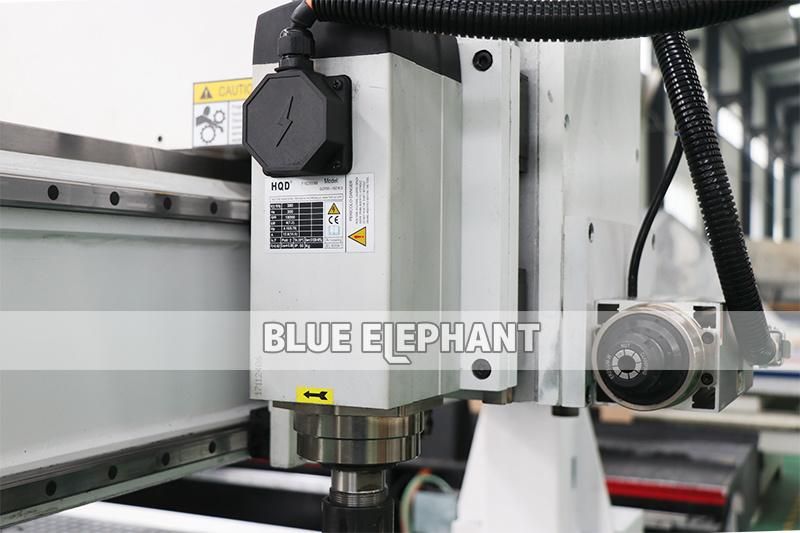

Spindles | Vertical spindle: 1 set 6kw HQD air-cooled spindle 1 set 3.5kw HQD air-cooled spindle Horizontal spindle: 1 set 3.5kw Changsheng air-cooled spindle |
Control System | WEIHONG PM95A-3L control system with handle |
Control Box | An empty control box, you can put your own computer in it |
Inverter | 7.5kw Fuling inverter |
Drivers and Motors | 750w Japan YASKAWA servo motors and drivers |
X,Y,Z Axis Transmission | X,Y axis: rack and pinion drive Z axis: Taiwan TBI ball screw drive X,Y,Z rail: Taiwan PMI/ABBA linear square rail |

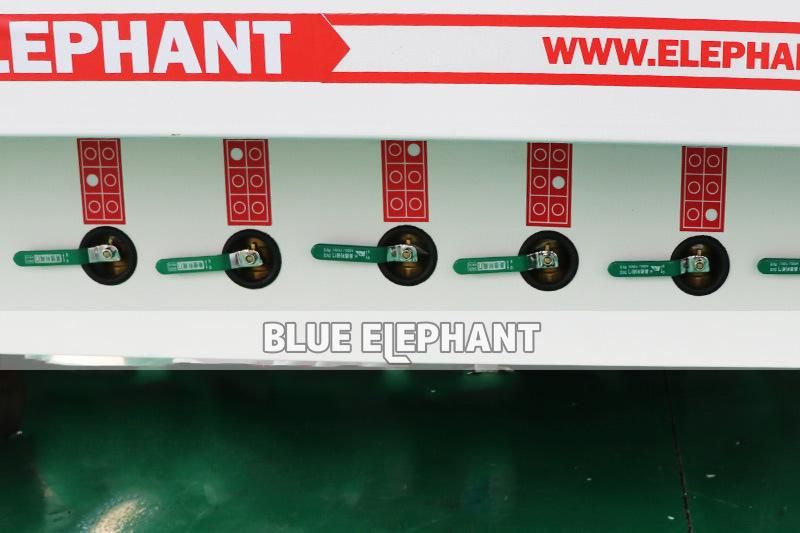

Table Surface | T-slot and vacuum working table with 6 zones separately controlled |
Lubrication System | Semi-automatic lubrication system |
Gantry structure | Gantry moving |
Mist cooling system | None (Optional: Water mist cooling sprayer, or Oil mist cooling sprayer) |
Frame structure | New type 10-12mm thicker and bigger heavy duty welded frame and gantry |
Vacuum Pump | 7.5kw air type vacuum pump (380v, 3ph, 50hz) |
Dust Collector | None (Optional: New type double bag dust collector) |
Positioning cylinder | A total of 7 sets: X-axis has 3 sets, and Y-axis has 4 sets |
PS:All the working area and specifications can be customized according to your requests.
Details:
Application

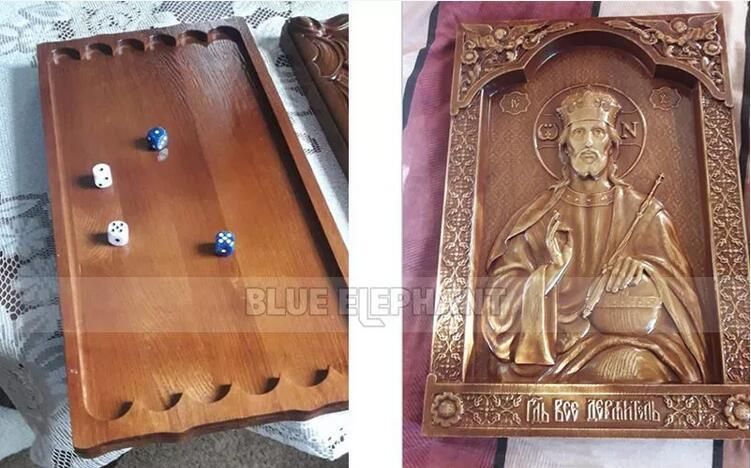

1. Wood furniture industryDoors; Cabinets; Tables; Chairs.
Wave plate, fine pattern, antique furniture, wooden door, screen, craft sash, composite gates, cupboard doors, interior doors, sofa legs, headboards and so on.
2. Advertising industry
Signage; Logo; Badges; Display board; Meeting sign board; Billboard
Advertising filed, sign making, acrylic engraving and cutting, crystal word making, blaster molding, and other advertising materials derivatives making.
3. Die industry
A sculpture of copper, aluminum, iron and other metal molds, as well as artificial marble, sand , plastic sheeting, PVC pipe, and other non-metallic mold.
4. Artwork and Decoration
wood crafts; gift box; jewelry box
5. Others
Relief sculpture and 3D engraving and Cylindrical object.
Our Service:
1, Within 7 days since your local customs clearance: if the cnc router's any parts has any problems, we will change it free.
2, Exceed 7 days since your local customs clearance but within warranty period: if the cnc router parts have any problems, we can change the old machine parts to new ones free, but you should pay all the shipping cost.
3, Exceed warranty period: if the cnc router parts have any problems, we can offer new machine parts with cost price and you also should pay all the shipping cost.
4, We offer 24 hours technical support by call, and email.
5, Our technician can give you remote guide online(Skype or MSN) if you have any question.
6, We can record videos of operating the laser machine.
7, Free training course in our factory.
8.Machine will be adjusted before it is delivered, operation disk/CD was included.
Packaging & Delivery:
Packaging Details:
Three layers---
-The innermost layer is EPE pearl cotton film package;
-The middle layer is wrapping up with environmental protection material ;
-And the outermost layer is winding up with PE stretch film.
They're very environmentally friendly.
If you need a wooden box, we will make a wooden box outside the machine.
Delivery Detail: ?Shipped in 15 working days after payment.
